Turn off the faucet/compression valve, have you used it?
Have you ever experienced pores/shrinkage/break?
Have you seen a micro-form compression/cutting faucet?
Come on, let’s unveil the mystery with Xiaobian!
1
Tap-craft
Pack.
Follow the end.
Determine the benchmark (center hole in both ends, grinding center holes)
The outer diameter of the thick grinding handle.
The outer diameter of the coarse blade.
The outer diameter of the rough neck.
Follow the tail.
Mo the horn.
Rough grinding.
Excellent outer diameter of grinding handle (Process 5-Process 10 can be alternated)
Speed thread, taper cutoff, thread outer diameter.
Hot treatment.
test.
Clean, marked, packaged.
Note: This threaded process represents personal opinions only.
2

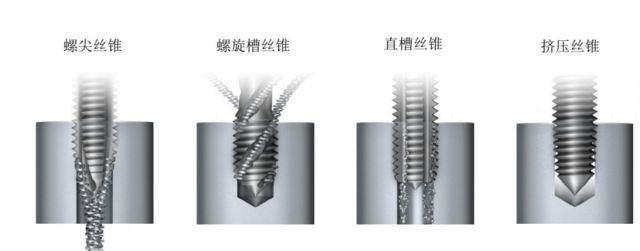

Classification of TAP
Cutting stroke:
1. Right tap (HT).
2. Spiral Slot Mat (SFT).
3. Apex (blade plus) trees (pot).
1. Straight sink tap (HT)
Features:
High blade tip force.
Straight groove
to use:
Dedication is material cut into powder.
Short pass holes, blind holes.
High hardness material.
2. Spiral Slot Tap (SFT)
Features:
Spiral spirimony
Can be processed at the bottom of the blind hole.
Dedication without residue.
Easy to cut the bottom hole.
Sharp sharp.
to use:
Consecrate in a spiral.
Blind holes can also be used for the hole.
3. Paral Tap (pot)
Features:
Portal location.
Powder in the front.
Dedication is not easy to accumulate.
Unleash strength.
Sharp sharp.
to use:
Dedication is spiral cut material.
It is only used for the hole.
Press the tap (NRT)
1. There are oil grooves. 2. No oil groove type.
Features:
No fleas.
The precision of the screw is stable.
The resistance of the resistor is high.
The bottom hole requirements are strict.
to use:
Materials with good plasticity.
Tongtong, all blind holes are available.
Cast iron, quality setting steel is not available.

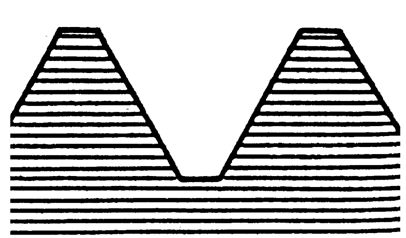

The crystalline fiber of the material is destroyed (left cut)

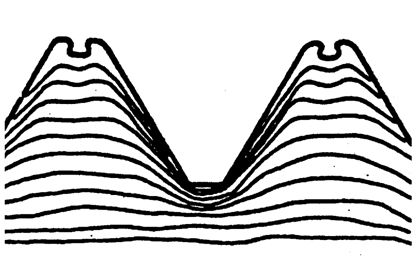

The material crystal fiber is not destroyed (the tap is pressed right)
Local bawling:

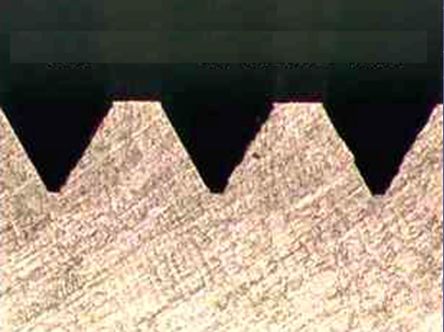

Turn off the tap (left)

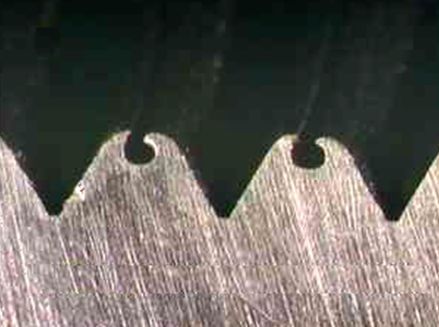

Press the tap (right)

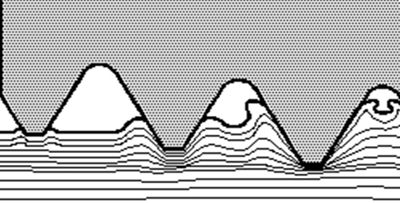

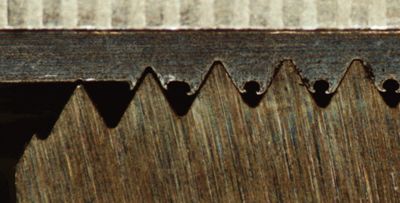

How the thread is pressed.
3
Problem/measure
Question 1: Expansion
Reason: poor selection of faucets.
measure:
Use the tap with appropriate precision to increase the length of the cutting cone.
Reason: film block.
measure:
Apex tap or spiral tap should be performed.
Reduce the number of taps and crumbs and expand the volume of crumbs.
Use fine floss.
Try to increase the bottom hole.
Short the length of the attack.
Use other brands of oil cutting or oil injection.
Reason: sticky knife.
measure:
Use a tap with surface oxidation cortex
Reduce cutting speed
Change the cutting angle to make it suitable for processing materials.
Question 2: Reduce

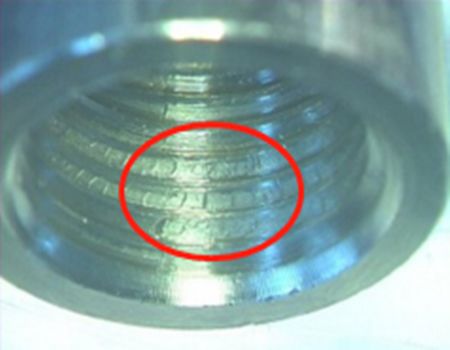

Reason: internal wire trauma.
measure:
The return to the return, especially the tap will leave it from the mouth of the inner thread.
Reason: there are crumbs in the inner thread.
measure:
Repair the faucet to reduce the retention of its shaped films.
Question 3: Estimates
Reason: too sharp.
measure:
Reduce the cutting angle.
Reduce the amount of shovel.
Reason: incorrect grinding.
measure:
Avoid the thicker blade.
Avoid grinding the bottom of the capsule slot.
Question 4: Broken
Reason: Too much torque cut.
measure:
The thickness of the blade is reduced.
Use a spiral slot tap.
Reason: improper use of taps.
measure:
Use high speed steel.
Prevent iron fleas from blocking (or using an apex/spiral/compromise).

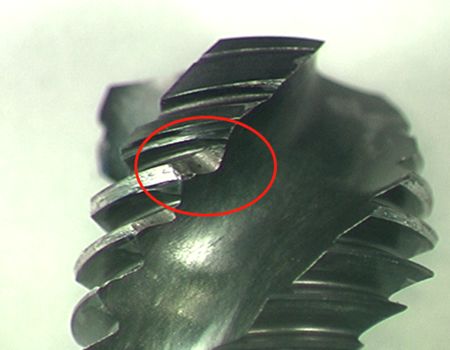

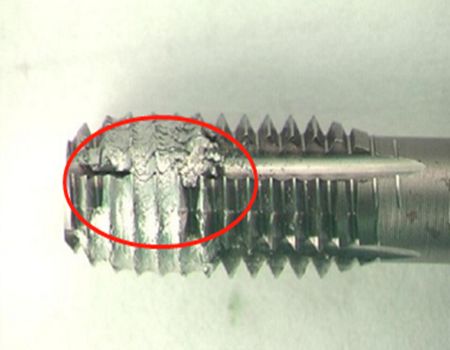

Fault: sticky/vibration/collapse (image/center/right image)
Q&A
Q: Different faucets are processed during processing?
A:
