Precision 5 Axis CNC Machining Services

What Are 5-Axis CNC Machining Services?

5-Axis CNC Machining is an advanced manufacturing process where a cutting tool moves in five different directions simultaneously to create complex parts from a solid block of material (like metal or plastic). Unlike 3-axis machines that move in linear X, Y, and Z directions, a 5-axis machine can also rotate on two additional axes (A and B, or B and C), allowing the tool to approach the workpiece from any direction in a single setup.

In short, 5-axis CNC services provide the capability to produce highly complex, precise, and high-value parts that are impossible or inefficient to make with traditional machining.

The Core Concept: How It Works

Imagine trying to carve a detailed statue. With a 3-axis machine, you’d have to stop and manually reposition the statue multiple times to reach all the sides and undercuts. With a 5-axis machine, the “chisel” can swivel and tilt to reach any part of the statue without having to reposition it.

• The Five Axes:

  • X-axis: Left to Right

  • Y-axis: Front to Back

  • Z-axis: Up and Down

  • A-axis: Rotation around the X-axis (Tilting)

  • B-axis: Rotation around the Y-axis (Tilting) – or – C-axis: Rotation around the Z-axis

This simultaneous movement allows for unparalleled flexibility and precision.

Key Advantages of Using 5-Axis CNC Services

Common Applications & Industries

5-axis services are essential for industries where complexity, precision, and performance are critical:

• Aerospace: Turbine blades, engine components, lightweight structural parts with complex contours.

• Automotive: Cylinder heads, custom turbocharger housings, complex prototypes.

• Medical: Orthopedic implants, surgical instruments, prosthetics with organic shapes.

• Energy: Impellers, turbine wheels, complex manifolds for oil & gas.

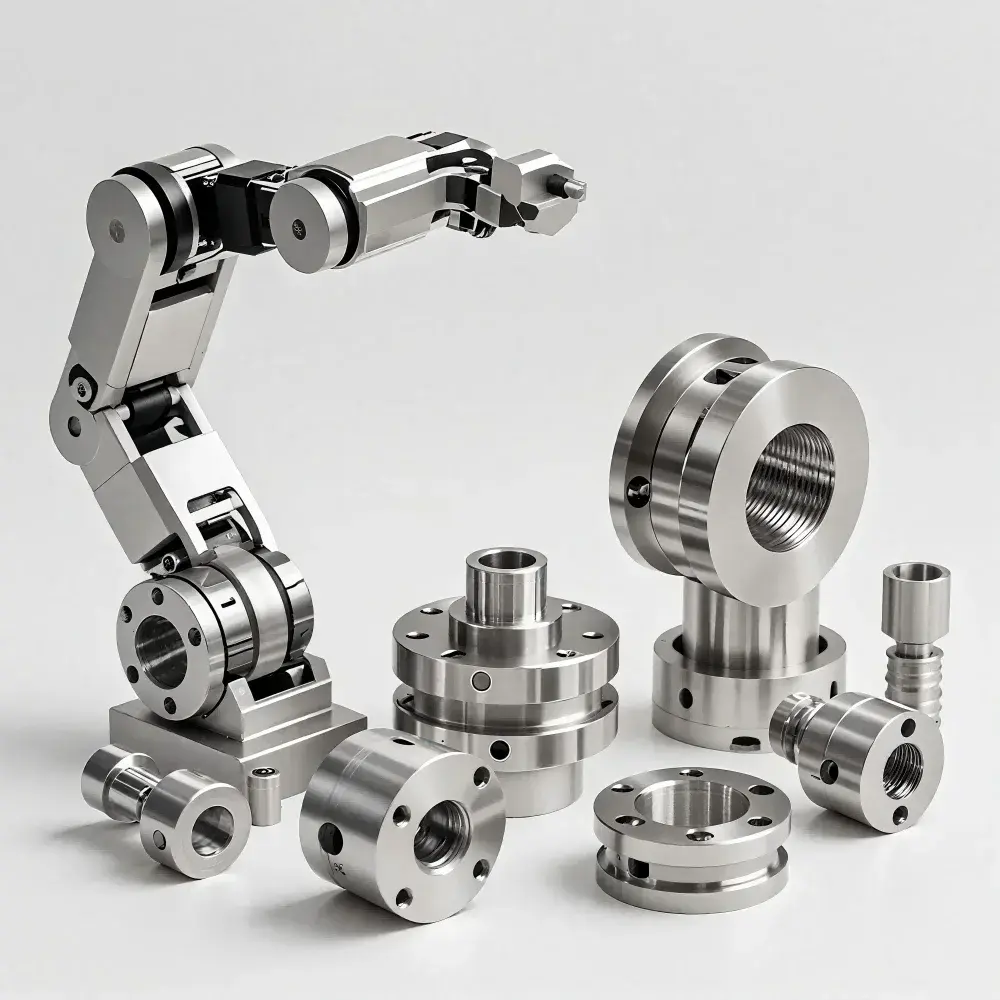

• Robotics: Lightweight, high-strength arms, joints, and actuator housings.

• High-End Consumer Products: Architectural models, intricate art pieces, and premium audio equipment.

When Do You Need 5-Axis CNC Services?

Consider 5-axis machining if your part requires:

• Machining on multiple faces in a single operation.

• Complex 3D surfaces or organic, sculpted shapes.

• Extremely tight tolerances and flawless feature alignment.

• Materials that are expensive or difficult to machine, where maximizing accuracy and minimizing waste is crucial.

Summary

5-axis CNC machining services offer a powerful solution for manufacturing sophisticated components with high efficiency and unparalleled accuracy. By investing in these services, you are not just buying a machining process; you are acquiring the capability to turn ambitious designs into reality, reduce time-to-market, and achieve a level of quality that sets your products apart.

Our 5-Axis CNC Machining Capabilities: Powering Complex Projects at Scale

Thank you for your inquiry! With our extensive in-house manufacturing capacity, we are well-equipped to handle both highly complex prototypes and large-volume production runs. Here’s a detailed breakdown of our capabilities:

✔️ Advanced Equipment Portfolio

• Five-Axis CNC Centers: 16 Units

  • Capable of simultaneous 5-axis machining for the most complex geometries, contours, and undercuts.

  • Ideal for: aerospace components, turbine blades, impellers, medical implants, and complex structural parts.

• Four-Axis CNC Mills: 12 Units

  • Perfect for cylindrical machining, indexing, and producing parts with features on multiple sides, such as camshafts or gears.

• Three-Axis CNC Mills: 27 Units

  • The workhorses for high-precision 2.5D and 3D milling, facing, and drilling operations. We use these for less complex features or to offload simpler operations, optimizing overall production flow.

• CNC Milling & Turning Centers: 16 Units

  • Offer integrated milling and turning (e.g., Mill-Turn centers), allowing us to complete complex parts that require both rotational and prismatic features in a single setup.

✔️ Our Core Strengths & What This Means for You

1. Unmatched Versatility & Scalability:

   • Our mixed fleet allows us to match the right machine to your specific part geometry and tolerance requirements, ensuring cost-effectiveness without compromising on quality.

   • Whether you need a single 5-axis prototype or a production run of 10,000+ parts utilizing our full range of 3, 4, and 5-axis machines, we have the capacity.

2. Massive Production Capacity:

   • With over 70 total CNC machines in our facility, we can handle very large orders and offer accelerated lead times by running jobs in parallel.

3. Seamless Complex-to-Simple Workflow:

   • We can machine the complex, free-form surfaces of a part on a 5-axis machine and then efficiently complete standard drilling and tapping on our high-speed 3-axis machines, maximizing overall equipment efficiency for your project.

4. End-to-End Solution:

   • From complex 5-axis milling to precision turning and secondary operations, we can manage your entire project under one roof, simplifying your supply chain and ensuring consistency.

✔️ Industries & Applications We Serve

• Aerospace & Defense: Structural components, bulkheads, engine parts, drone frames.

• Automotive & Racing: Prototypes, cylinder heads, suspension components, custom intake manifolds.

• Medical & Dental: Surgical guides, instrument housings, orthopedic implants, research equipment.

• Energy: Pump housings, valve bodies, impellers, components for oil & gas.

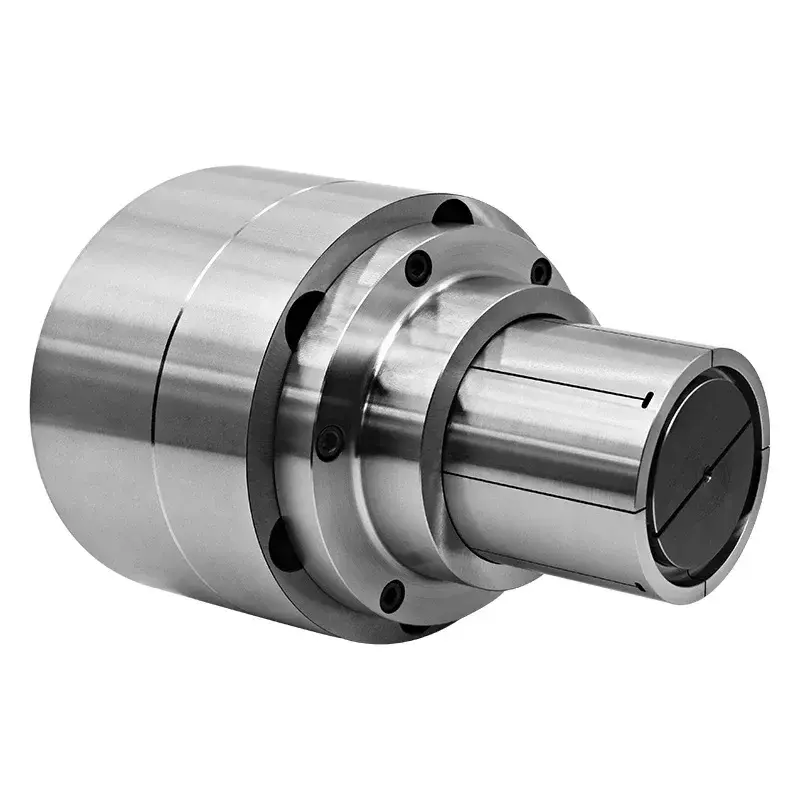

• Industrial Machinery: Robotic end-effectors, custom actuators, high-tolerance fixtures.

Let’s Start Your Project

We are confidently equipped to meet and exceed your “larger processing needs.” Our scalable setup is designed for growth and is ready to become an extension of your manufacturing team.

Next Steps:
➡️ Send us your 3D CAD model for a comprehensive DFM (Design for Manufacturability) analysis and a competitive quotation.
➡️ Discuss your annual volume or project scope—we will create a tailored production plan to ensure on-time delivery.

Why Choose 5-Axis CNC Machining Services? The Ultimate Advantage

Choosing 5-axis CNC machining isn’t just about making a part; it’s about optimizing your entire manufacturing process for superior quality, efficiency, and design freedom. Here’s why it’s the definitive choice for complex and high-value components.

1. Unmatched Design Freedom & Complexity

• The “Impossible” Made Possible: Create complex, organic geometries, compound curves, undercuts, and intricate contours that are simply unachievable with 3-axis machining.

• Single-Step Sculpting: Machine parts that would otherwise require multiple assemblies into a single, strong, integrated component.

2. Supreme Precision & Accuracy

• Single Setup Superiority: The part is fixed once. By machining five sides in one operation, you eliminate the cumulative errors introduced by repositioning the part across multiple setups.

• Perfect Feature Alignment: Critical features on different planes (like angled holes or intersecting surfaces) are perfectly aligned to a single datum, ensuring flawless assembly and performance.

3. Dramatically Improved Efficiency & Cost-Effectiveness

• Faster Production: Drastically reduce total production time by completing parts in a single setup. This means faster prototyping and a quicker path to market.

• Reduced Labor & Overhead: Automated, complex machining requires less manual intervention, fixture building, and machine idle time, lowering your overall cost per part, especially for complex components.

• Lower Total Cost of Ownership: While the hourly rate may be higher, the reduction in setup time, labor, and secondary operations often makes 5-axis machining more cost-effective for complex parts.

4. Superior Surface Finish

• Optimal Tool Orientation: The tool can be tilted to maintain the perfect cutting position, allowing for higher feed rates and a better surface finish right off the machine.

• No Witness Lines: Eliminate the visible “stair-step” lines or mismatch marks that occur when a part is moved and re-fixtured for different operations.

5. Ability to Machine Challenging Parts

• Short-Tool Advantage: By tilting the part, you can use shorter, more rigid cutting tools to reach deep or obstructed areas. This reduces tool vibration, deflection, and breakage, resulting in higher accuracy and a better surface finish.

• Ideal for Expensive Materials: Maximize yield and precision when machining high-value materials like titanium, Inconel, or advanced composites, where every gram of waste counts.

When is 5-Axis CNC the Right Choice?

Consider 5-axis services if your project involves:

• Complex 3D surfaces (aerofoils, impellers, custom molds).

• Multiple angled features on different faces of a part.

• Parts requiring high accuracy across several planes.

• Need for reduced lead times and assembly consolidation.

• Machining expensive materials where precision is paramount.

Summary: The Smart Choice for Advanced Manufacturing

In essence, 5-axis CNC machining transforms manufacturing from a series of compromises into a streamlined, high-fidelity process. It’s not just a machining method; it’s a strategic advantage that enables innovation, ensures quality, and delivers complex parts faster and more efficiently.

The 5-Axis CNC Machining Process: A Step-by-Step Guide

Phase 1: Digital Foundation & Programming

1. CAD Design (Computer-Aided Design):

   • The process begins with a 3D model of the part created in CAD software (e.g., SolidWorks, CATIA, NX). This model defines the final part’s exact geometry, including all complex curves, angles, and surfaces.

2. CAM Programming (Computer-Aided Manufacturing):

   • The 3D CAD model is imported into CAM software (e.g., Mastercam, PowerMill, HyperMill).

   • A programmer then defines the toolpaths—the precise routes the cutting tool will take.

   • This is the most critical step for 5-axis machining. The programmer must:

     • Select the appropriate cutting tools.

     • Set cutting speeds, feed rates, and depth of cuts.

     • Define the tool axis orientation, constantly controlling how the tool tilts and rotates to avoid collisions and ensure optimal cutting.

     • Perform virtual collision checking to simulate the entire process and ensure the tool, holder, and machine components do not crash into the part or fixture.

3. Post-Processing:

   • The CAM software translates the toolpaths into G-code, a language the specific 5-axis CNC machine understands. This code controls all movements of the machine’s five axes simultaneously.

Phase 2: Physical Setup

4. Machine & Workpiece Setup:

   • A block of raw material (the “workpiece”) is securely mounted to the machine’s table or a precision fixture.

   • Crucially, this is typically the only time the part is fixtured. The ability to access almost all sides in one setup is a key advantage.

   • The required cutting tools are loaded into the machine’s automatic tool changer (ATC).

Phase 3: Machining Execution

5. Simultaneous 5-Axis Machining:

   • The machine executes the G-code program.

   • Unlike 3-axis machining, the tool can move linearly (X, Y, Z) while the workpiece and/or tool simultaneously rotates on two additional axes (A, B, or C). This allows the cutting tool to maintain the most efficient orientation to the part’s surface.

   • This stage often involves:

     • Roughing: Using powerful cuts to quickly remove the bulk of the material.

     • Semi-Finishing: Removing material to leave a small, uniform amount for the final pass.

     • Finishing: Using precise tools and paths to achieve the final dimensions, tolerances, and surface finish.

     • Feature Creation: Machining holes, threads, and intricate contours from multiple angles without re-fixturing.

6. In-Process Verification (Optional but Common):

   • On advanced machines, a touch probe can automatically check critical dimensions during the process, allowing for real-time adjustments and ensuring quality.

Phase 4: Completion & Validation

7. Part Removal & Deburning:

   • Once the cycle is complete, the finished part is removed from the machine. Any minor sharp edges (burrs) are carefully removed.

8. Final Inspection & Quality Control:

   • The part is thoroughly inspected using precision metrology tools like CMMs (Coordinate Measuring Machines) to verify that all dimensions and geometric tolerances meet the CAD model’s specifications.

   • Surface finish may also be measured with a profilometer.

9. Post-Processing (If Required):

   • The part may be sent for additional treatments such as anodizing, plating, painting, or heat treatment, depending on its application.

Summary: The Key Differentiator

The entire 5-axis CNC process is orchestrated around one core principle: completing complex geometries in a single setup. This eliminates the errors and time associated of moving the part between multiple machines, resulting in a faster, more accurate, and more cost-effective solution for complex parts.

#5AxisCNC #CNCProgramming #PrecisionMachining #ManufacturingProcess #CADCAM #Engineering #AdvancedManufacturing

What’s the Difference Between 3D Printing and CNC Machining?

Of course. This is a fundamental question in modern manufacturing. While both 3D Printing and CNC Machining are used to create complex parts, they are fundamentally different processes with their own strengths and weaknesses.

Here’s a clear breakdown of the differences:

The Core Difference: Additive vs. Subtractive

• 3D Printing (Additive Manufacturing): Builds a part layer-by-layer from the bottom up, using material (like plastic filament or resin) that is deposited, fused, or cured.

  • Analogy: A hot glue gun building a shape by stacking lines of glue.

• CNC Machining (Subtractive Manufacturing): Starts with a solid block of material (like metal or plastic) and cuts away material using rotating cutting tools to achieve the final shape.

  • Analogy: A sculptor carving a statue from a block of marble.

Head-to-Head Comparison

How to Choose: A Simple Guideline

• Choose 3D Printing when:

  • Your design has intricate, internal geometries.

  • You need a prototype quickly and cheaply.

  • Part lightweighting through complex lattices is a priority.

  • You are only making 1 to 10 parts.

• Choose CNC Machining when:

  • You need a part with high strength and durability.

  • Tight tolerances and a smooth finish are critical (e.g., for bearings or seals).

  • You are using standard engineering metals or plastics.

  • You are producing 10 to 10,000+ parts.

#3DPrinting #CNCMachining #AdditiveManufacturing #SubtractiveManufacturing #Prototyping #ProductDesign #Engineering #Manufacturing

What is the typical cost of a 5-Axis CNC machined part?

Our engineering and sales teams will provide one-on-one quote support for your project. Typically, for similar parts, CNC lathes cost 15% less to machine than standard 3-axis CNC milling. In contrast, the cost of 5-axis machining increases, continuous 5-axis CNC milling typically costs over 20% higher than an indexed 5-axis machine (also referred to as 3+2 milling), and about double that of a standard 3-axis mill. To achieve the most cost-effective CNC machined parts, larger production runs are recommended to spread the cost of machine setup.

Key Factors That Determine the Cost

1. Part Geometry & Complexity:

   • Simple Bracket vs. Complex Impeller: A simple block with a few angled holes costs far less than a turbine impeller with complex, free-form blades. Complexity increases programming and machining time exponentially.

2. Material Cost & Machinability:

   • Aluminum 6061: ~$5-10 per kg (Most economical, easy to machine)

   • Stainless Steel 304/316: ~$10-20 per kg (Harder on tools, slower machining)

   • Titanium (Ti-6Al-4V): ~$50-100+ per kg (Very hard on tools, requires slow speeds, specialized knowledge)

   • Engineering Plastics (PEEK, Delrin): ~$50-150 per kg (Material cost can be high, but often faster to machine)

3. Part Size & Initial Raw Material Block:

   • Cost is heavily influenced by the size of the raw stock needed. A large part requires a large, expensive block of metal, and a significant amount of that material may be machined away into chips.

4. Quantity:

   • 1-10 Parts (Prototyping): High cost per part. Setup and programming costs are amortized over few units.

   • 10-100 Parts (Low-Volume Production): Cost per part drops significantly as setup costs are spread out.

   • 100+ Parts (Production): Lowest cost per part. The manufacturer can optimize the process for volume.

5. Tolerances & Surface Finish Requirements:

   • Standard tolerance (±0.125 mm / ±0.005″) is standard. Tighter tolerances (±0.025 mm / ±0.001″ or better) require slower machining, specialized tools, and more inspection, increasing cost.

   • A standard machined finish is included. A mirror-quality finish requires additional polishing steps.

6. Post-Processing:

   • Costs add up for processes like:

     • Anodizing, Plating, Painting

     • Heat Treatment

     • Laser Engraving

     • Specialized Inspection (e.g., CMM reports)

Realistic Price Estimate Ranges

Here are some very rough estimates for a single part, excluding material extremes like titanium and assuming aluminum.

Important Note: For production quantities, the unit price can often drop by 50% or more once the initial setup and programming are complete.

Why is 5-Axis CNC Often More Expensive (and Worth It)?

• Higher Machine Cost: 5-axis machines are a significant capital investment, which is reflected in their hourly rate ($75-$150+/hour vs. $40-$90/hour for 3-axis).

• Advanced Programming: Creating collision-free, efficient 5-axis toolpaths requires highly skilled engineers and expensive CAM software.

• Specialized Tooling & Fixturing: May require custom fixtures to hold complex parts.

However, it can be more cost-effective overall because it consolidates what would require multiple 3-axis setups and secondary operations into one, reducing labor, handling, and potential for error.

How to Get an Accurate Quote

To get a meaningful quote, provide a manufacturer with:

1. 3D CAD Model (e.g., .STEP or .IGES file).

2. 2D Drawing with critical dimensions, tolerances, and finish callouts.

3. Material Specification.

4. Quantity Required.

5. Any Post-Processing Needs.

Summary

There is no “typical” cost, but understanding the drivers allows for informed decisions. For a accurate budget, always request a formal quotation. The investment in 5-axis CNC is justified when you need a part with complex geometries, high precision, and superior quality that would be impossible or more expensive to produce using multiple traditional methods.

#5AxisCNC #CNCMachining #CostEstimate #Manufacturing #Prototyping #ProductDevelopment #Engineering

Our 5-Axis CNC Machining Capacity & Size Ranges

We operate a flexible fleet of 5-axis CNC machines to match the optimal equipment to your project’s size and complexity requirements.

Standard 5-Axis Machine Travel Ranges:

• Large Format: Up to 4000 x 400 x 150 mm
  (Ideal for long, slender components like aerospace rails or actuator housings)

• Medium Format: Up to 750 x 1150 x 550 mm & 600 x 600 x 600 mm
  (Perfect for most complex components, including robotic frames, automotive subsystems, and medium-sized impellers)

• Compact/High-Precision: 500 x 500 x 450 mm & 500 x 310 x 200 mm
  (Optimized for high-precision, complex small parts like medical device components, intricate prototypes, and detailed fixtures)

• Rotary Table Capacity: Worktable diameter of Φ400 mm
  (Suited for machining multiple sides of smaller, cube-like parts in a single setup)

Key Takeaway for Our Clients:

“We possess the in-house capability to process a wide spectrum of part sizes, from compact, high-precision components to large-scale industrial parts.”

What This Means for Your Project:

• Versatility: Whether your part is a small, intricate medical implant or a long, structural aerospace component, we have a 5-axis machine suited for the task.

• Expert Matching: Our engineering team will analyze your part’s geometry and select the most efficient and cost-effective machine in our fleet for your job.

• Scalability for Larger Needs: For components exceeding these standard dimensions, our engineering team is ready to consult on custom solutions and feasibility. We can process larger sizes.

Next Steps for a Precise Quote:

To determine the perfect machine for your project and provide an accurate quotation, we recommend the following:

1. Share Your CAD Model: Provide your 3D model (STEP, IGES, etc.).

2. Specify Critical Dimensions: Highlight any overall size constraints or key features.

3. Indicate Quantity & Material: Help us understand your full production scope.

Our engineers are ready to review your specific requirements and confirm the ideal processing strategy for your parts, ensuring a perfect fit for your project’s scale and precision needs.

#5AxisCNC #CNCCapacity #PrecisionMachining #LargeFormatCNC #Manufacturing #EngineeringSolutions

Surface Finish in 5-Axis CNC Machining: A Detailed Guide

The “as-machined” finish is the standard result directly from the CNC milling process. However, 5-axis machining offers superior control over this finish compared to 3-axis methods.

Standard “As-Machined” Finish (Ra 1.6 – 3.2 μm)

• What to Expect: Visible, uniform tool marks. The surface is functional and clean but has a distinct engineered look. It is not perfectly smooth to the naked eye or touch.

• Why it’s the Standard: This represents the optimal balance between machining time, cost, and functional performance for most applications. It is suitable for non-cosmetic internal parts, structural components, and interfaces that will be gasketed.

High-Quality Machined Finish (Ra 0.8 – 1.6 μm)

• What to Expect: A much smoother appearance with very faint or no visible tool marks. It feels smooth to the touch.

• How It’s Achieved: Using finer stepovers (the distance between tool passes), sharper tools, slower feed rates, and specialized finishing toolpaths. 5-axis machining excels here because it can maintain the optimal tool tilt, ensuring the cutting edge, not the tip, engages the material for a cleaner shear.

• Common Applications: Visible components, bearing seats, hydraulic seal surfaces, and high-performance automotive parts.

Fine / Precision Machined Finish (Ra 0.2 – 0.8 μm)

• What to Expect: A near-mirror, glossy surface that is exceptionally smooth. This requires a deliberate and skilled machining process.

• Cost Implication: As you noted, this significantly increases operating time and requires specialized tools, expert CAM programming, and often a multi-stage finishing process, leading to higher costs.

• Common Applications: Optical components, medical implant surfaces, high-end consumer product aesthetics, and critical sealing surfaces in aerospace.

The 5-Axis Advantage for Surface Finish

1. Continuous Optimal Cutting Angle: The tool can be tilted to maintain the perfect contact point with the contour of the part. This prevents “cusp” marks left at the tip of a ball-nose tool in 3-axis machining, resulting in a more uniform, higher-quality surface.

2. Reduced Scalloping & Smoother Transitions: By moving simultaneously in five axes, the machine can create complex curved surfaces in a single, fluid motion, eliminating jarring transitions or “witness lines” between separate operations.

Achieving a Finish Beyond “As-Machined”

If a perfectly smooth or mirror-like surface is required, the machined part must undergo post-processing. Here are the most common methods:

Summary

• Standard: Ra 1.6-3.2 μm (Visible tool marks, functional)

• High-Quality: Ra 0.8-1.6 μm (Smooth to touch, for visible parts)

• Precision: Ra 0.2-0.8 μm (Near-mirror, high cost)

• 5-Axis Benefit: Inherently produces a better, more consistent surface on complex contours than 3-axis machining.

• For Perfection: Post-processing is required to completely eliminate all tool marks.

When requesting a quote, simply specify your required Surface Roughness (Ra) and the part’s function (e.g., “cosmetic exterior,” “hydraulic sealing surface”). This allows the manufacturer to plan the most efficient and cost-effective strategy to meet your needs.

#CNCMachining #SurfaceFinish #PrecisionMachining #5AxisCNC #EngineeringTolerances #Manufacturing
