Stainless Steel CNC Machining Service: What to Check Before You Order
This guide is for engineers and buyers sourcing milled or turned stainless parts. It covers grade choice, tolerance and finish calls, inspection evidence, and the questions that separate a capable stainless steel cnc machining service from one that only quotes fast. Read it before you send drawings out.
In this article
- 1
- 2
- 3
- 4
- 5
- 6
- 7
- 8
- 9
Six things that decide the outcome
Stainless grades against machining behavior
Cost and risk columns assume small to medium batch sizes.
| Grade | Machinability | Best for | Watch out |
|---|---|---|---|
| 303 | Best of the family | Shafts, bushings, high-volume turning | Poor weldability, lower corrosion |
| 304 | Moderate | General parts, food-adjacent hardware | Work hardens fast, use heavy feed |
| 316 / 316L | Harder than 304 | Marine, medical, chloride exposure | Gummy, needs sharp tooling |
| 420 / 440C | Difficult | Wear parts, valve seats, knives | Pre-hardened stock kills tool life |
| 17-4PH | Moderate when annealed | Shafts needing strength plus corrosion | Distortion after aging, plan stock |
| 430 | Good | Decorative covers, low-cost panels | Magnetic, limited corrosion |
Pick the grade before you ask for a stainless steel cnc machining service
Most sourcing problems start on the drawing, not on the machine. Stainless is a family, not one material. A part drawn in 316L because it will see salt spray behaves nothing like a part drawn in 303 for a bushing run. Tell the shop what the part touches: chlorides, food, body contact, high temperature, or repeated load. That answer picks the grade.
303 is the free-machining grade. It has sulfur added, so chips break and surface finish comes easy. It is the right call for turned shafts, spacers and bushings in dry or lightly humid indoor use. Do not weld it, and do not put it outdoors near salt. If a fabricator later welds a 303 bracket, that joint will crack or corrode.
304 is the default general-purpose grade. It handles most indoor hardware, brackets and enclosures. The tradeoff is work hardening: rubbing instead of cutting raises surface hardness above 250 HB, and the next pass will not cut cleanly. Your shop should run positive-rake carbide, climb milling, and feed rates that keep the tool engaged.
316 and 316L add molybdenum. They hold up in chloride and marine air and are common in medical and pump parts. They machine gummier than 304, so expect slower cycle times and more tool changes. 17-4PH is the choice when you need strength plus corrosion resistance, but it is supplied annealed and aged after machining, which moves dimensions by a few thousandths.
- 1Ask for the mill certGrade and heat number should match the drawing on the material certificate.
- 2Say what it touchesSalt, food, chemicals or body contact narrows the grade list quickly.
- 3Flag welding up frontAny welded stainless assembly rules out 303.
- 4Mark heat-treat stepsAging or stress relief after machining changes final size, so plan stock.
Tolerance, finish and feature realism
A blanket ±0.001 mm note on every dimension looks impressive and often cannot be met on stainless. Tight tolerance belongs on features that matter: bearing bores, mating faces, dowel holes. Everything else can sit at ±0.05 mm and cost far less. Send a drawing with two tolerance classes and the quote will come back clearer.
Surface finish follows the same logic. As-machined stainless sits around Ra 1.6–3.2 μm, which is normal for brackets and covers. Sealing faces and sliding surfaces usually need Ra 0.8–1.6 μm, and optical or fluid-contact parts can call for Ra 0.2–0.8 μm, which adds a finishing operation and cost. Specify finish by function, not by habit.
Geometry sets the limit too. Deep pockets and long slender bores need tool reach, and a tool that reaches 5× its diameter will deflect. On a stainless part, deflection shows as taper and chatter that no inspection can fix after the cut. If a wall is under 1 mm, say so in the RFQ so the shop can plan support and lighter passes.
Threads deserve a note. Fine threads in 316L strip easily during assembly, so consider a slightly coarser pitch or a thread insert for parts that will be opened and closed. The choice is free at the drawing stage and expensive after the first batch.
- 1Two tolerance classesCritical features at ±0.005 mm, the rest at ±0.05 mm.
- 2Finish by functionSeals and slides at Ra 0.8–1.6 μm, covers as-machined.
- 3Watch aspect ratioKeep tool reach within 5× diameter where the design allows.
Machine mix and size limits
Stainless rewards rigid setups. A 3-axis mill with a short tool and a solid vise can hit ±0.005 mm on a simple prismatic part all day. Add angled holes or contoured faces and 4-axis or 5-axis work removes extra fixtures, which usually cuts both cost and stack-up error. Ask how many setups your part needs, not how many axes the shop owns.

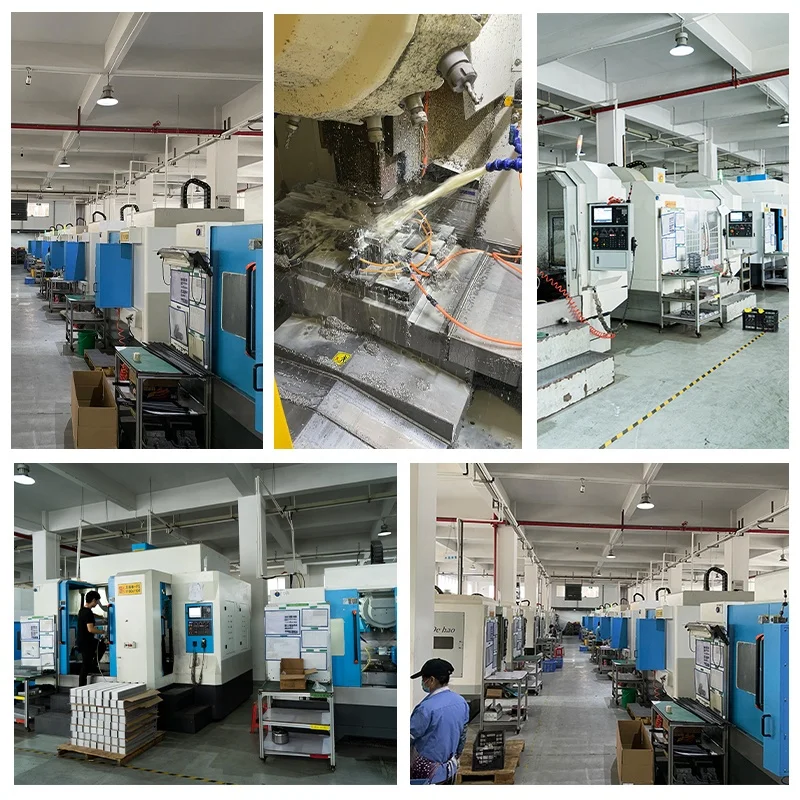

Size drives the choice as much as geometry. GreatLight runs 127 high-precision CNC machines, including 16 simultaneous 5-axis centers and 16 mill-turn centers, with a maximum processing size of 4,000 mm. Large travels handle 4,000 × 400 × 150 mm frames and long shafts, while compact travels cover 500 × 500 × 450 mm work. A Ø400 mm rotary table covers round stainless parts that would otherwise need a second op.
Mill-turn matters for stainless. When a part needs a turned diameter and milled flats or cross-holes, one mill-turn center keeps concentricity without re-chucking. Re-chucking is where runout creeps in. If your part has both features, say so and ask for a mill-turn quote.
For prototypes, the same shop should run the production process. A prototype cut on a different machine than the 10,000-part run will not predict cycle time or fixturing, and process changes after approval usually reopen the PPAP conversation.
- 1Count setups, not axesFewer setups means less stack-up and lower cost per part.
- 2Match travel to part size4,000 mm frames and Ø400 mm rounds fit specific machines.
- 3Ask for mill-turnTurned plus milled features on one center hold concentricity.
Quality evidence worth asking for
Certifications set the floor, not the ceiling. ISO 9001:2015, IATF 16949:2016, ISO 13485:2016 and ISO 27001:2022 all appear on GreatLight paperwork, and each matters for a different buyer. IATF matters to automotive programs, ISO 13485 to medical device work, and ISO 27001 to anyone sending controlled drawings. Ask which scope covers your part.
Then ask what happens per part. Raw material check, in-process monitoring and final inspection before shipment are the baseline. Reports should be available on request: dimensional reports on marked-up drawings, material certificates, and first-article inspection for a new process. A shop that cannot show a first-article report on a new stainless part is asking you to take the risk.
For stainless, add two checks that generic quotes skip. Passivation after machining removes free iron left by tooling and prevents rust spots in service. Hardness or tensile testing matters for 17-4PH and 440C, because heat-treat results vary by lot. Both are cheap when planned with the run and awkward when added later.
Traceability ties it together. A lot number on the bag, a cert in the file and a report tied to the serial number means that when something goes wrong two years out, you can find out why.
- 1Match cert to programIATF for automotive, ISO 13485 for medical, ISO 27001 for drawings.
- 2Request first-articleA new process deserves a dimensional report before the full run.
- 3Plan passivationRemoves free iron and stops rust spots on machined stainless.
Lead time, MOQ and quote discipline
A quote is only useful if the numbers behind it are real. GreatLight returns quotation and a free DFM analysis within 12 hours, and production can start within 24 hours once the drawing and material are settled. Standard parts ship in 3–5 days. Those are working figures, not guarantees, and they assume the drawing is frozen and the material is in stock.
MOQ is where stainless sourcing often stalls. Some shops price a one-off prototype at tooling-level cost because setup dominates. GreatLight runs no minimum order quantity, from one prototype to 10,000+ part runs, which means a single stainless prototype can be priced on the same process as the production batch. Confirm that the prototype and the run use the same fixtures and tooling path.
Read the quote structure, not just the total. Unit price, setup, material, finishing, inspection and freight should be separate lines. If finishing and inspection are bundled into unit price, you cannot tell what a tighter finish or a full dimensional report actually costs, and you cannot compare two suppliers fairly.
Confidentiality should be stated, not assumed. Uploads are kept secure and confidential, and an NDA is available on request. If your drawing is controlled or under a customer NDA, get the agreement signed before you send the file.
- 1Freeze the drawingLead time starts when revision and material are confirmed.
- 2Ask for split pricingSetup, material, finishing, inspection and freight as separate lines.
- 3Sign the NDA earlyControlled drawings should not travel before the agreement exists.
Red flags in a stainless steel cnc machining service quote
The clearest warning is a quote with no questions. Stainless parts almost always raise one: wall thickness, thread depth, finish, or the grade itself. If a supplier returns a price in an hour with no DFM note, either the part is trivial or the quote is a guess. Guesses become change orders.
Second, watch for tolerance promises that ignore geometry. A shop that claims ±0.001 mm on a 300 mm stainless shaft with no mention of temperature or fixturing is selling a number, not a process. ±0.005 mm is a realistic tight call for critical features under normal shop conditions, and it should come with a measurement plan.
Third, check who does the finishing. Anodizing does not apply to stainless, so stainless parts usually go to passivation, electroless nickel, bead blasting, brushing or polishing. If the shop cannot name the passivation line and the rack marks, expect cosmetic surprises on the first batch.
Finally, look at the sample policy. Free samples are usually limited to low-value first articles and come with conditions. GreatLight offers a free first product valued under $200 after a background check. Treat that as a way to verify finish and fit, not as a way to fund a production run.
- 1No questions, no confidenceA serious quote flags at least one DFM point on a stainless part.
- 2Suspicious tolerance claimsTight numbers need a measurement plan and stable fixturing.
- 3Name the finishing linePassivation and rack marks decide the cosmetic result.
How to send a stainless RFQ that gets a usable quote
Six steps, from drawing to first article.
- 1State grade, function and environmentName 303, 304, 316L, 420, 440C or 17-4PH, plus what the part touches: salt, food, chemicals or body contact. If welding follows, rule out 303 now.
- 2Split the tolerance classesMark critical features at ±0.005 mm and general dimensions at ±0.05 mm. Note any feature needing Ra 0.2–0.8 μm or Ra 0.8–1.6 μm, and leave covers as-machined at Ra 1.6–3.2 μm.
- 3Flag the hard geometryCall out walls under 1 mm, pockets deeper than 5× tool diameter, and slender bores. These drive tool selection, pass counts and price more than overall size does.
- 4Ask for DFM before priceRequest the free DFM analysis with the quote. Expect notes on wall thickness, thread choice and any feature that needs a second setup or a custom fixture.
- 5Agree inspection and finishingConfirm the inspection level, request first-article and material certs, and name the finish: passivation, electroless nickel, bead blasting or brushing. Check laser marking if you need a minimum character height of 1.5 mm.
- 6Approve the first article, then runKeep the prototype and the production run on the same fixtures and tool path. Production can start within 24 hours of approval, and parts ship in 3–5 days.
Stainless machining questions buyers ask
Which stainless grade should I choose for a machined part?
Start with the environment. Indoor dry hardware usually runs 303 or 304. Chloride, marine or repeated washdown points to 316 or 316L. Wear surfaces and valve seats take 420 or 440C, and parts needing high strength plus corrosion resistance use 17-4PH.
Then check the process. If anything downstream welds the part, drop 303. If the part is turned in volume, 303 saves cycle time. If it is a large frame, grade choice matters less than rigidity and pass count.
What tolerance can a stainless steel cnc machining service hold?
±0.005 mm is a realistic tight call on critical features, and ±0.0002 in in imperial terms. General dimensions do not need that and usually sit at ±0.05 mm. The tighter the call, the more the quote depends on fixturing, thermal stability and a measurement plan.
Be careful with blanket tolerance notes. On a 300 mm stainless shaft, deflection and temperature move the part more than the machine does. Put the tight tolerance where it functions.
Why do 304 and 316 work harden during machining?
Austenitic stainless hardens when the tool rubs instead of cutting. A dull edge or a slow feed raises surface hardness, and the next pass skims hardened metal instead of removing it. That is where chatter, poor finish and broken tools come from.
The fix is process, not pressure: sharp positive-rake carbide, climb milling, constant feed per tooth, and passes deep enough to stay under the hardened layer. A shop that has run 316 before will not need this explained.
Do machined stainless parts need passivation?
Often yes. Machining leaves free iron from tooling on the surface, and free iron rusts while the base metal does not. Passivation removes it and restores the oxide layer, which matters for medical, food and marine parts.
If the part will be painted, plated or used indoors and dry, passivation may be optional. Ask the shop which line it uses and how parts are racked, because rack marks show up on cosmetic surfaces.
Is there a minimum order for stainless CNC machining?
Not at GreatLight. There is no minimum order quantity, from one prototype to 10,000+ part runs. The cost difference between one part and a production run is setup: fixtures, programming and first-article inspection.
If you plan a run later, say so at the prototype stage. Buying both on the same process avoids re-qualifying the part and keeps the PPAP or first-article file consistent.
What should be checked before shipping stainless parts?
Raw material check, in-process monitoring and final inspection before shipment. Reports are available on request: dimensional results on a marked-up drawing, material certificates with heat numbers, and first-article inspection for new processes.
For stainless, add a visual check for rust spots, tool marks and rack marks after finishing. Hardness or tensile results belong in the file for 17-4PH and 440C, because heat-treat lots vary.
Send drawings, get a DFM-checked stainless quote
Upload your stainless drawings and get a quotation with free DFM analysis within 12 hours. Tolerances, grade calls and finishing options come back on one sheet.
12-hour quote + DFM±0.005 mm on critical featuresNo MOQNDA on request
