CNC Milling vs CNC Turning: 7 Differences That Cause Costly Rework

Most scrap on round parts comes from one decision made at the quoting stage: sending the job to the wrong spindle. This guide walks through seven failure points in cnc milling vs cnc turning, what the symptom looks like on the shop floor, and how to correct the process before the first setup.

Get Instant Quote Talk to an Engineer

±0.005 mm tolerance3–5 day shippingNo MOQ

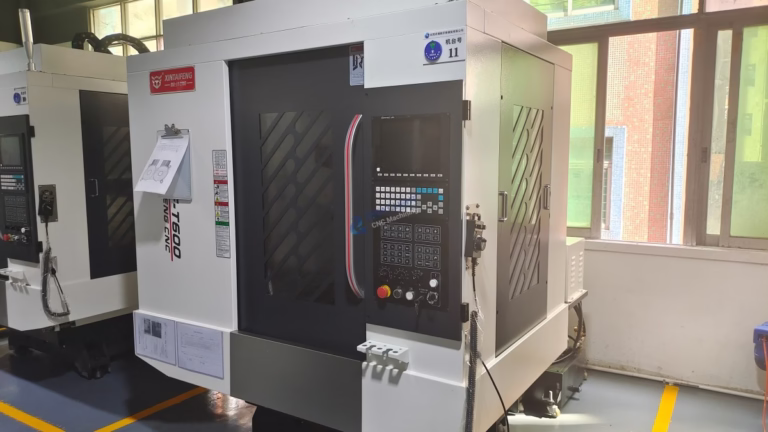

cnc milling vs cnc turning 7 critical differences to avoid costly machining mistakes

On this page

1
Symptoms, Likely Causes and What to Do
2
Kinematics Decide Which Process You Can Even Quote
3
Tooling and Setup Philosophy Drive the Real Cost
4
Tolerance, Surface Finish and Material Removal Rate
5
Volume, Scalability and the DFM Feedback Loop
6
How to Pick Before You Send the RFQ
7
Step by Step: Checking a Job Before It Hits the Spindle

Symptom check

Symptoms, Likely Causes and What to Do

Use the middle column to identify which of the seven differences you are fighting.

Symptom on the floor	Likely cause	Fix before cutting
Round part needs a milled flat	Turning-only routing	Move to a mill-turn center
Setup time doubles the quote	Four sides, four vises	Add a 4th axis or 5-axis
Thin wall springs out of tolerance	Radial chuck pressure	Switch to soft jaws or mill it
Part moves on the second side	No datums carried over	Machine one side complete
Cycle time far above quote	Wrong chip load for the material	Re-cut feeds and speeds
Bore drifts oval after turning	Clamping distortion released	Rough, rest, then finish turn
Surface marks on a flat face	Turned face on a milled part	Face mill instead of single point

Match the Process to the Geometry, Not the Shop

If more than 80% of the features turn around one axis, turn the part. If they do not, mill it. If both are true, use a mill-turn center and hold the concentricity in one setup.

Get Instant Quote Talk to an Engineer

Difference 1–2

Kinematics Decide Which Process You Can Even Quote

The first difference in cnc milling vs cnc turning is what spins. On a lathe the workpiece rotates and a single-point insert stays put. On a mill the tool rotates and the part sits in a vise or on a fixture. That one sentence explains almost every downstream cost difference you will see on a quote.

When the part is a body of revolution, turning wins on cycle time. The insert is in cut continuously, so a Ø40 mm shaft in 1045 steel can be roughed down at 2–3 mm depth of cut per pass. A mill removing the same volume has to step over with an end mill and spends time on air moves and retracts.

Flip the geometry and the advantage reverses. A rectangular housing with mounting bosses, pockets and a bolt circle cannot be produced on a pure lathe. Peripheral features need a rotating tool, so the job belongs on a mill or a mill-turn center.

The common mistake is sending a round part with milled features to a turning-only shop. If the supplier has no live tooling, the part gets turned, then re-fixtured on a mill, and the concentricity between the bore and the milled flat now depends on how well the second setup was indicated in. That is where the scrap starts.

1
TurningRotating workpiece, stationary single-point insert.
2
MillingRotating multi-flute tool, stationary workpiece.
3
Mill-turnBoth motions in one machine, one setup.

Difference 3–4

Tooling and Setup Philosophy Drive the Real Cost

Milling shops carry a wall of tooling: end mills, face mills, ball nose cutters, drills, taps. Each new feature can mean a tool change, and every extra setup adds a fixture, an indicator pass and a chance for error. Setup is where a milled part quietly gets expensive.

Turning uses a small set of insert grades in a turret. Tool changes are fast and predictable. But the workpiece centerline has to be right. If the tailstock is misaligned or the chuck jaws are worn, a Ø50 mm shaft will come out tapered over its length and no amount of finishing will fix it.

This is the point where cnc milling vs cnc turning stops being an academic comparison. A part with six milled faces and one bore may need five setups on a 3-axis mill. Run it on a 5-axis center and the same part can often be finished in two setups, or one if the geometry allows.

Practical rule: count the number of distinct tool approach directions before you pick a process. One direction favors turning. Two or three favor a 4-axis mill. Four or more usually justifies 5-axis or a mill-turn center, because each additional setup multiplies setup error.

1
Setup countEach setup adds cost and stack-up error.
2
RunoutCheck tool holder runout before blaming the machine.

Difference 5–6

Tolerance, Surface Finish and Material Removal Rate

Both processes can hold ±0.005 mm on the right feature. The difference is which feature. Turning holds diameter and concentricity tightly because the part never leaves the spindle between rough and finish. Milling holds position and flatness tightly because the tool path is programmed in absolute coordinates.

Surface finish follows the same split. A turned OD routinely lands at Ra 0.8–1.6 μm with a correct feed per revolution. A milled face reaches the same range with a face mill at the right stepover, and Ra 0.2–0.8 μm is achievable with a fine finishing pass on aluminium. Chasing a mirror finish by slowing the spindle usually just burns the insert.

Material removal rate is where the economics live. Turning removes metal continuously, so stock utilization on bar-fed work is high and cycle times are short. Milling removes metal in passes, which is slower per cubic centimetre but far more flexible in shape.

Watch the stock form. A part turned from Ø60 mm bar leaves a lot of chips if the finished diameter is Ø20 mm. Sometimes a near-net forging or a milled plate is cheaper overall even though the per-minute rate looks worse.

1
Turning toleranceDiameter and concentricity, single setup.
2
Milling tolerancePosition and flatness, programmed path.

Difference 7

Volume, Scalability and the DFM Feedback Loop

At one prototype, the process choice barely matters. At 10,000 parts it decides your margin. Turning scales well on bar feeders with a single operator watching several machines. Milling scales by adding spindles or moving to a pallet system, and fixture cost is amortized across the run.

Volume also changes the right answer. A part that was milled from plate at 50 pieces may become a turning job at 5,000 pieces once a bar size exists that reduces waste. Review the routing when the volume changes, not only when the drawing changes.

The last difference is the feedback loop. A shop that only mills will keep quoting milled solutions. A shop with turning, milling and mill-turn capacity can tell you which route is cheaper and why. That conversation is worth more than a small rate difference.

GreatLight runs 127 high-precision CNC machines, including 16 simultaneous 5-axis centers and 16 mill-turn centers, with a 4,000 mm maximum processing size. We quote from one prototype with no minimum order quantity, and the quotation plus a free DFM analysis comes back within 12 hours.

1
Low volumeProcess choice is flexible, fixture cost dominates.
2
High volumeBar size and cycle time dominate.

Decision guide

How to Pick Before You Send the RFQ

Start with the geometry, not the tolerance. If every feature can be described by a radius from one axis, turning is the default. Shafts, bushings, pulleys, threaded rods and connectors all fall into this group.

If the part has flat faces, pockets, slots or holes on more than one axis, milling is the default. Brackets, plates, housings and mold halves fit here regardless of how many round holes they contain.

Then check for the hybrid case. A cylindrical body with cross holes, keyways or milled flats is a mill-turn job. Routing it as pure turning forces a second setup and puts your concentricity at risk. Routing it as pure milling wastes cycle time on the round features.

Finally, ask the shop what they would change. If a supplier quotes without commenting on the process, you are getting a price, not an engineering opinion. On a ±0.005 mm part, that opinion is the difference between a clean run and a rework loop.

1
AxisymmetricTurn it.
2
PrismaticMill it.
3
MixedMill-turn, one setup.

Shop floor procedure

Step by Step: Checking a Job Before It Hits the Spindle

Run these checks in order. Each one can move the part to a different machine.

1
Classify the geometryMark every feature as axisymmetric or prismatic. If more than 80% of features are axisymmetric, start with turning.
2
Count tool approach directionsOne direction: turn. Two to three: 4-axis mill. Four or more: 5-axis or mill-turn.
3
Check the wall thicknessBelow 1.5 mm on a turned part, radial chuck pressure will distort the bore. Plan soft jaws, a pie jaw, or move the part to milling.
4
Set the stock formBar stock for turned parts, plate or near-net for milled parts. Compare the chip volume against the finished part volume before you commit.
5
Pick the datum strategyFor milled parts, machine the first side complete and use it as the datum for the second. Never rely on vise jaws to reproduce position.
6
Verify feeds and speedsTurning: 0.1–0.3 mm/rev feed, 1–3 mm depth of cut in steel. Milling: 0.05–0.15 mm per tooth chip load in aluminium, less in stainless.
7
Confirm the inspection planCMM or optical check on the critical features. On a turned part, verify concentricity after the part has cooled, not straight off the spindle.

FAQs

Common Questions

Can a lathe cut a hex or a square?

Yes, with live tooling or a polygon turning attachment. A standard lathe with a static turret cannot. If the hex is on the end of a shaft, mill-turn handles it in one setup and keeps the shaft concentric to the hex.

If the supplier does not have live tooling, the part goes to a mill for the hex and comes back with a second setup. Budget for that in the lead time and add a concentricity check to the drawing.

Which process gives a better surface finish on a bore?

A reamed or bored hole on a lathe is typically better because the tool is rigid and the cut is continuous. A milled bore with an interpolated end mill leaves a scallop that depends on stepover, so finish varies with radius.

For a bore under Ø20 mm with a tight tolerance, boring on a lathe or a mill-turn center is the safer route. For a large bore in a plate, interpolation on a mill is fine if you leave 0.1–0.2 mm for a finishing pass.

Is 5-axis always more accurate than 3-axis?

No. A well-set 3-axis machine with a rigid fixture can beat a poorly fixtured 5-axis run. The advantage of 5-axis is fewer setups, and every setup you remove also removes a stack-up error.

Use 5-axis when the part has features on four or more faces, or when a single continuous contour would otherwise need three separate fixturings. Do not pay for it when one face carries all the critical tolerance.

Why did my turned part come out oval?

Almost always clamping distortion. The chuck closed on the part, the bore was cut round under load, and the material sprang back when the jaws released. Thin-wall tubes and rings show this worst.

Fix it by roughing with the jaws, releasing, then finishing with light pressure or by supporting the bore on an expanding mandrel. If the wall is under 1 mm, consider milling the part from plate instead.

When should I switch a part from milling to turning?

When the design becomes mostly cylindrical, or when volume rises enough that a bar feeder makes sense. A part milled from plate at 50 pieces can often run on bar stock at 5,000 pieces with less waste and a shorter cycle.

Re-quote the routing whenever the volume changes by an order of magnitude. Process choice is not fixed by the drawing alone.

Do you need a separate drawing for mill-turn parts?

No, but mark which features must stay concentric to the main axis. That tells the programmer which side to machine complete in one operation.

If the concentricity callout is missing, the shop will assume a general tolerance and may split the operations in a way that costs you accuracy on the bore.
