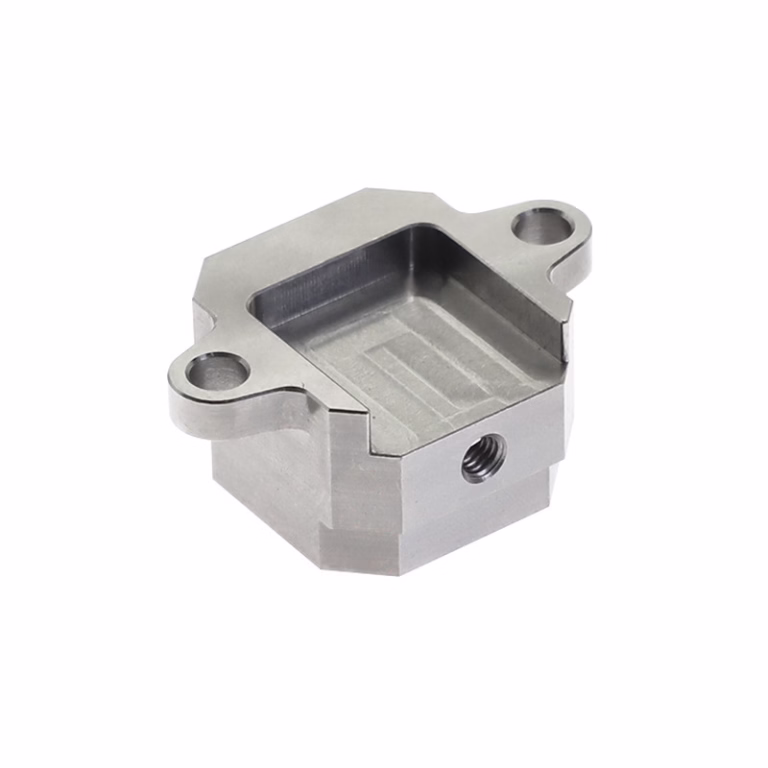

7 Tips to Master Mazatrol Fusion 640M Programming and Cut Cost per Part
This guide is for programmers and process engineers running Mazak turning and milling centers on the Fusion 640M control. It covers the seven settings and habits that change cycle time, scrap rate and tool spend the most. After reading it you can judge which tips fit your parts and which will not pay back on a small batch.

What the Fusion 640M Actually Gives You
Conversational units sit on top of an EIA kernel. Knowing which layer to use is the first decision on every job.
Where the Control Earns Its Keep
The Mazatrol Fusion 640M is a conversational control with an EIA/ISO kernel underneath. You can build a part in Mazatrol units, drop into G-code for one feature, and go back to units for the rest. That mix is the reason shops keep these machines on mixed batches instead of pure production runs.
The real gain is setup time. A turned shaft with a few milled flats and cross holes can be programmed at the machine while the first blank is still in the chuck. No CAM seat, no post-processor round trip. For a one-off or a five-piece lot, that difference is often several hours.
The limit shows up on free-form surfaces. Deep cavities, blended fillets and true 3D contours still run faster through CAM and a proven post. Use the conversational side for prismatic work, turning, drilling patterns and simple 5-axis positioning; hand the organic shapes to CAM.
Treat Units as a Setup Tool, Not a Religion
Each Mazatrol unit is a small program with its own tool, speed, feed and depth. The control sequences them for you. Programmers who master this control learn to keep units short and single-purpose. One unit for rough turning, one for finish, one for each hole pattern.
Short units are easier to re-sequence when a tool breaks or a feature moves. Long units with mixed operations force you to rewrite too much.
Name units the way the operator reads them, not the way the drawing is numbered. A unit called FACE-ROUGH is worth more at 2 a.m. than OP-30-A.
Use Unit-to-Unit Cycles for Patterns and Arrays
Unit-to-unit and unit-to-unit plus cycles repeat a defined unit at new coordinates. Bolt circles, linear hole arrays and repeated pockets come out of the control with the fastest path between positions, based on the machine kinematics rather than a guessed G-code order.
On multi-hole aluminum and steel plates this is where cycle time drops without touching feeds or speeds. The tool spends less time in rapid and more time cutting.
Watch the clearance plane on tall fixtures. The cycle assumes a safe Z you set in the unit parameters. Set it too low and you will clip a clamp.
5-Axis Interpolation: Know When It Pays
The 5-axis interpolation functions let the control coordinate rotary and linear axes for continuous motion. That is how you cut a contoured port, a turbine-style blade or a chamfer that wraps around a curved wall in one pass.
The trade is rigidity and setup. Simultaneous motion spreads load across two rotary axes, so you need a shorter tool and a lighter stepover. If the feature can be reached by 3+2 positioning, position it. Indexed work holds tolerance easier and programs faster.
Reserve true simultaneous interpolation for features that cannot be reached any other way. On our 16 simultaneous 5-axis centers, most parts still run 3+2 for the bulk of the cycle.
Tool Life Management and the Data Behind It
Fusion 640M tracks tool usage by time, count or wear offset. Set the limits from real data, not a guess. Run one batch, log where each tool actually failed, then set the limit at 80 percent of that life.
The saving is not the insert cost. It is the scrapped part from a tool that died mid-cut on a finishing pass. A broken 3 mm end mill in a deep pocket can cost far more than the tool.
Group identical tools in the same life group so the control can swap a sister tool automatically. This keeps long unattended runs moving without an operator watching the wear offset.
Macros and Variables for Repeated Families
Custom macros and variables turn a family of parts into one program with a few inputs. A housing with five bore sizes becomes one macro where the operator types the bore diameter and depth at the top.
The rule is simple: if you program the same geometry three times, make it a variable. If you program it once, leave it alone. Macros add a maintenance cost, and a broken macro stops the whole family.
Document the variable list in the program header. The next programmer will thank you, and so will the operator running the night shift.
In-Process Probing to Catch Drift Early
Probing inside the cycle measures the part while it is still on the machine. Use it to check a critical bore or a datum before the finishing pass, then let the control shift the work offset. This catches thermal drift and fixture settling before they turn into scrap.
The best use is on high-value parts. A titanium or Inconel component that takes hours to reach the last operation is worth a 40-second probe cycle. A simple aluminum bracket usually is not.
Keep the probe routine short. Every probing move adds cycle time, so measure the two or three features that actually drift, not every dimension on the drawing.
Which Tip Applies to Which Part
Use this as a starting filter before you rewrite a program.
| Part / batch | Tip worth applying | Tip that will not pay back |
|---|---|---|
| One-off turned shaft with cross holes | Units, unit-to-unit patterns | Macros, in-process probing |
| 50-piece aluminum housing | Unit-to-unit, tool life groups | Simultaneous 5-axis |
| Titanium implant component | In-process probing, tool life | Long mixed-operation units |
| Contoured port, unreachable by 3+2 | 5-axis interpolation | Indexed-only strategy |
| Family of 5 bore sizes | Macros and variables | Per-part reprogramming |
Post-Processor Settings Tied to Your Machine
A post that works on one Fusion 640M may not work on the next. Rotary axis direction, machine zero, tool change position and coolant codes all differ between models and options.
Check the post against the machine configuration sheet, then prove it on a simple test part before a real job. Air-cut the first run with the rapids slowed.
We keep a machine-specific post for each of our centers and re-verify it after any control software update. That single habit removes most of the crashes that come from a post that drifted out of sync.
Questions Engineers Ask About Mazatrol Fusion 640M
Can I run EIA/ISO code inside a Mazatrol program?
Yes. The Fusion 640M lets you insert an EIA unit into a Mazatrol sequence, so a single difficult feature can run as G-code while the rest stays conversational.
Keep the transition points clean. Set the same work offset and tool data in both layers, or the first move after the switch will surprise you.
How tight a tolerance can the control hold on its own?
The control is not the limit. Machine geometry, thermal growth and tool deflection matter more. On our 5-axis centers we hold ±0.005 mm (±0.0002 in) on features that are reachable in one setup.
Probing and a warm-up cycle help more than any control setting.
Is conversational programming fast enough for production runs?
For prismatic and turned parts, yes. Setup is quick and edits are simple.
For deep 3D surfacing, CAM wins on both cycle time and surface finish. Most shops run a mix of the two.
What tool life data should I log first?
Start with the tools that fail suddenly: small end mills, drills near the end of a deep hole, and finishing inserts.
Time-based limits are the easiest to set. Move to wear-offset limits once you have a few months of data.
Do you program customer parts on Mazatrol?
We program on the control that fits the part. That may be Mazatrol, CAM output or a mix of both.
Send a STEP file and we return a DFM analysis and a quote within 12 hours. Files stay confidential, and an NDA is available on request.
