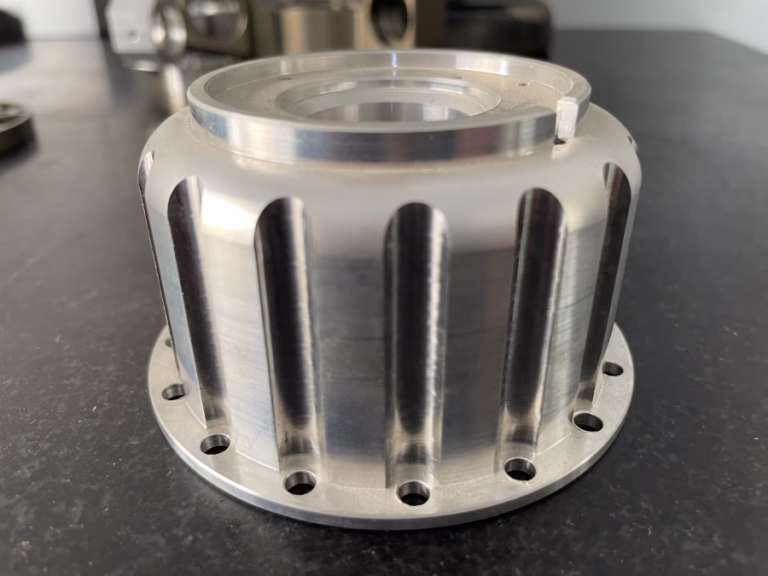

A 4-axis mill adds one rotary axis to the usual X, Y, and Z. On most machines that axis is the A axis, rotating about X, and it either turns the workpiece on a chuck or carries it on a trunnion table. The tool stays in a three-axis envelope. What changes is that the part can be indexed to a new face without anyone opening the vise.

That sounds like a small addition. In practice it reshapes the process plan. A housing with bores on four sides can be cut in one program, using the same datum for every face. On a 3-axis machine the same housing needs three or four setups, and each re-clamp adds its own position error. A shop quoting this work as a 4 axis cnc machining vendor is selling setup reduction, not spindle speed.

The distinction between indexing and simultaneous motion matters more than most buyers expect. Indexed 4-axis work rotates, locks, then cuts. Simultaneous work rotates while cutting, which is how you generate a cam profile or a helical oil groove. Many 4-axis machines can index but cannot hold position under simultaneous load. Ask which one your part needs before comparing prices.

The rotary table also introduces a new error source. Table runout, backlash, and angular resolution all feed directly into feature position. A table rated at ±5 arc-seconds is not the same as one at ±30 arc-seconds, even when both are bolted to machines with the same linear accuracy.

• 1
  Indexed 4-axisRotate to a position, clamp, then cut. Covers most prismatic parts with features on several faces.
• 2
  Simultaneous 4-axisRotation and linear motion run together. Needed for cams, helical slots, and wrapped contours.
• 3
  Trunnion vs chuckA trunnion table suits blocky parts; a chuck suits round or shaft-like parts that can be gripped on a diameter.

The most common mistake in outsourcing is forcing a part onto a 4-axis machine because the shop has one. If every feature is reachable from a single direction, a 3-axis machine will usually be faster, cheaper, and easier to inspect. Adding a rotary axis adds fixturing mass, and that reduces the rigidity available for the cut.

Long parts hit a different limit. A shaft that needs support at both ends may not fit a chuck-and-tailstock arrangement on a machine with a Ø400 mm table. Deep bores on a large casting can also exceed the rotary table load rating, even when the part fits the linear travel. Load capacity is separate from size capacity, and the two are often confused on datasheets.

Tolerance is another boundary. Reaching ±0.005 mm on a linear feature is routine on a well-maintained machine. Holding the same tolerance on a position defined by an angle is harder, because angular error converts to linear error through the radius. At a 200 mm radius, 0.005 mm of linear error equals roughly 1.4 arc-seconds of table error. That is a tight number for a production rotary table.

Very low quantities can also argue against 4 axis. The fixturing and probing time needed to trust a rotary datum only pays back when the same setup runs across several parts or several faces. For a single simple bracket, the setup may cost more than the machining.

• 1
  All features face one wayUse 3 axis. The rotary table adds mass and setup time with no gain.
• 2
  Angular position defines the toleranceConfirm the radius before accepting ±0.005 mm on a rotated feature.
• 3
  Part exceeds table loadSize is not the only fit check. Verify weight and overhang against the table rating.

On a 4-axis setup the fixture becomes part of the metrology chain. If the part is held in a three-jaw chuck, runout at the gripping diameter translates into runout at the feature. Soft jaws bored in place on the same machine remove most of that error and cost little. A shop that skips this step will show it in the first article.

For trunnion setups, the failure mode is usually deflection rather than position. A tall part cantilevered off the table will move under cutting load, and the error appears as taper or a bowed side wall. Adding a tailstock support or reducing the axial depth of cut fixes it, but the change has to happen before the finishing pass, not after.

Probing is how a serious vendor closes the loop. Touching off the rotary datum with a spindle probe, then cutting a test feature and re-measuring it, catches table backlash and thermal drift early. On long runs, re-probing between batches keeps the angular datum from walking. This is the part of the process that rarely shows up on a quotation but decides whether the third shipment matches the first.

Thermal behavior deserves a mention. A rotary table running continuous indexing will warm up, and the housing grows. For work held to ±0.005 mm, letting the machine idle through a warm-up cycle before the first cut is normal practice, not wasted time.

• 1
  Bore soft jaws in placeCuts chuck-induced runout without extra cost on most jobs.
• 2
  Support the overhangTailstock or steady rest for parts that cantilever off the table.
• 3
  Probe, cut, re-measureVerifies the rotary datum against a real feature, not just the table readout.

Machine count tells you capacity, not capability. A shop with twelve 4-axis mills may still be unable to hold your angular tolerance if the tables are worn or the probing routine is informal. Ask for the first article inspection report on a comparable part, including the angular dimensions, not just the linear ones.

Look at how the quote is structured. A vendor that separates setup, machining, and inspection is showing you where the risk sits. A single lump-sum number for a four-face part usually means the setup time was estimated, and estimates on rotary work are where schedules slip.

Material matters less than people assume for 4 axis, but it does shift parameters. Aluminum 6061 and 7075 cut freely and tolerate aggressive indexing. Stainless 316 and 17-4PH work-harden, so the table has to stay locked and the feed per tooth has to stay high enough to cut under the hardened layer. Titanium TC4 and Inconel push both rigidity and tool life, which usually means smaller depths of cut and more passes.

Finally, ask what happens when the first article is out of tolerance. A supplier that re-cuts the datum and re-probes is solving the problem. One that blames the model is not. The answer to that question predicts the next six months better than any capability list.

• 1
  Ask for angular dimensions in the reportLinear-only reports hide rotary errors.
• 2
  Read the quote structureSeparated setup and inspection lines show the shop understands where risk lives.
• 3
  Match material to parametersWork-hardening alloys need locked tables and adequate feed per tooth.
• 4
  Ask about the corrective loopRe-probing and re-cutting the datum is the right answer.

Every additional setup on a machined part costs three things: the labor to re-clamp, the time to re-establish a datum, and the tolerance stack-up from the new datum to the old one. A 4 axis cnc machining vendor removes the second and third costs entirely when the part can be completed in one rotation sequence.

The stack-up effect is easy to underestimate. If each of four setups contributes 0.01 mm of position error, the worst-case feature-to-feature error across the part can reach 0.04 mm before any cutting error is added. On a single-setup 4-axis job, that term disappears. This is why a part that fails on a 3-axis process often passes unchanged on a 4-axis machine.

Lead time follows the same logic. Fewer setups mean less queue time between operations and less handling damage. It also means the shop can run the job on one machine instead of routing it across three, which matters when the schedule is tight.

The catch is fixturing. A one-setup plan needs a fixture that holds the part rigidly through every rotation, and that fixture has to be built before the first chip is cut. For a one-off prototype, the fixture can cost more than the machining. For a run of fifty, it pays back immediately.

• 1
  Setup count is a tolerance decisionFewer datums means less accumulated position error.
• 2
  Fixturing is front-loaded costBuild the fixture once, then amortize it across the run.
• 3
  One machine, one queueSingle-setup jobs avoid inter-operation waiting.
