A 3-axis mill moves the tool in X, Y and Z while the part stays clamped. Every face you cannot reach from the top must become a second, third or fourth setup, and each new setup adds a re-clamp, a new datum and a fresh chance for position error. Five axes changes the arithmetic: two rotary axes (A and C, or B and C) tilt either the table or the spindle so the tool can approach a feature from almost any direction while the part stays in one clamp.

That single fact drives most of the cost and quality differences engineers see on complex parts. Fewer setups means fewer fixture plates, fewer re-zeroing steps and less handling damage on finished surfaces. On a part with features on five sides, moving from four setups to one often removes more error than tightening any single tolerance on the drawing.

Simultaneous 5-axis is not the same as 3+2 or positional 5-axis. In 3+2, the rotary axes index to a fixed angle, lock, and the machine cuts a normal three-axis toolpath. The tool axis never changes while cutting. Simultaneous cutting keeps all five axes interpolating at once, which is what allows a ball nose tool to stay normal to a curved surface, or a stub tool to reach down the side of a deep rib without shanking out.

Choose positional work when the part is prismatic with angled faces. Choose simultaneous work when the surface itself is freeform, when the feature axis is not parallel to any machine axis, or when tool reach and stiffness force the tool to stay tilted. The two are quoted differently because they consume machine time differently.

• 1
  One clamp, many facesAngled holes, side pockets and undercuts cut without re-fixturing.
• 2
  Shorter toolsA tilted tool reaches deep walls with less overhang, so less chatter.
• 3
  True position holdsFeatures machined in one setup keep their relationship to each other.

Engineers often assume tolerance is a machine property. It is partly that, but on a well-run 5-axis job the dominant term is usually datum strategy. A datum is the physical surface the machine trusts when it establishes zero. If the datum is a rough cast face, every subsequent measurement inherits the roughness and the draft angle. If the datum is a machined face cut in the same setup as the critical features, the relationship between them is set by the machine geometry, not by how well the operator re-clamped the part.

This is why a design driven approach asks a different first question. Not "what tolerance do you need" but "which surfaces define the function, and can they all be cut without moving the part". On a housing with a bearing bore and a mounting face, if both are machined in one setup, concentricity and perpendicularity come almost for free. If they are split across two setups, the drawing has to carry a tighter callout to compensate, and the shop has to hit it with a fixture that may itself drift.

GreatLight holds ±0.005 mm (±0.0002 in) on critical features, and surface finish from Ra 0.2–0.8 μm on fine-finished bores up to Ra 1.6–3.2 μm as-machined on general faces. Those numbers only mean something relative to a datum scheme. A ±0.005 mm bore is worthless if its position is referenced to a face that was saw-cut.

The practical rule: list the functional surfaces first, group them by the setup that can reach them, then assign tolerances. Reviewing that grouping before release is what a DFM report is for. We return quotation and free DFM analysis within 12 hours, and the useful part of that report is usually the datum and setup list, not the price.

• 1
  Machine the datumCut the reference face in the same setup as the critical feature.
• 2
  Group by setupSurfaces that must align should share one clamping.
• 3
  Watch the stackTwo setups add a second positional error to every related callout.
• 4
  Avoid soft referencesCasting skin, paint and anodize layers are not stable datums.

Not every complex-looking part needs five axes. A part with deep pockets but all features parallel to Z is usually faster on a 3-axis machine with a good fixture, because 3-axis tools are stiffer and cheaper per hour. Five axes earns its place when the geometry creates one of four specific problems: features whose axis is not parallel to any machine axis, surfaces that must be cut with the tool normal to the surface, deep cavities where a straight tool would need unreal reach, and parts that cannot be re-clamped without losing position.

Impellers, turbine blades, impeller shrouds, medical bone plates with compound-angle screw holes, and manifold blocks with intersecting internal channels all fall into the first two groups. Thin-wall aerospace ribs and deep automotive mold inserts fall into the reach group. Anything that gets measured against another machined feature falls into the last group.

Some features are better solved another way. A hole that only needs to be perpendicular to a sloped face can often be drilled on a 3-axis machine with an angled fixture, which is cheaper for low quantities. A single undercut can sometimes be relieved by a change in the part design that costs nothing and removes a whole operation. We raise these options in DFM rather than quoting the expensive path by default.

The judgement call is economic as much as technical. Five-axis time is more expensive per hour. It pays back when it removes setups, removes fixtures, or removes a secondary operation such as EDM or hand blending. If none of those are removed, the extra axes are just extra cost.

• 1
  Good fitCompound-angle ports, freeform blades, deep ribs, one-setup alignment.
• 2
  Poor fitSimple prismatic parts, flat plates, single-axis hole patterns.
• 3
  SometimesAngled faces on low-volume parts may be cheaper on an angled fixture.

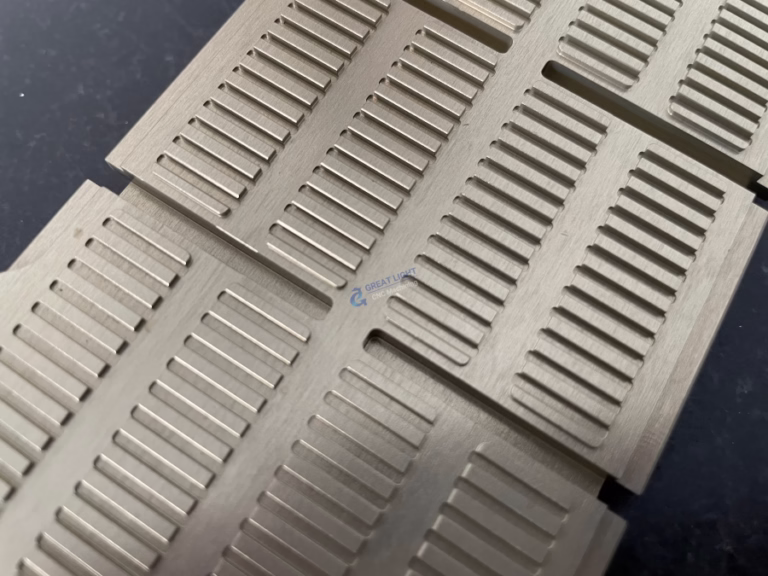

Tool access is the first habit. A cutter is a cylinder with a length and a diameter, and it has to reach the feature without the holder touching the part. Wall heights of five to eight times the tool diameter are routine on our machines; beyond that, engineers should expect the shop to step down to a smaller tool, which multiplies cycle time. Adding a small corner radius to an internal pocket floor lets a larger, stiffer tool finish it.

The second habit is designing around the tool axis, not the model axis. If a slot, rib or boss sits at an odd angle, think about which direction the tool will come from. A feature that can be approached from a direction that also reaches two neighbouring features will usually be machined in the same pass and hold better relationship to them.

The third is wall thickness control. Thin walls deflect under cutting force. Aluminum walls under about 0.8 mm and stainless walls under about 1.2 mm start to need light finishing passes, supports or a redesign. Consistency matters more than absolute thinness: a wall that steps from 1 mm to 3 mm creates a stiffness change that shows up as a witness line and sometimes as a dimension error.

The fourth and fifth habits are about finish and marking. Specify surface finish per face, not per part, because polishing a whole part to Ra 0.2–0.8 μm is slow and rarely needed. And remember that laser marking needs a minimum character height of 1.5 mm, so part numbers and traceability codes should be sized before release.

Materials behave differently under the same toolpath. Aluminum 6061 and 7075 cut freely and allow aggressive parameters. Titanium Ti-6Al-4V and Inconel generate heat at the cutting edge and need lower surface speed and more coolant, which lengthens cycle time. 17-4PH stainless sits between them. None of this changes the geometry rules, but it changes how much the geometry costs.

• 1
  Add corner radiiLets a larger tool finish pocket floors.
• 2
  Keep walls evenSudden thickness changes cause deflection marks.
• 3
  Finish per faceOnly polish where the function needs it.
• 4
  Size your markings1.5 mm minimum character height for laser marking.

An ODM arrangement means the manufacturing partner contributes engineering, not just machine hours. In practice that shows up as a review before cutting starts. We check the model, the datum scheme, the setup plan and the inspection method, then send a DFM note together with the quotation. Production can start within 24 hours of approval, and parts ship in 3–5 days on typical jobs.

The setup plan is the core document. It states which faces are cut in which clamping, which faces become datums, and where the part will be supported. On a five-axis job this plan is usually shorter than on a 3-axis job, and that is the point. Fewer clamps means fewer opportunities for the part to move between operations.

Inspection follows the same logic. We check raw material on arrival, monitor dimensions in process, and inspect 100% of parts before shipment, with reports on request. On a one-setup part, the critical check is usually the relationship between features, not the individual size of each feature. That is measured on a CMM against the same datum scheme used in the setup plan, so the numbers refer to the same physical reality the machine saw.

Certification matters more in some industries than others. We hold ISO 9001:2015, IATF 16949:2016, ISO 13485:2016 and ISO 27001:2022, which covers general quality, automotive, medical devices and information security. For medical and automotive buyers those certificates are a starting condition, not a differentiator, but they do determine whether a supplier is even allowed on the approved list.

Capacity shapes what is realistic. We run 127 high-precision CNC machines across three wholly-owned plants covering 7,600 m², including 16 simultaneous 5-axis machining centers, 12 four-axis mills, 27 three-axis machines and 16 mill-turn centers. Maximum processing size is 4,000 mm, with large travels of 4,000 × 400 × 150 mm, medium travels of 750 × 1,150 × 550 mm and 600 × 600 × 600 mm, compact travels of 500 × 500 × 450 mm and 500 × 310 × 200 mm, and a Ø400 mm rotary table. There is no minimum order quantity, so the same setup logic applies to one prototype or a 10,000-part run.
