Design Driven ODM CNC Machining: How Review Beats Rework
A file-to-part shop cuts exactly what you send. A design driven ODM CNC machining partner reads the design first, then cuts. This page explains that difference in mechanical terms: what gets reviewed, which features trigger a redesign, and when the model costs more than it saves. Written for design engineers and sourcing leads who own the tolerance stack and the schedule.

In this article
- 1
- 2
- 3
- 4
- 5
- 6

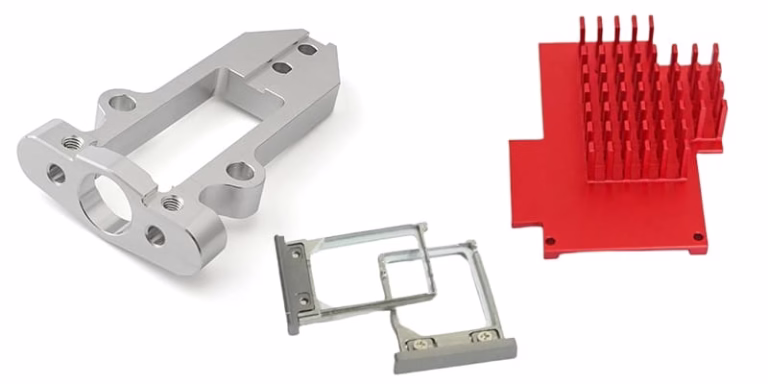

What Design Driven ODM CNC Machining Actually Changes
ODM usually means the supplier owns the design. In machining, we use the term differently. You keep the IP and the drawing. The supplier brings manufacturing engineering into the loop before the first toolpath is posted. That is the whole shift.
A standard machine shop receives a STEP file and a tolerance block. It returns parts that match the model. If the model contains a 1.0 mm internal corner on a 4 mm deep pocket, the shop mills it as drawn with a small tool, runs slower, and charges for it. The part passes inspection and still fails in the assembly.
Under a design driven ODM CNC machining model, that corner is flagged before quoting. The engineer asks whether a 3.0 mm radius works, because a Ø6 mm end mill removes that pocket in one pass instead of three. Same function, lower cycle time, fewer tool changes.
The review is not a courtesy. It is a risk transfer step. Every feature that cannot be cut, measured, or assembled reliably is caught while it is still a line in a CAD file. Changing a line costs minutes. Changing a fixture costs weeks.
This is why we run DFM review on every order, including one-off prototypes. The result goes back within 12 hours, alongside the quotation, so you can compare design options before committing to a purchase order.
Six Checks Inside a DFM Review
A useful DFM review is not a spell-check. It examines the part through several lenses at once, because a change that fixes one problem often creates another. These are the six checks that catch most of the expensive surprises.
Tool access and corner radii come first. Every internal corner carries the radius of the cutter that made it. A pocket 20 mm deep with a 2.0 mm corner forces a long, thin tool that deflects and chatters. Opening the corner to 3.0 mm or 4.0 mm usually costs nothing in function and cuts cycle time noticeably.
Wall thickness and stiffness come next. Thin floors and tall ribs move under clamping pressure and cutting force. On aluminum, a 1.5 mm wall at 40 mm tall will sing. We either add a temporary support, adjust the cutter path to climb from both sides, or ask you to thicken the rib where stress allows.
Then datum strategy. If the drawing dimensions every feature from a different surface, we cannot hold ±0.005 mm across all of them. A machined part is only as stable as its fixturing. We propose a primary datum that touches the raw stock, then stack the rest from there.
Tolerance distribution follows. Blanket ±0.005 mm on a 300 mm part is not the same job as ±0.005 mm on a 40 mm bracket. We ask which dimensions actually control fit. Tightening only those three or four features keeps the cost where it belongs.
Finally, finish and marking. Ra 0.2–0.8 μm on a deep bore needs a different process than Ra 0.8–1.6 μm on a flat face. Laser marking needs at least 1.5 mm character height to stay legible after anodizing. These are small details that decide whether the finished part looks right.
Why Prototype Loops Cost More Than They Look
Each build-and-test loop has a visible price: material, machining, shipping. The hidden price is the queue. A revised design waits for a new quote, a new setup, a new slot on the machine. Three loops can consume more calendar time than the original design phase.
The loop usually repeats for the same reason. The part was cut to the model, the model had an unstated assumption, and the assumption only surfaced at assembly. Cable routing that crosses a boss. A connector that needs 8 mm of finger clearance. A screw head that cannot reach its hole with a driver.
Design driven ODM CNC machining shortens the loop by attacking the assumption, not the part. We build a simple assembly check into the review: does every mating feature have clearance to be installed, tightened, and serviced? If not, the fix belongs in the model.
Repeat loops are not always avoidable. Some geometry only reveals itself under thermal load or vibration. What is avoidable is the loop caused by something we could have seen on screen at no cost.
Practically, that means fewer purchase orders to chase, fewer incoming inspections that fail, and fewer weeks spent waiting on a revision of a part that had already been quoted twice.
Material and Process Choices That Follow From the Design
The right material is a function of the design, not a preference. A 7075 aluminum bracket machines cleanly and holds ±0.005 mm, but it is not the alloy for a part that will see salt spray for years. 6061-T6 machines well and anodizes predictably, which is why it dominates general brackets.
Stainless 303 and 304 cut differently. 303 is free-machining and gives a better finish on turned parts. 304 and 316L work-harden, so light depths of cut and constant feed keep the tool from rubbing. For medical and food-contact parts, 316L is often the specification that drives the rest of the process.
Titanium TC4 (Ti-6Al-4V) and Inconel punish poor setups. They generate heat at the cutting edge, so coolant delivery and tool rigidity decide the outcome more than the machine's spindle speed. These parts usually need 5-axis work so the tool stays engaged at a consistent angle.
When a design allows it, die casting or vacuum casting can replace a machined housing for higher volumes. The trade is tooling cost against cycle time. We quote both routes when the geometry permits, so the choice is visible in numbers rather than argued.
How Verification Backs the Design Intent
A design driven review is only useful if the finished part proves it. Inspection closes that loop. Every order passes raw material check, in-process monitoring, and a final inspection before shipment. Reports are available on request.
For tight features, the measurement method matters as much as the tolerance. A CMM probe needs access to the surface it measures. A Ø2 mm bore 30 mm deep cannot be verified with a standard stylus. If the drawing calls that feature critical, we flag it during review and propose an alternative datum or an open-ended geometry.
Surface finish is checked against the drawing's Ra callout. As-machined aluminum lands around Ra 1.6–3.2 μm. Bead blasting or fine turning reaches Ra 0.8–1.6 μm. Reaching Ra 0.2–0.8 μm is a separate operation with its own lead time.
Our qualification rate sits at 99.99% across shipped orders, which is the number that matters to a buyer. Behind it are the reviews that stopped a bad feature from becoming a bad part.
File-to-Part Shop vs Design Driven ODM CNC Machining
Same drawing, two different working relationships.
| Factor | File-to-part shop | Design driven ODM |
|---|---|---|
| First response | Quote only | Quote plus DFM notes |
| Corner radius conflict | Cut as drawn, slower | Flagged before quoting |
| Tolerance block | Accepted as written | Split into critical and free |
| Datum strategy | Left to the customer | Proposed in review |
| Revision cause | Usually assembly fit | Caught on screen first |
| Best fit | Mature, frozen design | Prototype to pilot build |
| Typical buyer | Production buyer | Design and NPI engineer |
When the Model Pays Off
If your design is frozen and proven, a file-to-part shop is cheaper and faster. If the part still has open questions about fit, tolerance, or process, design driven ODM CNC machining is the route that removes the expensive loop.
Questions Engineers Ask
Does design driven ODM mean the supplier owns my design?
No. You keep the IP, the drawings, and the CAD files. The review is a service layer on top of the machining order, not a transfer of ownership.
We can sign an NDA before files are exchanged, and uploads stay confidential. The engineering notes we return are yours to accept or reject.
What do you need to start a DFM review?
A STEP or native CAD file plus a drawing with tolerances, datums, and finish callouts. A short note on function helps: what the part touches, what moves against it, and how it is assembled.
With that, we return a quotation and free DFM analysis within 12 hours. Production can start within 24 hours of approval.
Which features most often fail a DFM review?
Internal corners tighter than the tool that can reach them, walls under 1.5 mm on tall ribs, and datums that reference a different face for every dimension group.
Deep small bores that cannot be measured with a standard probe also come up often. Each of these is fixable on screen at almost no cost.
Can you hold ±0.005 mm on a large part?
Yes, with the right setup. We run up to 4,000 mm maximum processing size, and tolerance depends on feature geometry, fixturing, and thermal stability during the cut.
We flag features where ±0.005 mm is not realistic and propose a workable tolerance or a different process before cutting.
Is there a minimum order quantity?
No. We run from one prototype to 10,000+ part runs on the same process controls. A single bracket gets the same review as a production batch.
Parts usually ship in 3–5 days after production starts, and our historical late-delivery probability is below 2%.
Which certifications cover medical and automotive work?
We hold ISO 9001:2015, IATF 16949:2016, ISO 13485:2016, and ISO 27001:2022. The medical and automotive scopes apply to the relevant programs.
Tell us the end use at quoting stage. That decides material traceability, inspection reports, and documentation depth.
