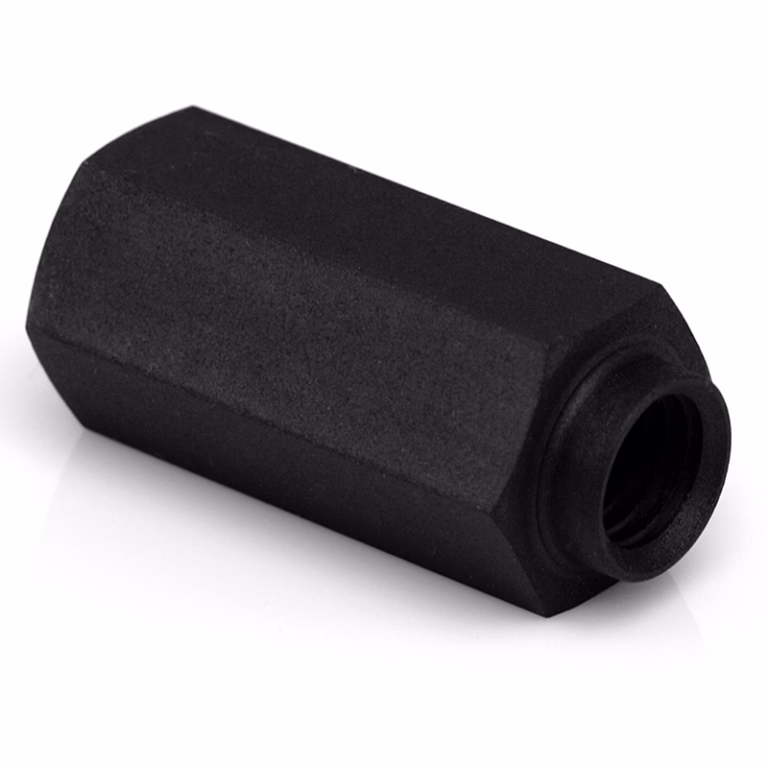

Precision Custom Metal 3D Printing Manufacturing

• 1
  How metal 3D printing manufacturing actually builds a part
• 2
  Which metals print well and which ones fight back
• 3
  Post-processing decides whether the part is usable
• 4
  Where the process stops and CNC takes over
• 5
  What to check before you send a print file to a supplier
• 6
  Where printed and machined metal parts pay off
• 7
  When to print, when to machine, when to do both

Powder bed fusion spreads a thin layer of metal powder, usually 20–60 μm, across a build plate. A fiber laser or electron beam traces the cross-section from the CAD slice and melts the particles together. The plate drops by one layer height, a recoater arm spreads the next layer, and the cycle repeats until the part is complete.

The melt pool is small and moves fast. Cooling rates reach 10^5 to 10^6 K/s, which is why as-built parts carry residual stress and why every metal part needs stress-relief heat treatment before it is cut off the plate. Skip that step and a 200 mm bracket can bow several tenths of a millimeter overnight.

Support structures do two jobs. They anchor the part to the plate and pull heat out of the melt pool. They also set the downward-facing surface quality: anything printed over powder alone tends to rough up and sag. A 45° rule of thumb keeps most overhangs clean, but each alloy behaves a little differently.

Layer lines are not the tolerance. The as-built surface lands around Ra 8–15 μm and the as-built dimensional window is roughly ±0.1 mm on a well-tuned machine. That is fine for a bracket web. It is not fine for a bearing bore, a seal face or a dowel pin hole. Those get machined after printing.

• 1
  Layer height20–60 μm typical; thinner layers mean smoother surfaces and longer build time
• 2
  Residual stressDriven by thermal gradients; relieved by heat treatment before plate removal
• 3
  Overhang limitAround 45° from vertical before supports become mandatory
• 4
  As-built condition±0.1 mm dimensional window, Ra 8–15 μm surface

Titanium and its alloys are the natural fit. Ti-6Al-4V (TC4) melts cleanly, holds strength after heat treatment, and prints thin walls down to about 0.4 mm. TA1 and TA2 behave similarly with lower strength. If a part needs stiffness at minimum mass, titanium plus a lattice core is usually the shortest path.

Stainless steels print easily and machine well. 316L and 17-4PH cover most corrosion and strength needs. 17-4PH responds to aging, so you can print near-net, machine the interfaces, then age to reach final hardness. That sequence avoids the distortion you get when you machine a hard part from bar stock.

Aluminium is the awkward one. AlSi10Mg and ADC12-family alloys print, but the powder is reflective, the melt pool is unstable, and the resulting surface is rougher than steel. Porosity is harder to control. For a structural aluminium part under 200 mm, 5-axis machining from 6061-T6 or 7075 plate is often faster and cheaper.

Nickel alloys such as Inconel print well and hold strength at high temperature, which is why they show up in hot sections and chemical hardware. Copper and its alloys conduct heat away from the melt pool so quickly that they need high laser power and slow scan speeds. Beryllium copper is printable but the powder is a health hazard, so few shops will touch it.

• 1
  Best printing behaviourTi-6Al-4V, 316L, 17-4PH, Inconel
• 2
  Workable with tuningAlSi10Mg, TA1/TA2, magnesium AZ31B/AZ91D
• 3
  DifficultPure copper, beryllium copper, some tool steels

A printed part never ships straight off the plate. The sequence runs: stress relief, plate removal, support removal, then machining of critical features. Each step changes the part slightly, so the order matters. Machining before heat treatment wastes the setup because the part moves afterward.

Heat treatment is not optional for thin, tall geometry. Stress relief at the alloy-specific temperature and time removes most of the locked-in stress. For 17-4PH, aging follows to raise hardness. For Ti-6Al-4V, a stress relief cycle is usually enough unless the drawing calls for a specific microstructure.

Critical interfaces get machined on the same 5-axis centers used for conventional work. Bores, threads, seal faces, bearing seats and dowel holes all need real tolerances. GreatLight holds ±0.005 mm on machined features, with surface finish between Ra 0.2 μm and Ra 1.6 μm depending on the feature and the material.

Surface finishing comes last. Anodizing, electroless nickel, plating, powder coating, bead blasting and polishing all behave differently on printed surfaces because the substrate is rougher than a machined one. Bead blasting first usually gives a more uniform coating. Laser marking works down to 1.5 mm character height.

• 1
  Order mattersHeat treat, then machine, then finish
• 2
  Machined tolerance±0.005 mm (±0.0002 in) on critical features
• 3
  Finish rangeRa 0.2–0.8 μm fine, Ra 0.8–1.6 μm high, Ra 1.6–3.2 μm as-machined

Size is the first wall. Our machines handle up to 4,000 mm on the CNC side, with travels of 4,000 × 400 × 150 mm on the large frame and a Ø400 mm rotary table. Powder bed printers are smaller than that, and every extra millimeter of build height raises the chance of a failed build. Long, thin parts are the worst case.

Cost per part falls slowly. Printing does not get dramatically cheaper at 1,000 pieces the way die casting or a screw machine does. When the geometry is simple and the material is common, a 3-axis or 4-axis mill will beat the printer on unit price well before the thousandth part.

Inspection is where printed parts differ from machined ones. Internal porosity, lack of fusion and unmelted powder are all possible. Those defects do not show up on a caliper. We inspect 100% before shipment and can supply raw material checks, in-process monitoring and final dimensional reports on request.

Certifications matter when the part is regulated. We hold ISO 9001:2015, IATF 16949:2016, ISO 13485:2016 and ISO 27001:2022, which covers automotive, medical device and information security expectations. Ask for the scope statement, not just the certificate number.

• 1
  Size ceilingLong, thin geometry is the highest-risk build
• 2
  Volume crossoverSimple geometry favours CNC early
• 3
  Hidden defectsPorosity and lack of fusion need more than calipers
• 4
  Regulated partsMatch the certificate scope to your industry

Ask who machines the part afterward. Many printing shops ship as-built geometry and leave the critical faces to someone else. That splits responsibility for the final tolerance, and when a bore comes in 0.03 mm undersize, nobody owns it. A shop that prints and machines under one roof owns the result.

Ask how material is traced. Powder lots age, get reused and get blended. A supplier should be able to tell you the alloy, the lot and how many times the powder has been through a build. Untraced powder is the most common reason a printed part fails a customer audit.

Ask what happens to your data. Printed parts start as a full-resolution CAD model, so the file is more valuable than the metal. We work under NDA when needed and our information security is certified to ISO 27001:2022. Uploads stay confidential either way.

Then ask about the schedule. A quotation and free DFM analysis come back within 12 hours, production can start within 24 hours, and machined parts typically ship in 3–5 days. There is no minimum order quantity, so a single prototype and a 10,000-part run go through the same floor.

• 1
  One roofPrint, heat treat, machine and finish under one quality system
• 2
  Powder traceabilityAlloy, lot and reuse count on the paperwork
• 3
  Data handlingNDA available; ISO 27001:2022 certified
• 4
  ThroughputQuote in 12 hours, production start in 24 hours

Aerospace brackets are the classic case. A titanium bracket with a lattice core and conformal cooling channels can replace an assembly of machined and welded pieces, cutting part count and weight at the same time. The mounting faces still get machined so the bolt pattern and the mating surface hold tolerance.

Medical devices lean on the same combination. Custom surgical guides need a patient-specific shape that no mill can cut, plus a locating feature that has to fit a drill or a pin within a few hundredths of a millimeter. Print the shape, machine the fit.

Robotics and humanoid joints use internal honeycomb structures to shed mass while keeping stiffness. The bearing bores and the shaft fits are then machined to micron-level tolerance. Printing the whole joint as one piece removes the fasteners that would otherwise work loose under cyclic load.

Automotive and EV work tends to be different. Small-batch brackets, thermal hardware and prototype powertrain parts benefit from printing when the geometry is complex, but high-volume simple parts stay on the CNC floor. That split is normal and it is how we schedule both.

• 1
  AerospaceLattice brackets with machined mounting faces
• 2
  MedicalPatient-specific geometry plus a machined locating fit
• 3
  RoboticsSingle-piece joints with machined bearing bores
• 4
  Automotive / EVComplex low-volume parts print, simple high-volume parts get milled
