CNC Milling Turning Tips: 7 Checks Before You Scale

• 1
  What matters most in a bulk run
• 2
  CNC milling turning tips start with the drawing and the material lot
• 3
  Fixture design and tooling strategy decide repeatability
• 4
  Thermal stability and in-process inspection
• 5
  Finishing and change control across a long run
• 6
  How to run a bulk CNC milling turning order
• 7
  Which setup fits your batch

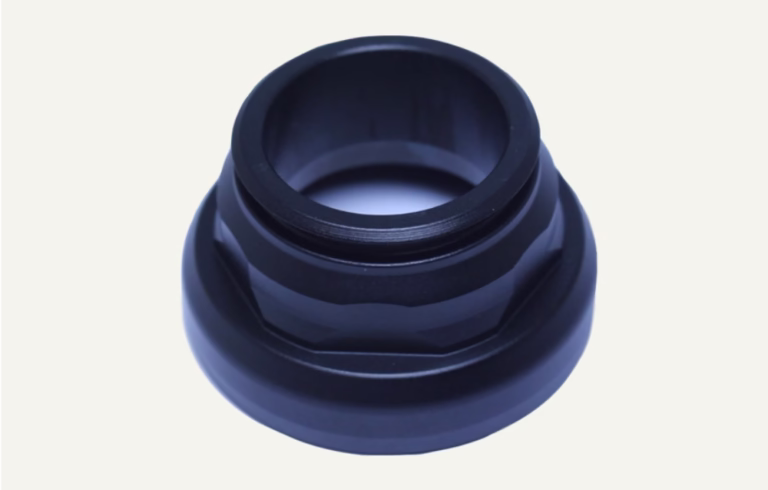

Most bulk problems are designed in before a chip is cut. An engineer optimizes a bracket for stiffness, sends a STEP file, and the shop quotes what it sees. Deep pockets with sharp internal corners force small tools, slow feed rates and frequent tool changes. A 0.5 mm corner radius increase often lets the shop run a 6 mm end mill instead of a 3 mm one. Cycle time drops, tool breakage drops, and the part still does its job.

Tolerances deserve the same review. Stacking ±0.005 mm on every feature of a housing triples the number of finishing passes needed. Real function usually lives in two or three dimensions: a bearing bore, a mating face, a hole pattern. Mark those as critical and open the rest to ±0.05 mm or wider. Suppliers quote faster and inspect the right features when the drawing says which ones matter.

Material is the second half of the same problem. One billet of 6061-T6 behaves much like the next. Ten thousand pieces do not. Grain structure, residual stress and surface scale vary from lot to lot, and that variation shows up as warpage after roughing or a finish that shifts from pallet to pallet. Ask for lot traceability and a composition check on aluminium and stainless before the run starts. We run spectrometer analysis on incoming stock for exactly this reason.

Heat treatment adds another variable. Pre-hardened 4140 or stress-relieved 17-4PH machines differently from annealed stock. If the drawing calls out a hardness range, confirm the shop receives material inside that range rather than machining soft stock and sending it out later. Hardness that arrives high wears small tools fast; hardness that arrives low tears instead of cutting.

• 1
  Open non-critical tolerancesReserve ±0.005 mm for functional features only.
• 2
  Add corner radii0.5 mm minimum internal radius on pockets deeper than 3× diameter.
• 3
  Verify incoming lotsAsk for composition and hardness data before the first cut.

A fixture that holds one part well may hold the five-hundredth part badly. Clamping pressure distorts thin walls, and a datum that is easy to reach on a prototype becomes crowded once the part sits in a tombstone with eleven neighbours. Modular self-centering vises with machined soft jaws work well for parts under roughly 150 mm. Larger runs justify purpose-built tombstone fixtures on 4-axis or 5-axis machines, where the operator loads six to twelve parts per cycle and never re-dials a datum.

Watch for the three classic fixture errors. First, clamping on a finished surface, which leaves marks and moves the part. Second, a datum that only one orientation can reach, which forces an extra operation. Third, chip packing in a pocket that shares space with the clamp. Each one looks minor on a single part and becomes a scrap generator at volume.

Tooling follows the same logic. A tool that survives 20 parts may not survive 2,000. Coatings matter more as runs get longer: TiAlN holds up in dry or minimal-coolant milling of steel, while uncoated carbide is fine for aluminium at high spindle speed. Keep a spare of every tool in the setup sheet, and record the tool life at which the shop changes inserts. If that number is a guess, dimensions will drift before anyone notices.

Regrinding is worth a policy, not a habit. Turning inserts can often be indexed and reused; end mills usually should not be reground below the coating. Ask your supplier where they draw that line. A shop that tracks tool life per operation will tell you the number without checking.

• 1
  Clamp on raw stockNever clamp a finished surface if you can avoid it.
• 2
  Count tool changesEvery extra tool is a potential dimensional shift mid-run.
• 3
  Log tool lifeRecord parts per edge, not hours per shift.

Heat moves metal more than most engineers expect. A spindle that warms 4 °C during the first hour of a shift grows a 300 mm aluminium part by roughly 0.02 mm, which is four times a ±0.005 mm tolerance. Coolant temperature, shop air and direct sunlight through a window all contribute. The usual fix is to run a warm-up cycle before the first article and keep the coolant chiller set within a narrow band. On tight-tolerance work, measure the first article after the machine has reached steady state, not during warm-up.

Season and shift matter too. A part machined at 7 a.m. in a cold shop and one machined at 3 p.m. will not match if the shop is not temperature-controlled. Ask whether the finishing area holds a stable temperature. If it does not, expect the shop to compensate by measuring more often and adjusting offsets.

Inspection has to run alongside production. First-article inspection proves the setup; final inspection proves the shipment. Neither catches drift at part 1,800. The practical approach is sampling at fixed intervals, for example every 25th or 50th part, with a CMM or a purpose-built gauge checking the critical features. Log every reading against the part number so you can see a trend before it becomes a rejection.

Non-critical features can be checked with calipers or thread gauges. Critical bores, hole positions and mating faces need a CMM or a dedicated fixture gauge. If the run is large enough, a go/no-go gauge pays for itself within a few hundred parts and lets the operator check every piece instead of waiting for the inspector.

• 1
  Warm up firstRun a warm-up cycle before cutting the first article.
• 2
  Sample on a scheduleEvery 25th or 50th part, with numbers written down.
• 3
  Match gauge to featureCMM for bores and hole patterns, calipers for the rest.

Surface finish is easy to specify and hard to hold. Ra 0.8–1.6 μm is a common callout for sealing faces and sliding surfaces; Ra 1.6–3.2 μm is fine for most brackets and covers. The tighter the number, the more the finishing pass depends on a sharp tool and a stable setup. Bead blasting or tumbling can hide small tool marks, but it also rounds edges and can change a press fit. Decide whether the finish is functional or cosmetic before the run starts.

Anodizing and plating add their own variation. Hardcoat anodizing builds roughly half its thickness into the part, which can close a hole by 0.02–0.03 mm per surface. Plating tolerances vary by process. If a coated part must still meet a bore tolerance, tell the shop before machining so they can leave stock for the coating. Laser marking needs at least 1.5 mm character height to stay legible after finishing.

Change management is the last piece. Once a run starts, every drawing revision, material substitution or process tweak has to reach the operator on the floor, not just the project engineer. A shop that logs revisions and re-runs first-article inspection after any change is safer than one that assumes nothing changed. Ask how they handle an engineering change notice mid-run. The answer tells you how the next 3,000 parts will go.

• 1
  Say why the finish mattersFunctional finishes need tighter control than cosmetic ones.
• 2
  Plan for coating buildLeave 0.02–0.03 mm per surface before anodizing.
• 3
  Re-run first article after changesAny revision or substitution resets the inspection baseline.
