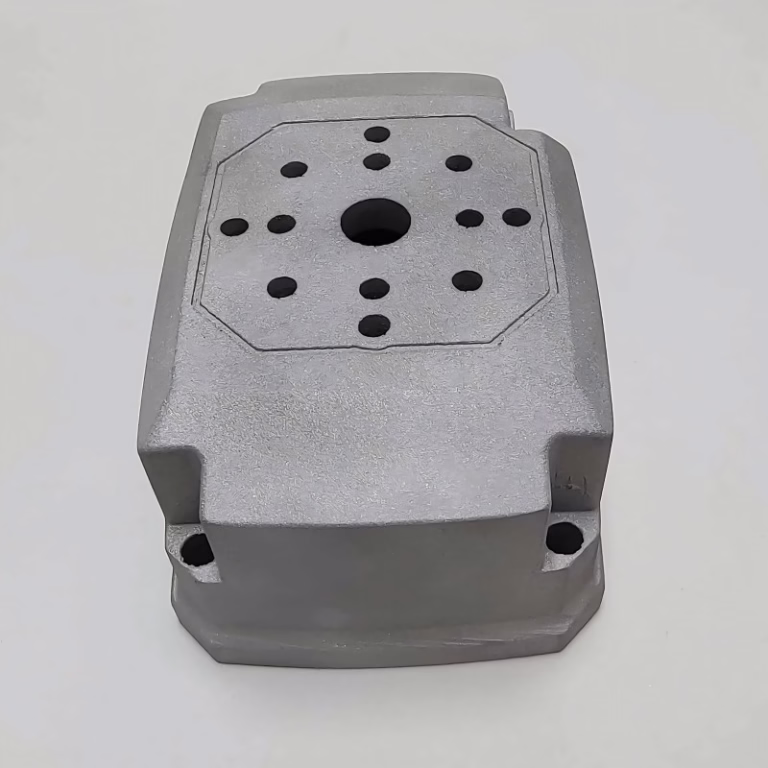

Prototype Mold Low Cost China: How to Buy Without Getting Burned
This page is for engineers and sourcing staff who need a prototype mold low cost China quote they can actually trust. We break the quote into steel, cooling, undercuts, polish and post-processing, then show which of those you can cut and which you cannot. Read it before you send a deposit.
In this article
- 1
- 2
- 3
- 4
- 5
- 6
- 7
- 8
Key takeaways
What actually drives a prototype mold price
Cost impact is relative to a simple 200 × 200 mm housing tool.
| Cost driver | Cheap option | Cost impact | When it is acceptable |
|---|---|---|---|
| Cavity steel | P20 pre-hardened | Baseline | Under 1,000 shots, no abrasive filler |
| Cavity steel | 718H or NAK80 | +15–30% | Visible parts, some glass-filled resin |
| Cooling layout | Straight drilled lines | Baseline | Wall thickness under 3 mm, flat part |
| Cooling layout | Baffles or bubblers | +10–25% | Deep cores, cycle time limits |
| Undercuts | None, part redesign | Baseline | You control the part geometry |
| Undercuts | Slides or lifters | +20–40% per side | Snap fits that cannot be changed |
| Surface | As-machined or bead blast | Baseline | Hidden internal brackets |
| Surface | SPI B-1 or texture | +10–35% | Customer-facing enclosures |
| Post-processing | Machined finish only | Baseline | Fit checks on the bench |
| Post-processing | Anodize, laser, assembly | +8–20% | Show builds and trade shows |
The verdict
Buy the tool that matches your shot count and your surface spec, not the lowest number on the sheet. Remove undercuts in CAD, keep cooling simple, and pay for polish only on faces the customer sees.
Why prototype mold low cost China quotes spread so wide
Two shops in Dongguan can quote the same STEP file 3× apart. It is rarely about labor rate. The gap sits in what each shop assumes about the tool. One plans a single-cavity P20 block with straight cooling and a two-plate structure. The other prices a three-plate tool with a hot runner, hardened inserts and a textured cavity. Neither is wrong. They are answering different questions.
China keeps a real cost advantage for prototype tooling because the supply chain is dense. Steel, standard mold bases, EDM electrodes, CNC time and polishing are all within a few kilometers. That density removes freight and waiting, not engineering. So when a quote looks too low, the saving usually came out of the design or the inspection, not out of the labor pool.
The practical move is to force the shop to expose its assumptions. Ask which steel, how many cavities, what cooling, how many slides, what surface, and what is excluded. A supplier who answers those six points in writing is already cheaper in real terms, because you stop paying for surprises after T1.
- 1Same part, different tool
- 2Density cuts logistics, not engineering
- 3Written assumptions beat verbal promises
Steel selection: the sweet spot for a short-run tool
For a prototype or bridge mold, you are typically chasing 200 to 2,000 shots, not 500,000. That changes the steel decision. P20 pre-hardened at 28–32 HRC handles unfilled ABS, PC and PP without trouble. It machines fast, polishes acceptably and costs the least. For a housing that only has to prove the design, P20 is the correct answer, not a compromise.
Step up to 718H or NAK80 when the part is visible, when you plan to run glass-filled PA or PBT, or when you expect the tool to survive a second revision cycle. The premium is roughly 15–30% on the cavity block. That is still cheaper than scrapping a tool after 300 shots because the gate area washed out.
Hardened inserts make sense at wear points only: gates, hot tips, long cores and slide faces. Hardening the whole cavity for a 500-shot run adds cost and lead time without changing the outcome. The skill is picking the two or three places that actually wear.
- 1P20 (28–32 HRC)
- 2718H / NAK80
- 3Local hardening
Cooling, undercuts and texture: where the money hides
Cooling is the quiet cost driver. Straight drilled lines are cheap and work well when the wall is under 3 mm and the part is flat. Deep cores, tall bosses and thick sections need baffles or bubblers. Those add 10–25% to the tool, but they cut cycle time and warpage at the press. For a 500-shot run, straight lines are usually the right call.
Every undercut needs a slide, a lifter or a hand-loaded insert. Each of those adds machining, fitting and maintenance. A slide adds roughly 20–40% per side of the tool. Before you accept that, look at the part. A snap fit that could become a screw boss, or a rib that could be relocated, removes the slide entirely. Design changes at the CAD stage are free. Slides are not.
Texture and polish behave the same way. A visible housing needs a consistent SPI finish, which means hand polishing and, for texture, a photo-etched or laser-etched cavity. Expect 10–35% on top. Internal brackets and jigs should stay as-machined. Nobody inspects the inside of a prototype bracket, and the polish line item is pure waste there.
- 1Straight cooling
- 2Baffles and bubblers
- 3Delete the undercut
How to compare prototype mold suppliers in China
Start with capacity, not price. A shop that owns CNC machining, EDM, polishing, injection molding and finishing under one roof removes the hand-off delays that show up as late T1 samples. GreatLight runs 127 high-precision machines across three wholly-owned plants, including 16 simultaneous 5-axis machining centers, with a 4,000 mm maximum processing size. That matters when your tool needs a cavity insert machined to ±0.005 mm.
Then look at the paperwork trail. ISO 9001:2015 covers the basic quality system. IATF 16949:2016 matters if the part sits in a vehicle program. ISO 13485:2016 matters for medical housings. ISO 27001:2022 covers how your CAD files are stored and shared. If your customer audits your supply chain, a supplier without the right certificate becomes your problem later.
Finally, test the response. A quotation and free DFM analysis within 12 hours tells you the shop read your file. Production can start within 24 hours once the design is frozen, and parts ship in 3–5 days. No minimum order quantity means you can buy one prototype set or a 10,000-part run from the same supplier. Those numbers are useful only if the DFM report that comes with them is specific.
- 1Vertical integration
- 2Certificate fit
- 3Response quality
Five warning signs in a low-cost mold quote
The first sign is a price with no breakdown. If the quote is one number for the whole tool, you cannot tell whether the shop priced a 1-cavity P20 tool or a 4-cavity hardened tool. Ask for the split: cavity, core, base, slides, cooling, polish, molding trial.
The second is silence on steel grade. "Good steel" or "imported steel" is not a specification. You want the grade and the hardness range, written down. The difference between P20 at 30 HRC and a soft block is the difference between a 1,000-shot tool and a 200-shot tool.
The third is a quote that excludes the molding trial. T1 samples are the only proof the tool works. If the trial, the sample report and the freight are outside the number, the real cost is higher than the one you compared.
The fourth is no metrology plan. A supplier who cannot say how the cavity will be measured is guessing at the tolerance. For critical dimensions, ±0.005 mm requires a controlled measurement process, not a caliper on the bench.
The fifth is pressure to skip the NDA. Your CAD file is the asset. A shop that treats confidentiality as a formality will treat your schedule the same way.
- 1No cost breakdown
- 2Vague steel
- 3Trial excluded
- 4No measurement plan
Step by step: buying a prototype mold from China
Run these in order. Skipping step 2 is the most common reason a cheap tool becomes expensive.
- 1Freeze the part geometry firstSend a STEP or X_T file with wall thickness, draft angle (1–2° minimum) and the gate location if you have one. Changes after steel is cut are change orders.
- 2Request a DFM report with the quoteAsk for parting line, gate type, ejector layout and any thin-steel warnings. Compare two suppliers on the report, not on the total.
- 3Confirm steel, cavity count and runnerGet it in writing: P20 or 718H, 1 or 2 cavities, cold or hot runner. These three lines explain most of the price gap.
- 4Decide which undercuts to removeGo through every slide and lifter. If a design change removes one, do it now. Each slide adds 20–40% per side.
- 5Set the surface spec per faceVisible faces get SPI B-1 or texture; internal faces stay as-machined. Specify Ra 0.8–1.6 μm for functional sealing faces.
- 6Agree on the T1 sample and measurement planState which dimensions get checked and with what instrument. GreatLight inspects 100% before shipment and provides reports on request.
- 7Book post-processing in the same orderAnodizing, laser marking or assembly at the same shop avoids a second freight leg and a second schedule.
- 8Sign the NDA before you uploadUploads are secure and confidential, and an NDA is available on request. Do this before the first file transfer, not after.
Prototype mold questions engineers ask
How many shots can a low-cost prototype mold survive?
A P20 tool at 28–32 HRC typically handles 200 to 2,000 shots with unfilled resin, depending on gate design and how the press is run. Abrasive fillers such as glass-filled PA or PBT wear gates and cores faster.
If you need more than a few thousand shots, move to 718H or NAK80 and add local hardening at the gates and slide faces. That costs more up front and less than rebuilding the tool mid-program.
Should I buy a 1-cavity or 2-cavity prototype tool?
For a pure form-and-fit prototype, one cavity is usually enough and keeps the tool cost down. The part is validated, not produced.
Choose two cavities when you need to test assembly pairs, when cycle time at the press is a constraint, or when the tool will act as a bridge to production. Two cavities add tool cost but cut press time per part.
Can I use a prototype mold for a small production run?
Yes, if the steel and cooling suit the volume. A well-built P20 or 718H tool can serve as a bridge tool for low-volume manufacturing while the production tool is being made.
Plan the gate and cooling layout with that in mind from the start. Retrofitting better cooling into a finished tool is expensive; designing it in costs 10–25%.
What should be in the DFM report?
Parting line, gate type and location, ejector layout, draft angle check, wall thickness warnings, and any thin-steel or deep-rib flags. A useful report also states the proposed steel grade and cavity count.
If the report is a one-line email saying "looks fine", the quote behind it is a guess. Ask for the annotated file.
How do I protect my design before sending files?
Sign an NDA before the first upload. Uploads are secure and confidential, and an NDA is available on request.
Send only what the quote needs. A STEP file with the critical features is enough for DFM and pricing. Keep proprietary assembly data back until the order is placed.
Which certifications should a prototype mold supplier have?
ISO 9001:2015 is the baseline quality system. Add IATF 16949:2016 for automotive programs, ISO 13485:2016 for medical devices, and ISO 27001:2022 if your customer cares about information security.
Match the certificate to your end market. A tool shop without the right one can still make good parts, but it will not pass your customer's supplier audit.
