How a Chinese CNC Machining Solution Actually Holds Tolerance

This page explains what sits behind a Chinese CNC machining solution: the machine mix, the process chain and the inspection loop that decide whether a part comes back at ±0.005 mm. It is written for design and sourcing engineers who need to judge a supplier before sending a drawing.

Get Instant Quote Talk to an Engineer

±0.005 mmRa 0.2–0.8 μm4,000 mm max127 CNC machines

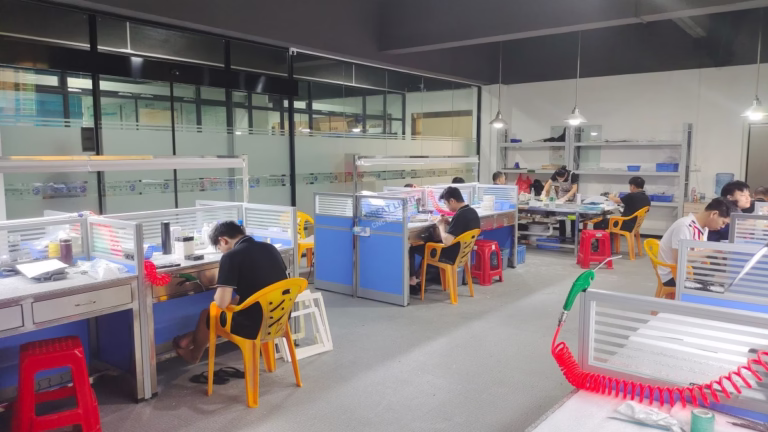

custom chinese cnc machining solution for you

On this page

1
Key takeaways
2
What a Chinese CNC Machining Solution Really Contains
3
Why the Machine Mix Decides What Fits and What Does Not
4
The Finishing Chain: Where Dimensions Quietly Move
5
How to Evaluate a Chinese CNC Machining Solution in 5 Steps
6
Matching Part Type to Machine and Process
7
How Each Finish Changes the Part

Short version

Key takeaways

Machine mix sets the ceilingOne 3-axis mill and sixteen 5-axis centers do not hold the same geometry.

Finishing belongs in the same buildingAnodizing, plating and bead blasting change dimensions if nobody owns the stack-up.

Inspection is a loop, not a gateIn-process checks catch drift before the last operation, not after.

Certification maps to your industryISO 9001 fits general work; IATF 16949 and ISO 13485 fit automotive and medical.

Setup count drives both cost and errorEvery extra re-fixturing adds a datum shift you have to absorb in tolerance.

Mechanism

What a Chinese CNC Machining Solution Really Contains

A Chinese CNC machining solution is a chain, not a single operation. The drawing enters as a CAD file, gets a DFM pass, then moves through roughing, semi-finishing, finishing, deburring, surface treatment and final inspection. Every link can pull the part away from nominal, so the chain is only as good as its weakest step.

The first link is the machine. A three-axis vertical mill cuts one face at a time, and each new face needs a new setup. A simultaneous 5-axis center tilts the tool or the table so the part keeps one datum across several features. That difference shows up as position error, not as surface finish.

The second link is the toolpath strategy. Roughing removes bulk with a large stepover. Semi-finishing leaves a controlled allowance, often 0.2–0.5 mm on walls. Finishing takes the last 0.05–0.1 mm with a smaller radial engagement to control deflection and chatter. Skip the semi-finish and the finisher fights variable load.

The third link is metrology. A part can be cut perfectly and still fail because nobody checked it in the right place. CMM reports, height gauges and optical comparators each answer a different question. A supplier who only measures the outside envelope will miss a true position callout on an internal bore.

1
One datum, many features5-axis setups reduce datum shifts on complex housings and brackets.
2
Allowance is planned, not guessedSemi-finish allowance of 0.2–0.5 mm keeps finishing loads stable.
3
Inspection matches the calloutTrue position needs a CMM or a functional gauge, not a caliper.

Machine mix

Why the Machine Mix Decides What Fits and What Does Not

Capacity is not a count of machines. It is a count of machines that can reach your geometry. A shop with 127 high-precision CNC machines still says no if none of them fits a 4,000 mm part or if the tolerance sits below the thermal stability of the room.

Travel envelope is the first filter. Large parts need long-travel machines, and long travels introduce their own error sources: thermal growth, table sag and tool deflection over long reaches. A 4,000 × 400 × 150 mm envelope suits long extrusions and rails. Compact cells at 500 × 500 × 450 mm hold tight work better because the loop is shorter.

The second filter is axis count. Simple plates with holes on one face run fastest on a 3-axis machine. Parts with compound angles, undercuts or five-sided access need 4-axis or simultaneous 5-axis. A mill-turn center handles a turned diameter and a milled flat in one setup, which removes a re-chuck and its concentricity error.

The third filter is spindle and rigidity. Aluminum 6061 and 7075 cut freely and tolerate aggressive parameters. Inconel and Ti-6Al-4V generate heat at the cutting edge and work-harden if the feed is too low. Those materials need rigid setups, high-pressure coolant and slower surface speeds, which changes cost more than it changes tolerance.

1
Envelope before priceConfirm travel and workholding can reach the part before comparing quotes.
2
Axis count follows geometryFive-sided access or compound angles push the job to 5-axis.
3
Material drives parametersTitanium and Inconel need lower speeds and heavier coolant than aluminum.

Finishing

The Finishing Chain: Where Dimensions Quietly Move

Anodizing grows a part. The oxide layer forms partly into the surface and partly out of it, and a hardcoat runs thicker than a clear coat. On a 0.05 mm tolerance that growth is survivable. On a ±0.005 mm fit it is not, so the machinist has to cut undersize on purpose and let the coater bring it back.

Plating behaves differently. Electroless nickel deposits evenly and adds a predictable layer. Zinc and silver plating build up on edges first, which rounds sharp corners and changes a press fit. If a drawing calls out a plating thickness and a shaft tolerance, both numbers must be reconciled before cutting starts.

Mechanical finishes are subtractive and mostly cosmetic, but not always. Bead blasting peens the surface and can move a thin wall. Polishing removes material and can round a chamfer edge. Tumbling softens burrs on every edge at once, which is useful for high-volume parts and risky for a single sharp sealing face.

Laser marking looks harmless. It is not, if the mark sits on a sealing surface or a bearing seat. A supplier who owns the finishing line can sequence the marking after the final inspection. A supplier who outsources it loses that control.

1
Plan the growthHardcoat anodizing adds thickness, so machine undersize by the coating build.
2
Protect functional facesMask sealing and bearing surfaces before blasting or plating.
3
Sequence marking lastMark after final inspection so the mark never hides a defect.

Evaluation path

How to Evaluate a Chinese CNC Machining Solution in 5 Steps

Run this before you release a purchase order.

1
1. Check the envelope against your largest partAsk for the actual travels. A 4,000 mm machine and a 500 mm cell are not interchangeable. Confirm workholding too, not just the axis stroke.
2
2. Match axis count to geometryCount the faces that need machining and the compound angles. One to two faces fits 3-axis. Five-sided access or undercuts belongs on 4-axis or simultaneous 5-axis.
3
3. Confirm the finishing line is in-houseAsk who anodizes, plates and blasts the part. In-house control keeps the dimensional stack-up in one set of hands.
4
4. Ask for the inspection plan, not a certificateA certificate proves the system, not the part. Request the in-process check points and the final report format for your callouts.
5
5. Verify material traceability for regulated workAutomotive and medical parts need mill certificates tied to the material lot. Confirm the flow before the first chip is cut.

Selection criteria

Matching Part Type to Machine and Process

Use the geometry, not the part name, to pick a route.

Part type	Best route	Typical tolerance	Watch out for
Flat plate, one face	3-axis mill	±0.05 mm	Setup count if holes sit on both faces
Housing, five-sided	5-axis simultaneous	±0.01 mm	Thin walls deflect under finishing load
Shaft with a milled flat	Mill-turn center	±0.01 mm	Concentricity after re-chucking
Long extrusion, 3–4 m	Long-travel 3-axis	±0.05 mm	Thermal growth over the full length
Tight bore, Ra 0.2–0.8 μm	4-axis plus fine boring	±0.005 mm	Chatter if the boring bar overhangs
Prototype, one piece	3-axis or 5-axis	±0.05 mm	No minimum order quantity needed
High-mix batch, 10,000+	Dedicated cell plus fixtures	±0.01 mm	Fixture wear across the run
Medical implant housing	5-axis plus ISO 13485 flow	±0.005 mm	Traceability of material and process

Finishing effects

How Each Finish Changes the Part

Finish	Dimension effect	Best for	Avoid when
Clear anodizing	Small growth, microns	Aluminum covers, cosmetic parts	Tight press fits without pre-compensation
Hardcoat anodizing	Larger growth than clear	Wear surfaces, sliding faces	Sharp thread fits
Electroless nickel	Uniform, predictable layer	Steel and copper wear parts	Parts needing deep color
Zinc plating	Builds on edges first	Corrosion protection on steel	Tight corner radii
Bead blasting	Peens and slightly removes	Matte cosmetic finish	Thin walls under 1 mm
Polishing	Removes material	Optical and sealing faces	Sharp edge requirements
Laser marking	No dimension change	Serial numbers, logos	Marks taller than 1.5 mm

When This Route Fits, and When It Does Not

If your part needs five-sided access, a tight bore and an in-house finish, pick a factory that owns the whole chain. If your part is a flat plate with loose tolerances and you only care about the fastest quote, a broker or a pure platform will do the job. Match the risk, not the marketing.

Get Instant Quote Talk to an Engineer

FAQs

Common Questions

How tight a tolerance can a Chinese CNC machining solution hold in production?

On a stable setup with a rigid machine and controlled temperature, ±0.005 mm is achievable on critical features. That is not the same as ±0.005 mm on every dimension of the drawing.

Most features land at ±0.05 mm without special effort. Tight tolerances should be reserved for the dimensions that actually matter to function, because over-tolerancing raises cost and rejects at the same time.

Does the choice of material change the achievable tolerance?

Yes. Aluminum 6061 and 7075 cut cleanly and hold size well. Titanium Ti-6Al-4V and Inconel generate more heat and work-harden, so the cutter deflects more and the surface finish is harder to control.

Plastics add another variable. PEEK and POM move with temperature and moisture, so a part measured right after machining may not match the same part measured a day later.

Why does outsourcing the finish create tolerance risk?

Because two suppliers rarely share one datum. The machinist cuts to a size, the coater adds a layer, and nobody owns the final number unless the sequence is planned in advance.

Keeping machining and finishing under one roof lets the process engineer pre-compensate the cut for the coating build and inspect the part after the last step.

What should be in the inspection report?

The report should list the measured dimensions against the drawing callouts, the instrument used and the result. For position callouts that means a CMM or a functional gauge, not a caliper.

Ask for raw material certificates and in-process check records as well if your industry requires traceability.

Is a minimum order quantity required?

Not necessarily. A prototype and a 10,000-piece run can come from the same factory, but they take different routes. A one-off is cut on a general-purpose machine. A large run gets a dedicated fixture and cell.

That shift is why the unit price curve is not linear and why a prototype quote does not predict production cost.

How do certifications affect which supplier you should pick?

ISO 9001:2015 covers general quality management and suits most industrial work. IATF 16949:2016 applies to automotive and EV programs with traceability requirements.

ISO 13485:2016 applies to medical devices, and ISO 27001:2022 covers information security for customer drawings and files. Match the certificate to the market you sell into.
