Ask who invented the first CNC machine and most answers start with a person. The better answer starts with a problem. In the late 1940s, John Parsons ran an aircraft parts shop in Michigan. His contract was helicopter rotor blade templates with airfoil contours that hand wheels could not hold. A template is a 3D curve. A machinist can follow it by eye, but the point-to-point repeatability drifts.

Parsons' move was to convert the curve into numbers. A grid of X-Y coordinates defined the airfoil surface. An IBM 602A multiplier punched those coordinates onto cards. Machinists then cranked a Swiss jig borer to each card position. The tool did not move by itself. The data told the operator where to stop.

That is the mechanism the whole industry inherited: geometry becomes a coordinate list, and the list drives the tool. Parsons received a U.S. patent for the concept, and the U.S. Air Force funded the next step because aircraft skins needed more contour accuracy than manual tracing could deliver.

So the first NC machine was not a machine at all. It was a method. The hardware followed the method.

• 1
  InputPunched cards carrying X-Y coordinate points
• 2
  ExecutionAn operator moved the jig borer to each point
• 3
  LimitationStill human-paced, no continuous path control

The Air Force sent the problem to MIT's Servomechanisms Laboratory. There, in 1952, a team demonstrated a milling machine driven by a controller reading perforated tape. This is the hardware most engineers mean when they ask who invented the first CNC machine. The tape held binary instructions. The controller translated those bits into axis motion through servos.

The motion itself was crude. The machine moved in straight line segments between programmed points, so a curve was approximated by many short chords. Accuracy depended on how closely the chords tracked the true contour. Even so, the machine proved a principle: a stored program could control a cutting tool with repeatability that a human hand could not match shift after shift.

There is a naming distinction worth keeping straight. This was NC, not CNC. Numerical control means the machine follows a fixed sequence of numbers. A punched tape is fixed. Change one dimension and you punch a new tape. The control has no computer making decisions in real time.

That gap between NC and CNC is the gap between a player piano and a synthesizer.

• 1
  1952MIT demonstrates tape-driven contour milling
• 2
  Control typeDiscrete point-to-point, straight segments only
• 3
  Data carrierPerforated paper or Mylar tape

By the mid-1950s the bottleneck moved from the machine to the part program. Every machine tool had its own code, so moving a job to a different machine meant rewriting the tape. MIT led a group that developed APT, the Automatically Programmed Tool language, released in the late 1950s. APT let a programmer describe a part using geometry statements: a circle, a line, a plane, a tool offset.

A computer then translated that geometry into machine-specific coordinates. The programmer no longer needed to know the servo layout of a particular mill. This separation of programming logic from machine hardware is the reason CAM software exists today. Your CAM toolpath is a descendant of APT.

The engineering consequence is large. Once geometry is described in a general language, post-processors can retarget a program to different machines. A shop can move work between a 3-axis mill and a 5-axis center without reprogramming the part from scratch. That portability is what made automation flexible instead of just fast.

APT was text-heavy and ran on mainframes. It still mattered, because it defined the boundary between what a part is and how a machine cuts it.

Tape control worked, but tape is fragile. A torn reader, a misread frame, or a wrong spool order stopped the job. Maintenance crews spent hours on readers and punch blocks. The control also could not compensate for tool wear, thermal drift, or a slightly off fixture without a new tape.

In the 1970s, minicomputers and later microprocessors became cheap enough to mount on the machine. The control could store programs, run them from memory, and execute logic in real time. This is the machine that earns the name CNC, for computer numerical control. The computer reads the program, interpolates the path, and closes the servo loop continuously.

Now the control can do things tape could not: cutter radius compensation, tool length offsets, circular interpolation, canned cycles, and adaptive feed override. If a tool wears, the operator updates an offset instead of repunching a tape. That is the practical difference between NC and CNC on the shop floor.

Modern CNC closed a loop that started with a coordinate list in Michigan. The list is still there. Only the hardware around it changed.

• 1
  InterpolationArcs, helixes and splines computed in real time
• 2
  CompensationTool radius and length offsets stored in the control
• 3
  FeedbackEncoder or glass scale closes the position loop

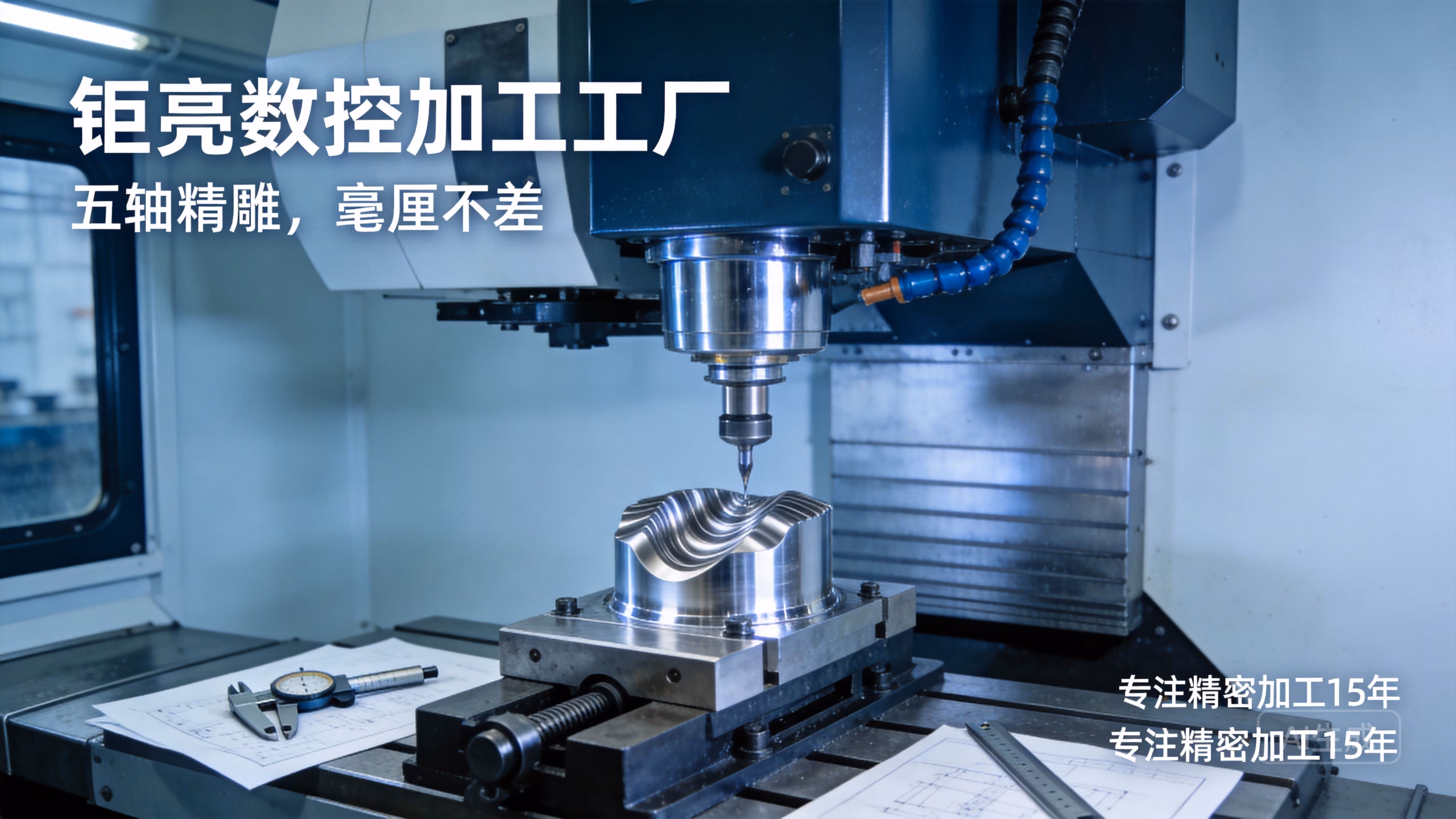

Strip the branding off any machine in our shop and the loop is the same. A part program defines target positions. The controller interpolates a path between them. Servo drives move ballscrews. Encoders or glass scales report actual position. The controller compares commanded and actual, then corrects. That closed loop is the core invention, and it explains why a 1952 tape mill and a 2026 five-axis center share a family tree.

Accuracy depends on where the loop closes. A rotary encoder on the motor sees motor rotation, not table position. Ballscrew pitch error, thermal growth, and backlash sit outside that measurement. A glass scale mounted on the axis sees the table itself, so it corrects those errors directly. That is why a machine with linear scales can hold tighter tolerance over a long run.

Rigidity sets the other half of the limit. A servo can command a position, but the tool still has to cut without pushing the part away. Chatter, tool deflection, and fixture flex all show up as dimensional error no control can remove. When engineers ask why a tolerance is hard to hold, the answer is usually stiffness, not resolution.

For reference, our production machines hold ±0.005 mm (±0.0002 in) and finishes from Ra 0.2–0.8 μm on fine work to Ra 1.6–3.2 μm as-machined. Those numbers are the outcome of the same loop, just tighter hardware.

• 1
  CommandG-code block with target coordinates and feed rate
• 2
  InterpolateControl computes intermediate points at a fixed cycle time
• 3
  MeasureEncoder or scale feeds actual position back
• 4
  CorrectDrive adjusts until following error stays in band

An honest history has to name the limits. The 1952 machine could not cut a smooth sculpted surface in one continuous pass. It stitched straight segments together. Fine finishes came from hand polishing afterward. Interpolation algorithms for true arcs and splines arrived later, along with enough computing power to evaluate them fast.

Early controls also had no in-process measurement. The operator checked the part with hand tools and adjusted offsets by feel. There was no probing cycle, no automatic tool wear compensation from a measured feature. If a cutter broke, the program kept running until someone noticed.

Speed was another boundary. Servos and drives of that era could not follow aggressive feed rates without overshoot. Programmers kept feed conservative to protect the part. The tradeoff was time. A job that runs in 40 minutes today might have taken hours in 1955, with more manual intervention.

None of this reduces the achievement. It defines it. The 1952 mill proved the loop. Later decades made the loop fast, precise, and cheap enough to sit in every machine shop.
