What Can a 3.5 Laser on a CNC Machine Do?

A 3.5 W diode module turns an existing mill or router into a marking and surface-treatment platform. It cannot cut metal. Here is what a laser on a cnc machine can hold tolerance on, what it ruins, and how to decide before you bolt one to a spindle.

3.5 W diode classNon-contact markingSame setup as milling

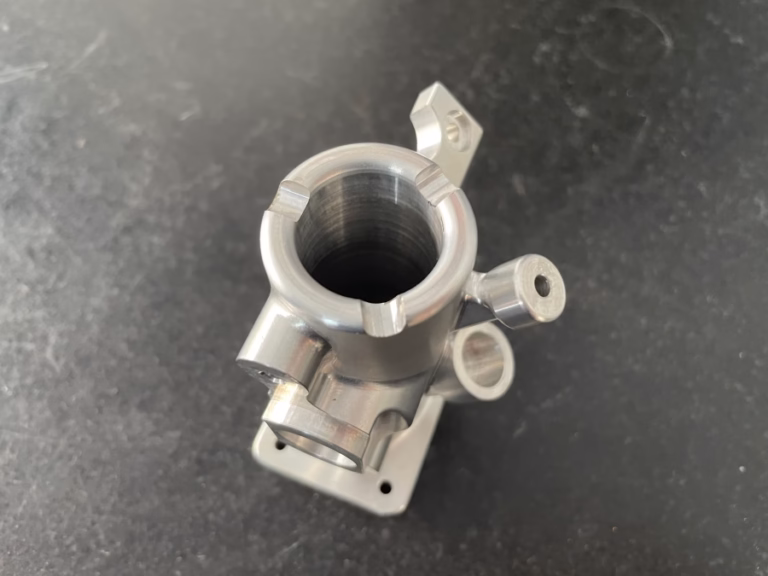

3.5 laser on a cnc machine marking a machined aluminum part
The physics

What 3.5 W of optical power buys you from a laser on a cnc machine

A 3.5 W laser on a cnc machine is a diode module, usually 445 nm blue, mounted in a tool holder or on a bracket beside the spindle. Optical power is the number that matters, not the electrical rating on the driver. Most modules sold as 3.5 W deliver 3.0–3.5 W at the lens and lose a little more through a dirty window.

The beam is focused to a spot roughly 0.05–0.15 mm across. At that spot size the power density is high enough to heat a dark, thin surface layer above its change point, but not high enough to melt steel or aluminum in bulk. Energy per unit area is the limit. Steel needs far more than 3.5 W to reach a cutting melt pool.

The real advantage is the motion platform. A CNC machine already carries a rigid frame, ground ballscrews and a calibrated work envelope, so the focused spot can be positioned to ±0.005 mm without building a second machine. A 3.5 W laser on a cnc machine is a secondary operation, not a cutting process.

Blue light couples well into dark, absorptive surfaces and poorly into bare, reflective ones. That single fact explains nearly every application and every failure listed below. If the surface is bright aluminum or polished stainless, most of the beam bounces off and the mark is faint or absent.

Applications

Where a 3.5 W laser on a CNC machine earns its place

Marking is the main job. Serial numbers, part numbers, lot codes, QR codes and 2D data-matrix marks can be written after the last milling pass without unclamping the part. Position comes from the same coordinate system that cut the part, so the mark lands where the drawing says it lands.

Anodized aluminum is the best-case material. The laser bleaches the dye in the oxide layer and leaves a white or light gray mark against a colored background. Contrast is high and the oxide layer stays intact, so corrosion resistance and electrical insulation are not broken. This is why anodized front panels and instrument housings are the classic use case.

Coating removal is the second job. Thin paint, primer, conformal coating and laser-ablated resist can be stripped from a small window without touching the substrate underneath. Depth control is the whole trick: a few passes at low power remove 10–30 μm of coating, while the same setting on bare metal does almost nothing.

Thin non-metals behave differently. A 3.5 W diode will cut 0.5–1.5 mm paper, card stock, masking film, fabric and some thin plywood in multiple passes, and it will engrave ABS, PMMA and POM. It will not cut 3 mm acrylic cleanly and it will not cut metal at any speed you would accept in production.

Boundaries

When a 3.5 W laser on a CNC machine is the wrong tool

Metal cutting is off the table. A 3.5 W diode cannot melt a kerf through 1 mm steel, and no amount of slowing down changes that. If the job is cutting sheet metal, the answer is fiber laser cutting or a CNC router with a different process, not a bigger diode.

Deep engraving is also a poor fit. The beam removes material by heating a thin layer, so engraving 0.5 mm into stainless would take hours and would leave a heat-affected zone wider than the groove. For deep marks, use a fiber laser marker or a small end mill instead.

Color marking on stainless steel is unreliable at this power. The oxide colors that fiber lasers produce need tight control of pulse energy and focus, and a continuous-wave diode module does not have that control. Expect gray to dark gray, not repeatable blue or gold.

Transparent and reflective materials waste the beam. Clear acrylic and glass pass blue light straight through, and polished aluminum reflects most of it back toward the lens. Both can damage the module if the reflected beam re-enters the optics. Test on scrap first, always.

Setup

How to set up a laser on a cnc machine without scrapping parts

Focus is the first variable and the one most often skipped. The focal point sits a fixed distance below the lens, usually 20–50 mm depending on the module. If the standoff changes by 1 mm on a blue diode, spot size grows and power density drops enough to change the mark. Measure the standoff on scrap, then hold it with a fixed bracket.

Power and feed interact in a predictable way. Start at 60% power and 600 mm/min on anodized aluminum, then raise power in 10% steps until the mark is readable under the shop light. Do not start at 100% power; over-burning anodize leaves a raised, powdery mark that fails a tape test.

Air assist matters more than people expect. A small nozzle at 0.1–0.2 MPa clears smoke from the beam path and keeps the lens clean. Smoke absorbs and scatters blue light, so a mark that looks weak on the first pass often just needs better extraction, not more power.

Run the program as a separate operation after the last cutting pass, using the same work offset. Write the mark coordinates into the CAM file rather than jogging by hand. On a 5-axis platform the module can be tilted so the beam stays normal to a curved surface, which keeps the mark width constant across a radius.

Shop reality

Cycle time, safety and the cost case

Cycle time is short for marking and long for anything else. A 20 mm × 20 mm data-matrix mark takes 5–20 seconds. Engraving a 50 mm logo into POM at 0.1 mm depth can take 4–8 minutes. Budget the laser operation as a finishing step, not as a way to remove stock.

Safety is not optional. Even 3.5 W of blue light causes eye damage faster than a blink reflex, and the beam stays dangerous after reflection off a shiny part. An enclosure with a certified wavelength-specific window, or a full shop lockdown with laser-rated eyewear, is the minimum. Most machine enclosures have clear panels that do not block 445 nm.

For a shop already running CNC work, the cost case is straightforward. One fixture, one setup, one coordinate system, and the mark is done before the part leaves the machine. No second vendor, no shipping, no re-fixturing error. That is the whole argument for putting a laser on a cnc machine.

It is not a replacement for a dedicated fiber marker. If marking is more than a small share of your throughput, or you need metal cutting and deep engraving, a standalone fiber laser station will beat a diode module on speed and material range.

Decision table

Material and job fit for a 3.5 W laser on a cnc machine

Ratings assume a focused 445 nm diode module at 3.0–3.5 W optical, 80–100% power, 300–1,200 mm/min.

MaterialMarkingCutting or removalNotes
Anodized aluminumExcellentNot applicableBleaches dye, oxide stays intact
Bare aluminumPoorNot applicableReflective, often no visible mark
Stainless steel, bareFairNot applicableGray mark only, slow
Painted or coated steelGoodGood, thin coatings only10–30 μm per pass at low power
ABS, POM, PMMAGoodEngrave only, no clean cutWatch fumes, ventilate
Paper, card, filmExcellent0.5–1.5 mm in multiple passesFast, low power, little smoke
Copper and brassPoorNot applicableHighly reflective at 445 nm
Titanium, bareFairNot applicableThin oxide mark, color unstable

The verdict

Use a 3.5 W laser on a cnc machine for marking, anodize bleaching and thin coating removal on parts you already machine. Choose a fiber laser or a cutting process if the job is metal cutting, deep engraving or high-volume marking.

FAQs

Questions engineers ask about a 3.5 laser on a cnc machine

Can a 3.5 W laser cut 1 mm aluminum?

No. Aluminum reflects most 445 nm light and conducts heat away from the spot quickly, so the beam never reaches a melt pool. Slowing the feed only widens the heat-affected zone.

Cut aluminum with a router, a fiber laser or waterjet. Keep the diode for marking the same part after cutting.

Does laser marking break anodized or chromate coatings?

On anodized aluminum the dye in the oxide layer changes color while the oxide itself stays in place. Corrosion resistance and dielectric strength are largely preserved.

On chromate conversion coatings the result is less predictable because the film is much thinner. If the coating is a functional requirement, mark a test coupon and run your normal salt-spray or conductivity check before releasing the process.

What tolerance can I hold on mark position?

Position accuracy comes from the machine, not the laser. On a machine that holds ±0.005 mm in cutting, the mark lands within a few hundredths of a millimeter of the programmed point.

The limit is usually the mark edge, not the machine. A 0.1 mm spot produces a mark with a soft edge, so feature edges are best quoted at ±0.05 mm rather than ±0.005 mm.

Do I need an enclosure or special eyewear?

Yes. Blue diode light at 3.5 W causes retinal damage well before a person can pull away, and reflections off bright metal are just as dangerous as the direct beam.

Use a machine enclosure with a window rated for the wavelength, or a fully curtained area with laser-rated eyewear for everyone inside. Clear polycarbonate and standard machine windows do not block 445 nm.

Will it mark stainless steel well enough for a serial number?

A 3.5 W diode produces a gray to dark gray mark on stainless, not the black mark a fiber laser makes. Contrast is lower but readable with a 2D code reader if lighting is controlled.

Test readability on your actual scanner before committing. If the code must be read at any angle or through a coating, a fiber marker is the safer choice.

How much does the laser operation add to cycle time?

A small data-matrix or part number takes 5–20 seconds. A large engraved logo at 0.1 mm depth on plastic can run 4–8 minutes.

Keep the marked area small and put it in the same setup as the last machining pass. That is where the cycle-time saving actually comes from.
