Vevor CNC 3018 Pro: 7 Costly Beginner Mistakes You Must Avoid (And How to Fix Them)

This page is for people who just bought a Vevor CNC 3018 Pro, or who have been cutting on one for a few weeks and keep scrapping parts. Each mistake is written as a symptom, the cause behind it, and the fix we would apply on the bench. Read it before your next spindle start.

Symptom to fixFeed and speed rangesWorkholding checksDFM limits
vevor cnc 3018 pro 7 costly beginner mistakes you must avoid and how to fix them
Quick diagnosis

Vevor CNC 3018 Pro symptoms, causes, and fixes

Use this table to pick the section that matches what you are seeing. The detail sections below expand each row with numbers.

SymptomLikely causeFirst fix
Parts come out trapezoidalFrame is out of squareSquare X rails to Y extrusion, retighten crosswise
Chatter and broken 3.175 mm toolsLoose gantry screws and V-wheel playSeat all fasteners, adjust eccentric spacers
Tool rubs, chips look like dustFeed too slow for the RPMRaise feed, keep chip load 0.025–0.05 mm
Motor hot, cutter snaps mid-cutFeed too aggressive for 200–300 W spindleCut depth to 0.2–0.5 mm per pass
Part shifts and the profile is offWorkholding too weak for the cut forceClamp both sides, add a spoilboard
Slot packs with chips, tool recutsNo chip evacuationAir blast plus vacuum, retract on each pass
Pocket walls burn or glazeDull cutter and wrong flute countReplace the end mill, use 2 flutes on aluminium
First prototype needs weeksDesign not corrected for the machineApply the DFM limits listed below

Fix the setup, or move the part

If the part fits the 3018 Pro envelope and the tolerance is loose, fix the setup and keep cutting. If it needs tight tolerances, hard material, or a large face, send the drawing to a shop with the right capacity.

Mistakes 1 and 2

Vevor CNC 3018 Pro mistakes 1 and 2: frame geometry and feeds

Mistake 1 is treating assembly like flat-pack furniture. The 3018 Pro arrives as a kit, and the V-rails, lead screws, and gantry plates only work if they are square and preloaded. If the frame is out of square by 0.5 mm over the 300 mm X travel, every rectangular part comes out as a trapezoid. Loose gantry screws add vibration, which shows up as chatter marks and broken micro-tools.

The fix is measurement, not guesswork. Loosen the fasteners that join the Y extrusions to the base, push the frame against a machinist square, then tighten in a crosswise pattern in two or three passes. Attach a dial indicator to the spindle mount and sweep along a straight reference edge. Adjust the eccentric spacers on the V-wheels until the wheels roll without play and without drag.

Mistake 2 is copying speeds and feeds from a video without checking the material. The stock spindle is a 200–300 W DC motor with an ER11 collet, so it accepts shanks up to 7 mm and has limited torque. Feed rate, spindle RPM, tool diameter, and stick-out all interact. The same numbers that cut plywood cleanly will stall or glaze aluminium.

For a 3.175 mm two-flute carbide end mill in 6061 aluminium, a chip load of 0.025–0.05 mm per tooth is a safe starting point. At 10,000 RPM that works out to roughly 500–1,000 mm/min. Start at the low end, listen to the cut, and look at the chips. Good chips are small, curled, and slightly discoloured. Dust means the tool is rubbing, not cutting.

  • 1
    Squareness firstCheck perpendicularity before you cut anything you care about.
  • 2
    Verify RPMThe board potentiometer is not a tachometer. Measure actual spindle speed.
  • 3
    Chip load winsSet feed from chip load, not from a screen recording.
  • 4
    Limit stick-outKeep the end mill as short in the collet as the job allows.
Mistakes 3 and 4

Vevor CNC 3018 Pro mistakes 3 and 4: workholding and tooling

Mistake 3 is under-clamping the workpiece. The 3018 Pro has a small bed and light frame, so cutting force pushes the part sideways more than you expect. A part held with double-sided tape alone will creep during a profile cut, and the finished outline will be undersized on one side. The symptom is a part that measures correctly in CAD but not on the bench.

Clamp the part on both sides of the cut line where possible. Use a sacrificial spoilboard under the stock, and set your Z zero on the top of the material, not on the bed. For thin sheet, screw or clamp the sheet to the spoilboard outside the part outline. Leave at least 10 mm of stock beyond the profile so the clamps stay clear of the cutter.

Mistake 4 is buying one end mill and using it for everything. A single-flute cutter clears chips well in plastic but deflects in aluminium. A four-flute cutter finishes steel nicely but clogs fast in soft aluminium because there is not enough chip room. On this machine, two flutes in aluminium and single or two flutes in plastics cover most jobs.

Tool wear matters more here than on a heavier mill. A dull 3.175 mm cutter rubs instead of shearing, which raises cutting temperature and work-hardens the surface. If the sound changes from a steady cut to a high-pitched squeal, stop and inspect the edge under light. Replace the cutter when the edge reflects light along its length.

  • 1
    Two flutes for aluminiumEnough chip room without losing too much stiffness.
  • 2
    Single flute for plasticsCuts faster and clears soft chips.
  • 3
    Retire dull toolsA worn edge costs more in scrap than a new cutter.
  • 4
    Check runoutCollet nut torque and a clean collet reduce runout.
Mistakes 5 and 6

Vevor CNC 3018 Pro mistakes 5 and 6: chips and machine limits

Mistake 5 is ignoring chip evacuation. In a deep slot, chips pile up in front of the cutter, get recut, and pack the flutes. Recutting generates heat, and heat dulls the edge. On aluminium this is the fastest route to a broken tool. On wood and composites it also creates a fine dust cloud that settles on the rails and lead screws.

The fix is simple. Add a small air blast aimed at the cutter, or use a vacuum shoe. For deep pockets, take shallow passes and retract the tool between passes so chips can clear. Keep the lead screws and V-rails wiped down after each session. Grit on a V-wheel acts like lapping compound and wears the rail profile.

Mistake 6 is expecting the wrong capabilities. The 3018 Pro is a light router. It cuts wood, plastic, wax, and thin aluminium sheet well. It does not hold ±0.005 mm over a long part, and it cannot take deep cuts in steel or stainless. Pushing it past those limits breaks tools and wastes stock.

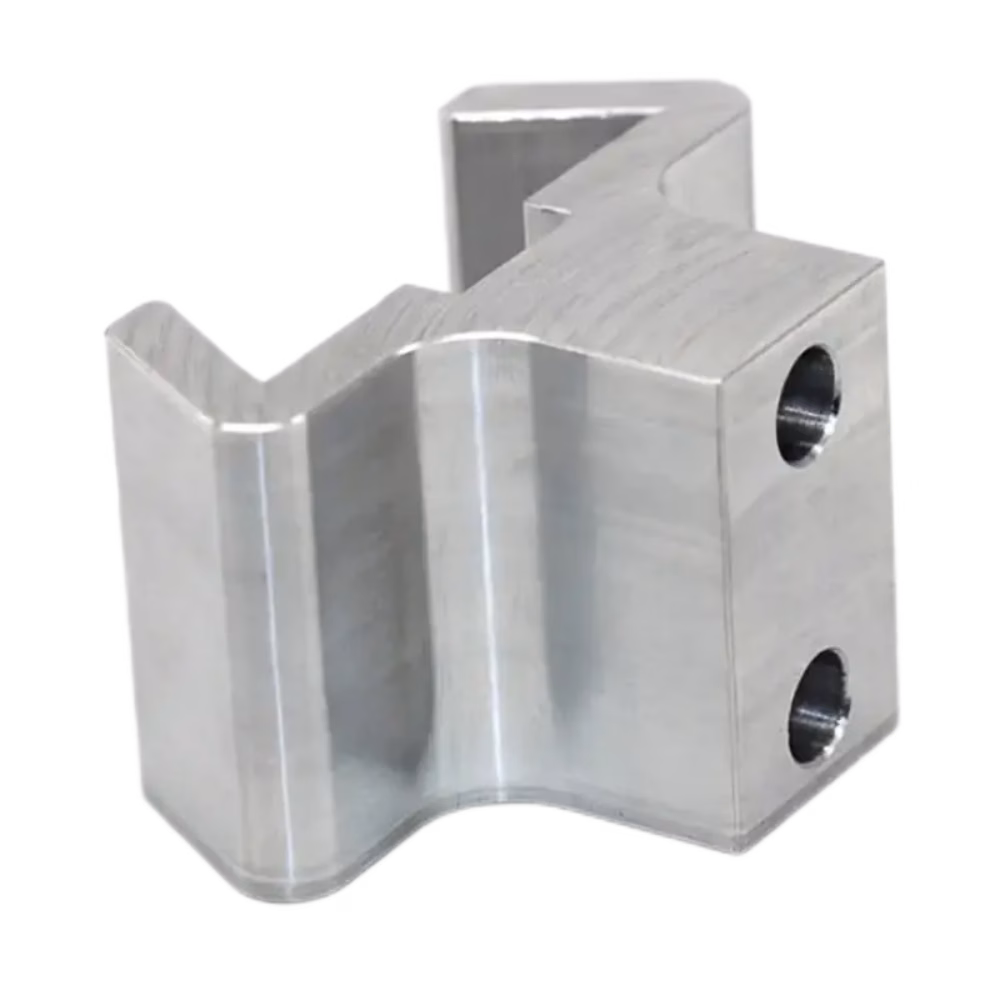

A realistic job on this machine is a small aluminium bracket, a plastic enclosure panel, or a wood inlay with a profile no deeper than 3–5 mm. If your part needs tight tolerances across a large face, hardened material, or a surface finish below Ra 1.6 μm, the work belongs on a heavier machine. Recognizing that early saves weeks.

  • 1
    Air blast over vacuum aloneMoving air clears the cut zone better on a small machine.
  • 2
    Shallow passes clear chips0.2–0.5 mm depth per pass in aluminium.
  • 3
    Know the material listWood, plastic, wax, thin aluminium. Not steel.
  • 4
    Face size drives accuracyTolerance holds over small features, not long spans.
Mistake 7

Vevor CNC 3018 Pro mistake 7: design for the machine you own

Mistake 7 is designing a part for a production machine and then trying to cut it on a 3018 Pro. Sharp internal corners cannot be produced by a round cutter. A 3.175 mm end mill leaves a corner radius of about 1.6 mm. If the drawing calls for a sharp corner, the part will not fit, no matter how good the CAM looks.

Add corner reliefs or radii that match the cutter you will use. Keep pockets at least 1.5 times the cutter diameter wide so the tool can enter and clear chips. Avoid deep, narrow slots that force a long stick-out. If a wall is thinner than 1 mm, expect it to flex and chatter.

Also plan the toolpath around the machine travel. The 3018 Pro work area is roughly 300 × 180 × 45 mm, so a part that fits in CAD may not fit with clamps and clearance. Leave room for the cutter path plus clamping on all four sides. A part that measures 290 mm long leaves almost nothing for the tool to exit the cut.

When a design keeps failing on the desktop router, the honest move is to split it or to move it to a service with the right capacity. A shop with simultaneous 5-axis centers and a 4,000 mm maximum processing size can cut geometry the 3018 Pro cannot reach. That is a tooling decision, not a failure.

  • 1
    Round the cornersMatch internal radius to the cutter, usually 1.6 mm.
  • 2
    Widen pockets1.5× cutter diameter minimum for chip clearance.
  • 3
    Respect travelAbout 300 × 180 × 45 mm including clamping.
  • 4
    Split the partTwo small parts beat one that never fits.
Bench procedure

A repeatable setup routine for the 3018 Pro

Run these steps in order before a job you care about. Each one takes minutes and prevents a scrap part.

  • 1
    Square the frameLoosen the base fasteners, press the frame against a machinist square, tighten crosswise in two passes. Check travel straightness with a dial indicator on the spindle mount.
  • 2
    Preload the V-wheelsTurn the eccentric spacers until the wheel cannot be rotated by finger pressure but still rolls freely. Recheck after the first hour of cutting.
  • 3
    Set the tool and measure RPMKeep stick-out under 15 mm for a 3.175 mm cutter. Use a tachometer to confirm the actual spindle speed, because the dial reading drifts.
  • 4
    Pick chip load before feedStart at 0.025 mm per tooth in aluminium, 0.05–0.1 mm in plastic, and 0.1–0.2 mm in wood. Calculate feed from RPM and flute count.
  • 5
    Clamp both sides of the cutUse a spoilboard, clamp outside the part outline with 10 mm clearance, and set Z zero on the top of the stock.
  • 6
    Add air blast and retractAim compressed air at the cutter. For pockets deeper than 3 mm, retract the tool between passes so chips clear.
  • 7
    Cut a test coupon firstRun the same toolpath in scrap of the same material at 0.2 mm depth. Measure the coupon before cutting the real part.
  • 8
    Inspect and logMeasure the first article, note the feed and RPM that worked, and keep the log with the machine. Repeatability starts with records.
FAQs

Questions we hear about the Vevor CNC 3018 Pro

Can the Vevor CNC 3018 Pro cut aluminium?

Yes, in thin sections and with light passes. Use a 3.175 mm two-flute carbide end mill, a chip load of 0.025–0.05 mm per tooth, and a depth of cut of 0.2–0.5 mm per pass.

It will not cut thick plate or hardened alloys well. If the job needs tight tolerances across a large face or a finish below Ra 1.6 μm, the 3018 Pro is the wrong machine.

Why does my 3018 Pro leave chatter marks?

Chatter usually comes from play in the V-wheels, loose gantry screws, or too much tool stick-out. Check the eccentric spacers first, then reduce stick-out.

It can also come from a feed that is too slow for the RPM. If the tool rubs instead of cutting, the cutting force pulses and the frame rings.

What depth of cut should I use in aluminium?

Start at 0.2 mm per pass and work up to 0.5 mm only if the chips stay curled and the spindle sound stays steady. Deeper passes overload the 200–300 W motor.

If the motor gets hot or the cutter squeals, reduce depth before you reduce feed. Reducing feed makes the tool rub.

How do I stop chips from packing into a slot?

Use air blast aimed at the cutter, take shallow passes, and retract the tool between passes. A vacuum shoe helps contain dust but does not clear a deep slot on its own.

Wipe the lead screws and V-rails after each session. Grit on the wheels wears the rail and reintroduces play.

When should I move a part off the 3018 Pro?

Move it when the part needs a tolerance tighter than the machine can hold, a material it cannot cut, a face larger than its travel, or a corner sharper than the cutter radius allows.

A service shop with 5-axis centers and a 4,000 mm maximum processing size can handle geometry the desktop router cannot reach. Send the drawing and ask for a DFM review before you commit to a redesign.

Do I need a spoilboard?

Yes. A sacrificial spoilboard protects the bed, gives the clamps something to bite, and lets you cut through the part profile without touching the machine table.

Set Z zero on the top of the stock, not on the bed, and keep at least 10 mm of material beyond the part outline for clamping.
