Game Changing GF CNC Tips to Cut Machining Costs and Boost Precision

Most of the money in a machined part is fixed before a single tool touches metal. Corner radii, pocket depth, wall thickness and undercut geometry decide how many tools we need, how many passes we run, and whether a feature can be reached at all. Change those on the drawing and the saving is real, not accounting.

A 4 mm internal radius instead of 2 mm lets us use a larger end mill. The larger tool is more rigid, so we cut faster and hold ±0.01 mm across the run instead of ±0.02 mm. That single callout change often removes one finishing pass per pocket. On a housing with twelve pockets, that is twelve fewer tool paths and one less setup risk.

Send the model and drawing during concept, not after quoting. We return DFM notes with every RFQ at no cost. Catching a deep 6:1 pocket before the design freezes is cheaper than a redesign after the first article. On a typical aluminium bracket, moving two holes and opening three corners cut cycle time by roughly a quarter in our own runs.

• 1
  Good candidatesBrackets, housings, manifolds with open faces and reachable features
• 2
  Poor candidatesParts with deep narrow slots, sharp internal corners, or blind undercuts
• 3
  What to sendSTEP file, 2D drawing with datum scheme, and the assembly it fits into

The most common cost driver we see is a drawing where every dimension carries the same tight tolerance. A ±0.005 mm callout on a mounting hole that only needs clearance forces slower feeds, extra finishing passes, more frequent tool changes and a higher scrap rate. The part works no better. It just costs more.

Split the drawing. Mark the dimensions that touch a mating surface or set a bearing fit as critical, and give the rest a general tolerance such as ISO 2768-m. This is not a quality trade. It is where you spend the machining effort.

Customers who reviewed tolerance callouts with their engineer before release often take 30% or more out of complex housings. Our own shop holds ±0.005 mm where it is called out and 100% inspection before shipment, so the drawing still governs the result.

• 1
  Tight where it mattersBearing bores, sealing faces, dowel holes, gear centres
• 2
  General is fineClearance holes, non-mating edges, cosmetic outer profiles
• 3
  Watch the stackTwo ±0.05 mm features can still add up to a ±0.1 mm assembly gap

Two aluminium grades can meet the same strength spec and still machine at very different rates. 6061-T6 cuts clean and holds a good finish on thin walls. 7075 gives higher strength but is harder on tooling and more prone to chatter on long slender features. Neither is wrong. The choice should follow the load case and the feature shape.

Stainless is where drawings get expensive. 303 machines freely and holds tolerance well, but it is not weldable in the same way as 304 or 316L. If the part gets welded later, switching to 304 costs more cycle time now and saves a failed joint later.

Titanium and Inconel will always be slow. If the part is a prototype and the service temperature allows it, magnesium AZ31B or a 6000-series aluminium may do the job at a fraction of the cycle time. Ask what the part actually sees before locking the alloy.

• 1
  Free cutting6061-T6, 6082, 303 stainless, C36000 brass, POM
• 2
  Moderate7075, 304 and 316L, 4140 and 4340 steel, 17-4PH
• 3
  Slow but necessaryTC4 (Ti-6Al-4V), Inconel, beryllium copper, PEEK

Every setup adds an error. Each time the part comes off the fixture and goes back on, you re-introduce datum shift, clamping distortion and a fresh chance of a chip under a locating face. On a part with five faces of features, four setups can realistically cost 0.03 mm of accumulated position error.

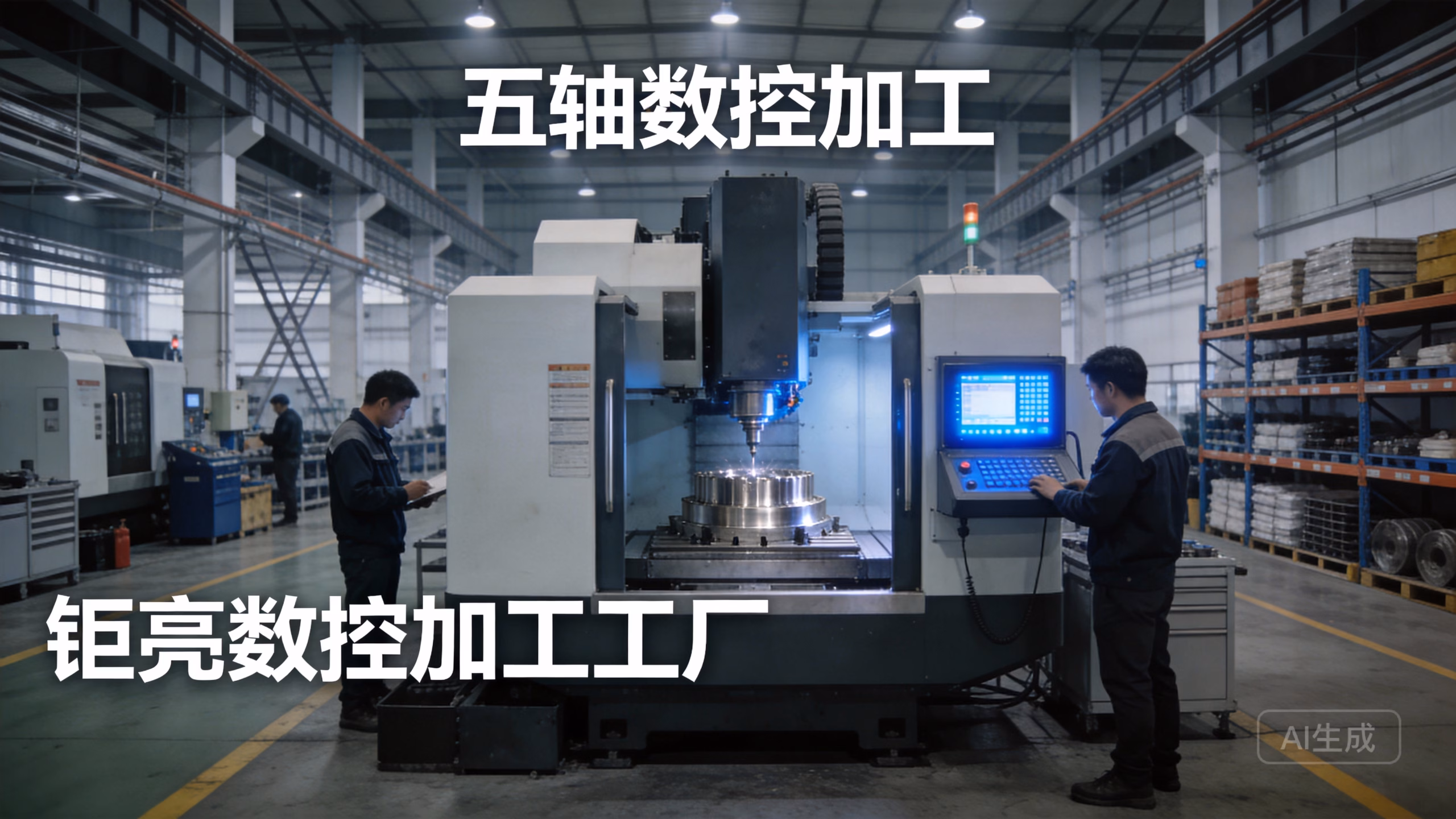

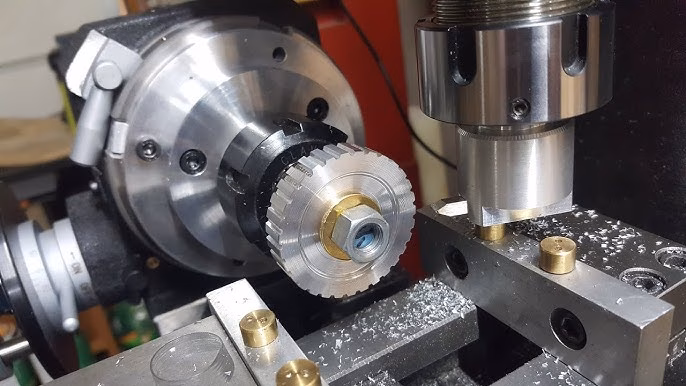

A simultaneous 5-axis cut does that part in one or two setups. Position between features depends on the machine, not on how well the operator reloaded it. We run 16 simultaneous 5-axis machining centers, 12 four-axis mills and 16 mill-turn centers, so the routing choice is based on geometry rather than machine availability.

Multi-axis is not always cheaper. Short parts with features on two faces are often faster on a 3-axis machine with a simple flip fixture. Choose it when the part has angled faces, contoured surfaces, or features that would otherwise need three or more setups.

• 1
  Worth the setup costAngled ports, contoured pockets, impeller blades, one-piece housings
• 2
  Not worth itFlat plates, simple shafts, two-face parts with generous tolerance
• 3
  Max envelopeUp to 4,000 mm, with Ø400 mm rotary table capacity

For a batch of 50 or more, a custom soft jaw built once pays back fast. Modular fixture plates, standard tombstones and repeatable zero-point systems cut setup time from an hour to minutes and make the first part and the fiftieth part measure the same. On prototype quantities, keep the fixture simple and accept the manual load.

Finishing is usually where schedules slip, because the part leaves the machine and joins a queue. If the drawing needs anodizing, bead blasting and laser marking, plan all three in one sequence. Moving parts between vendors adds freight, packing, handling marks and days of queue time.

We keep anodizing, plating, powder coating, blasting, tumbling, brushing, polishing and laser marking under one roof. Laser marking needs a minimum character height of 1.5 mm, so check your label layout before release. Grouped finishing also means one inspection record instead of three.

• 1
  Batch of 50+Build the soft jaw, use zero-point plates, log the offsets
• 2
  Batch under 10Standard vise or modular plate, skip the dedicated fixture
• 3
  Finishing sequenceDeburr, blast, anodize, then mark so the mark survives the bath

A dimension that drifts over a 200-part run is a process problem, not a machine problem. Log tool wear, spindle load and in-process measurements, and you can see the trend before the part goes out of tolerance. We check raw material on arrival, monitor in-process, and inspect 100% before shipment, with reports available on request.

The useful number is not the best part you ever made. It is the spread across the run. If the first article reads ±0.003 mm and the last reads ±0.008 mm, the process is moving. Adjust the offset or change the insert before you reach the limit, not after.

Our qualification rate sits at 99.99%, and historical late-delivery probability is below 2%. Both come from measuring the trend, not from inspecting harder at the end. Quotation and free DFM analysis return within 12 hours, production can start within 24 hours, and parts ship in 3–5 days on standard work.

• 1
  Log every runTool number, offset change, spindle load, measured dimension
• 2
  Set the triggerReact at 70% of the tolerance band, not at the limit
• 3
  Keep the reportDimension data travels with the part and helps the next order
