CNC machine working faults: symptom, cause, action
Read the symptom first. If two rows match, fix the one that costs less time to change.
| Symptom | Likely cause | What to do |
|---|---|---|
| Chipped edge, chatter marks | Radial engagement too high | Reduce stepover, raise speed 15 to 20% |
| Taper on a deep bore | Tool deflection | Shorten gauge length, add a spring pass |
| Size drifts over a run | Thermal growth | Warm up 20 to 30 min, requalify offsets |
| Corner radius out of spec | Servo lag at high feed | Lower feed at corners, use exact stop |
| Poor finish on thin walls | Workholding not rigid | Add supports, reduce depth of cut |
| Tool life far below book | Wrong coating or grade | Match grade to material, check coolant |
| Hole position scatter | Fixture or chip lift | Clean locating faces, re-torque clamps |
| Random scrap on one machine | Spindle or axis wear | Ballbar test, check backlash values |
Fix the setup before you rewrite the program
Nine out of ten scrap issues on a CNC machine working job trace back to workholding, thermal state, or tool grade. Change those before you spend a day on a new tool path.

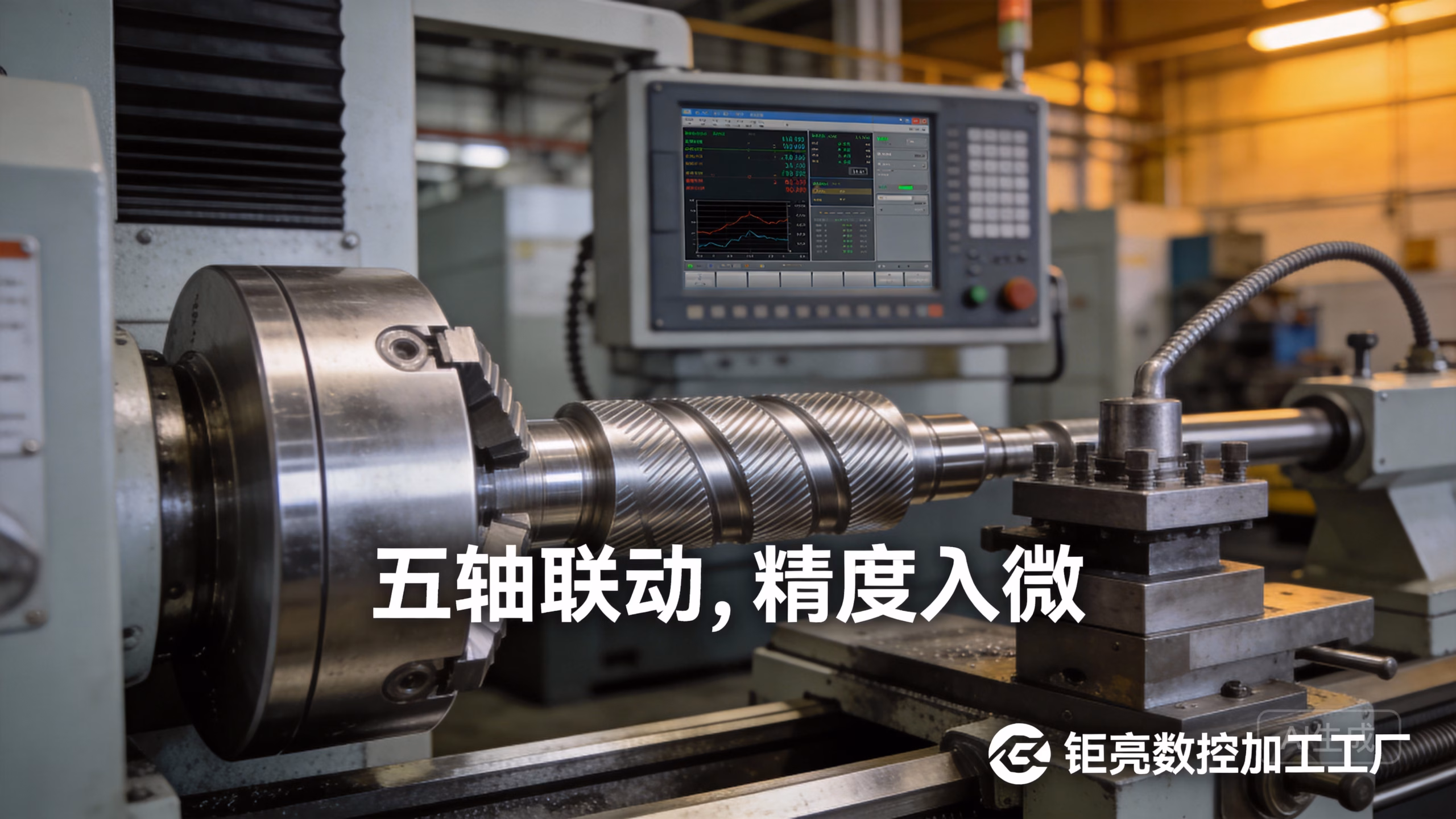

CNC machine working starts with the cut, not the control
Most scrap on a CNC machine working job comes from the cut itself, not from the controller. A tool entering material at full radial width pushes the edge harder than the insert or the spindle taper was sized for. The result is chatter, a chipped corner, or a size that drifts after twenty parts. Change the entry before you change the program.
Look at radial engagement first. At 50% stepover the tool sees a radial load well above the catalog figure. Drop stepover to 25 to 35% of diameter and raise surface speed 15 to 20%. On a 12 mm carbide end mill in 6061-T6, that often means 3,500 to 4,500 rpm and 0.06 to 0.10 mm per tooth. The chip gets thinner, the load drops, and the finish improves without a new tool.
Depth of cut is the second lever. Conventional roughing at 0.5 mm axial depth wastes time and heats the edge. Dynamic paths that hold a constant chip thickness allow 1.5 to 3 times diameter in axial depth with a small radial bite. On 4130 or 4140 steel, keep the radial engagement under 10% of diameter and watch spindle load, not the sound of the cut.
If the part is a one-off prototype, it is rarely worth rewriting the path for a marginal gain. Run a conservative cut and move on. The math only pays back on repeat runs, roughly 20 parts or more.
- 1Reduce radial engagement25 to 35% of cutter diameter for roughing on aluminium and mild steel.
- 2Raise surface speed15 to 20% after reducing stepover, then check spindle load.
- 3Shorten the toolEvery 10 mm of extra gauge length adds visible deflection.
Thermal drift and axis behaviour on long runs
A machine that was accurate at 8 a.m. can be 15 to 25 µm out by noon. The spindle grows, the ballscrew warms, and the bed follows the ambient shift. This is why the first ten parts of a run often measure well and the parts after lunch do not. The fault looks like a programming error. It is a thermal one.
Warm up the spindle before the first cut. Fifteen to thirty minutes of idle rotation at working speed brings the head close to steady state. Then touch off the tool and set work offsets. If the shop has no climate control, re-check a known feature every two to three hours and adjust the wear offset by the measured delta.

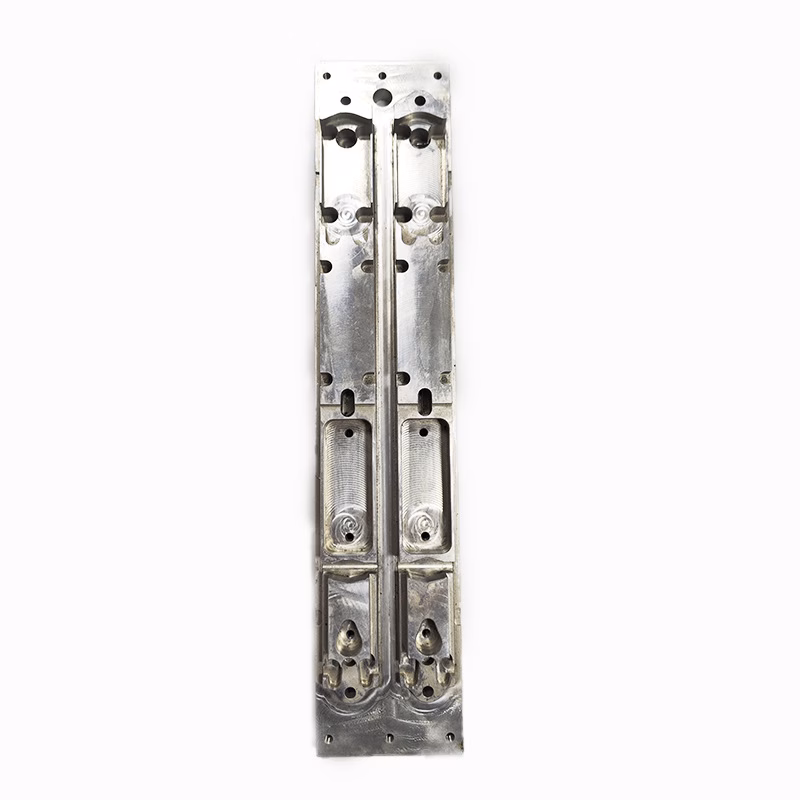

On thin-walled parts, thermal growth is not the only problem. Cutting force bends the wall away from the tool, so the finished wall is thicker at the top and thinner at the base. Take a light spring pass at the final dimension with 0.1 to 0.2 mm radial engagement. That single pass removes most of the deflection error.
The same logic applies to bores. A boring bar with 4:1 length-to-diameter ratio deflects more than one at 2:1. If the drawing allows, use a larger bar and reduce overhang before you touch the feeds.
- 1Warm up before offsets20 to 30 min at working rpm, then set tool and work offsets.
- 2Track the driftMeasure one feature every 2 to 3 hours and shift the wear offset.
- 3Spring pass0.1 to 0.2 mm radial bite at final size for thin walls.
Workholding is where most errors are born
Chatter, runout and position scatter usually trace back to the fixture. A part clamped on a single point, or resting on a face that still holds a chip, will move between roughing and finishing. The cut looks fine on the first article and fails on part thirty.
Check three things before the cycle starts. First, every locating face is clean and free of burrs. A 0.02 mm chip under a datum face becomes a 0.02 mm position error at the feature. Second, clamp pressure is even and does not bow the part. Third, the fixture is stiff enough for the cutting force, not just for the weight of the part.
Quick-change systems help here. Zero-point clamping and modular vacuum plates cut changeover from 30 to 60 minutes down to about 10 minutes on repeat jobs, and they repeat location to within a few microns. We run a modular workholding library across our 127 machines for exactly this reason.
If the part is a thin plate, add support underneath rather than clamping harder. More clamp force on an unsupported plate bends it, and the finished part springs back out of flatness once the clamps come off.
- 1Clean datumsOne chip under a face is one chip of position error.
- 2Even clamp loadEnough to hold, not enough to bow the part.
- 3Support thin partsAdd material under the plate instead of more clamp force.
Tool wear patterns tell you which variable is wrong
Read the wear land, not just the part. Even flank wear across the whole edge means the grade and coating are right and the speed is close. A crater on the rake face points to heat, so reduce surface speed. Chipping at the corner points to mechanical shock, so reduce feed per tooth or change the entry angle.
Aluminium needs sharp, uncoated or ZrN-coated tools and high rake. Running a TiAlN-coated tool in 6061 usually leads to built-up edge and a torn finish. Stainless 304 and 316 work better with a harder grade and a positive rake, plus generous coolant to stop work hardening at the cut line.
Titanium and Inconel punish wrong speeds faster than any other material. TC4 (Ti-6Al-4V) wants low surface speed, high feed per tooth, and flood coolant. If the chips come off glowing, the speed is too high. If they come off as dust, the feed is too low.
Track tool life in the offset table. A tool that suddenly drops from 90 minutes to 40 minutes is signalling a grade problem, not a machine problem.
- 1Uniform flank wearGrade and coating are correct, keep the parameters.
- 2Rake craterToo much heat, reduce surface speed.
- 3Corner chippingMechanical shock, reduce feed per tooth or soften the entry.
Simulate before you cut, then inspect the right features
Cutting a first article, measuring it, adjusting, and re-cutting burns time and material. For a 4,000 mm gantry part or a 5-axis aerospace bracket, one wasted blank can cost more than the programming hours. Run the full path in simulation first: holder collision, spindle power envelope, rapid moves, and remaining stock.
Simulation will not catch thermal drift or fixture flex, so the first article still matters. What it catches is the expensive class of error: a crash, a gouge, or a tool that cannot reach the feature because the holder hits the wall. Those are the failures that stop the machine for a day.
When you inspect the first article, measure the features that drive the assembly, not every dimension on the print. Datum-referenced position, bore size, and the mating face flatness matter most. Save the full inspection for the final part, and ask for the report if the part is going into a regulated build.
On tight work we hold ±0.005 mm and a finish of Ra 0.8 to 1.6 μm on functional faces. Those numbers require a warm machine, a rigid setup, and a tool that is not near the end of its life.
- 1Simulate the full pathHolder collision, power envelope, remaining stock.
- 2Inspect critical featuresDatum position, bore size, mating face flatness first.
- 3Keep a spare toolNever finish a tight feature with a tool near end of life.
Seven checks before you change the program
Work down the list. Each step costs less time than the one below it.
- 1Warm up the spindleRun 20 to 30 minutes at working rpm. Set tool and work offsets after the warm-up, never before.
- 2Verify the datumWipe every locating face. A 0.02 mm chip under a face becomes 0.02 mm of position error at the feature.
- 3Check clamp loadEven pressure, no bowing. On thin plates, add support underneath instead of more force.
- 4Re-read radial engagement25 to 35% of diameter for roughing. Raise surface speed 15 to 20% once stepover is reduced.
- 5Inspect the wear landUniform flank wear is fine. Crater means less speed. Corner chips mean less feed per tooth.
- 6Run a spring pass0.1 to 0.2 mm radial bite at final size on thin walls and long boring bars.
- 7Re-measure after two hoursTrack one known feature and shift the wear offset by the measured delta. Do not re-cut the fixture.
Questions engineers ask about CNC machine working faults
Why do the first parts measure well and later parts drift?
The spindle and ballscrew are still warming up. Metal grows as it heats, so a machine that was accurate at the start of the shift can be 15 to 25 µm out two hours later.
Warm up for 20 to 30 minutes, set offsets after the warm-up, and re-check one known feature every 2 to 3 hours. A small wear-offset change is usually enough.
Chatter appears only on deep pockets. What do I change first?
Reduce radial engagement before you touch spindle speed. A stepover of 25 to 35% of cutter diameter lowers cutting force sharply and usually removes the chatter.
If it stays, shorten the tool gauge length. Every 10 mm of extra overhang adds deflection. Change the speed last, since speed alone rarely fixes a stiffness problem.
Should I use a coated or uncoated tool in aluminium?
Sharp and uncoated, or ZrN, for 6061 and 7075. Hard coatings such as TiAlN tend to promote built-up edge in aluminium and leave a torn finish.
In 304 and 316 stainless the opposite holds. Use a harder grade with a positive rake and plenty of coolant to stop work hardening at the cut line.
How do I tell a thermal fault from a programming fault?
Programming faults repeat at the same feature every cycle. Thermal faults move with time, not with the feature, and they usually grow through the shift.
Run the same part twice with a two-hour gap and compare. If the error changed but the code did not, the machine is moving under heat.
When is a 5-axis machine worth using instead of multiple 3-axis setups?
When the part has features on several faces and each re-fixture adds position error. Single-setup 5-axis work removes the stack-up from repeated clamping.
For a simple prismatic part, 3-axis is faster and cheaper. We run 16 simultaneous 5-axis centres and 27 three-axis machines, and we route the job to whichever matches the geometry.
What tolerance and finish can we hold on a repeat run?
On a stable setup with a warm machine we hold ±0.005 mm and Ra 0.8 to 1.6 μm on functional faces. Fine finishes down to Ra 0.2 to 0.8 μm are possible on the right material.
Tighter numbers depend on the feature, not on the machine alone. A long thin bore will not hold what a short one will.
Send the drawing and the fault description
