A CNC woodworking machine is a computer-controlled router, mill or lathe that removes wood, plywood, MDF or composite panel by following a toolpath. The operator does not guide the cutter by hand. A CAM program converts a CAD model into G-code, and the controller drives the spindle along X, Y and Z to the coordinates it is given.

The difference from hand routing is not just speed. It is repeatability. Once a toolpath is proven, part 1 and part 500 come off the table at the same dimensions. On a nested-based router, a 2,440 × 1,220 mm sheet yields the same panel set every cycle. Hand work cannot hold that over a production run.

The machine removes material with a rotating cutter. Feed rate, spindle speed and depth of cut set the chip load, and chip load decides whether you get a clean edge or burn marks. Cut too slow and the cutter rubs. Cut too fast and the tool deflects or snaps.

Wood is not metal. Grain direction changes cutting force along the part, and moisture content changes dimensions after machining. A machine that holds ±0.1 mm on aluminum may drift on a 20 mm oak panel unless the fixturing and the dust extraction are right.

• 1
  InputCAD model, CAM toolpath, G-code, or a nesting file for sheet goods
• 2
  OutputPanels, furniture parts, molds, signs, jigs, or prototype housings
• 3
  Key limitThe machine cuts what the fixture can hold. Weak holding equals chatter

The chain is short: design, toolpath, post, controller, motion. Design fixes the geometry. The CAM step picks the cutter, stepover, stepdown and feed. The post processor writes code your controller understands. The controller sends pulses to the servo or stepper motors, and the ballscrew or rack-and-pinion moves the gantry.

A three-axis router moves the spindle in X, Y and Z. That covers 90 percent of panel work: outlines, pockets, holes, dados and profiles. Adding a fourth axis rotates the workpiece or the spindle, so you can cut around a cylinder or drill on multiple faces without re-fixturing.

Five-axis motion tilts the tool. That lets a short, stiff cutter reach undercuts and compound angles in one setup. It also lets the tool stay normal to a curved surface, which spreads the load and improves finish. On wood, five-axis is usually about access and setup count, not about holding ±0.005 mm on a soft material.

Accuracy comes from the whole loop, not the spindle alone. Thermal growth in the frame, backlash in the rack, and dust buildup on the rails all show up in the part. That is why a warm-up cycle and a clean rail matter as much as a good cutter.

• 1
  Chip loadFeed per tooth. Keep it in the cutter maker's range to avoid burning or chatter
• 2
  StepdownOften 0.5 to 2 × cutter diameter for roughing, less for finishing
• 3
  Climb vs conventionalClimb cutting usually gives a cleaner edge on solid wood

Flatbed routers are the workhorse for sheet goods. A vacuum table or pod system holds the panel, and a gantry carries the spindle over a 2,440 × 1,220 mm or larger bed. They suit cabinets, doors, signage and nesting jobs where parts are flat and thin.

Gantry mills are stiffer. The bridge spans the table and both sides drive the Y axis, so the frame resists cutting force better than a cantilever router. When a job needs tight tolerances on thick stock, a gantry design is the safer choice. On our floor, large gantry travel runs to 4,000 × 400 × 150 mm.

CNC lathes and mill-turn centers handle turned wood parts: legs, handles, dowels and balusters. A mill-turn center can turn the profile and then mill a flat or a slot without moving the part to a second machine. That cuts setup count and avoids re-datum errors.

Five-axis machining centers are the top of the range for wood and for mixed wood-metal assemblies. With 16 simultaneous five-axis centers available, we can cut a curved chair frame, a mold, or a wooden pattern for casting in a single setup. The trade-off is cost per hour and programming time. Simple flat parts do not need it.

• 1
  Flatbed routerBest for flat panels, sheet nesting, large signs, shallow 3D relief
• 2
  Gantry millBest for thick stock, tight tolerance, heavy cutting load
• 3
  Mill-turnBest for turned profiles plus secondary milling on the same part
• 4
  Five-axisBest for undercuts, compound angles, organic shapes, one-setup work

Wood is an anisotropic material. Cutting along the grain is not the same as cutting across it. End grain cutting force is higher and the edge is more prone to tear-out. A down-cut or compression cutter helps on laminated panels because it pushes the top fibers down instead of lifting them.

MDF and particleboard are homogeneous but abrasive. They dull carbide faster than solid oak. Plywood adds glue lines that chip the edge if the chipload is too low. The fix is usually a higher feed, not a slower one.

Moisture content drives dimensional change. A part machined at 12 percent moisture can shrink or swell by several tenths of a millimeter in service. For a cabinet door that is fine. For a precise jig or a mold insert, it is not. If the part must hold tight tolerance, dry the stock first or switch to a dimensionally stable material.

Dust and chips are a process variable, not housekeeping. Chips left on the table become a datum error on the next part. Good extraction also keeps the cutter cool and clears the kerf. On deep pockets, air blast plus vacuum is often better than vacuum alone.

• 1
  Grain directionPlan the toolpath so the cutter exits into waste, not into a visible edge
• 2
  Abrasive panelsMDF and particleboard wear carbide; expect more tool changes
• 3
  MoistureDry stock holds tolerance better after machining

CNC is not always cheaper. For one-off odd shapes, a skilled bench worker with a template can beat the programming and fixturing time. The break-even point sits around the third or fourth identical part, and it moves with part complexity.

Very thin, flexible parts are hard to hold. A 3 mm veneer panel will lift under vacuum if the surface is not sealed. Thin walls in a wooden housing can chatter during the finishing pass. In those cases, add a sacrificial backing board or reduce the final stepdown.

Tight metal-level tolerance on wood is often a false requirement. Wood moves with humidity, so specifying ±0.005 mm on an oak part ignores the material. That tolerance belongs on metal. If your assembly needs it, use wood as a pattern and cast or machine the final part in metal.

Large, deep cavities on a low-power router will burn. The tool cannot clear chips from a deep pocket, and recutting chips raises heat. A stiffer gantry mill or a five-axis machine with through-tool air solves it. If neither is available, split the cavity into shallower passes and accept a longer cycle.

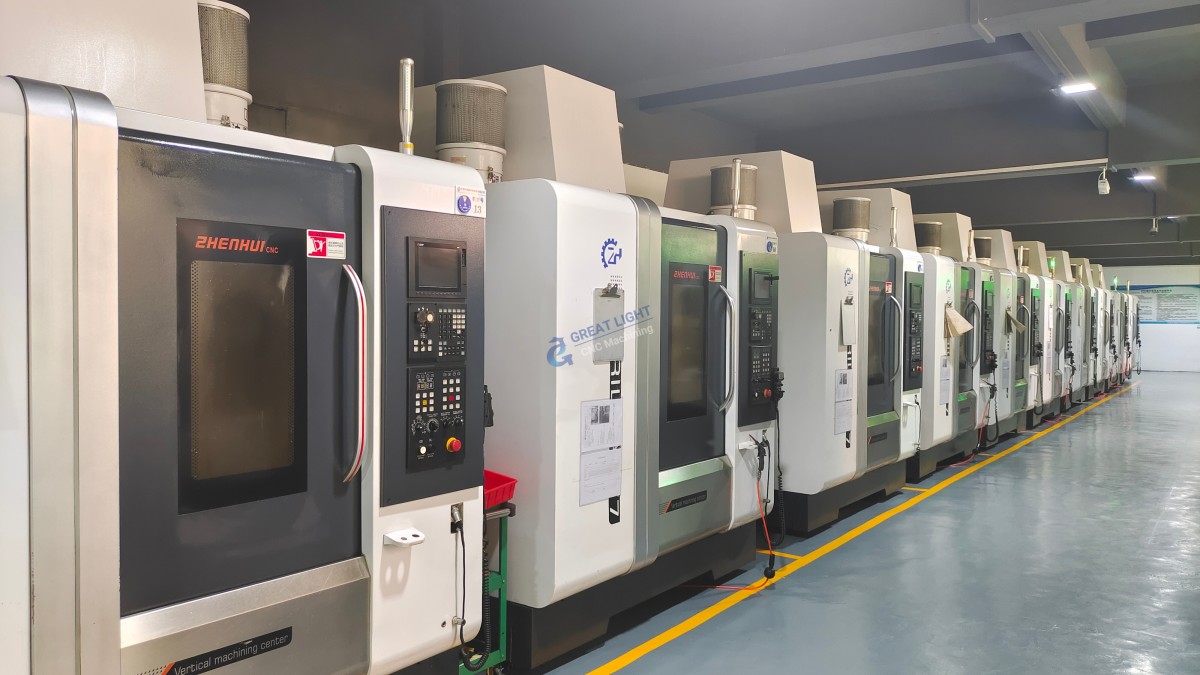

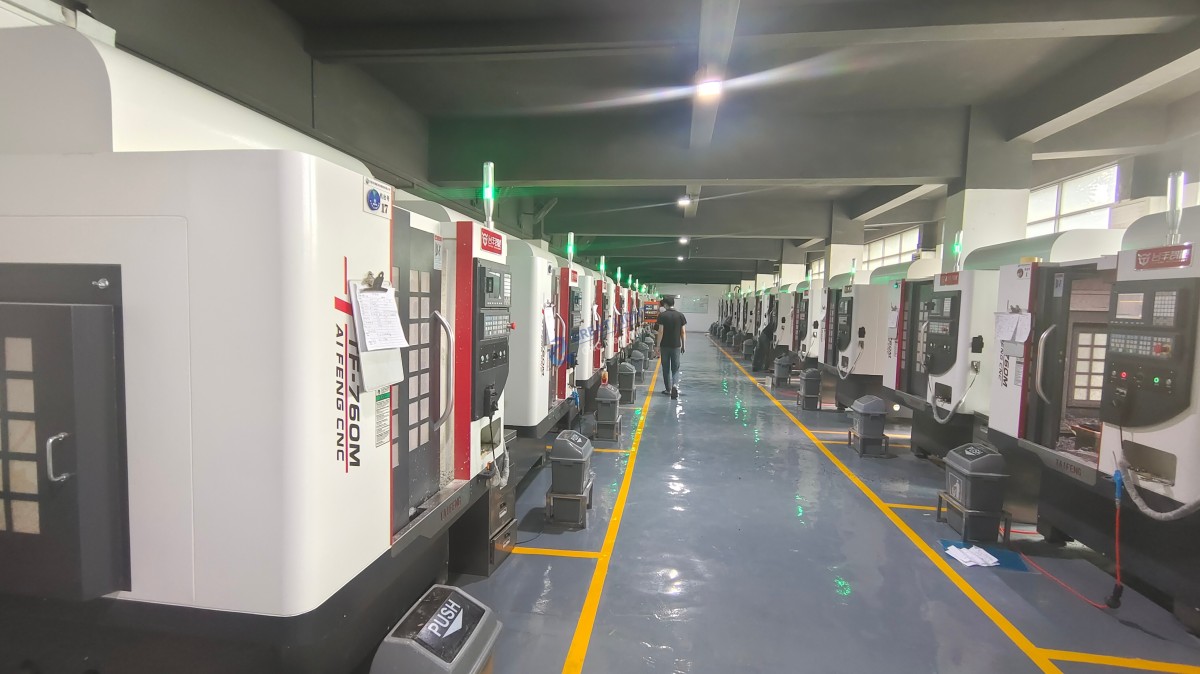

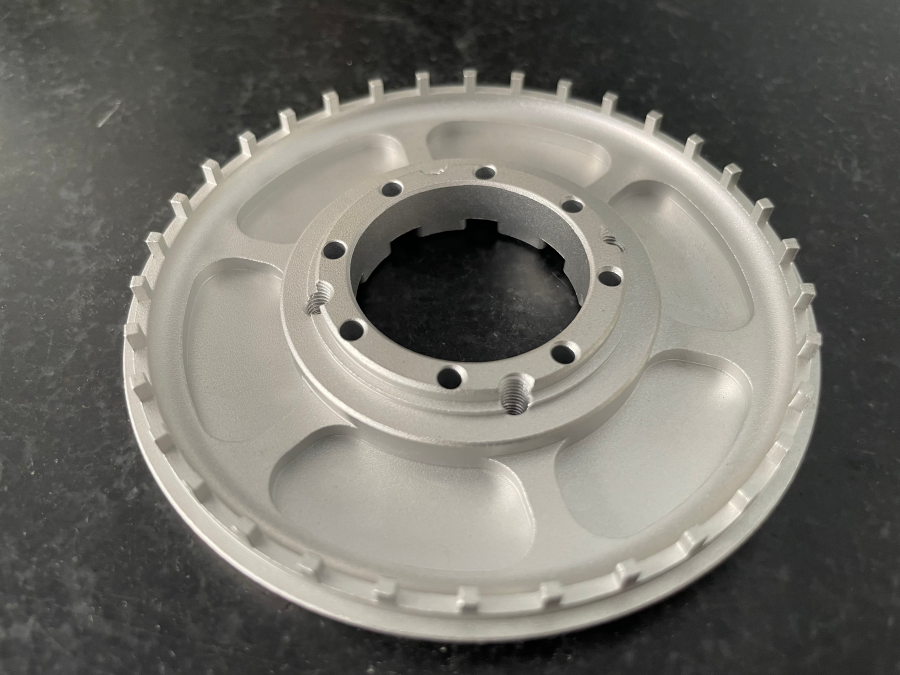

We machine wood patterns and also metal parts on the same floor. That mix is useful when a design starts as a wooden prototype and later becomes an aluminum or stainless production part. The tolerance and finish change with the material, but the geometry carries over.

• 1
  One-off shapesHand work or 3D printing can be faster than programming a router
• 2
  Flexible thin stockHolding, not cutting, is the bottleneck
• 3
  Metal tolerance on woodRe-spec it. The material cannot hold it in service

Check the toolpath for collisions and for the tool's reach. A long cutter that fits the geometry can still deflect. Use the shortest cutter that reaches the deepest pocket, and keep the flute length just above the cut depth.

Check the fixture. Vacuum zones must match the part footprint. For small parts, add tabs or use pod and clamp. A part that moves 0.2 mm during a finishing pass is scrap, and you will not see it until inspection.

Check the datum. If the part is flipped for a second operation, the new zero must come from a machined feature, not from the rough edge. That is the single most common source of mismatch on two-sided wooden parts.

Check the feed and speed against the cutter maker's chip load chart. Then confirm with a test cut on the same stock. Wood varies, and a chart value that works on maple may burn on cherry. A five-minute test part is cheaper than a scrapped batch.

• 1
  Shortest cutterLess deflection, better finish, fewer broken tools
• 2
  Fixture firstIf the part can move, nothing else matters
• 3
  Test cutConfirm chipload on the actual stock before the run
