7 Essential Tips for Selecting CNC Milling Machine Manufacturers

Almost every milling supplier publishes a tolerance. The useful question is which tolerance holds across a full batch on a real part, in the material you are using. A shop can hit ±0.005 mm on a short aluminium bracket with one setup and still drift on a 300 mm steel housing after three fixtures. Ask for a capability study or a first article inspection report from a comparable job, not a brochure figure.

Read the report like a machinist. Which dimensions are critical, what gauge was used, how many parts were measured, and what happened to the outliers. A CMM report with 12 measured features on 5 parts tells you more than a sentence claiming precision. If the supplier cannot send one, that is the answer.

Our own shop works to ±0.005 mm (±0.0002 in) and inspects 100% of parts before shipment. We publish that because we can document it: raw material check, in-process monitoring, final inspection, reports on request.

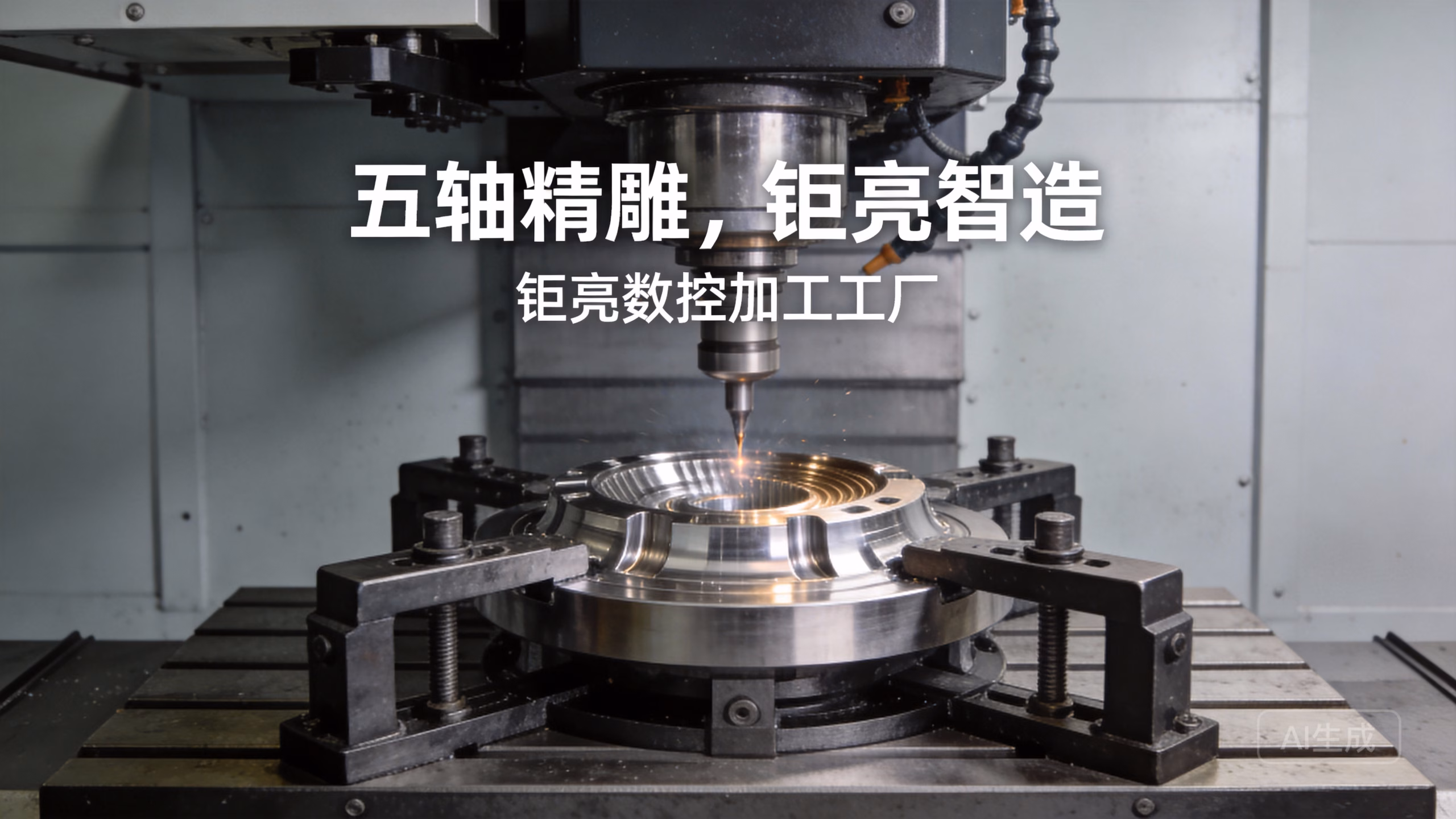

Axis count decides how many faces you can cut in one setup. A part with angled holes, deep pockets on five sides, or a contoured surface usually needs simultaneous 5-axis work; forcing it onto a 3-axis machine means extra fixtures, extra setups, and stacked position error. A simple prismatic plate with holes on two faces is often cheaper and faster on a 3-axis mill.

Size matters just as much. A job that fits in 500 × 500 × 450 mm can move between several machines, which helps scheduling. A 2 m frame or a 4,000 mm extrusion narrows the field quickly. Confirm the travel figure, the table load, and whether the shop can actually fixture your part without a custom tombstone that adds a week.

GreatLight runs 127 high-precision CNC machines: 16 simultaneous 5-axis centers, 12 four-axis mills, 27 three-axis machines, and 16 mill-turn centers. Largest travel is 4,000 × 400 × 150 mm, with a Ø400 mm rotary table for round work.

ISO 9001:2015 is the baseline; it says a quality system exists. If your part goes into a vehicle, a surgical instrument, or flight hardware, the relevant standard is narrower. IATF 16949:2016 adds process control and defect prevention for automotive work. ISO 13485:2016 covers medical device quality management. ISO 27001:2022 addresses how your files and drawings are protected.

Breadth is rare in mid-sized shops, and it is a fair proxy for how seriously a supplier treats documentation. Ask which certificate applies to the site that will run your parts, and check the scope statement, not just the logo. A certificate held by a different plant does not cover your order.

Inspection is the other half. Ask where measurement happens, whether it is in-house, and how the data reaches you. A shop that outsources CMM work adds days to every first article and loses control of the feedback loop. We keep coordinate measuring machines and laser scanners in-house and inspect every part before it ships.

Certifications we hold: ISO 9001:2015, IATF 16949:2016, ISO 13485:2016 and ISO 27001:2022. Uploads are treated as confidential, and an NDA is available on request.

A milling quote covers more than the cut. Anodizing, plating, heat treatment, laser marking and assembly all sit downstream, and each handoff is a chance for a delay or a scratch. When one supplier runs the machining and the finishing under one roof, the part does not travel between companies and nobody argues about who damaged it.

Material familiarity matters too. Aluminium 6061 and 7075 cut and finish differently. 316L stainless work-hardens. Ti-6Al-4V and Inconel need lower feeds, more coolant, and more tool changes, so cycle time rises. Ask what the shop runs most often. A supplier that machines titanium weekly will quote it realistically; one that sees it twice a year may not.

Post-processing we handle in-house includes anodizing (clear, colour, hardcoat, conductive), electroless nickel, zinc, silver and gold plating, powder coating, black oxide, bead blasting, tumbling, brushing, polishing, and laser marking down to 1.5 mm character height.

Materials we machine include aluminium 6061, 6061-T6, 2024, 5052, 5083, 6063, 6082, 7075 and ADC12; stainless 303, 304, 316, 316L, 420, 430, 431, 440C and 17-4PH; 1018, 1045, 4130, 4140, 4340 and A36 steel; copper and brass C101, C110, C36000; titanium TA1, TA2, TC4, plus Inconel and magnesium AZ31B / AZ91D; and plastics from ABS and POM to PEEK and carbon fibre.

Send the same drawing to three suppliers and compare what comes back. A useful quote includes a DFM note: which tolerances are hard, which features drive cost, where the material may move. If the reply is a price and a lead time with no engineering comment, the shop has not read the part. We return a quotation and free DFM analysis within 12 hours.

Order size is the next filter. Prototype work and production work need different scheduling, and a shop tooled for one may struggle with the other. Ask about minimum order quantity and how a 1-off compares to a 10,000-part run. We set no minimum: one prototype through to 10,000+ parts, with production able to start within 24 hours and parts shipping in 3–5 days.

A few questions separate strong suppliers from the rest. What is your historical on-time rate? Which operations are subcontracted? Who signs the first article? Can you send a sample part from a similar job? The answers are short for a shop that knows its process, and vague for one that does not.

Scale check for reference: 3 wholly-owned plants, 7,600 m² of floor space, 150 technicians, and a qualification rate of 99.99%. If a supplier cannot state comparable numbers, ask why.
