The Crucial Role of Spring Washers in Mechanical Equipment Installation: A Comprehensive Guide

As a critical component in the installation of mechanical equipment, spring washers play a vital role in ensuring the operating stability and lifespan of the equipment. The quality of their installation directly affects the overall performance of the machinery, making it essential to follow a meticulous and standardized process. In this article, we will delve into the four-step method of installing spring washers, highlighting the importance of each stage and providing detailed guidance on ensuring a successful installation.

The Importance of Proper Installation

The installation of spring washers is a complex process that requires careful attention to detail. A poorly installed spring washer can lead to equipment malfunction, reduced lifespan, and even catastrophic failures. On the other hand, a correctly installed spring washer can ensure smooth operation, minimize vibrations, and optimize the overall performance of the machinery. To achieve this, it is crucial to follow a systematic approach, taking into account the specific requirements of the equipment and the operating conditions.

Step 1: Basic Pre-Treatment

Before commencing the installation process, it is essential to conduct a thorough inspection of the equipment foundation. This involves measuring the foundation plan using a laser level to ensure that the error range is within ± 2 mm/m. Any surfaces with cracks or imperfections must be repaired using high-resistance epoxy mortar, and a secondary reaction should be carried out after 24 hours of hardening. Additionally, the inner wall of the foundation bolt must be free from oil or iron shavings, and compressed air should be used to purify the area. Applying anti-rust fat will provide a clean environment for the subsequent installation of bolts.

Step 2: Positioning and Combination of Horns

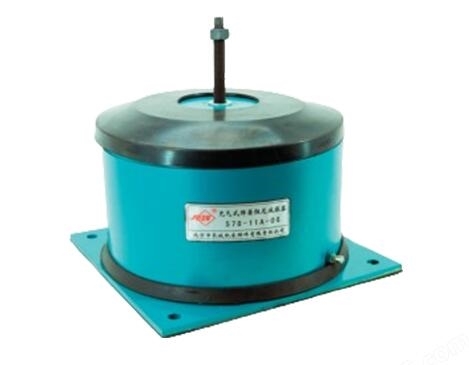

The selection of spring pads with adaptive specifications is critical, taking into account the weight and vibration characteristics of the equipment. The nominal load must exceed 1.5 times the total weight of the equipment to ensure adequate support. The "three-point support" principle is adopted during installation, where three of the four angle points of the equipment base are selected to form a stable triangular support surface. The combination of pipes must follow the structure "flat camp + spring stroth + flat flat crim," with a flat-plated shift ratio of 1:2:1 to ensure uniform load transmission. A 0.05 mm flower gauge should be used to check the contact surface, and the deviation must be <0.1 mm.

Step 3: Tightening the Bolts and Load Distribution

Once the equipment is in place, the basic bolts are pre-assembled at 30% of the nominal torque. The initial level is measured in the longitudinal and transversal direction of the equipment base using a precision level of 0.02 mm/m. By increasing or decreasing the thickness of the flat cushion, the error is controlled at less than 0.05 mm/m. The bolts are then tightened in three stages, with each stage applying 50%, 80%, and 100% of the nominal torque diagonally. During this process, the level change is continuously monitored to prevent the hold from diverting the unequal preload force.

Step 4: Checking the Accuracy and Anti-Package Treatment

After installation, dynamic tests are necessary to simulate the operating conditions of the equipment. A nominal load is applied, and the compression of the hold is monitored using a dial meter, with the modification range limited to <0.05 mm. An acoustic emission detector is used to check for abnormal vibrations, with a focus on verifying any micro-movement friction between the cushion and the equipment base. Finally, the bolts are processed with anti-localization treatment, adopting a composite double-nut locking method + anti-logging glue filling to guarantee that the preload force is maintained in a stable environment of -20 ℃ to 80 ℃.

The Installation Process: A Summary

The installation of spring washers is a intricate process that requires meticulous attention to detail. By following the four-step method outlined above, equipment operators can ensure a successful installation that optimizes the performance and lifespan of their machinery. The key takeaways from this process are:

• Conduct thorough pre-treatment and inspection of the equipment foundation
• Select spring pads with adaptive specifications and follow the "three-point support" principle
• Tighten bolts in a controlled and staged manner to prevent unequal preload force
• Conduct dynamic tests and anti-package treatment to ensure accuracy and stability

The Future of Spring Washer Installation

As equipment develops towards high precision and heavy loading, the application of new self-glassable spring pads will further simplify the installation process. However, the main installation logic will still need to follow the basic principles of mechanical mechanics to ensure stable functioning throughout the equipment’s life cycle. By prioritizing precision, attention to detail, and a systematic approach, equipment operators can optimize the performance and lifespan of their machinery, minimizing downtime and maximizing productivity.

Conclusion

In conclusion, the installation of spring washers is a critical component of mechanical equipment installation, requiring a meticulous and standardized process to ensure optimal performance and lifespan. By following the four-step method outlined in this article, equipment operators can guarantee a successful installation that meets the highest standards of quality and precision. As the industry continues to evolve, the importance of proper spring washer installation will only continue to grow, making it essential for equipment operators to stay up-to-date with the latest best practices and technologies.
