Sheet Metal Fabrication Quality Parts: What the Drawing Cannot Say

• 1
  What sheet metal fabrication quality parts really means
• 2
  Why bend deduction and K-factor decide the part
• 3
  Flatness, hole position, and the limits of laser cutting
• 4
  Finish, plating, and what salt spray does not tell you
• 5
  Why the machining step is often inside the sheet metal job
• 6
  Seven checks and what good looks like

Quality in sheet metal is not a single pass or fail. It is a stack of small decisions made before the blank is cut. Material arrives with a thickness range, not a fixed number. A 1.5 mm cold-rolled sheet can measure 1.42 mm to 1.58 mm under standard mill tolerance. Bend deduction, K-factor, and springback all depend on that real thickness. If the shop programs the press brake from the nominal value, every flange length shifts.

Three failures show up most often on incoming inspection. Hole patterns drift because the back gauge was set from a worn tool or the sheet moved during the hit. Bend angles open up because springback was estimated, not measured. Cosmetic panels show tool marks because the film was stripped before forming instead of after. None of these show up as a drawing violation until someone measures the assembly.

So when a buyer asks for sheet metal fabrication quality parts, the useful question is not whether the shop owns a laser. It is whether they control the inputs that move. Thickness, grain direction, tool radius, and press tonnage are the variables. The print only describes the result.

A good supplier will tell you which dimensions on your drawing are hard to hold and why. That conversation is worth more than a certificate on the wall.

• 1
  Material lot mattersThickness and temper vary between heats; both change bend behavior.
• 2
  Tooling wearsA punch radius grows over thousands of hits and changes the bend allowance.
• 3
  Sequence mattersForm first, finish second, or the coating cracks at the bend line.

When sheet is bent, the outer fibers stretch and the inner fibers compress. One neutral line stays at its original length. Its position, the K-factor, is usually between 0.33 and 0.50 of the thickness depending on material and bend radius. Bend deduction is the amount you subtract from the flat pattern so the formed part reaches the right flange length.

Get the K-factor wrong by 0.02 and a 50 mm flange moves about 0.3 mm. That sounds small until two brackets bolt to the same plate and the hole pattern no longer lines up. On a 90° bend with a 1.0 mm inside radius in 2 mm mild steel, the shop should confirm the value with a test bend, not a table from a catalog.

Springback adds a second error. Aluminum 5052 springs back more than mild steel at the same radius. Stainless 304 work-hardens and needs more overbend on the second hit. A press brake with CNC crowning will compensate; an old machine with shims will not. This is where the tolerance on an angled flange, often ±1°, becomes hard to hold.

Radius also sets the limit. A tight inside radius below one thickness risks cracking on the outside of the bend, especially in 7075 or hard tempers. A radius far larger than the thickness returns more springback. There is a workable band, and it depends on the alloy in front of you.

• 1
  Test bend firstCut one blank, form it, measure the flange, then set the program.
• 2
  Check grain directionBend lines across the rolling direction crack more easily.
• 3
  Watch the second hitWork-hardened stainless needs a different overbend than the first pass.

Laser cutting holds hole position well, often within ±0.1 mm on a 1 mm sheet. The trouble starts after forming. A part that was flat within 0.2 mm can bow 0.5 mm once it is bent, because residual stress in the coil releases unevenly. Thicker sheet and larger panels show this more.

Flatness on a cosmetic panel is usually judged against a straight edge, not a CMM. For a 500 mm panel, 0.5 mm of bow is often visible under reflected light. If your finish is brushed or anodized, the eye catches it faster than any gauge. Tell the shop which surface is seen and which is hidden.

Hole position after bending depends on the bend deduction again. A hole placed 10 mm from a bend line will move if the shop uses a different K-factor than the one in your flat pattern. This is the most common source of assembly rework, and it is invisible until parts meet.

Edge quality also matters. Laser leaves a slight taper and a heat-affected zone on thick material. Deburring removes the sharp edge but can round a precision corner. Specify which edges stay sharp and which get a radius.

• 1
  Send the formed modelA flat pattern without bend lines invites a different deduction.
• 2
  Mark visible facesCosmetic and hidden surfaces get different handling.
• 3
  State edge requirementsDeburr, chamfer, or leave as-cut; each changes the part.

Anodizing builds a layer that is part oxide and part consumed aluminum. On a 0.5 mm wall, a hardcoat can eat enough material to change a press fit. Type II clear anodizing runs roughly 5–25 μm; hardcoat runs thicker and is more brittle at the bend line. Bend first, anodize second.

Powder coating hides small dents and weld lines, which is why it is popular on enclosures. It also bridges tight gaps and can chip at sharp corners. A 60–80 μm film on a thread makes the fastener bind. Mask threads, mating faces, and any grounding point before coating.

Salt spray hours are a test condition, not a service life. A coating that passes 500 hours in a chamber may still fail in a coastal plant if the cut edge was not sealed. Cut edges and punched holes are where corrosion starts. Ask how the shop treats them.

Laser marking is a clean way to add a serial or logo. Minimum character height is 1.5 mm for reliable reading. Below that, contrast drops and the mark becomes hard to scan after finishing.

• 1
  Bend before coatingAnodizing and powder both crack when formed after finishing.
• 2
  Mask what matesThreads, grounding points, and bearing faces.
• 3
  Seal the cut edgeExposed edges corrode first on coated steel.

Many sheet metal parts are not only sheet. A chassis needs tapped bosses, a machined shoulder, or a counterbore that a punch cannot produce. If the shop only bends and laser-cuts, that feature goes to a second supplier and the tolerance stack grows across two setups.

Keeping cutting, forming, machining, and finishing in one plant removes re-fixturing. A hole that is drilled after forming is located from the formed part, not from a flat blank that has already moved. That is how a ±0.1 mm position holds on a bracket that was bent twice.

It also shortens the loop when something is wrong. The person who formed the part can walk to the person who measured it. Feedback moves in minutes instead of a shipping cycle.

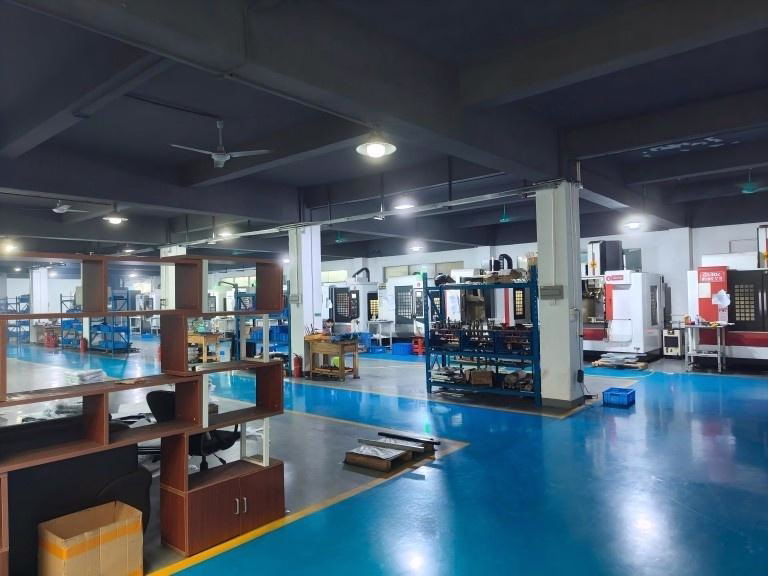

GreatLight runs 127 high-precision CNC machines across 3 wholly-owned plants in 7,600 m², with 150 technicians. Sheet metal, machining, and finishing sit under one roof, so a bent bracket and its machined boss are checked against the same datum.

• 1
  One datumFormed part becomes the reference for later machining.
• 2
  Fewer handoffsEach new supplier adds a setup and a tolerance.
• 3
  Faster feedbackProblems surface while the job is still on the floor.
