Parallelism Check Laser Micrometer: A Critical Tool for High-Precision Manufacturing
The Parallelism Check Laser Micrometer has evolved from a niche laboratory curiosity into a frontline quality assurance workhorse. In a manufacturing landscape where tolerances routinely shrink below a thousandth of an inch, ensuring that two surfaces, guide rails, or opposite faces of a component are perfectly parallel is no longer a mere nicety—it’s a functional necessity. This post dissects the technology, its application in precision machining, and what to look for when your supply chain depends on geometrically flawless parts.
What Exactly is a Laser Micrometer for Parallelism Checking?
A laser micrometer used for parallelism measurement is fundamentally a non-contact dimensional measurement system that uses a thin, collimated beam of laser light to scan a target object. Unlike traditional contact micrometers, which risk deforming delicate surfaces or introducing operator bias, the laser micrometer projects a shadow or light profile onto a high-speed detector array, measuring dimensions in real time. When applied to parallelism checks, the system compares the distance reading at multiple points along two surfaces or across a single surface relative to a reference plane, quantifying angular deviation.
At its core, the device consists of:
A stable laser source emitting a beam with exceptional straightness.
A high-resolution receiving unit (often a CCD or CMOS array) that captures the beam’s position with micrometer-level accuracy.
A processing unit that executes algorithms to compute parallel deviation, often in micrometers per unit length.
The Physics Behind Parallelism Measurement
Unlike simple thickness gauging, parallelism requires comparing the orientation of two lines or planes. The laser micrometer accomplishes this by placing the part between the emitter and receiver. As the laser scans, the shadow edge on the detector precisely maps the part’s contour. By measuring the distance between two surfaces at multiple locations, the system computes the difference in thickness reading Δh across a known span. Parallelism error is expressed as:
Parallelism Error = max(thickness) – min(thickness) over the measured area
More sophisticated systems use two synchronized laser micrometers aligned opposite each other, measuring the outer dimensions of a component simultaneously from both sides. This differential measurement eliminates the influence of part vibration or slight misalignment, achieving sub-micron repeatability.
Modern instruments can also scan along the length of a workpiece, generating a digital map of thickness variation. The result: a comprehensive profile that exposes convexity, concavity, wedge shapes, and twisting—all enemies of functional assemblies.
Why Parallelism Matters More Than You Think
In precision machining, parallelism errors are not just a geometric abstraction; they translate directly into part failure. Consider these scenarios:
Bearing bores in a gearbox housing: If the front and rear bearing seats are not parallel, the shaft will be misaligned, causing premature wear, noise, and heat build-up.
Parallel gripper jaws on a robot end‑effector: Devitation of just 0.02 mm over 50 mm leads to uneven gripping force, potentially dropping $10,000 assemblies.
Parallel surfaces for seals or gaskets: Non-parallel flanges create uneven compression, resulting in leaks in hydraulic or vacuum systems.
Optical component mounts: Even 1 µm of wedge can misalign laser cavities.
These are not hypothetical. When a batch of complex CNC-machined housings exhibit erratic assembly failures, the root cause often traces back to parallelism deviations that traditional calipers or height gauges simply cannot catch reliably.
Laser Micrometer vs. Traditional Methods: A Capability Gap
To understand why the industry is shifting toward laser-based measurement, it helps to compare it against legacy approaches.
| Technique | Accuracy (typical) | Speed | Non‑Contact | Automation Ready | Operator Influence |
|---|---|---|---|---|---|
| Dial indicator + surface plate | ±5 µm | Slow (manual scanning) | Yes | No | High (setup, reading) |
| CMM (touch probe) | ±1 µm | Moderate (point scanning) | Yes | Yes | Medium (programming) |
| Optical comparator | ±10 µm (profile projection) | Moderate | Yes | Low | High (subjective interpretation) |
| Air gauge | ±0.5 µm (limited range) | Fast (production) | Yes (air, not contact) | Yes | Low |
| Laser micrometer | ±0.3 µm or better | Milliseconds per measurement | Yes | High (inline) | Very low |
While CMMs excel in 3D geometry verification, a standalone laser micrometer offers a dedicated, high‑speed solution specifically for thickness and parallelism. It integrates seamlessly into production cells, delivering real-time feedback to machine operators or automatic offsets. Air gauging provides extreme accuracy but only over very small ranges and requires custom tooling for each feature. The laser micrometer bridges the gap with flexibility—switching from a 20 mm shaft to a 200 mm plate requires no hardware changes, just software parameter adjustment.
Practical Considerations: Getting the Best Out of Your Laser Micrometer
Merely owning a high-end instrument does not guarantee accurate parallelism results. The following factors distinguish reliable data from misleading numbers:
Environmental control – Laser micrometers are sensitive to thermal gradients. A 1°C change in a 100 mm steel part expands it by roughly 1 µm. Measurements should be taken in a temperature-stabilized environment (ideally 20°C ± 1°C) and after the part has soaked to ambient temperature. Even the heat from an operator’s hand can skew results on small parts.
Part alignment and fixturing – The measurement axis must be perfectly perpendicular to the laser beam. Misalignment introduces cosine error. Precision V-blocks, kinematic mounts, or dedicated jigs are necessary to hold the part securely without introducing distortion.
Surface finish considerations – Laser micrometers measure the geometric edge; however, a rough surface (Ra > 3.2 µm) can scatter the beam and blur the shadow boundary. In such cases, average multiple scans or use a laser that employs a special optical filtering algorithm.
Calibration and traceability – Standards (gauge blocks, optical flats) should be certified to national or international standards, and the micrometer should be verified periodically using master parts of known parallelism. Some facilities integrate daily SPC checks with calibrated artefacts.
Vibration isolation – Nearby stamping presses or heavy traffic can induce micro‑movements. The mounting table must be adequately damped.
Implementation in a High‑Mix Precision Machining Environment
For job shops and contract manufacturers dealing with diverse customer specifications, the laser micrometer becomes a universal validation tool. Imagine a scenario where a customer submits a drawing for an aluminum sensor housing with a parallelism callout of 0.005 mm per 100 mm of length between two critical sealing faces. A traditional height gauge on a granite plate might require a skilled technician several minutes to set up and take multiple readings, with an uncertainty contribution of ±0.003 mm already eating into the tolerance band. Switching to a laser micrometer, the same check takes seconds with an order of magnitude better resolution, and the result is digitized automatically, generating an inspection report.
Such efficiency is not just about speed; it reduces the risk of shipping non‑conforming parts. Facilities that deploy laser micrometers for 100% in‑process inspection—or even random sampling—report a significant drop in internal scrap rates and customer returns. And because the data is digital, it can be fed into SPC software to monitor process capability indices (Cp, Cpk) in real time, closing the loop on CNC tool wear compensation.
What This Means When Choosing a CNC Machining Partner
When evaluating a supplier for high‑precision components, the presence of advanced metrology equipment signals a serious commitment to quality. It’s not enough for a shop to tout gleaming CNC machines; the real differentiator is how they verify that the output meets the specified geometric tolerances. A laser micrometer dedicated to parallelism and thickness measurement demonstrates that the facility can handle stringent GD&T callouts such as “parallelism,” “flatness,” and “profile tolerance” with demonstrable evidence.

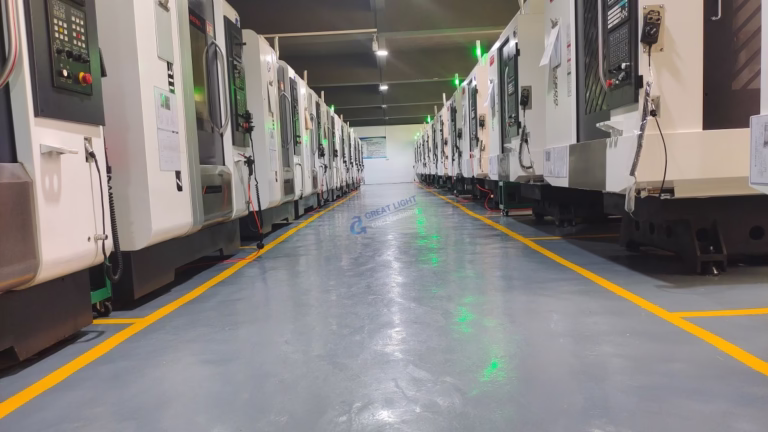

GreatLight CNC Machining Factory exemplifies this philosophy. Established in 2011 and occupying 7600 square meters in Dongguan’s manufacturing hub, the company has equipped its quality labs with an array of precision measurement instruments—including laser micrometers, CMMs, and optical comparators—to back up its extensive 5‑axis, 4‑axis, and 3‑axis CNC machining capabilities. With ISO 9001:2015 certification, plus adherence to standards for medical (ISO 13485) and automotive (IATF 16949) hardware, GreatLight’s quality system mandates in‑process inspection and final verification of critical characteristics like parallelism. This means parts leaving the factory carry full dimensional documentation, not just a tacit hope that they are correct. The one‑stop service, spanning machining, die casting, sheet metal, and 3D printing, all benefit from this metrology backbone.
Choosing a partner with real operational depth—rather than one that merely lists equipment—is the best insurance against the precision black hole where promises diverge from actual delivered quality. When a manufacturer invests in laser micrometer technology and builds robust procedures around it, you can trust that your tightly‑toleranced parallel faces will be exactly as specified, from first article to final shipment.
The Future: Inline Parallelism Control and AI Integration
As manufacturing moves toward lights‑out production, the laser micrometer’s role is expanding. Advanced systems now communicate directly with CNC controllers, automatically updating work offsets based on measured parallelism trends. This adaptive machining eliminates human intervention, compressing feedback loops from hours to minutes. Moreover, the convergence of AI‑driven anomaly detection allows the micrometer to flag not just out‑of‑spec parts but also subtle process drifts—like tool wear or thermal deformation—before they produce rejects.
For contract manufacturers serving OEMs with mission‑critical assemblies (e.g., engine components, humanoid robot joints, optical mounts for aerospace), this capability is quickly moving from “nice to have” to “mandatory.” Those who adopt and master it early will define the new standard for reliability.
Ultimately, for any manufacturer aiming to deliver flawless parts, the systematic use of a Parallelism Check Laser Micrometer is not just an advantage – it is a cornerstone of quality assurance. The technology strips away subjectivity, accelerates verification, and closes the loop on precision. In a world where a single micron can make the difference between a successful product launch and a costly recall, this level of measurement certainty is non‑negotiable.
