A low volume mold silicone rubber tool is made by pouring uncured silicone around a master pattern, letting it cure, then cutting the block open along a parting line and pulling the master out. What remains is a flexible cavity that copies the master surface almost exactly. The pattern is usually a CNC-machined model, which is why pattern accuracy sets the ceiling on everything downstream.

The second half of the process is casting. Two-part polyurethane resin is mixed, degassed, and poured or injected into the closed silicone cavity under vacuum. Vacuum matters because it pulls air out of the resin and out of the cavity corners at the same time. Without it, you get bubbles on the surface and short fills in thin walls.

After the resin cures at a controlled temperature, the mold is opened and the part is demolded. Silicone stretches, so a slight undercut can often be released by hand where a steel mold would need a slide. That flexibility is the main reason the process covers geometries that would be expensive to tool in metal.

Each silicone mold has a finite life. The cavity gradually picks up contamination, loses sharp edges, and drifts dimensionally as it cycles. A typical tool survives a few dozen pulls before the parts start moving outside tolerance. This is the physical limit that defines what low volume actually means.

• 1
  Master patternCNC-machined, polished, and finished to the target surface before pouring
• 2
  Silicone blockPoured around the pattern, cured, then cut along the parting line
• 3
  Vacuum castingResin degassed and drawn into the cavity under vacuum
• 4
  DemoldFlexible silicone releases mild undercuts without slides

The process fits runs roughly between 10 and 200 parts, depending on wall thickness, geometry, and how tight the tolerance is. Below that, machining or 3D printing the parts directly is often faster because there is no mold to make. Above that, the per-part cost of urethane casting stops falling and a steel or aluminum tool starts to win on unit economics.

Where it wins is design verification at a realistic material. You get parts that look, feel, and assemble like the production version, in a resin chosen to mimic ABS, PC, or a glass-filled grade. Engineering teams use this to run drop tests, fit checks, and customer reviews before spending on hard tooling.

Where it loses is high-volume dimensional stability. Silicone wears. Part 5 and part 60 from the same mold will not measure identically. If your drawing calls for ±0.05 mm across a 150-part run, casting alone will not hold it. Design features that need that stability should be machined or moved to a different process.

It also loses on high-temperature or UV-exposed applications. Urethane resins are generally softer and less heat-resistant than the thermoplastics they imitate. A part that must survive 120 °C continuously or sit outdoors for years is usually a poor candidate, no matter how good the mold is.

• 1
  Good fit20–200 parts, enclosure and housing prototypes, fit and feel validation, overmold-style soft features
• 2
  Poor fitRuns beyond a few hundred, tight tolerances across the whole batch, high heat or long UV exposure
• 3
  Wrong fitParts whose function depends on the exact resin grade rather than its approximate behavior

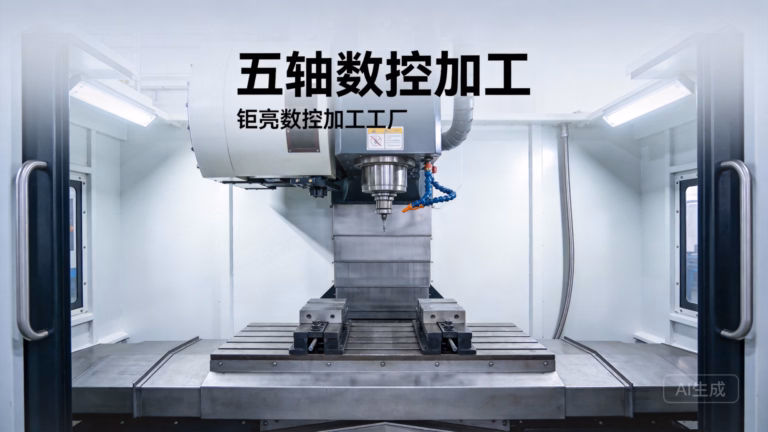

The silicone copies the master. It does not improve it. Any scratch, step, or witness line on the pattern shows up on every cast part, multiplied across the run. That is why the master is normally machined on a 5-axis center, polished, and inspected before it ever touches silicone. At GreatLight, master patterns are held to ±0.005 mm where the drawing calls for it.

Surface finish transfers in the same way. A pattern finished to Ra 0.2–0.8 μm produces a visibly smoother cast surface than one left at Ra 1.6–3.2 μm. If the final part needs a texture, it is usually applied to the pattern first, not sanded into the castings afterward, because hand work on cast urethane is hard to repeat.

The pattern also has to be designed for demolding. Straight walls, a clean parting line, and a draft of 1–2° reduce the chance of tearing the silicone when the master is pulled. Sharp internal corners on the pattern become stress risers in the mold and often tear within the first few pulls.

One more point that gets missed: the pattern is not the part. It must be built at the shrink-compensated size, scaled for the resin you intend to cast. Different urethanes shrink differently, so a pattern machined for one resin may not hold tolerance in another. Confirm the resin before the CAM program is written.

• 1
  Tolerance sourceCast parts inherit the pattern tolerance, plus mold wear and resin shrink
• 2
  Finish transferRa 0.2–0.8 μm on the pattern reads as a fine cast surface
• 3
  Draft1–2° on vertical walls extends mold life and eases release

Wall thickness is the first thing to check. Thin walls below about 0.8 mm often short-fill because the resin thickens before it reaches the end of the flow path. Thick sections above roughly 6 mm tend to shrink and sink on the opposite face. Keeping nominal walls between 1.5 mm and 4 mm gives the resin room to flow and cure evenly.

Sharp corners concentrate stress in both the part and the silicone. A small internal radius, generally 0.5 mm or more, spreads that load and reduces tearing at the mold edge. External corners can usually stay sharper, but a light break also helps release.

Undercuts are where silicone earns its place, but only mild ones. A flexible mold can peel off a shallow snap or a small lip. Deep undercuts still need a split mold or a removable insert, which adds hand work and shortens tool life. If the undercut is more than a few millimeters deep, plan for a different approach.

Finally, think about inserts and threads. Metal inserts are placed in the cavity before casting and become captive in the part. Molded threads are possible but wear the silicone quickly, so for anything beyond a short run, machining the thread after casting is usually the more repeatable route.

• 1
  Wall range1.5–4 mm nominal; avoid sub-0.8 mm and over 6 mm sections
• 2
  Internal radii0.5 mm minimum to reduce tearing at the mold edge
• 3
  InsertsLoad metal inserts into the cavity before the pour
• 4
  ThreadsMold only for short runs; otherwise cut after casting

Urethane casting resins are sold as families that approximate common thermoplastics. An ABS-like resin gives a tough, slightly flexible part for housings and enclosures. A PC-like grade is stiffer and clearer, used for lenses, light pipes, and covers. Glass-filled grades add stiffness and reduce shrink, closer to a filled nylon or PBT.

The match is behavioral, not chemical. A PC-like urethane will not have the same heat deflection temperature as real polycarbonate, and it will not pass the same flammability or UV tests. Use casting to validate geometry, fit, and feel. Do not use it to certify a material specification unless the resin datasheet actually supports the claim.

Shore hardness is the other lever. Soft grades around Shore A 40–60 behave like rubber and suit grips, seals, and bumpers. Hard grades around Shore D 70–80 behave like a rigid plastic. This range is wide enough that a single silicone mold can produce a soft prototype and a stiff one from the same cavity, which is useful during design iteration.

Color and clarity add constraints. Opaque resins are easy to pigment and match well. Transparent parts need an optically clear resin and a highly polished pattern, because any surface defect shows through. Plan extra polishing time for clear castings.

• 1
  ABS-likeTough housings, snap fits, general fit checks
• 2
  PC-likeStiffer parts, clear covers, light guides
• 3
  Shore A 40–60Rubber-like grips, seals, bumpers
• 4
  Shore D 70–80Rigid parts that behave like a hard plastic

The workflow starts with a DFM review, not with a machine. We check wall thickness, draft, parting line placement, and insert locations against the drawing, then send feedback with the quotation, normally within 12 hours. Catching a 0.5 mm wall or a missing draft at this stage is far cheaper than catching it after the mold is poured.

Once the design is locked, the master pattern is machined on a 5-axis center and finished to the required surface. It is inspected against the model, then sealed and prepared for pouring. Silicone is mixed, degassed, and poured around the pattern in a vacuum chamber. Cure takes several hours at controlled temperature.

The cured block is cut along the parting line, the master is removed, and the cavity is cleaned and inspected. A first-shot casting checks fill, surface, and dimensions before the mold goes into production. If the first shot is wrong, the mold is still fresh and can be adjusted.

Production then runs in batches. Resin is mixed and degassed per shot, cast under vacuum, cured, demolded, deflashed, and finished. Every part is inspected before shipment, and reports are available on request. Standard parts ship in 3–5 days after the mold is approved.

• 1
  Step 1DFM review and quotation, typically within 12 hours
• 2
  Step 25-axis machining and finishing of the master pattern
• 3
  Step 3Silicone pour, cure, cut, and cavity inspection
• 4
  Step 4First-shot approval, then batch casting and 100% inspection

Ask who machines the master pattern. If the casting house buys patterns from a third party, tolerance stack-up grows and nobody owns the final dimension. A supplier that machines and casts under one roof can hold the pattern to ±0.005 mm and then control the shrink compensation in the same conversation.

Ask how mold life is managed. A supplier that tracks pull count and retires a mold before parts drift is different from one that keeps casting until the customer complains. Request dimensional data from the first and last parts of a run so you can see the trend rather than trust a single inspection sheet.

Check the quality system against your industry. ISO 9001:2015 covers general process control. IATF 16949:2016 matters for automotive and EV programs. ISO 13485:2016 applies to medical devices. ISO 27001:2022 covers information security, which matters if your CAD files are sensitive. GreatLight holds all four.

Finally, confirm the commercial terms in writing: no minimum order quantity, NDA available on request, and secure handling of uploads. These are not marketing points; they are the conditions under which an engineer can share an unreleased design without creating a liability.

• 1
  Pattern ownershipIn-house 5-axis machining keeps tolerance and shrink under one roof
• 2
  Mold life trackingAsk for first-part and last-part dimensional data
• 3
  CertificationsISO 9001, IATF 16949, ISO 13485, ISO 27001
• 4
  TermsNo minimum order quantity, NDA on request, confidential uploads
