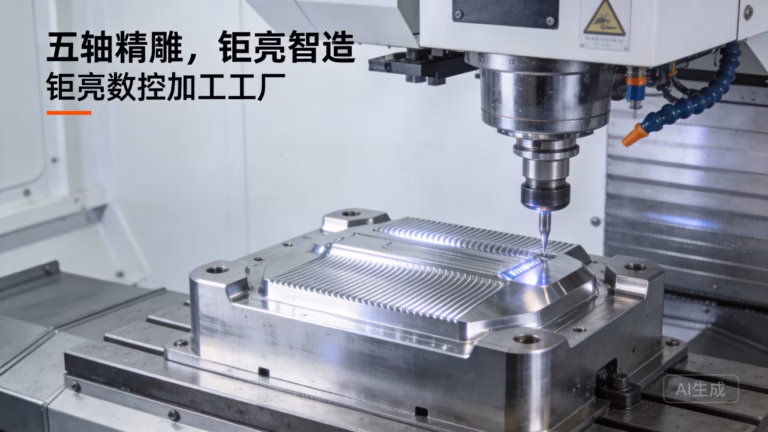

When translating intricate CAD designs into tangible, high-precision parts, even the most sophisticated CNC machining process encounters a fundamental physical constraint: the geometry of the cutting tool. This is where the concept of the “dogbone fillet,” or simply “dogbone,” transitions from a clever design trick to an essential manufacturing strategy. As a senior manufacturing engineer, I’ve seen countless prototypes fail and production timelines stretch due to overlooked internal sharp corners. This post will demystify dogbones, explaining not just the “how,” but the critical “why” and “when” behind this indispensable technique for designers and engineers seeking flawless manufacturability.
The Inescapable Reality: The Tool Radius Problem
At the heart of CNC milling is a simple truth: end mills, the tools that carve out pockets and profiles, are cylindrical and have a defined corner radius (even “sharp” tools have a tiny radius). They cannot machine a perfect, sharp internal corner. Attempting to do so leaves behind uncut material, known as a “radius” or “fillet,” equal to the tool’s radius.
Consider a design requiring a rectangular slot with perfectly square internal corners. A standard end mill will produce rounded corners, leaving material in the design’s sharp corners untouched. This isn’t a machine error; it’s a physical limitation. The dogbone is the engineered solution to this limitation.
What Exactly is a Dogbone Fillets?
A dogbone fillet is a small, deliberate extension added to the internal corner of a pocket or slot in a CAD model. Its characteristic shape, resembling the end of a dog’s bone, allows a round tool to reach further into the corner, effectively clearing out the material that would otherwise be left behind. The result is a part that accepts a square insert, fits a sharp-edged component, or meets a design specification that demands a right-angled internal feature.
The Primary Function: To create an internal corner that allows a square or rectangular object to seat fully, despite the tool’s rounded cutting path.
Strategic Implementation: When and How to Use Dogbones
Dogbones are not a universal fix but a targeted solution. Their application requires careful consideration.
When to Specify a Dogbone:
Insert Fitment: When a part must accept a square or rectangular insert, fastener head, or electronic component.
Assembly Interfaces: For parts that must mate with sharp-cornered counterparts in an assembly.
Design Intent: When the function of the part critically depends on the presence of a sharp internal corner feature.
T-Slot and Keyway Machining: A classic application where a square-edged key must slide into a milled slot.
How to Design an Effective Dogbone:
The geometry is straightforward but must be precise. The key parameters are the Tool Diameter (D) and the desired Corner Clearance.
Extension Length: The center of the dogbone arc is typically offset from the original sharp corner by a distance equal to the tool radius (D/2). This ensures the tool’s center path can reach the corner apex.
Arc Radius: The arc radius of the dogbone is usually equal to the tool radius. A common and effective rule of thumb is to make the dogbone radius 0.5mm to 1mm larger than the tool radius used for the surrounding pocket for guaranteed clearance.
Optimal Placement: The dogbone should be added as a feature in your 3D CAD model, not left as a note for the machinist. This ensures design intent is clear and controlled.
Design Table: Dogbone Parameters for Common Tool Sizes
| Target Internal Corner | Recommended End Mill Diameter | Dogbone Arc Radius (Typical) | Dogbone Center Offset from Corner |
|---|---|---|---|
| Fine Detail / Electronics | 3 mm (1/8″) | 1.5 – 2 mm | 1.5 mm |
| General Machining | 6 mm (1/4″) | 3 – 4 mm | 3 mm |
| Heavy Material Removal | 10 mm (3/8″) | 5 – 6 mm | 5 mm |
Beyond the Basics: Dogbones in Advanced Machining Contexts
While the principle is simple, its application interacts with broader manufacturing strategies.
Dogbones in 3-Axis vs. 5-Axis Machining: In 3-axis machining, dogbones are often the only practical way to achieve a sharp internal corner. However, with 5-axis CNC machining, the tool can tilt, allowing a smaller-diameter tool’s side to reach into corners, potentially minimizing or even eliminating the need for a dogbone in some scenarios. The choice becomes a trade-off between design purity, machining time, and cost.
The T-Bone Alternative: A variation known as a “T-bone” or “relieved corner” uses straight extensions instead of arcs. It can be more efficient for certain toolpaths and provides a larger clearance area, though it is less common than the dogbone.
Communication with Your Manufacturer: Clearly indicating dogbone features on your drawings or in your 3D model notes is crucial. A professional manufacturer like GreatLight Metal will review designs for manufacturability (DFM) and may suggest adding, modifying, or potentially removing unnecessary dogbones to optimize strength, aesthetics, and cost. This engineering collaboration is a core part of the value we provide.
The GreatLight Metal Advantage: Engineering-Driven Solutions for Complex Geometries
At GreatLight Metal Tech Co., LTD., we encounter and solve complex geometric challenges daily. Our approach to features like dogbones is rooted in our full-process engineering mindset.
Proactive DFM Analysis: Our engineering team doesn’t just execute prints; we analyze them. If we see internal sharp corners without clearances, we initiate a dialogue to discuss the best solution—be it a dogbone, a standard fillet, or an alternative machining strategy using our 5-axis capabilities.
Equipment Versatility: Our arsenal of precision Dema 5-axis machining centers and high-speed 3/4-axis mills gives us flexibility. For a critical part, we might recommend a 5-axis approach to preserve wall strength by avoiding a dogbone. For a cost-sensitive run, an optimally designed dogbone on a 3-axis machine is the efficient solution.
Precision as Standard: Whether implementing a dogbone or machining a complex contour, our IATF 16949 and ISO 9001:2015 certified quality management systems ensure every cut meets specification. The precision of the dogbone feature itself is guaranteed by our in-house CMM and advanced metrology equipment.
From Prototype to Production: We understand that a dogbone used in a rapid prototype for fit-checking might need refinement for a production part subjected to stress. Our engineers guide this transition, ensuring design for manufacturability evolves into design for durability.
Conclusion
The humble dogbone fillet is a perfect case study in the marriage of intelligent design and practical manufacturing. It is not a compromise but a sophisticated engineering solution to a universal physical constraint in CNC machining. Mastering its use—knowing when to apply it, how to dimension it correctly, and when to leverage advanced machining to avoid it—is a hallmark of a design engineer who understands production reality.
For clients seeking a manufacturing partner that provides not just machining but collaborative engineering insight, the choice is clear. Entrusting your precision parts to a partner like GreatLight Metal means you gain a team dedicated to implementing the optimal solution, whether it involves a perfectly placed dogbone or a more advanced machining strategy, ensuring your design intent is realized with uncompromising quality and efficiency. This engineering partnership is what transforms a good design into a flawlessly manufactured product.
Frequently Asked Questions (FAQ)
Q1: Are dogbones weak points in my part?
A: They can be. A dogbone creates a small notch, which is a potential stress concentrator. For high-stress structural components, a standard fillet (rounded corner) is almost always stronger. Dogbones should be used specifically where a sharp internal corner for fitment is more critical than maximizing strength in that localized area. Our engineers can perform FEA analysis to assess the impact if needed.
Q2: Can you add dogbones for me if I forget them in my design?
A: Yes, a professional manufacturer will typically identify the need during DFM review and request approval before proceeding. However, for optimal control and to avoid communication errors, it is always best practice to include them in your native CAD files and drawings as designed features.
Q3: Is a dogbone the only way to get a sharp internal corner?
A: No, but it is the most common and cost-effective for most 3-axis milling. Alternatives include:
Using a very small “lollipop” or undercutting end mill (adds cost and tool fragility).
Electrical Discharge Machining (EDM) to burn the corner (adds significant time and cost).
Utilizing 5-axis machining to tilt a tool into the corner (requires advanced equipment and programming).
Q4: How small of a dogbone can you machine?
A: This depends on the smallest tool diameter our machines can reliably run. With our high-precision spindles and micro-tooling capabilities, we can machine dogbone features for tools as small as 0.5mm (0.02″) in diameter, suitable for intricate medical or micro-electronic components.
Q5: Do I need to use dogbones for external corners?
A: No. External sharp corners are easily machined by the end mill’s periphery. The tool radius limitation only applies to internal (concave) corners where the tool body cannot physically reach. For more insights and professional discussions, connect with us on LinkedIn.
