How To Calculate CNC Machine Cycle Time?

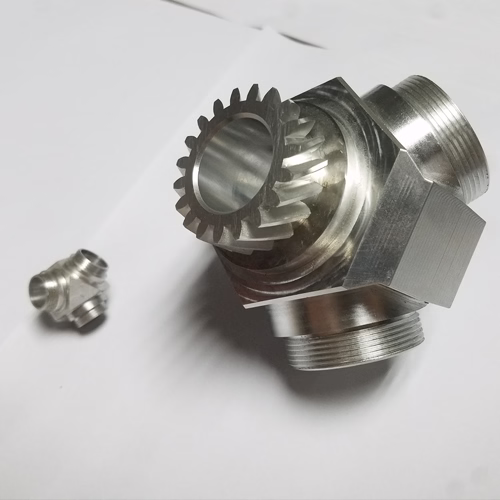

What Exactly is CNC Machine Cycle Time?
Before diving into calculations, it’s critical to define CNC machine cycle time clearly. Simply put, CNC cycle time is the total time required to complete one full production cycle for a single part, starting from the moment the machine begins the first machining operation until the finished part is ready to move to the next stage (whether that’s post-processing, inspection, or shipping).
It’s important to distinguish cycle time from other related metrics:
Setup Time: The time to prepare the machine, tooling, and fixture for a new part or batch. This is separate from cycle time for large batches but may be included when calculating the total time for a single prototype.
Idle Time: Unplanned downtime due to machine malfunctions, material shortages, or operator breaks—this is not part of intentional cycle time calculations.
Lead Time: The total time from when you place an order to when you receive the finished parts. This includes cycle time, plus material sourcing, post-processing, inspection, and shipping.
Core Components of CNC Cycle Time
To calculate cycle time accurately, you need to account for four key components. Each contributes to the overall time, and overlooking any can lead to inaccurate estimates:
Cutting Time (Machining Time)
This is the most straightforward component: the total time the cutting tool is actively removing material from the workpiece. It depends on the part’s geometry, tool specifications, and machining parameters like feed rate and spindle speed. Cutting time varies widely between processes (milling, turning, drilling) and materials.
Non-Cutting Time
This includes all the time when the machine is running but the tool isn’t removing material. Common examples include:
Rapid moves between machining features
Spindle acceleration and deceleration
Tool changes (automatic or manual)
Coolant system activation/deactivation
Part indexing (especially for 4-axis or 5-axis CNC machining)
Non-cutting time can account for 20-40% of total cycle time, so it’s essential to estimate it correctly.
Auxiliary Time
This covers tasks that support the machining process but aren’t part of cutting or non-cutting machine operations. Examples include:
Manual part loading and unloading (for machines without automated fixtures)
In-process measurement to verify tolerances
Chip removal to prevent tool damage or part defects
Minor adjustments to tool offsets or feed rates
Setup Time (Context-Dependent)
For production runs with multiple identical parts, setup time is usually divided by the number of parts to get a per-part contribution. For single prototypes or small batches, setup time may be included directly in the total cycle time since there’s no batch to spread it across.
Step-by-Step Calculation Method
Now that you understand the components, let’s walk through how to calculate CNC machine cycle time step by step. We’ll include formulas for common machining processes and a practical example to illustrate.
Step 1: Gather Key Parameters
First, collect all the data you’ll need for your specific part and process:
Part dimensions (length, diameter, depth of features, number of passes required)
Tool specifications (number of teeth for milling cutters, tool diameter, feed per tooth/revolution)
Machining parameters (spindle speed in RPM, feed rate in mm/min or inches/min)
Number of machining operations required (e.g., face milling, drilling, turning)
Step 2: Calculate Cutting Time for Each Operation
Cutting time varies by process, so use the appropriate formula for each machining step:
Milling Cutting Time Formula
For flat milling, pocketing, or profile milling:
[ T_{cut} = \frac{L \times N_p}{f_z \times Z \times n} ]
Where:
( T_{cut} ): Cutting time (minutes)
( L ): Total length of cut per pass (mm/inches)
( N_p ): Number of passes (roughing + finishing)
( f_z ): Feed rate per tooth (mm/tooth or inches/tooth)
( Z ): Number of teeth on the milling cutter
( n ): Spindle speed (RPM)
Turning Cutting Time Formula
For external or internal turning operations:
[ T_{cut} = \frac{\pi \times D \times L \times N_p}{1000 \times f \times n} ]
Where:
( D ): Diameter of the workpiece (mm)
( L ): Length of the cut (mm)
( f ): Feed rate per revolution (mm/rev)
(Note: Divide by 1000 to convert mm to meters for consistent units)
Drilling Cutting Time Formula
For through-hole or blind-hole drilling:
[ T_{cut} = \frac{h \times N_p}{f_r \times n} ]
Where:
( h ): Depth of the hole (mm/inches)
( f_r ): Feed rate per revolution (mm/rev or inches/rev)
Example Calculation:
Suppose you’re milling an aluminum plate with a 4-tooth end mill:
Length of cut: 100 mm
Number of passes: 2 (1 roughing, 1 finishing)
Feed per tooth: 0.2 mm/tooth
Spindle speed: 3000 RPM
[ T_{cut} = \frac{100 \times 2}{0.2 \times 4 \times 3000} = \frac{200}{2400} = 0.083 \text{ minutes (5 seconds)} ]
Step 3: Estimate Non-Cutting and Auxiliary Time
These times are often based on historical data, machine manufacturer specifications, or industry averages:
Tool change time: 10-30 seconds per tool (automatic tool changers are faster than manual)
Rapid move time: Calculate based on machine’s rapid traverse rate (e.g., 20 m/min) and distance between features
Part loading/unloading: 1-5 minutes per part (varies by part size and fixture complexity)
For example, if your part requires 2 tool changes (25 seconds each), 3 rapid moves totaling 10 seconds, and 2 minutes of loading/unloading, non-cutting + auxiliary time would be 2×25 +10 + 120 = 180 seconds (3 minutes).
Step 4: Sum All Components for Total Cycle Time
Combine all the calculated times to get the total cycle time:
[ \text{Total Cycle Time} = T_{cut} + \text{Non-Cutting Time} + \text{Auxiliary Time} + \left( \frac{\text{Setup Time}}{\text{Batch Size}} \right) ]
Using our example:
Cutting time: 5 seconds (0.083 min)
Non-cutting + auxiliary time: 3 minutes
Setup time: 15 minutes (for a batch of 10 parts)
Per-part cycle time = 0.083 +3 + (15/10) = 0.083 +3 +1.5 = 4.583 minutes (≈4 minutes 35 seconds)
Factors That Impact CNC Cycle Time Accuracy
Even with precise formulas, cycle time estimates can vary due to real-world variables. Here are the most common factors to consider:
Material Machinability
Harder materials like titanium, mold steel, or stainless steel require slower feed rates and spindle speeds to prevent tool wear and maintain precision. Softer materials like aluminum or plastic allow faster machining, reducing cutting time. For example, machining a titanium aerospace part may take 3x longer than an aluminum part of the same size.
Part Complexity
Parts with intricate geometries (e.g., 5-axis machined humanoid robot components, automotive engine valves) require more tool changes, rapid moves, and careful toolpath planning. Tight tolerances (like ±0.001mm) may also require slower cutting speeds to ensure accuracy, increasing cycle time.
Machine Capabilities
Modern 5-axis CNC machining [opens in new window] centers can perform multiple operations in a single setup, reducing non-cutting time from part indexing and tool changes. Older 3-axis machines may require repositioning the part multiple times, adding to the total cycle time. Machines with faster spindle speeds, automatic tool changers, and high-speed traverse rates will also reduce cycle time.
Tooling Quality
Coated cutting tools (e.g., TiN, TiCN) have longer tool life and can run at higher speeds than uncoated tools, reducing the number of tool changes. Using the right tool for the job (e.g., a high-feed end mill for roughing) can also cut down on cutting time.
Process Standardization
ISO-certified facilities with standardized operating procedures have more consistent cycle times, as every operator follows the same steps. For example, providers like GreatLight Metal adhere to ISO 9001:2015, IATF 16949, and ISO 13485 standards, ensuring that cycle time estimates are based on repeatable, reliable processes.
Tools to Simplify Cycle Time Calculation
You don’t have to calculate cycle time manually for every part. Several tools can streamline the process:
CAM Software
Professional CAM tools like Mastercam, SolidWorks CAM, or Siemens NX generate optimized toolpaths and automatically calculate cutting time based on your part design and machining parameters. These tools also account for non-cutting time like tool changes and rapid moves, providing a comprehensive cycle time estimate.
CNC Machine Control Systems
Modern CNC controls (e.g., Fanuc, Siemens) track real-time machining data, allowing you to measure actual cycle times for completed parts. This data can be used to refine future estimates.
Spreadsheet Templates
For simple parts, a customized Excel or Google Sheets template can help you input parameters and calculate cutting time using pre-built formulas. This is a cost-effective option for small shops or prototyping projects.
MES/ERP Systems
For large-scale production, Manufacturing Execution Systems (MES) or Enterprise Resource Planning (ERP) systems integrate cycle time data with inventory, scheduling, and quality control to optimize overall production efficiency.
Why Accurate Cycle Time Calculation Matters for Precision Machining Projects
Whether you’re developing a single prototype or running a large production batch, accurate cycle time calculation offers several key benefits:
Cost Optimization: Overestimating cycle time can lead to inflated quotes that lose you competitive bids, while underestimating can result in unexpected costs and reduced profit margins. For precision parts where material and tooling costs are already high, getting cycle time right is critical.
Delivery Reliability: Clients in industries like medical devices or aerospace often have strict deadlines. Accurate cycle time estimates ensure you can meet these deadlines without rushing production, which could compromise part quality.
Resource Allocation: Knowing exact cycle times helps you schedule machine usage efficiently, avoiding bottlenecks and maximizing the utilization of your CNC equipment. This is especially important for high-value machines like 5-axis CNC centers.
Quality Assurance: Rushing to meet an unrealistic cycle time target can lead to cutting corners, such as using faster feed rates that compromise tolerance accuracy. Accurate estimates allow you to machine parts at the optimal speed for both efficiency and quality.
For custom precision parts, partnering with a provider that has deep expertise in cycle time optimization can make all the difference. GreatLight Metal, for example, leverages over 12 years of experience in machining complex parts for automotive, medical, aerospace, and humanoid robot industries. Their team uses advanced CAM software combined with historical data from thousands of projects to provide accurate cycle time estimates that balance speed, cost, and precision.
How GreatLight Metal Enhances Cycle Time Efficiency for Custom Precision Parts
GreatLight Metal is a leading precision machining provider with three wholly-owned manufacturing plants, 127+ pieces of advanced equipment (including large high-precision 5-axis CNC machining centers), and a team of 150+ skilled professionals. Here’s how they ensure optimal cycle time for your projects:
Advanced Equipment for Minimal Non-Cutting Time
Their fleet of 5-axis CNC machines allows for simultaneous machining of complex features in a single setup, eliminating the need for repositioning and reducing non-cutting time by up to 30% compared to 3-axis machines. Fast automatic tool changers (as quick as 2 seconds per change) also cut down on tool change time.
Expert Toolpath Optimization
GreatLight’s engineering team uses state-of-the-art CAM software to optimize toolpaths for every part. They prioritize high-efficiency machining strategies like high-feed milling and trochoidal milling to reduce cutting time while maintaining tight tolerances (up to ±0.001mm).
Material-Specific Machining Expertise
With experience machining over 50+ materials—from aluminum and stainless steel to titanium and mold steel—their team knows exactly which parameters to use for each material to balance speed and quality. For example, they use specialized tooling for titanium aerospace parts to reduce cutting time without sacrificing precision.
Standardized, ISO-Certified Processes
Adherence to ISO 9001:2015, IATF 16949 (automotive), and ISO 13485 (medical) standards ensures that every project follows consistent procedures, minimizing variability in cycle time. Their in-house inspection team also performs real-time measurements to avoid costly reworks, which can add unplanned time to projects.
One-Stop Post-Processing Services
GreatLight offers a full range of post-processing services (anodizing, painting, sandblasting, etc.) under one roof, eliminating the need to ship parts between vendors. This reduces lead time and minimizes the risk of delays or damage during transit.
Transparent, Data-Driven Estimates
When you request a quote, GreatLight provides a detailed breakdown of cycle time components, so you know exactly where your time and money are going. They also offer after-sales guarantees, including free rework for quality problems and a full refund if rework is unsatisfactory.
Conclusion
Accurately calculating CNC machine cycle time is a critical skill for anyone involved in precision parts machining, but it’s not just about crunching numbers—it’s about understanding real-world variables, leveraging the right tools, and partnering with experts who can optimize every step of the process. Whether you’re working on a prototype or a large production batch, getting cycle time right ensures that you stay within budget, meet deadlines, and deliver high-quality parts that meet your exact specifications. How To Calculate CNC Machine Cycle Time?
