Light Switch Faceplate Stainless Steel

• 1
  Why stainless behaves differently from plastic
• 2
  Grade choice: 304, 316, 430 and when each is wrong
• 3
  Gauge, cutout geometry and the limits of thin sheet
• 4
  How 5-axis CNC machining holds flatness and edge quality
• 5
  Surface finish, grain direction and what shows on a wall
• 6
  What to put on the drawing before you order
• 7
  Stainless faceplate process comparison

A plastic faceplate is injection molded to near-net shape, so the only real variable is the mold. A stainless plate starts as flat sheet, and every operation after that works against flatness. Cutting heats the sheet, clamping bends it, and polishing pulls material off one face. The plate may still measure correct at the edges while the middle has bowed 0.3 mm out of plane.

That bow is the whole problem. A bowed plate will not sit flush on drywall. It rocks on the screw bosses, gaps open along one edge, and the switch paddle starts to rub. Buyers notice this before they notice the finish. On a 1.5 mm plate, a 0.3 mm bow is 20 percent of the section thickness, which is why sheet-metal houses that run the same process for brackets and enclosures often fail on faceplates.

Stainless also work-hardens. Grades 304 and 316 harden under the cut, so a second pass with a dull tool pushes the material instead of shearing it. The edge tears, burrs grow, and the operator compensates with more force. That force is what warps the part. The fix is not more power. It is a sharp tool, a light depth of cut, and a fixture that supports the sheet across its whole face.

There is one more difference that matters for fit. Stainless has a higher coefficient of thermal expansion than the plastic box it mounts to, and it conducts heat away from the switch faster. In a commercial corridor with a 30 °C swing between day and night, the plate moves more than the wall. Screw slots need a little clearance, not a press fit, or the plate will dimple around the fasteners over a few seasons.

• 1
  Flatness is the real specNot length and width. Measure the gap under a straight edge.
• 2
  Work hardening drives burrsDull tools push the sheet instead of cutting it.
• 3
  Support the whole facePoint clamping bends thin sheet, even at low force.

Most faceplates ship in 304. It has enough chromium to resist indoor humidity, it takes a brushed finish cleanly, and it is widely available in sheet form. For a hotel room, an office, or a residential kitchen, 304 is the sensible default. It is also the grade most finishers have dialed in, which reduces the risk of a patchy brush pattern.

Grade 316 adds molybdenum. That addition raises resistance to pitting in chloride environments. If the plate sits in a pool building, a coastal hotel, a marina restroom, or anywhere the air carries salt, 316 is the right call. The cost difference is real, but tea staining on 304 in those conditions shows up within a year and cannot be polished out without changing the grain.

Grade 430 is ferritic and magnetic. It costs less, machines freely, and holds a decent polish. It is a reasonable choice for indoor plates where the buyer is cost-driven and the environment is dry. It is the wrong choice near salt or standing moisture. It is also the wrong choice if the plate will be handled constantly, because it scratches more readily than the austenitic grades.

Two practical notes. First, do not mix grades across a single building unless you accept a visible color shift; 430 reads slightly warmer than 304 under the same lighting. Second, if the plate will be welded to a backing frame, use a low-carbon variant such as 316L or 304L to avoid sensitization at the weld. That detail matters more on outdoor canopies than on interior walls.

• 1
  304Indoor default. Good finish response, widely available.
• 2
  316Salt or chloride exposure. Pool decks, coast, marine.
• 3
  430Dry indoor, cost-driven. Magnetic, softer surface.
• 4
  304L / 316LUse when the plate is welded to a frame.

Faceplates usually run 1.0 mm to 3.0 mm. The upper end feels substantial in the hand and resists a screw over-torque, but it also needs a deeper bevel or a folded edge to sit cleanly against a wall. The lower end saves weight and cost but leaves almost no material for a countersink. A 1.0 mm plate with a countersunk screw hole has perhaps 0.5 mm of bearing surface left. That is not enough.

Cutout geometry drives the process more than the outer profile. A standard single-gang opening is roughly 70 mm by 115 mm in the US, while European and UK plates follow different frame standards. If the opening is a simple rectangle, a punch press or laser can cut it. If the opening has an internal radius smaller than the sheet thickness, or a keyhole slot that must break out to the edge, laser cutting leaves a heat-affected edge that shows after brushing.

Corner radii are the quiet failure point. A sharp internal corner concentrates stress, and on thin stainless that corner will crack during forming or during the first hard knock in service. A minimum internal radius of 0.5 mm to 1.0 mm is normal practice. If the design calls for a true sharp corner, the plate is usually better made in two pieces or with a machined insert, not a stamped blank.

Screw holes deserve their own callout. Slotted holes let the plate float and accommodate wall irregularity. Round holes lock the plate down and transfer every wall bump into the sheet. On a renovation where the existing boxes are out of plumb by 5 mm or more, slotted holes are the difference between a clean install and a return visit. Ask for slots unless the wall is known flat.

• 1
  Countersink needs thicknessBelow 1.5 mm, use a flat head washer or a raised boss.
• 2
  Small internal radii crackKeep internal radius at 0.5–1.0 mm minimum.
• 3
  Slot the screw holesOut-of-plumb boxes are the norm in renovation work.

There are three common ways to make a stainless faceplate: stamping, laser plus forming, and CNC milling from sheet or plate. Stamping wins on volume above roughly 10,000 pieces, but tooling cost is high and design changes are expensive. Laser is flexible and cheap at low volume, but the cut edge is slightly tapered and carries a heat-affected zone that can read differently once brushed.

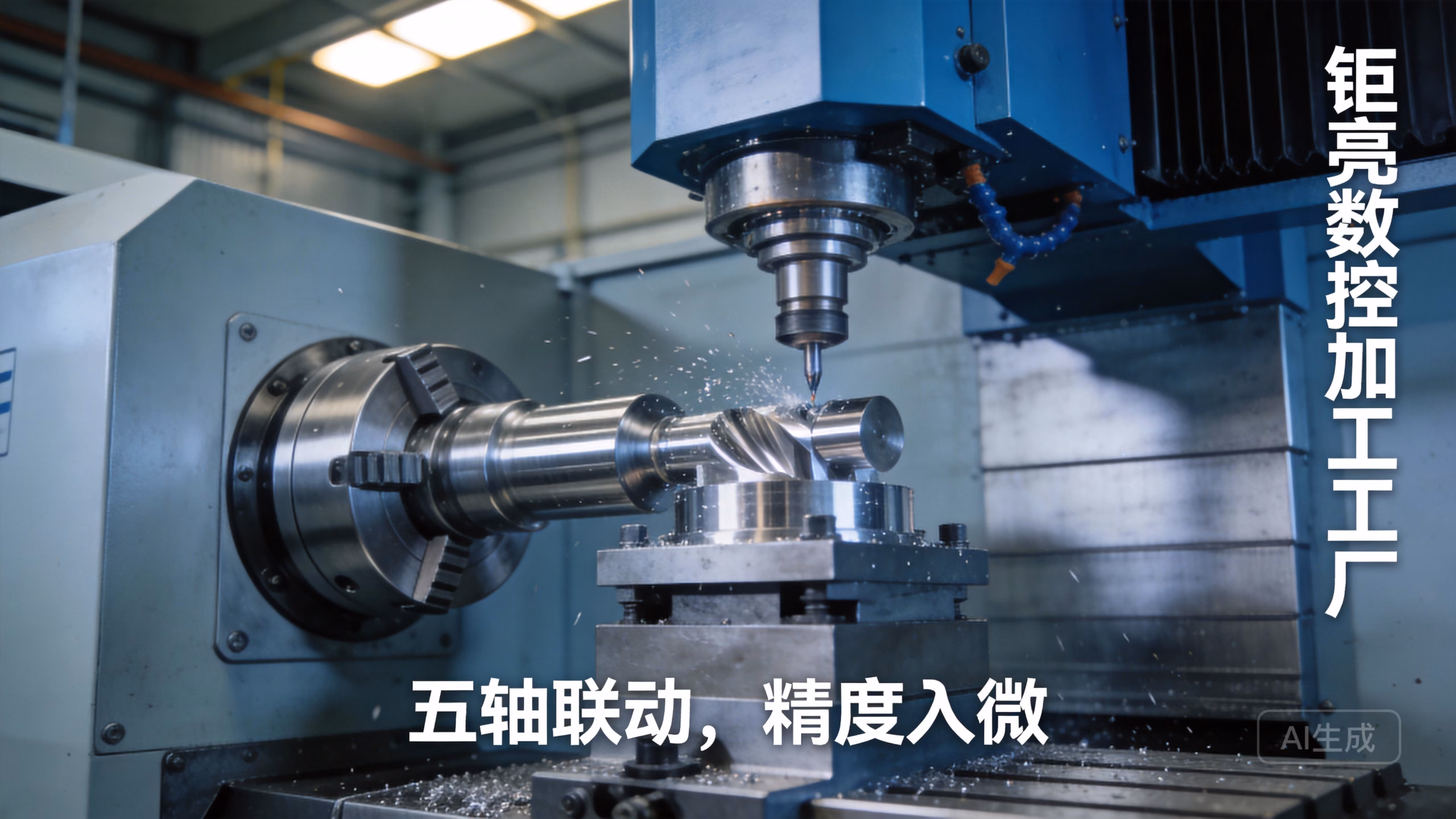

CNC milling is the process that gives you a clean, controlled edge and a flat part. On a 5-axis machining center, the tool can approach the bevel at an angle instead of stepping it, so the chamfer around the cutout is continuous rather than faceted. That matters on a brushed plate because a faceted chamfer reflects light in segments, which the eye reads as a wobble even when the dimension is correct.

For thin sheet, the fixture is as important as the machine. Vacuum chucks or a soft-jaw carrier plate that supports the full underside keeps the sheet from lifting between clamps. A light depth of cut, high spindle speed, and a climb cut on the finishing pass reduce the cutting force that would otherwise bow the part. We run stainless faceplates in this way on our 5-axis centers, and we check flatness on a surface plate before the part goes to finishing.

A note on tolerances. A ±0.005 mm tolerance makes sense on a mating bore or a shaft, not on a wall plate. What actually matters here is flatness, cutout position relative to the mounting holes, and edge burr height. Burrs should be broken to a smooth edge, typically under 0.05 mm, or they will catch a cloth during cleaning and cut fingers during installation. Specify flatness and burr height, and let the shop choose the rest.

• 1
  StampingBest above roughly 10,000 pieces. High tooling cost.
• 2
  LaserFlexible at low volume. Tapered edge, heat-affected zone.
• 3
  5-axis CNCContinuous chamfer, controlled flatness, no tooling cost.

Brushed is the most common finish for faceplates, and it is also the most revealing. The brush lines run in one direction, and under raking light any change in direction reads as a patch. On a plate with a rectangular cutout, the grain should run parallel to the long edge, and the chamfer around the opening should be finished in the same direction. If the chamfer is polished crosswise, the plate will look mismatched even though the color is identical.

Mirror polishing is possible and looks striking in a lobby, but it is unforgiving. Any scratch introduced after polishing is permanent, and a mirror plate shows fingerprints within a day of installation. It is usually specified for decorative panels behind glass or in a display context, not for a switch that people touch with wet hands. If the client wants shine without the maintenance, a fine bead blast or a satin brush at Ra 0.8–1.6 μm is the practical answer.

Coating options change the maintenance picture. A clear lacquer or a thin PVD layer slows fingerprint marking, but both add a film that can chip at an edge and create a visible line. Black oxide and powder coating hide scratches well and are common on commercial plates where the design intent is dark. Laser marking is reliable for room numbers or labels, with a minimum character height of 1.5 mm so the mark stays legible after finishing.

One more point on appearance. Stainless color varies by heat lot, especially in 430 and in some 304 deliveries. If a project spans several months, order the sheet for the whole job at once, or accept a slight tone difference between batches. It is not a defect. It is the material.

• 1
  Match grain to the long edgeIncluding the chamfer around the cutout.
• 2
  Mirror needs maintenanceFine bead blast or satin brush is more practical.
• 3
  Buy sheet in one lotColor shifts between heat lots are normal.

A faceplate drawing that only shows the outline and the cutout will get you a part, but probably not the part you wanted. Add flatness as a note, typically 0.2 mm over the full plate for a 1.5 mm sheet, and tighter if the plate is thick enough to hold it. Add burr height. Add the grain direction as a symbol on the face. Add the screw hole type. These four notes prevent most of the rework we see on this part family.

State the mounting standard explicitly. US single-gang, UK 86 mm square, and European 55 mm modular frames are not interchangeable, and a plate drawn from a photo will be wrong. Send the switch or the box, or send a measured drawing. If the plate must work with an existing box that is out of square, tell us the deviation. We can bias the cutout or open the slots to absorb it.

For finish, name the process, not just a look. Brushed, bead blasted, mirror polished, powder coated, and PVD are all different lines on a quote. A photo reference helps, but a written finish spec plus a sample of the target surface removes the argument later. If the plate is part of a larger assembly, send the mating parts too so the grain and sheen match.

Finally, decide what happens at the edges. A chamfer, a small radius, or a folded flange each changes the tool path and the fixture. A folded flange stiffens a thin plate a great deal and lets you use 1.0 mm sheet where 2.0 mm would otherwise be needed. That is a real cost saving, but it has to be designed in from the start, not added after the first samples.

• 1
  Flatness note0.2 mm over the full plate as a starting point.
• 2
  Mounting standardUS single-gang, UK 86 mm, EU 55 mm modular.
• 3
  Finish by process nameNot by a photo alone. Send a surface sample.
• 4
  Edge treatmentChamfer, radius or flange. Each changes the tool path.
