CNC Knowledge: How to add a torque to the Tour Pin?

Description of defects:
A Tour of CNC Baoji CK520B is not able to cover due to insufficient torque of the engine of the spindle.

Selection of the solution:
1 Replace the spindle engine pulley with a smaller diameter. Because the pulley of the pin engine is already very small, it is impossible to customize the smaller pulleys.
2 Replace the spindle engine.
Solution A: Replace the spindle engine with a higher power torque. Fanuc Ai Spindle Driver, and you must replace all Fanuc drivers.
Solution B: Replace the Fanac BIP BIP BIP BIP BIP BIP30 / 6000 High Torque Enclosure

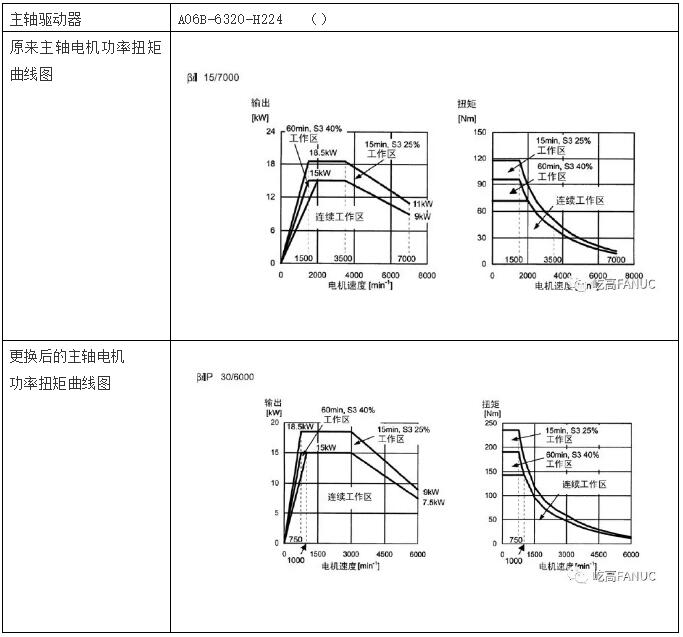

3 Comparison of the installation dimensions of the pin engine
On the official “Yigao CNC” account – Information query – engine data, it was found that the size of the engine flange was the same and that the diameter of the spit engine shaft had gone from 48 MM at 55 mm. Reorganize the bridle.
4 The tool-tool is activated and saves the original data of the machine tools.
5 Next, install the replaced spindle engine, perform the above steps, then take photos of the 4000 – 4030 parameters. Then modify the parameter n ° 4133 (spit engine ID) and the new engine is βisp30 / 8000. Then restart the system, for about a minute.

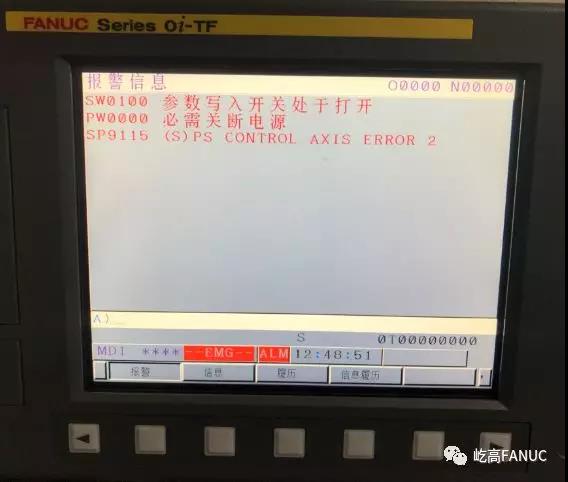

For the SP9115 alarm, modify the 11549 # 0 = 1 parameter, and after the return and return return, the alarm will be eliminated.
6 The low -speed M03 S100 S100 test executes the pin, then operates at high speed, listens to the spit and observes the spit. If there is no problem, the test wire runs. If everything is normal, the pin engine will be improved.
