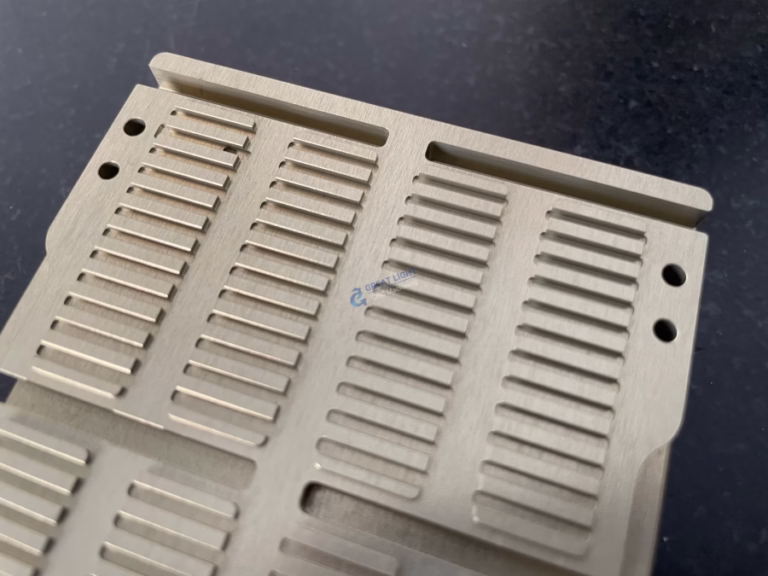

A hospital bed bracket looks simple in a 2D drawing. In the frame assembly it does three jobs at once: it carries the backrest or side-rail load, it locates the actuator so the mechanism strokes smoothly, and it presents a clean surface near patients. Those jobs pull the design in different directions. Weight reduction pushes toward thin walls and pockets. Load capacity pushes toward thicker sections and generous fillets. Cleanability pushes toward radiused corners and no trapped chips.

The tolerance stack is where most failures start. A bracket with four tapped holes on two faces can be perfectly machined on each face and still not bolt to the mating weldment. The error was never in the hole size. It was in the position of the second face relative to the first datum. When a shop flips the part between setups, that relationship depends on fixture repeatability, not on the machine.

This is the practical argument for 5-axis work on anything with angled faces. One setup keeps every feature in a single coordinate frame. There is no re-datum between operations, so the stack stops growing. It also shortens the process. Fewer setups means fewer fixtures, less handling, and less chance that a chip under a locator moves the part.

Not every bracket needs that. A flat plate with holes on one face is fine on a 3-axis machine, and paying for 5-axis time on it is wasted money. The judgment call is whether the part has features that must be true to each other across more than one orientation. If yes, 5-axis. If no, keep the process simple.

• 1
  Single-setup wins on positionAngled holes and pockets stay in one coordinate frame.
• 2
  Setup count is a cost driverEach extra setup adds a fixture, a handling step and an inspection point.
• 3
  Thin walls need supportBelow about 2 mm wall, plan for reduced depth of cut and extra support.

6061-T6 is the default for bed brackets. It machines fast, holds tight tolerance, and takes hardcoat anodizing well. For a side-rail bracket on a manual bed, it is usually the whole answer. Yield strength is adequate for the loads involved, and the weight saving over stainless helps on beds that are adjusted by hand.

Where the bracket sees repeated load cycles or heavy cleaning chemicals, 304 or 316L stainless earns its place. 316L is the better choice near disinfectant spray and wash-down areas because of its molybdenum content. It is also the grade most medical device quality systems expect to see documented. The trade-off is real: stainless cuts slower, wears tooling faster, and costs more per part.

17-4PH (SUS630) sits between the two. It machines closer to stainless than to aluminum but can be heat treated to high strength while keeping corrosion resistance. Use it for a bracket that is both highly loaded and exposed. Do not reach for it by default; the heat treat step adds lead time and another process to control.

For non-structural covers, cable clips and trim brackets, glass-filled plastics or POM may be enough. Keep the structural path metal. A bracket that fails quietly in a patient room is not a place to save a few grams.

• 1
  6061-T6Default for frame and rail brackets. Hardcoat anodizing for wear.
• 2
  316LWash-down zones and aggressive disinfectants. Documented in most medical systems.
• 3
  17-4PHHigh load plus corrosion. Adds a heat treat step to the schedule.
• 4
  POM or PCNon-structural covers and clips only.

Start with the quality system, not the price. A supplier holding ISO 13485:2016 has procedures for material traceability, process validation and nonconforming product. That does not guarantee a good bracket, but it means the paperwork trail exists when an auditor asks. ISO 9001:2015 alone is a general manufacturing certificate, not a medical one.

Next, ask which machine the parts will actually run on. A shop with 16 simultaneous 5-axis centers and 127 machines in total can schedule your bracket on the right platform instead of forcing it onto whatever is free. For angled actuator mounts, that difference shows up in the first article report.

Inspection is the third check. Ask for the inspection plan, not just a certificate of conformance. For a bracket, the plan should cover hole position relative to datum, pocket depth, and the surface finish on any patient-contact edge. Ra 0.8–1.6 μm is a common callout for those edges; it removes burrs and makes cleaning easier.

Finally, check how the supplier handles design changes. Brackets in a new bed program change often in the first months. A shop that gives DFM feedback within 12 hours and can start production within 24 hours keeps the program moving. One that quotes a part and disappears for a week does not.

• 1
  Medical certificateISO 13485:2016 for device work, not just ISO 9001.
• 2
  Data protectionISO 27001:2022 and an NDA for drawings and patient-adjacent designs.
• 3
  Inspection planPosition, depth and edge finish defined before first cut.

The first trap is a prototype made on a different machine than the production run. The prototype fits, everyone signs off, and the first batch does not because the shop moved the job to a 3-axis cell to hit a schedule. Ask which machine the prototype ran on and require the same one for production.

The second trap is an incomplete drawing. A bracket with a hole position tolerance but no datum reference cannot be inspected to a defensible number. The shop guesses, the CMM operator guesses differently, and the first article report becomes an argument instead of a document.

The third trap is ignoring edge finish. Sharp edges on a bracket catch linens and skin, and they hold cleaning residue. A Ra 0.8–1.6 μm callout with a deburr note costs little and prevents a field complaint. Specify it on the drawing rather than asking for it in an email.

The fourth trap is treating the bracket as a commodity. A supplier quoting a very low unit price is often skipping the CMM time or the material certificate. In a regulated program, that saving shows up later as a traceability gap that has to be closed with new paperwork or new parts.

The fifth trap is a loose confidentiality arrangement. Bracket geometry reveals how a bed frame goes together. Before drawings leave your system, have an NDA in place and confirm how the supplier stores and transmits files.

• 1
  Prototype machine mismatchApproved part and production part must come off the same platform.
• 2
  Missing datum calloutNo datum, no defensible inspection report.
• 3
  Unspecified edge finishBurrs drive field complaints and cleaning problems.

Machine count is a proxy for scheduling flexibility, not a quality claim. Look for simultaneous 5-axis capacity that matches your part size. Bracket work typically fits within a 750 × 1,150 × 550 mm envelope, which covers almost every bed frame bracket. Larger travel is available for welded frame sections up to 4,000 mm.

Tolerance capability should be stated as a number you can test. A shop claiming ±0.005 mm on a bracket with a 300 mm bolt pattern should also tell you how it inspects that span. The answer is usually a CMM with a temperature-controlled room, or a laser tracker for very long parts. If the answer is calipers, the claim does not hold.

Finishing should be in-house or tightly controlled. Anodizing thickness affects hole fit. If a shop sends parts out for coating and does not check the coating build on a threaded hole, the assembly torque spec changes. Ask who does the finish and how the coating thickness is verified.

Certifications matter when they match your program. ISO 13485:2016 for medical device work, IATF 16949:2016 if the same supplier builds automotive parts, and ISO 27001:2022 for information security. A supplier that holds all three has already built the procedures you will be audited against.

• 1
  Right-sized 5-axis capacity16 simultaneous 5-axis centers, 127 machines total.
• 2
  Inspection you can auditCMM reports on request, 100% inspection before shipment.
• 3
  Controlled finishingCoating build checked on threaded and locating features.
