Electric Vehicle Battery Clamp Die Casting

• 1
  Why electric vehicle battery clamp die casting fits pack production
• 2
  Alloy selection for a cast EV battery clamp
• 3
  Wall thickness, draft and ejection in battery clamp die casting
• 4
  Gate, runner and defect control
• 5
  From as-cast clamp to machined interface
• 6
  Choosing between casting, billet machining and weldment

A battery clamp holds modules down, ties them to the pack floor, and keeps the module stack from moving under vibration. It is usually a thin, long part with ribs and a few machined interfaces. That shape is a natural fit for high-pressure die casting. One tool can produce tens of thousands of identical parts a year, and the cycle time stays short once the die is running.

The alternative is a weldment or a machined billet. A weldment needs fixtures, weld inspection, and straightening after heat. A billet clamp wastes 60 to 80 percent of the material as chips, and the cycle time per part is minutes, not seconds. Die casting wins on unit cost once volumes pass a few thousand pieces a year, and it holds rib geometry that would be expensive to machine from solid.

Casting also puts the thermal path where you need it. A clamp that sits between a module and a cooling plate can act as a spreader if the alloy conducts heat well. That is a geometry and alloy decision, not a coating decision. Casting lets you thicken a boss under a bolt and thin out a web between fasteners in the same shot.

The limits matter too. Die casting is not the right process for a clamp that must be welded into the pack structure, or for a part with a hollow sealed channel. Porosity is always present to some level, so any clamp that must hold pressure should be designed differently from the start.

Most EV clamps are cast in aluminum. ADC12 and A380 cast easily, fill thin walls, and take a machined thread without inserts. They are the default when the clamp is a bracket with bolt holes and locating tabs. A380 is slightly stronger than ADC12 after aging, and both are widely available in Asia and Europe.

When the clamp also spreads heat, look at A360 or a higher-silicon alloy. Thermal conductivity in the 90 to 120 W/m·K range helps move heat away from the module base. The trade is castability and tool life. Higher silicon content wears a die faster, so the tool may need more frequent maintenance.

Magnesium is the lightest option and is used on premium packs where mass is counted in grams. AZ91D and AZ31B cast well but need surface protection. Any magnesium part that sits next to an aluminum cooling plate creates a galvanic pair, and moisture turns that pair into corrosion. Isolation washers, coatings, or a change of material at the joint are not optional.

Steel and zinc are rarely used for this part. Zinc is heavy and creeps under sustained load at pack temperatures. Steel die casting is limited to small, high-wear components. For a structural clamp, aluminum or magnesium covers nearly every case.

• 1
  ADC12 / A380General brackets, good castability, low cost
• 2
  A360Better corrosion resistance near road salt
• 3
  High-silicon AlThermal spreaders, more die wear
• 4
  AZ91DLightest option, needs coating and isolation

Wall thickness drives everything downstream. For aluminum, keep nominal walls at 2.0 to 3.5 mm. Below 1.5 mm the metal freezes before the cavity fills, and you get cold shuts. Above 4.5 mm the center of the wall cools last, and shrinkage porosity forms where you cannot see it. Thick sections should be cored out or replaced with a rib pattern.

Ribs let you keep stiffness without mass. A rib at 0.6 to 0.8 times the nominal wall thickness feeds from the main wall and cools at roughly the same rate. Ribs that meet at a sharp corner create a hot spot. Add a radius at the base and keep rib spacing at least twice the rib thickness.

Draft is what lets the part leave the die. Aluminum clamps usually need 1 to 2 degrees on outside walls and 1.5 to 3 degrees on inside walls. Deep pockets need more. Textured surfaces need an extra degree. If draft is short, the ejector pins push the part and the wall tears or drags.

Ejection marks on a clamp are not always cosmetic. If an ejector pin lands on a sealing face or a datum pad, that pad will need machining anyway. Put ejector pins on non-critical surfaces and size them so they do not dent a thin web. Bump-off or a secondary ejector plate helps on long, flat clamps.

The gate sets the fill pattern, and the fill pattern sets the defect map. For a long clamp, a single gate at one end pushes metal across the whole part and leaves a cold front at the far end. Two or more gates balance the fill and shorten flow length. Gate thickness is typically 0.6 to 1.2 times the wall thickness, and the runner should taper so pressure stays high at the gate.

Air is the main enemy. Trapped air becomes gas porosity, and gas porosity becomes a blister after the part sees paint oven or e-coat temperatures. Vacuum assist on the die pulls gas out of the cavity during fill and is common on structural EV parts. Overflow wells at the last-to-fill points give gas and cold metal somewhere to go.

Shrinkage porosity is different. It appears in thick sections and at hot junctions where two walls meet. It cannot be fixed by vacuum. The fix is geometry: reduce the wall, add a core, or move the gate so the hot spot solidifies under pressure from the intensification stroke.

Cold shuts and flow marks show up as lines on the surface. They come from low melt temperature or slow fill. Raising the shot speed or the barrel temperature usually clears them. Blisters, on the other hand, point to gas or to a die that is too hot in one area. Read the defect, then change one variable at a time.

• 1
  Gas porosityTrapped air; use vacuum and overflows
• 2
  Shrinkage porosityThick walls and hot spots; fix geometry
• 3
  Cold shutsLow melt temp or slow fill; raise speed
• 4
  BlistersGas plus heat; check die cooling

As-cast surfaces run around Ra 1.6 to 3.2 μm on good aluminum. That is fine for a rib face or a non-contact surface. It is not fine for a sealing face or a ground point. Those interfaces get machined, and the machining is where the tight tolerances live.

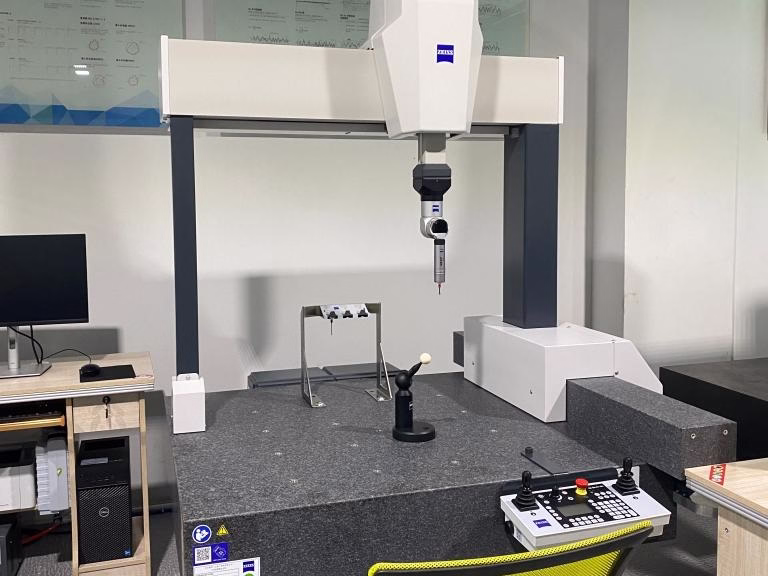

Critical datums, bolt-hole patterns, and locating bores are cut after casting. With a 5-axis setup, a shop can machine several faces in one fixturing, which keeps hole-to-hole position tight. Tolerances down to ±0.005 mm are achievable on a machined feature, and surface finish can reach Ra 0.2 to 0.8 μm where a sealing surface needs it.

Plan the machining before the die is cut. Add 0.3 to 0.8 mm of stock on faces that will be cut, and leave a flat pad for the fixture to grab. If the casting has no flat fixturing pad, the shop has to build soft jaws and the cost goes up. Boss heights and hole positions should be cast close to final so the cutter only takes a light pass.

Casting draft also affects the machined result. A wall that is drafted 2 degrees has a slight taper, so a machined face may not clean up across the full width. Check the stock allowance at the tight end of the draft, not the nominal. Threads are usually formed by a tap or a thread mill after casting, not cast in.
