Disadvantages of adding supports to 3D printed models

• 1
  Key takeaways
• 2
  Why supports exist and what they actually cost
• 3
  Print time, material and the hidden labor bill
• 4
  What supports do to the surface and to tolerances
• 5
  Orientation and part splitting beat more support
• 6
  When the right answer is a different process
• 7
  When supports to 3D printed models are worth it, and when they are not

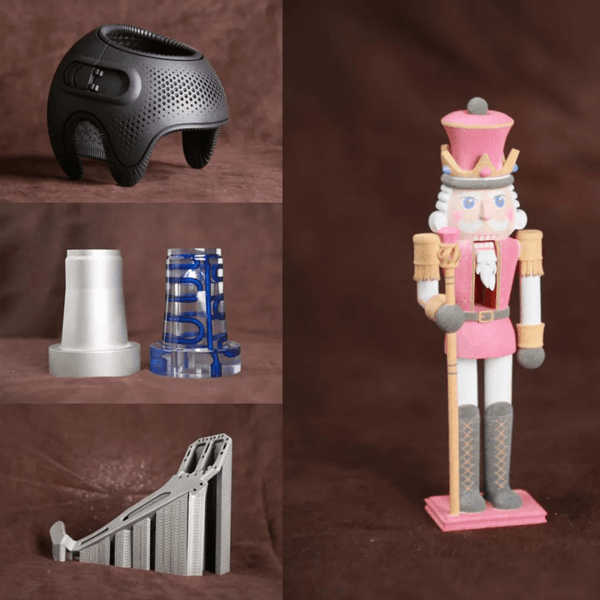

A printer lays down a bead or cures a layer onto what is already there. Nothing can be deposited into empty air, so any face steeper than the process limit needs a scaffold underneath. That is the whole reason supports to 3D printed models exist. Resin printers need them even earlier because the peel step pulls on the part, so a low overhang may still need a tether to survive the lift.

The cost is easy to underestimate. Support material is extruded or cured like the part itself, so print time scales with total volume, not with part volume. On a typical FDM job with heavy supports, 15 to 30 percent of the machine hour goes into structures you throw away. On metal powder bed systems the same volume is far more expensive because support is often solid and built with the part.

There is also a design cost. A part designed freely for molding or machining may need a redesign once you slice it for printing. Walls get thicker to survive support removal, holes get teardrop shaped, and flat mating faces get chamfers so the support can be broken off cleanly. Each change moves the printed part further from the production intent.

• 1
  Overhang limitFDM typically holds 45° from vertical before surface quality drops
• 2
  Resin peelSLA and DLP often need anchors on features well above 45°
• 3
  Powder bedMetal and polymer SLM needs support for heat transfer as well as geometry
• 4
  Contact areaSmaller tips break off easily but leave deeper witness marks

Machine time is the first line item. A part that prints in 9 hours with no support can run 13 to 16 hours once supports are added, and the extra hours are billed at the same rate. On a printer farm this pushes other jobs back, which matters when a prototype loop is already tight.

Material is the second line item. FDM support is usually the same polymer as the part, so you pay for it twice: once to buy it and once to discard it. Dissolvable support such as PVA or HIPS costs more per kilogram and needs a second extruder or a dedicated wash station. Resin support is cured together with the part, so it cannot be recovered at all.

The third line item is the one most quotes miss: manual removal. Clipping, flushing, washing, curing and sanding can take 20 to 60 minutes per build. On a thin-walled part, that is where breakage happens. A support that snaps clean on a 3 mm wall will tear a 1.2 mm wall. If a batch of ten parts loses two to removal damage, the real yield is 80 percent, not 100 percent.

• 1
  Extra machine hoursExpect 30 to 70 percent more print time on support-heavy geometry
• 2
  Dissolvable mediaPVA and HIPS cost more and need a wash or second nozzle
• 3
  Manual removal20 to 60 minutes per build is normal for fine features
• 4
  Scrap riskThin walls and small pins are the first casualties

Every support tip touches the part at a point. When it is broken off it leaves a raised nub or a crater, depending on how the material failed. On an upward-facing cosmetic surface that mark is visible after painting because the crater traps light differently than the surrounding wall. Sanding removes the nub but also removes a few tenths of a millimeter of the surface, which is exactly the material you needed for the mating face.

Dimensional accuracy suffers in a second way. Support keeps the part from sagging, but it also constrains shrinkage. When the scaffold is removed, residual stress relaxes and the part can spring. A long flat plate supported across its underside may bow 0.3 to 0.8 mm after the supports come off, well outside the ±0.005 mm that a machined part would hold. For a bracket that is fine. For a fixture locating a sensor, it is not.

Internal channels are the worst case. Supports printed inside a cooling passage or a hydraulic bore are hard to reach and harder to verify. If a fragment stays behind, it can break loose later and block the channel. This is one reason fluid-handling prototypes often move to CNC machining or to a printed shell that is machined afterward.

• 1
  Witness marksVisible after paint on upward-facing surfaces
• 2
  Spring-backStress release can move a flat face 0.3 to 0.8 mm
• 3
  Internal channelsTrapped fragments are a functional risk, not a cosmetic one
• 4
  Sealing facesO-ring grooves need support-free, machined surfaces

The fastest way to reduce support is not a slicer setting. It is rotating the model. A bracket that prints with a 60 mm cantilever hanging in the air will need a dense block under it. Lay the same bracket on its side and the cantilever becomes a vertical wall with no support at all. The trade-off is that a different face now sits on the build plate, so pick which face you can afford to have textured.

Splitting the part is the second lever. A hollow box with a large top opening can be printed as a base and a lid, then bonded or fastened. Two simple prints usually beat one support-heavy print on both time and finish, and the joint line is predictable. Print-in-place hinges and threads are a related trick: model the clearance so the parts are born assembled and never need support between them.

Chamfers and teardrops do the rest. Replacing a 90° overhang with a 45° chamfer removes the support need entirely. Vertical holes become teardrops or diamonds so the top closes without a bridge. These changes are free in CAD and cost nothing in the print. They do change the drawing, so loop the design owner in before you slice.

• 1
  Rotate firstChange the build plate face before you change support density
• 2
  Split secondTwo clean prints often beat one supported print
• 3
  Chamfer overhangs45° chamfers remove support need without extra material
• 4
  Teardrop holesVertical bores print self-supporting above the widest point

Supports are a symptom, not the disease. If a part needs a dense support block to hold a critical face, that face probably wants to be machined. A printed near-net shape with 0.5 mm of stock on the critical faces can be finished on a 3-axis mill to ±0.005 mm and Ra 0.8–1.6 μm. The print carries the complex geometry; the cutter carries the tolerance.

For functional prototypes and low-volume production, subtractive machining from the solid often wins outright. A 5-axis cut from 6061-T6 or 7075 gives you the final material, no layer direction, no support marks and no post-cure. GreatLight runs 16 simultaneous 5-axis centers and 127 high-precision CNC machines, with a 4,000 mm maximum processing size, so a single bracket or a 10,000-part run uses the same setup logic.

There is a middle path too. Print the shell, then machine only the sealing face, the bearing bore or the thread. This keeps the print cheap and puts the tolerance where it matters. Choose it when the part is mostly cosmetic or mostly geometric, and only one or two faces have to be true.

• 1
  Hybrid routePrint near-net, machine the critical faces only
• 2
  Full CNCBest when material properties and tolerance both matter
• 3
  No layer directionMachined parts are isotropic, printed parts are not
• 4
  Quote speedQuotation and free DFM analysis within 12 hours
