CNC Milling Turning Fabrication Process
This guide walks through the full CNC milling turning fabrication process, from raw stock to inspected part. It is written for design engineers and sourcing teams who need to judge a quote, a tolerance callout, or a supplier claim. Read it and you can tell which operations belong on a mill, which belong on a lathe, and where a project usually goes wrong.
In this article
- 1
- 2
- 3
- 4
- 5
- 6
- 7
Key takeaways
What the CNC milling turning fabrication process actually does
The CNC milling turning fabrication process removes material from a solid block or bar using computer-controlled cutting tools. Milling holds the workpiece on a moving table and spins the tool. Turning spins the workpiece and moves a stationary tool along it. Both are subtractive, both are driven by G-code from a CAM model, and both are judged by the same three things: dimensional accuracy, surface finish, and repeatability across the run.
Milling covers flat and prismatic geometry. A 3-axis mill handles pockets, slots, faces and stepped profiles. Add a fourth axis and you can cut around a cylinder without re-clamping. A simultaneous 5-axis center tilts the tool and the table together, so undercuts, deep cavities and compound angles come off in one pass. GreatLight runs 16 simultaneous 5-axis machining centers, 12 four-axis mills and 27 three-axis machines, with a Ø400 mm rotary table for round work.
Turning covers anything axisymmetric: shafts, pins, bushings, threaded studs, hydraulic fittings. The workpiece rotates, so concentricity is built into the setup rather than chased with dial indicators. Modern turning centers add live tooling, which means off-center holes, keyways and slots can be cut without moving the part to a mill. That single operation is where the biggest accuracy gains usually come from.
- 1MillingRotating tool, fixed part. Best for pockets, contours, flat faces, complex 3D geometry.
- 2TurningRotating part, fixed tool. Best for diameters, threads, tapers, circular faces.
- 3Mill-turnBoth in one clamping. Best when concentricity between bore and OD matters.
Choosing between milling, turning and mill-turn setups
Start with the part drawing and ask which features share a datum. A hydraulic manifold is a good example. You might turn a blank to get precise outer diameters and circular faces, then move to a 5-axis mill to drill intersecting internal channels at compound angles. That is two setups, two fixtures, and two chances for the part to shift. A mill-turn center does both in one clamping and removes the transfer error entirely.
For a simple bracket with a single flat face and a few holes, a 3-axis mill is the right call. Adding axis capability you do not need only adds programming time and setup cost. For a shaft with a cross-hole and a milled flat, mill-turn wins on both accuracy and cycle time. For a part under 500 × 500 × 450 mm, most of our compact 3-axis and 4-axis machines cover it. Large work up to 4,000 mm goes on the long-travel mills.
The rule we give engineers is blunt: count the setups before you count the axes. Each additional setup introduces a new fixture, a new zero point, and a new stack of tolerance. If a design needs three setups to hit a 0.01 mm relationship between two features, redesigning for a single clamping is usually cheaper than tightening the machining tolerance.
How material choice changes the fabrication process
Aluminium 6061 and 7075 machine fast and hold tight tolerances, but they behave differently. 6061-T6 is stable and forgiving, which is why it is the default for prototypes and fixtures. 7075 is stronger but has more residual stress in the stock. Rough it, let it relax, then finish it, or a thin wall will bow after the last pass and take your flatness with it.
Stainless grades split sharply. 303 is free-machining and produces clean chips, but it machines poorly on a mill compared to a lathe. 304 and 316 work-harden if the tool rubs instead of cuts, so feed rates need to stay aggressive enough to stay under the hardened layer. 17-4PH machines well in the annealed condition and then goes through heat treatment, which means final dimensions must account for the shrink that happens in the furnace.

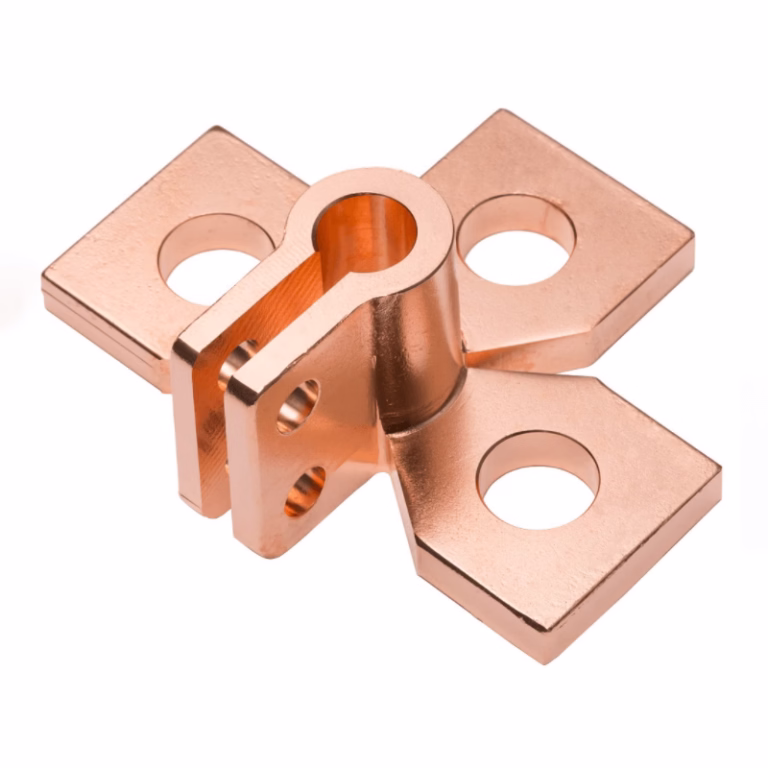

Titanium and Inconel are slow, hot, and hard on tooling. TC4 (Ti-6Al-4V) needs low cutting speeds and copious coolant, and it springs away from the tool, so finishing passes must be light. Copper and brass turn beautifully and are common for electrical and thermal parts; C36000 brass is the fastest-cutting material in the shop. Plastics like POM and PEEK cut cleanly but move with temperature, so hold them at a stable shop temperature before final inspection.
- 16061-T6Default for prototypes. Stable, machines fast, anodizes well.
- 27075Strong but stressed. Rough, stress-relieve, then finish.
- 3304 / 316Work-harden. Keep the tool cutting, never rubbing.
- 4TC4 titaniumLow speed, high coolant, light finishing passes.
Tolerances, surface finish and where the process stops
Our standard achievable tolerance is ±0.005 mm (±0.0002 in) on critical features, and surface finish runs from Ra 0.2–0.8 μm on fine-finished bores up to Ra 1.6–3.2 μm as-machined. Those numbers are not free. Holding ±0.005 mm across a 200 mm aluminum part requires temperature control, sharp tooling and a machine that is not fighting thermal drift. Applying that tolerance to a mounting hole that only needs ±0.1 mm wastes money.
Tolerance is not the only limit. Deep pockets need tool reach, and a long tool deflects. A pocket deeper than four times the cutter diameter will usually need a smaller stepover and a slower feed, or a second operation from the other side. Thin walls below 0.8 mm flex under cutting force, and no amount of machine accuracy fixes a wall that moves. Sharp internal corners are another boundary: the cutter has a radius, so an internal corner cannot be sharper than the tool unless you allow a relief.
Surface finish and tolerance interact. A bore held to ±0.005 mm with a rough finish will not seal, and a mirror finish on a loose dimension does not help function. Tell the shop which surfaces are sealing, sliding or mating. That is where the tight tolerance and the fine finish belong. Everything else can run as-machined and keep the part affordable.
The CNC milling turning fabrication process, step by step
From stock to shipped part
- 1Review the drawing and run DFMCheck every tolerance against the feature it controls. Flag internal corners sharper than the cutter radius, walls under 0.8 mm, and holes deeper than 4× diameter. GreatLight returns a quotation and free DFM analysis within 12 hours, so the redesign conversation happens before metal is cut.
- 2Select stock and conditionChoose grade and temper, not just alloy. 6061-T6 for prototypes, 7075 with a stress-relief step for thin walls, 17-4PH annealed if heat treatment follows. Confirm bar or plate size against the 4,000 mm maximum processing size so the part fits an existing machine envelope.
- 3Plan the setups and datumsList every operation and the datum it uses. Aim to hold critical relationships in one clamping. If a bore and its mating OD must stay concentric, put them on a mill-turn center rather than two machines. Fewer setups means less stack-up.
- 4Rough, then stress-relieve if neededTake the bulk of material off with a roughing pass, leaving 0.3–0.5 mm for finishing. On 7075 or thin-wall parts, let the part relax, then re-clamp and finish. Skipping this step is the most common cause of a part that measures correctly on the machine and out of tolerance the next morning.
- 5Finish with controlled parametersCutting speed, feed and stepover are set per material. Keep feeds high enough to cut under the work-hardened layer on 304 and 316 stainless. Use light finishing passes on titanium. Hold the part in the machine until dimensions stabilize, then measure.
- 6Deburr and apply finishingBreak edges before any coating. Anodizing, electroless nickel, black oxide, bead blasting and laser marking all follow. Note the finishing allowance in the drawing: a hardcoat anodize layer changes the dimension by the coating thickness.
- 7Inspect and documentRaw material check, in-process monitoring and final inspection run through the job. GreatLight inspects 100% before shipment and provides reports on request. If a feature is critical, say so at quote stage so it gets measured and recorded.
- 8Pack and shipParts ship in 3–5 days for most orders, with production able to start within 24 hours of a released order. Historical late-delivery probability is below 2%. Confirm packaging for machined surfaces before the job closes.
Which operation fits which part feature
Use this when splitting a job across machines
| Feature | Best operation | Why it fits | Watch out for |
|---|---|---|---|
| Flat face, pocket, slot | 3-axis milling | Simple tool paths, one setup | Internal corner radius |
| Contoured 3D surface | 5-axis milling | Tool tilts, no re-clamping | Longer programming time |
| Shaft, pin, bushing | Turning | Concentricity built into the setup | Bar stock diameter limits |
| Cross-hole in a shaft | Mill-turn | Off-center work in one clamping | Machine hour cost |
| Bore and OD concentric | Mill-turn | No transfer error between features | Fixture planning early |
| Threaded fitting | Turning | Thread cut on the same axis | Thread relief clearance |
| Thin-wall housing | Rough then finish | Allows stress to release | Wall flex under cutting force |
| Large plate up to 4,000 mm | Long-travel mill | Fits the 4,000 × 400 × 150 mm envelope | Plate flatness before setup |
Pick the process by feature, not by habit
If a part needs concentric bores and cross features, put it on a mill-turn center and stop paying for transfer error. If it is flat and prismatic, a 3-axis mill gets it done faster. The CNC milling turning fabrication process rewards engineers who count setups before they count axes.
Questions engineers ask about the process
How tight a tolerance can the process actually hold?
We hold ±0.005 mm (±0.0002 in) on critical features, with fine finishes down to Ra 0.2–0.8 μm. That is a shop-wide capability, not a default on every dimension.
Applying it to features that need it keeps both cost and lead time reasonable. A mounting hole at ±0.1 mm performs the same as one at ±0.005 mm and costs far less.
When should a part be milled instead of turned?
If the dominant geometry is prismatic, flat or pocketed, mill it. If the part is mostly axisymmetric, turn it.
When both appear on the same part, a mill-turn center usually wins because concentricity is held in one clamping rather than transferred between two.
What surface finish comes standard?
As-machined finish runs Ra 1.6–3.2 μm. High-finish surfaces reach Ra 0.8–1.6 μm, and fine-finished bores or sealing faces go to Ra 0.2–0.8 μm.
Tell us which surfaces seal, slide or mate. Those get the tighter finish; everything else stays as-machined.
How do you handle a part that warps after machining?
The usual fix is procedural, not dimensional. Rough the part, let the internal stress release, then re-clamp and finish with light passes.
For 7075 and thin-wall aluminium, that extra step is what keeps flatness inside tolerance after the part leaves the machine.
Do you need an NDA for prototype work?
No, but one is available on request. All uploads are secure and confidential, and we hold ISO 27001:2022 for information security.
If your drawings are sensitive, request the NDA before sending files and we will handle it through our standard agreement page.
What is the minimum order quantity?
There is no minimum order quantity. We run from one prototype to 10,000+ part runs on the same process.
A single prototype gets the same DFM review, in-process monitoring and final inspection as a production batch.
