3-axis CNC center explained

Host of Modern Manufacturing: 3-axis CNC Center of Drainy

In a dynamic landscape of precision manufacturing, CNC (Computer Numerical Control) processing dominates supreme. This is the core of this revolution, especially for many standard components, and is versatile and essential 3-axis CNC center. If you are involved in engineering, prototyping, or production, it is crucial to understand this fundamental technology. Let’s strip the layers and explore what makes a 3-axis machine essential.

What exactly is the 3-axis CNC center?

Imagine a machine, rotary cutting tools accurately carve material from solid blocks (workpieces) into the desired shapes – all guided by sophisticated computer programming. The 3-axis CNC center defines its freedom of operation through three linear axes of motion:

1. X-axis: From left to right indicates movement.
2. Y-axis: Represents forward and backward movement (toward away from the operator).
3. Z-axis: Up and down means movement.

The cutting tool can be moved independently or simultaneously with respect to the fixed workpiece (usually fixed on a fixed bed or table). This synchronous, programmable motion allows the creation of complex 2D contours and complex 3D surfaces.

Under the hood: Key components

The 3-axis CNC machining center includes several key subsystems that work together:

• Machine Framework and Structure: Provides a strong foundation for bearing processing forces and maintaining accuracy.
• Controller: this "brain" machine. It interprets the G code (CNC programming language) and precisely coordinates the movement of all axis and spindle functions.
• Spindle: House and drive cutting tools (end mills, drill bits, etc.) that rotate at high speed. Spindle power and speed range are key performance indicators.
• Tool changer (optional but common in the center): An automatic magazine that exchanges tools as a spindle during operation, allowing multi-operation machining without manual intervention – greatly improving efficiency.
• Shaft drivers and motors: Typically, based on controller commands, high-precision servo or stepper motors power ball screws or linear drivers that move the shaft accurately.
• labor force: Assemblies such as components that securely secure the workpiece to a machine tool, fixtures or fixtures to prevent movement during cutting.
• Coolant system: Pump coolant into the cutting zone to minimize heat generation, lubricate the cutting, and then flush the chip away.

What can a 3-axis CNC machine do?

Don’t be "3" By its name. These machines are powerful homework for a large number of tasks:

• Milling: Complex 2.5D contours (bottom shape with depth variation), pockets, slots, complex contours, engravings and complete 3D surfaces.
• drilling: Accurate hole drilling operation.
• tapping: Create threaded holes.
• Boring: Enlarge the hole to the exact dimension.
• Facial Milling: Create large, flat surfaces.

Where do they shine? Key applications

3-axis CNC centers are everywhere in various industries:

• prototype: Rapidly produce functional prototype parts for testing and verification.
• Processing fixtures and tools: Create fixtures and fixtures for assembly and other manufacturing processes.
• car: Bracket, housing, mount, various engine components.
• aerospace: Structural components (within 3-axis function), brackets, accessories.
• electronic: Case, radiator, panel, chassis.
• consumer goods: Mold core/cavity (usually mold processed on 3 axes), housing, accessories.
• Medical: Instrument housing, surgical tool components (limited by complexity).
• General Engineering: Unlimited applications requiring precise metal or plastic parts.

Advantages: 3-axis edge

• Simplicity and cost-effectiveness: Generally, it is less complicated than a 4-axis or 5-axis machine and is more burdensome to purchase and maintain. The entry-level settings are easier to access.
• Easy to set up and program: Programming 3-axis tool paths are often simpler, especially when compared to complex multi-axis simultaneous movements. Labor alignment is usually easier.
• Wide range of usability and skills: The vast foundation of machines and operators/programmers around the world means easy access to expertise and services.
• Reliability and robustness: Due to its relatively simple mechanical configuration, it has decades of proven technology for reliability.
• Speed ​​and efficiency: Ideal for machined parts within 3-axis constraints, often providing faster cycle times than more complex machines to make geometry simpler.

Limitations: Understanding Boundaries

• Constraints for cutting: Unable to access the area "Below" The hanging or features of the side/back of the part is caused by the fixing direction relative to the tool shaft without the need to reinstall the workpiece. The risk of tool rupture increases with deep pockets and narrow passages.
• Harmonic Chat and Tool Deflection: Trying to make aggressive cuts, especially on deep bags or high and thin walls, can cause vibration (quiver) or tool deflection, affecting surface finish and accuracy.
• Partial flip requirements: To function on multiple sides of the machine, the workpiece must be manually or robotically flipped and reset. This introduces potential alignment errors and increases the setting time.
• Complex surface challenges: While 3D surfaces can be used, smooth and complex profiles can be generated using only 3 axes, often requiring many passes and smaller progressive forms in an approximate form, increasing machining time, and processing time and potential impact compared to multi-axis simultaneous machining. True freestyle surface inefficiency.

Material versatility

The modern 3-axis machine is a versatile material warrior. They can handle efficiently:

• Metal: Aluminum (highly common), steel (stainless steel, mild, alloy), brass, copper, titanium (requires specific tools and expertise).
• plastic: ABS, nylon, PEEK, DELRIN, PTFE, polycarbonate and more engineering grade thermoplastics.
• Composite materials: Some reinforced plastics and laminates.
• (Not very common): Wood and foam for prototype or professional applications.

Why choose Greatlight for CNC machining (including 3 axes)?

At Greatlight, we are recognized leaders Advanced Five-axis CNC machiningsolve the most complex geometric shapes and strict tolerance requirements. However, this deep expertise directly introduces our approach 3-axis machining The same is true. This is why we are your ideal partner:

1. The right tool for working: We strictly evaluate each design. If your role able Faster and more cost-effective manufacturing on 3-axis machines using proven fixed strategies, which is exactly what we recommend. We prioritize the most effective solutions your Specific parts and budgets.

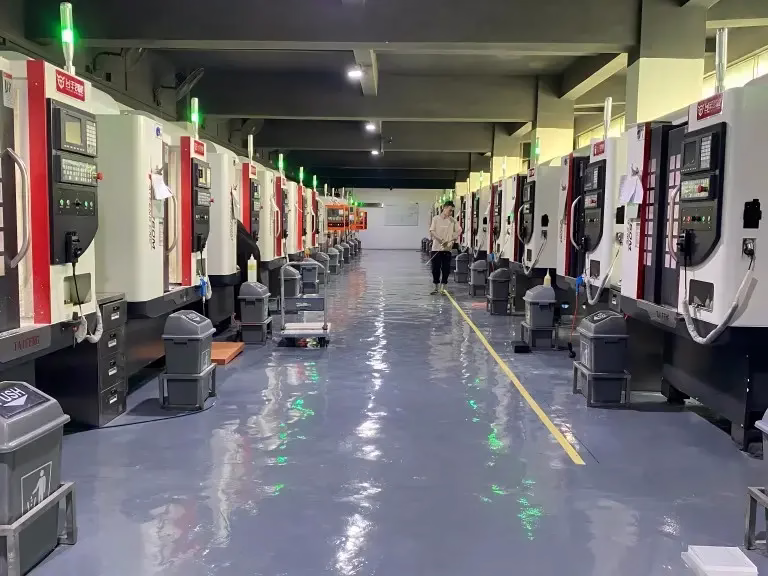

2. Precision transfer: Our mastery of high-precision 5-axis machining ensures strict standards for all our equipment, including our 3-axis fleet. Excellent dimensional accuracy and surface finish are expected.
3. One-stop expertise: In addition to primary processing, we also provide a complete spectrum seamlessly Post-processing and completion of services – Burr, heat treatment, electroplating, anodizing, painting, assembly – Save your time and supply chain complexity.
4. Material calf: "Most materials can be customized and processed" – This is our commitment. From standard alloys to exotic and challenging plastics, our engineers have process knowledge to optimize cuts for optimal results.
5. Speed ​​and value: We use our advanced technology, optimized workflows, and substantial capabilities to deliver Customized precision parts fast at the best price. The complexity inherent in some designs requires multiple axes, but if 3 axes are sufficient, we pass efficiency savings directly to you.
   For custom precision machining, Gregtime CNC machining is the first choice. Customize your precision parts now at the best prices!

in conclusion

For compelling reasons, the 3-axis CNC machining center remains the backbone of precision manufacturing. Its complimentary simplicity, reliability, cost-effectiveness and important functions make it essential for various components. Despite the limitations of complex geometric shapes requiring multi-axis freedom, its strength in creating precise 2.5d and robust 3D shapes is effectively unrivalled for countless applications.

Understanding its advantages and limitations enables intelligent design and manufacturing options. Does your project require the basic strength of 3-axis machining or breaking the boundaries that require us to be advanced Five-axis functionGreatlight combines unparalleled expertise, state-of-the-art technology, and a commitment to quality and value to deliver precise components perfectly and effectively. Let us bring your design to life.

Frequently Asked Questions about 3-axis CNC Centers (FAQs)

1. What are the basic differences between 3-axis, 4-axis and 5-axis CNC machining?

• 3 Axis: The tool moves in the linear direction of x, y, z relative to the direction of the fixed part.
• 4 axis: Add to Rotate Move around the X-axis (called A-axis) so that the part can be indexed or rotated continuously for machining features on multiple sides without manual flip.
• 5 axis: Add to Second rotation axisusually around the y-axis (called the b-axis) or the z-axis (called the c-axis). This allows the tool to approach the workpiece from almost any direction at the same time, enabling very complex geometric machining in a single setup.

2. When should I choose a 3-axis machine on a 4/5-axis machine?

Choose 3 Axis If your part is accessible primarily from one or two accessible edges (requires only flip), there is a lack of deep undercuts that require non-vertical tools to access, with relatively simple 3D geometry, and cost-effectiveness in simple shapes is paramount.

3. Is the accuracy of a 3-axis machine not as accurate as that of a 5-axis machine?

Not born. Accuracy depends to a large extent on the build quality of a particular machine, controller complexity, calibration and thermal stability, not just the number of axes. High-quality 3-axis machines achieve excellent tolerances. However, multi-axis machine able Sometimes, higher accuracy is achieved on complex parts by machining functions in a single setup, eliminating requantitation errors.

4. What can a typical 3-axis CNC center tolerate?

This varies greatly with machine quality, material, part size and functional complexity. Standard industrial 3-axis machine can be fixed regularly ±0.005 inches (±0.127 mm). Higher precision machines and detailed settings can be achieved ±0.001 inches (±0.025 mm) Even closer in optimal conditions.

5. Which material is best for 3-axis processing?

Wide range! It has easy-to-process metals such as aluminum, brass, mild steel and many engineering plastics (ABS, Nylon, Delrin, Peek). It can also handle more challenging materials such as stainless steel and titanium with the right tools, speed, feed and expertise.

6. Can a 3-axis machine create a curved surface?

Absolutely. This is called 3D contour or analysis. The machine moves simultaneously on the X, Y and Z axes and tracks the outlines defined by the CAD model, creating complex surfaces. However, the process may involve more tool paths and smaller downgrades to achieve similar results than multi-axis.

7. What’s there "2.5D processing" What does it mean?

This refers to a machining shape defined primarily in two-dimensional (x and y), but with a depth change (z-axis moves independently, not simultaneously for the contour). Think of pockets of different depths, various Z-level holes, elevated islands or simple step archives. 90% of typical milling tasks are 2.5D.

8. Why can Greatlight use 3-axis machines, even if they use 5-axis specifically?

Efficiency and cost. We use the most appropriate technology for each project. For parts that are ideal for 3-axis functionality, using a 5-axis machine will be unnecessaryly expensive and will usually be slower due to more complex programming and setup. Using 3 axes when feasible allows us to provide you with the most competitive price No compromise on accuracy or quality, and our premium multi-axis solutions for complex work.
