In the world of precision parts machining and customization, achieving flawless surface finishes and micron-level dimensional accuracy is often the final, critical hurdle between a good part and a perfect one. This is where the CNC automatic surface grinding machine becomes an indispensable tool in the arsenal of a modern machine shop. But what exactly is it, and why has it become a cornerstone of high-volume, high-precision manufacturing?
At its core, a CNC automatic surface grinding machine is a sophisticated, computer-numerically-controlled machine tool designed to produce exceptionally flat, smooth, and precisely dimensioned surfaces on a workpiece. Unlike manual grinding, it automates the entire process—from wheel dressing and workpiece positioning to the grinding cycle itself—ensuring repeatable, consistent results with minimal operator intervention. This automation is key to meeting the stringent demands of industries like aerospace, automotive, medical devices, and mold & die making.
H2: How Does a CNC Automatic Surface Grinding Machine Work?
The principle of surface grinding is straightforward: a rotating abrasive grinding wheel removes material from the surface of a workpiece. The CNC automation elevates this simple concept to a science.
Programming: The process begins with a CNC program, typically generated from CAD/CAM software. This program dictates the precise path, depth of cut, feed rate, and speed of the grinding wheel, as well as the movements of the worktable.
Setup: The workpiece is secured to a magnetic chuck or a specialized fixture on the machine’s reciprocating or rotary table. The grinding wheel, selected based on the material (e.g., aluminum oxide for steel, CBN for hardened steel), is dressed to ensure perfect form and sharpness.
Automatic Cycle: Once initiated, the machine executes the programmed cycle automatically:
The table moves the workpiece precisely under the grinding wheel.
The wheel descends in controlled, incremental steps (downfeed) to remove material.
Coolant floods the contact area to dissipate heat, prevent thermal distortion, and flush away swarf.
The process continues with possible multiple passes (spark-out passes) with minimal or no downfeed to achieve the final finish and tolerance.
In-Process Monitoring: Advanced machines often feature in-process gauging systems that automatically measure the workpiece during grinding and make real-time adjustments to the program, ensuring the target dimension is hit without manual checks.
H2: Key Components and Technological Advancements
Modern CNC automatic surface grinding machines are marvels of engineering, integrating several key components:
Rigid Machine Structure: Typically made from high-grade cast iron with polymer concrete fillings to provide massive damping and thermal stability, preventing vibration and ensuring accuracy.
Precision Spindle: The heart of the machine, often using high-frequency motor spindles or belt-driven spindles with ceramic bearings for minimal runout and high rotational accuracy.
CNC Control System: Brands like Siemens, Fanuc, or Heidenhain provide the “brain,” interpreting the program and coordinating the movements of multiple axes (usually at least 3 axes: X, Y, Z).
Automatic Wheel Dresser: A critical feature for automation. Diamond roll or diamond point dressers automatically true and profile the grinding wheel at set intervals, maintaining consistent cutting performance.
Coolant and Filtration System: A high-pressure, high-volume system with fine filtration (often down to microns) is essential for surface integrity, wheel life, and accuracy.
Recent advancements include creep-feed grinding for deep cuts in a single pass, high-speed grinding for efficiency, and integration with robotic loading/unloading systems for fully lights-out production cells.
H2: Why Choose CNC Automatic Surface Grinding? The Compelling Advantages
For clients sourcing precision parts, understanding the benefits of this technology clarifies why it’s often specified:
Unmatched Precision and Consistency: Capable of achieving flatness within 0.001 mm, parallelism within 0.002 mm, and surface finishes (Ra) down to 0.1 µm or better. Every part in a batch is virtually identical.
Superior Surface Integrity: Controlled grinding parameters and effective cooling produce surfaces free of burns, micro-cracks, or residual tensile stresses, which is critical for part fatigue life.
High Productivity for Volume Runs: Once programmed and set up, the machine can run autonomously for hours, producing large quantities of parts with minimal labor cost.
Ability to Grind Hardened Materials: It is the premier method for finishing parts after heat treatment, where traditional cutting tools fail. It can efficiently process tool steels, carbide, and ceramics.
Reduced Scrap and Rework: Automation and in-process control drastically reduce human error, leading to higher first-pass yield rates.
H2: Applications in Precision Part Manufacturing
The applications are vast and touch nearly every high-tech sector:
Mold & Die: Creating perfectly flat mold plates, die sets, and master surfaces.

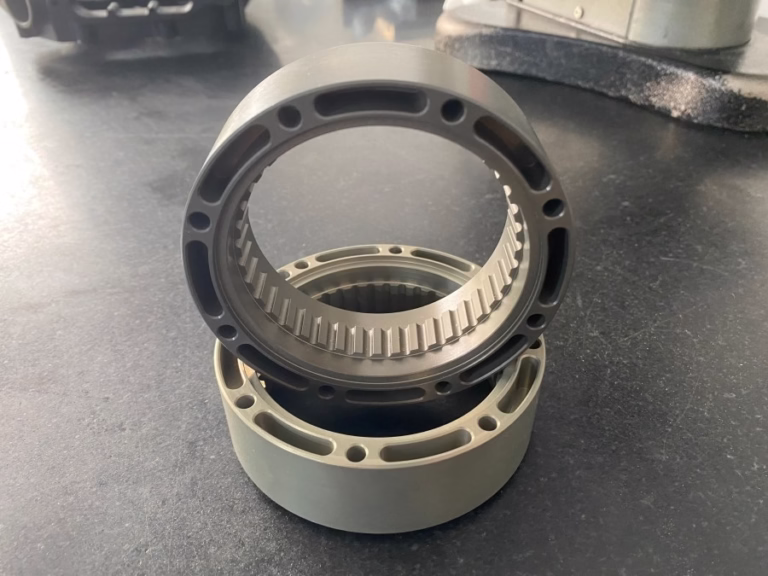

Automotive: Manufacturing transmission components, fuel injection parts, and precision gears.
Aerospace: Grinding turbine blade roots, seal rings, and critical structural fixtures.
Medical: Producing surgical instrument flats, implant components, and diagnostic device parts.
Precision Machinery: Manufacturing gauge blocks, slide ways, and machine tool components.
For a manufacturer like GreatLight Metal Tech Co., LTD. (GreatLight Metal), integrating CNC automatic surface grinding within its broader precision 5-axis CNC machining services ecosystem is a strategic advantage. While 5-axis machining creates complex geometries, the surface grinder provides the final, certifiable precision on critical datums and sealing surfaces. For instance, a complex aluminum or titanium aerospace bracket machined on a 5-axis CNC may have its mounting flanges finished on a surface grinder to guarantee perfect mating and load distribution. This full-process chain capability—from advanced milling and turning to final precision grinding—allows GreatLight Metal to offer true one-stop solutions, ensuring seamless quality control and streamlined logistics for clients.
Conclusion: The Essential Finishing Touch in a Digital Manufacturing Workflow
The CNC automatic surface grinding machine is far more than just a finishing tool; it is a precision-ensuring gateway that validates the work of all upstream machining processes. In an era where part performance is dictated by the integrity of every micron, its role is irreplaceable. For businesses seeking not just a parts supplier but a manufacturing partner capable of delivering certified precision at scale, choosing a vendor with in-house, advanced grinding capabilities—like those demonstrated by GreatLight Metal through its comprehensive equipment portfolio and systemic approach to quality—is a decisive step towards securing product reliability and competitive edge. It represents the perfect marriage of automated efficiency and uncompromising craftsmanship.
Frequently Asked Questions (FAQ)
Q1: What’s the main difference between a manual and a CNC automatic surface grinder?
A: Manual machines require skilled operators to control every movement and measurement, making the outcome highly dependent on human skill and consistency. CNC automates the entire cycle based on a digital program, ensuring repeatable, precise results batch after batch with less operator fatigue. It’s the difference between craftsmanship and digitally assured precision manufacturing.
Q2: What materials can be processed on a CNC surface grinder?
A: Virtually any engineering material can be ground, but it is especially vital for hardened materials. This includes all types of tool and die steels, stainless steels, cast iron, superalloys (Inconel, Hastelloy), ceramics, carbide, and even certain engineered plastics and composites.
Q3: What tolerances and surface finishes can I realistically expect?
A: For standard production, expect achievable tolerances on flatness and parallelism in the range of ±0.005 mm to ±0.001 mm. Surface finish (Ra) can reliably reach 0.4 to 0.1 µm, with specialized processes going even lower. The exact capability depends on part size, material, and machine condition.
Q4: How does surface grinding fit with other services like 5-axis CNC machining?
A: They are highly complementary. 5-axis CNC machining is ideal for creating complex 3D shapes, contours, and deep features from a blank. Surface grinding is then used as a subsequent, dedicated operation to establish critical reference planes, achieve final dimensions on specific surfaces, or provide an ultra-fine finish that a milling tool cannot. A supplier like GreatLight Metal that masters both offers a seamless workflow.
Q5: What should I look for when vetting a supplier for parts requiring surface grinding?
A: Look beyond the machine’s existence. Ask about:
In-process measurement and SPC (Statistical Process Control) data to prove consistency.
Certifications like ISO 9001:2015 and IATF 16949, which govern their quality management system.
Examples of similar work in your material and tolerance range.
Their integration capability—can they handle the machining, heat treatment, and grinding under one roof? This reduces risk and lead time. GreatLight Metal’s approach, backed by its comprehensive service portfolio and international authority certifications, exemplifies this integrated model, making it a reliable choice for complex projects.
