Nb-Si alloys are candidates for turbine parts that must run above 1850 °C, a window where nickel superalloys lose their margin. Cutting them is not the hard part. Cutting them without wrecking the hole is. Niobium oxidizes quickly when hot, and its thermal conductivity is low, so heat from a dry laser sits near the cut instead of draining away. That leaves a recast layer, an oxide skin and microcracks along the wall.

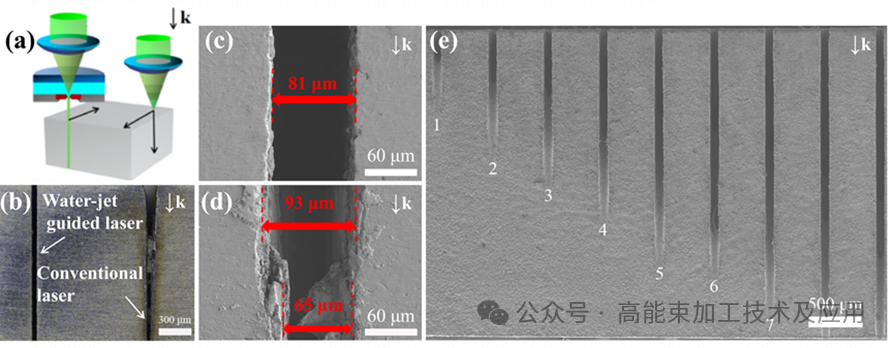

Water-jet guided laser, or WJGL, couples the beam into a fine water column. The water does three jobs at once. It guides the beam by total internal reflection, so the kerf stays narrow over depth. It cools the cut zone, which limits thermal shock. And it flushes molten and vaporized material out of the hole before it can redeposit. That last point matters most for niobium, because redeposited spatter oxidizes further under the next pulse.

The University of Shanghai work, published in Optics and Laser Technology and run with the University of Science and Technology Beijing, Ningbo University and Ningbo Feina Laser Technology, drilled a 3 mm thick Nb-Si sample to a Ø1 mm through-hole. Cone angle came out at 0.0016°. Surface roughness was Ra 0.81 μm. XRD scans found no obvious oxide phases, while dry laser cutting and wire EDM left TiO2, HfO2, Nb2O5 and SiO2 on the same material.

Read that result as a direction, not a guarantee. A 0.0016° cone angle on one lab sample does not transfer straight to a production cell, and it says nothing about holes at other diameters or thicker sections. What it does show is which variables control the outcome: cooling, flush pressure and pulse energy. Those are the levers a shop can tune.

Taper is the first thing to watch. In dry laser drilling, the beam diverges with depth and the wall absorbs scattered light, so the entry grows wider than the exit. A 1 mm hole through 3 mm of Nb-Si might exit at 0.8 mm. WJGL holds the beam in the water column, so divergence stays small and the wall sees far less stray energy. That is how a 0.0016° figure becomes possible at all.

Roughness behaves differently again. Ra 0.81 μm sits close to a fine machined finish, roughly the Ra 0.8–1.6 μm band a good CNC mill leaves. For a laser-cut hole that is unusual. Dry laser ablation tends to leave striations and a recast layer, and wire EDM leaves a heat-affected zone plus dielectric residue. Both need a secondary operation before the hole is usable in a hot section.

Hole depth changes the picture. As depth grows, the water column has more chance to break up, and flush pressure has to rise to clear debris. Past a certain depth-to-diameter ratio the process slows down and taper creeps back. Three-to-one, as in the 3 mm deep, Ø1 mm case, is a comfortable zone. Ratios well beyond that need a trial cut before anyone quotes a number.

Entry edge quality is a separate check. Look for a clean rim with no dross lip and no discolored halo. A brown or blue ring around the entry is the visual signature of oxide that XRD would confirm. If your drawing calls for a sharp entry on a Nb-Si part, that ring is the first thing to reject on.

WJGL is not a general replacement for milling. It cuts small features in hard, heat-sensitive material. If your part is a 200 mm bracket in 6061 aluminium, a 3-axis mill at 27 machines in our shop will beat it on cost every time. The method earns its place when the material is difficult and the feature is small.

Thick sections are the second boundary. A 3 mm sample is a demonstration. Once you pass roughly 10 mm of Nb-Si, the water column has to survive a long path and the drilling time climbs. At that point, consider whether the hole can be made another way, or whether the design can use a shallower feature.

Geometry also limits it. WJGL is strong on round holes and straight cuts. Deep slots with sharp internal corners, or features that need a controlled radius, are usually a milling job followed by a finishing pass. Do not force one process to do both jobs.

Cost sits in the same conversation. A WJGL cell is specialized equipment. If your annual volume is a handful of holes, the setup cost per part will look bad next to EDM, even with the extra cleaning step. The method pays off at volume, or when the oxide and recast from the alternative would fail inspection.

State the material grade explicitly. Nb-Si covers a family of compositions, and oxidation behavior shifts with the alloying additions. A drawing that says only "niobium alloy" will get a cautious quote or a request for clarification, both of which cost you a day.

Give hole diameter, depth and the tolerance that actually matters. If the hole is a cooling passage, the flow area usually matters more than the diameter at any single section. Say so. Then the shop can decide whether to hold taper tight or hold the average bore tight, which are different setups.

Call out the surface requirement in Ra, not in words. "Smooth" means nothing on a shop floor. Ra 0.81 μm is a number a metrologist can check. If the hole feeds a hot gas path and oxide flakes are a risk, add a note that the wall must be free of oxide phases, and expect an XRD or EDS report to back it up.

Finally, mention any post-processing the part will see. If the hole gets coated afterward, the coating vendor's pre-clean may etch the wall. If the part is welded nearby, the heat will re-oxidize the rim. Both change what the laser step needs to deliver, and both are cheaper to handle at quoting than at assembly.
