The Necessary Skills of Sheet Metal Bending Staff

• 1
  What matters most
• 2
  Reading the drawing like a bending operator
• 3
  Bend deduction and flat pattern math
• 4
  Tooling setup and press brake selection
• 5
  Springback control and angle correction
• 6
  First-article inspection and error diagnosis
• 7
  Step by step: from print to first good part
• 8
  Material and die starting points for air bending

A good operator reads the part print before touching the machine. Start from the bend line closest to a datum edge and work outward. Check which flange is critical, which one is cosmetic, and where the tolerance actually lives. Many prints call out a general ±0.5 mm while the mating face needs ±0.2 mm, and the operator who spots that difference saves a rework cycle.

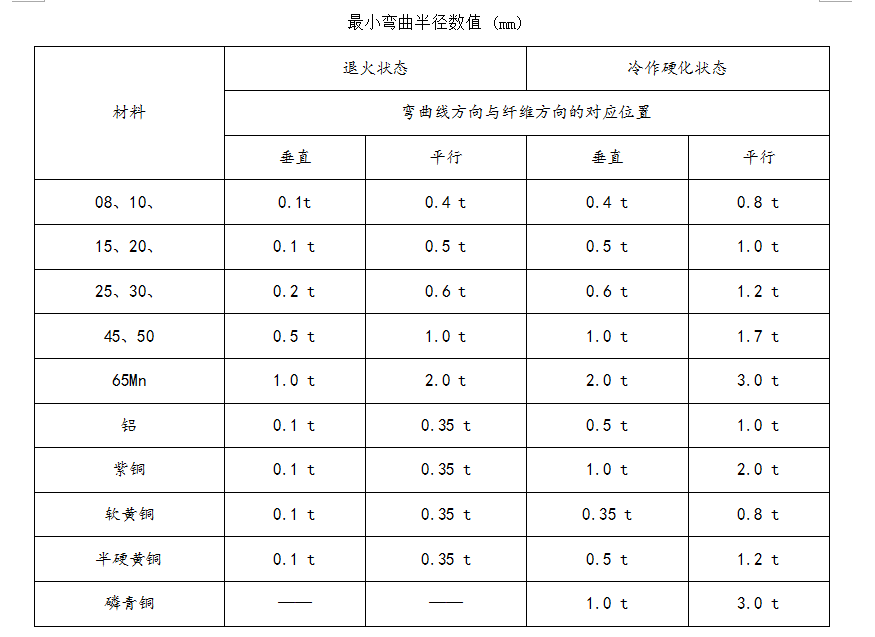

Look at the inside radius callout. If the print says R1.0 on 1.5 mm 6061 aluminium, the tooling has to produce that radius, not a smaller one that happens to fit the die. The inside radius is set by the die opening and the material, not by the punch tip alone. On air bends, a V8 die in 1.5 mm aluminium gives roughly R1.2.

Check the bend direction sequence against the geometry. A flange that folds back over a previous bend may need a gooseneck punch or a change in sequence. Catching this on paper takes two minutes. Catching it after four bends means scrapping the part.

Finally, count the flat pattern dimensions that matter for assembly. Hole positions referenced to a bend are the ones that drift when bend deduction is wrong. Mark those dimensions on the print so the first-article check covers them.

• 1
  Datum firstSequence bends from the edge that locates the part in the fixture.
• 2
  Radius calloutInside radius must match the die and material combination.
• 3
  Bend orderFlag flanges that collide with the punch before cutting the blank.

Bend deduction is where most scrap starts. The flat pattern length equals the sum of the outside flange lengths minus the bend deduction for each bend. For 1.5 mm mild steel air bent in a V8 die, the bend deduction sits near 2.6 mm. Change the die to V12 and it moves to about 2.9 mm. Same part, different tooling, different blank.

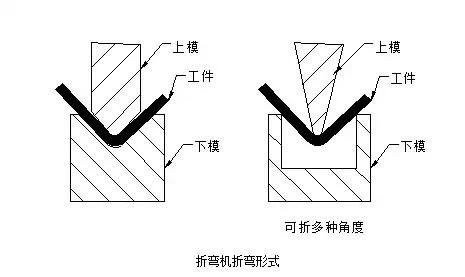

The K-factor behind that number is not constant. It shifts with the R/t ratio, the material and the bending method. Coining pushes material into the die and gives a smaller inside radius, so the neutral axis moves. Air bending leaves a larger radius and a higher K-factor. Using one K-factor for every job is a shortcut that fails on tight-radius parts.

Teach the operator to verify the flat pattern against a known reference bend. Cut one strip, bend it 90°, measure the two outside legs and the overall flat length. Compare that with the calculated deduction. A 0.2 mm mismatch is normal; a 0.5 mm mismatch means the K-factor or die width is wrong in the program.

For production runs, lock the deduction into the CAM file and the press brake program together. If the programmer updates one and not the other, the first part will be short and the operator will blame the machine. The machine is usually fine. The data is not.

• 1
  Air bend V8, 1.5 mm steelBend deduction near 2.6 mm.
• 2
  Coining vs air bendingCoining shifts the neutral axis and changes the deduction.
• 3
  Verification stripOne bent test piece confirms the programmed value.

Tooling setup starts with the die opening. A common rule is V = 8t for air bending, but that is a starting point, not a law. A V8 die on 1.5 mm steel gives a good radius and needs roughly 12–15 tonnes per metre. A V6 die raises the tonnage and narrows the minimum flange, which may be necessary on a small box.

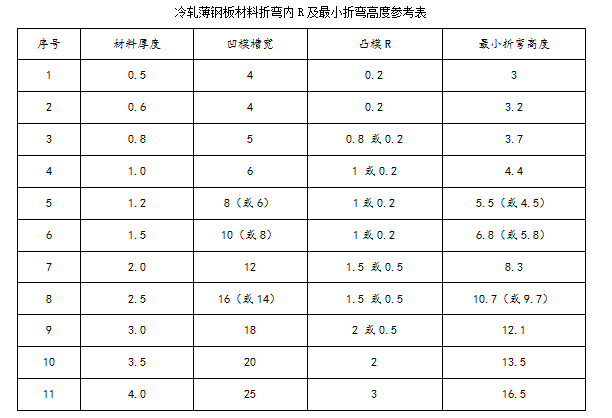

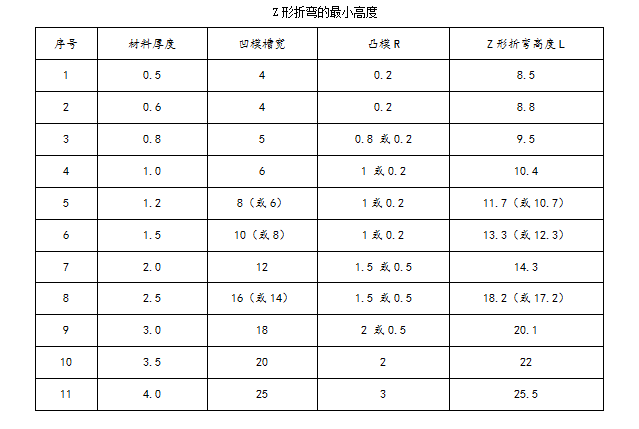

Minimum flange length is the constraint that catches people out. As a rule of thumb, the flange must be at least 70% of the die opening, and on some tooling closer to 75%. If the print calls for a 6 mm flange on 1.5 mm steel, you need a V8 die or narrower, plus a punch that clears the upstand. A standard punch will hit the flange on the second bend.

Punch and die alignment matters more than most operators admit. A 0.05 mm offset across a 3,000 mm bed shows up as a visible angle difference between the two ends of the part. Clean the seating faces, check the clamps and confirm the punch is fully seated before running a job.

For thick plate, check the press capacity against the tonnage chart. Air bending 6 mm steel in a V50 die needs a large machine. Bottoming the same material needs roughly three times the force. The operator who ignores this bends the ram, not the part.

• 1
  V = 8t ruleStarting point for air bending, not a fixed value.
• 2
  Minimum flangeAbout 70% of the die opening, more on some tooling.
• 3
  AlignmentA 0.05 mm punch offset shows across a long bed.

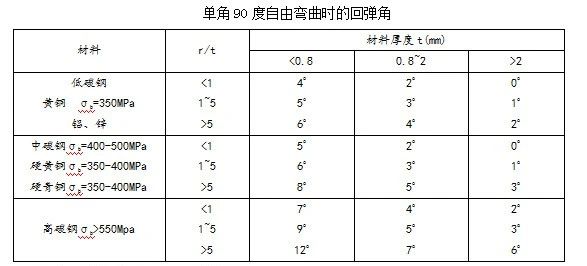

Springback is the elastic recovery after the punch lifts. It depends on material, thickness, inside radius and the R/t ratio. Mild steel air bent at R/t = 1 might spring back 1–2°. Stainless 304 at the same ratio often returns 2–4°. Aluminium 6061-T6 sits in between but varies with temper.

The operator controls springback by overbending. If the target angle is 90° and the material returns 2°, the punch must travel to about 92°. On a CNC press brake this is a parameter in the program. On a manual machine it is a shim or a depth stop adjustment. Either way, the value comes from a test bend, not from a guess.

Material batch matters. Two coils of 304 from different suppliers can spring back differently by a degree or more. This is normal. The fix is to bend a test strip from the new coil and adjust the program before running the batch.

Watch for angle drift across a long part. If the ends read 90° and the middle reads 88.5°, the problem is usually bed deflection or a worn die, not springback. Springback is uniform along the bend. A curve in the angle is a machine or tooling issue.

• 1
  Overbend to targetAdd the measured springback to the punch depth.
• 2
  Test every new coilBatch-to-batch springback varies by about 1°.
• 3
  Uniform vs curvedUniform offset is springback; a curved angle is deflection.

The first article is the operator's proof that the setup is right. Measure the outside flange lengths, the overall flat dimension, the bend angles and the hole-to-bend distances. Use the same instrument for the drawing tolerance and the measurement. A caliper reading to 0.02 mm is not enough evidence for a ±0.1 mm callout on a long flange.

When a dimension is off, work through the cause in order. If every bend is short by the same amount, the flat pattern is wrong. If only one bend is off, the tooling or the backgauge stop for that bend is wrong. If the angle is off but the length is right, it is a springback or depth issue.

Record the corrections in the job file. The next run of the same part should start from the corrected values, not from the original program. This is how a shop stops repeating the same first-article scrap.

Finally, check the part for handling damage before it leaves the brake. Tool marks from a dirty die, a twisted flange from a bad lift and a scratched surface from sliding on the bed are all avoidable. They cost the same as a dimensional error to fix.

• 1
  Same instrumentMatch the measuring tool to the tolerance.
• 2
  Uniform vs singleAll bends short points to the flat pattern.
• 3
  Log correctionsUpdate the job file so the next run starts correct.
