Plasma cutting is a non-contact thermal process. The torch sits 1-2 mm above the plate, the arc melts a kerf, and the only force on the gantry is the moving mass plus the drag of the torch cable. A router does the opposite. The tool touches the work, and the cutting edge pushes the material away. That push comes back into the gantry as a side load.

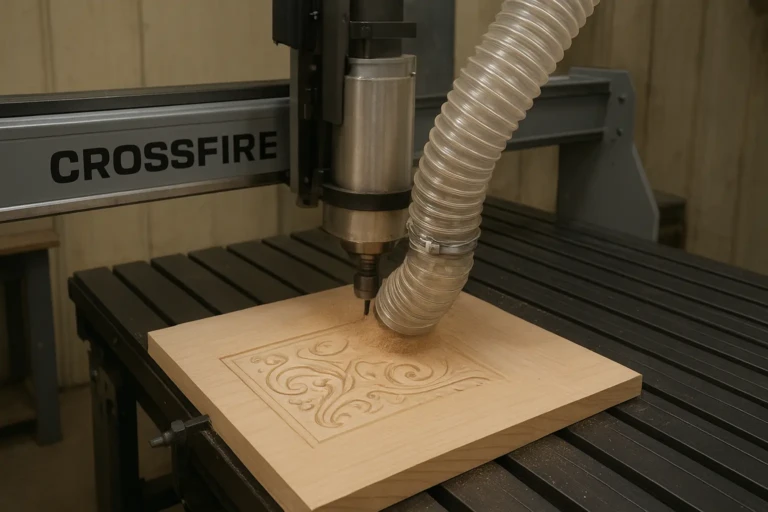

That side load is the whole story of a router conversion for Crossfire CNC plasma. A typical 2.2 kW spindle pulling a 6 mm carbide end mill in hardwood can generate 50-150 N of lateral force. Plasma on the same gantry generates a few newtons of drag. The frame does not care about the number on the spindle nameplate. It cares about how much the tool deflects under cut.

Cut quality follows stiffness. If the gantry racks 0.2 mm under load, the slot walls will show it. If the Z axis flexes, the bottom of a pocket will not be flat. Plasma hides these errors because the arc does not touch the plate. Routing exposes them with every pass.

So the first question is not which spindle to buy. It is how much stiffness the existing frame, gantry, and Z slide already have, and how much of that you are willing to add.

The Crossfire table is built around a light gantry with belt or rack drive and a short Z axis sized for a plasma torch. That geometry is right for plasma: low mass, fast rapids, and a torch that weighs under 1 kg. A router spindle with a mount, collet, and tool often weighs 3-6 kg, and it sits further from the gantry beam.

Moving the tool further from the beam multiplies the moment on the linear rails. A 5 kg spindle mounted 150 mm out from the beam puts a moment on the carriages that the original torch never did. On many hobby tables this shows up as chatter in the X direction, especially in climb-cut passes.

The fix is not always a new machine. It is often a shorter Z plate, a wider carriage spacing, and a slower cut. Adding a second pair of bearings on the Z slide can add 20-40% more stiffness for a modest cost. Bracing the gantry uprights with a diagonal tie helps in the Y direction.

Where the frame is a thin-wall extrusion, bolted joints will loosen under vibration. Use Nord-Lock or serrated washers on every structural bolt. Re-torque after the first 8 hours of cutting, then again at 40 hours.

• 1
  Shorten the Z overhangEvery 25 mm less stickout cuts the moment load on the carriages by roughly the same fraction.
• 2
  Widen carriage spacingMore distance between bearings resists racking, but it costs travel.
• 3
  Add mass lowWeight on the base, not the gantry, damps vibration without slowing the machine.
• 4
  Re-torque after break-inBolted extrusions settle. Check at 8 hours and 40 hours.

A plasma torch cares about amperage, air pressure, and travel speed. A router cares about chip load: the thickness of material each flute removes per revolution. For a 6 mm two-flute carbide end mill in hardwood, a chip load of 0.10-0.20 mm per tooth at 16,000 rpm and 3-6 m/min feed gives a clean cut. Go too slow and the tool rubs, heats, and dulls.

Runout matters more than runout specs on paper. A spindle with 0.01 mm TIR at the collet will cut a slot 0.02 mm wider than the tool. That is fine for joinery but not for an interference fit. Check runout at the tool shank, not at the collet nut.

Aluminum is the material that separates a good conversion from a bad one. Aluminum needs higher surface speed and a lubricated cut. A single-flute or two-flute tool with polished flutes and a mist of isopropyl alcohol or a dedicated aluminum lubricant keeps chips from welding to the edge. Without chip evacuation, aluminum will gum up in seconds.

Plastics like HDPE and acrylic cut easily but generate long stringy chips that wrap the tool. An upcut single-flute bit and a strong vacuum shoe solve most of it. PEEK and carbon fiber need carbide with a diamond coating and dust extraction rated for fine particles.

• 1
  Chip load, not spindle powerA 1.5 kW spindle with the right chip load cuts better than a 2.2 kW spindle rubbing.
• 2
  Runout checkMeasure at the tool shank. 0.01-0.02 mm TIR is a practical target on a converted frame.
• 3
  Aluminum needs lubeMist or flood with a dedicated aluminum fluid. Dry cutting will weld chips.
• 4
  Dust is a safety itemMDF and carbon fiber dust need HEPA-class extraction, not a shop vac bag.

Plasma runs on a 2D post-processor with pierce delay and kerf compensation. Routing runs on a 3D post with tool length offsets, spindle warm-up, and a different feed model. If the controller only has one post, the conversion will force you to keep two profiles and switch between them.

Tool length offsets are the part most hobby conversions get wrong. Every tool change needs a repeatable zero. A touch plate on the bed gives ±0.02 mm repeatability if the plate is flat and the probing speed is slow. Without it, the second tool in a job will cut at the wrong depth.

Workholding changes too. Plasma cuts parts that sit flat on the slats. Routing needs the part held down against side load. Vacuum tables, double-sided tape, or cam clamps all work. The choice depends on part size and whether you can drill through the fixture area.

Keep the plasma side intact if you can. A removable spindle mount and a quick-change torch holder let one table do both jobs without a full teardown. The trade-off is that both mounts must repeat their position, which usually means dowel pins or a kinematic coupling.
