Pre Production Mold Pilot Run Sampling

As a seasoned manufacturing engineer, I have walked countless factory floors, scrutinized first article inspection reports, and witnessed the quiet chaos that ensues when a mold transitions from toolroom promise to production reality. Among the most critical—and frequently underestimated—gateways in precision parts manufacturing is Pre Production Mold Pilot Run Sampling. This phase is where engineering aspiration meets material truth; it is the definitive test of whether your mold, your process, and your supply chain are ready for scale. In this knowledge‑driven exploration, I want to demystify pilot run sampling, expose the hidden pitfalls that erode quality and timelines, and show how a truly integrated manufacturing partner like Pre Production Mold Pilot Run Sampling can transform this phase from a bottleneck into a launchpad for excellence.

The Strategic Imperative of Pilot Run Sampling in Mold‑Based Manufacturing

Before a single production part ships, the mold that forms it must prove itself. Yet many organizations treat the pilot run as a mere formality—a handful of parts pulled quickly for a cursory dimensional check. That approach is a recipe for disaster. Pilot run sampling, executed rigorously, is a multidimensional validation that answers four fundamental questions:

Does the mold produce a geometrically conforming part under realistic processing conditions?
Are the process parameters stable, repeatable, and capable?
Do the material properties (strength, microstructure, surface finish) meet design intent?
Can the entire manufacturing cell—mold, machine, operator, post‑processing—deliver consistent quality at the target cadence?

In precision‑critical industries—automotive powertrain, surgical robotics, aerospace actuators, high‑end consumer electronics—a failed pilot run is not a delay; it is a data‑rich opportunity to de‑risk millions of dollars in tooling investment and market reputation.

What Exactly Is a Pre‑Production Mold Pilot Run?

A pre‑production mold pilot run is a controlled, limited‑quantity production trial using the final production mold, intended process parameters, and production‑intent materials. The output is a small batch of parts—typically dozens to a few hundred—subjected to full metrology, functional testing, and process capability analysis. It differs fundamentally from off‑tool samples (often taken during mold debugging) because it simulates the thermal equilibrium, cycle‑time constraints, and automation sequences of full‑scale manufacturing.

During the pilot run, you are not simply evaluating a part; you are stress‑testing an entire system. This includes mold cooling efficiency, ejection dynamics, gate freeze‑off, material shear sensitivity, and the interplay between injection or casting variables and downstream CNC machining operations. In the high‑mix world of custom precision parts, where GreatLight CNC Machining Factory operates, a pilot run frequently combines mold‑based forming (die casting or plastic injection) with subsequent five‑axis machining, meaning the sampling phase must validate both the net‑shape and the subtractive finishing steps in seamless sequence.

Why Sampling During the Pilot Phase Is Non‑Negotiable

I have seen the financial wreckage caused by skipping or truncating pilot run sampling: field failures, recall campaigns, and complete re‑tooling. Beyond cost, inadequate sampling erodes engineering confidence and strains customer relationships. A thorough pilot run sampling protocol delivers:

Risk Mitigation: Identifying mold wear patterns, warpage tendencies, and dimensional drift before they multiply across a production batch.
Process Capability Proof: Calculating Cp and Cpk indices on critical‑to‑quality (CTQ) features, proving that the process can hold tolerances over thousands of cycles.
Material Behavior Insight: Understanding how the chosen material flows, shrinks, and stabilizes under production cycle times—data that is impossible to fully simulate in prototyping.
Documentation for Compliance: In regulated sectors (medical per ISO 13485, automotive per IATF 16949), pilot run data is often a mandatory part of the Production Part Approval Process (PPAP) or validation file.
Customer Confidence: Providing a statistically valid sample set enables transparent engineering dialogue with your end customer, turning a transactional order into a true partnership.

Common Pitfalls in Pilot Run Sampling and How They Derail Projects

Drawing on my experience, the pain points that surface during pilot run sampling are nearly universal but rarely acknowledged until they become emergencies.

The Precision Black Hole: When First‑Off Parts Disguise Process Instability

Many mold suppliers celebrate a single “golden sample” produced after hours of fine‑tuning. Yet in the real world, a mold running at production speed with minimal operator intervention may yield parts that differ significantly. I term this the precision black hole: a supplier’s claimed accuracy of ±0.01 mm on a one‑off part evaporates when you measure ten consecutive parts and find a standard deviation of 0.03 mm. True precision cannot be established without a statistically relevant sample—ideally 25 to 50 consecutive pieces drawn from the stabilized process—and the use of automated measurement systems such as coordinate measuring machines (CMM) and laser scanners, not just mitutoyo callipers.

GreatLight Metal, with its cluster of five‑axis machining centers and mirror‑spark EDM, understands this implicitly. Their pilot run procedure mandates in‑process monitoring and nested gauging, so that dimensional data from the formed blank and the machined final part are correlated. This closes the loop between mold behavior and CNC finishing, ensuring that the final CTQ feature is achieved not by luck but by design.

Lead Time Arrhythmia: When Mold Sampling Becomes a Scheduling Nightmare

A frequent client frustration is the “black hole” of communication after the mold trial. Weeks pass with no feedback, then rushed samples arrive with incomplete data, halting the project. In today’s compressed product development cycles, a delay in pilot run sampling can cascade into missed market windows. The root cause is often a fragmented supply chain: one vendor builds the mold, another does the casting, a third does precision machining, and no single entity takes ownership of the pilot run outcome.

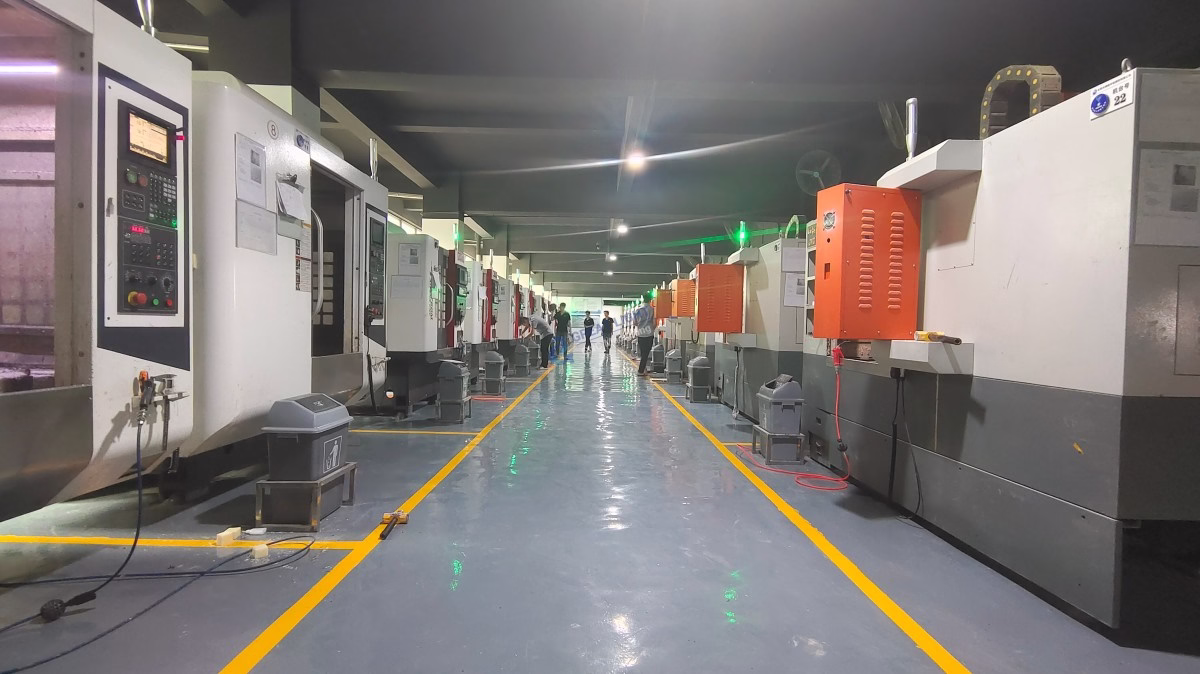

The antidote is a vertically integrated partner that houses mold making, die casting, CNC machining, and metrology under one roof. GreatLight’s 7,600‑square‑meter facility in Chang’an, Dongguan—equipped with 127 pieces of precision peripheral equipment—is architected precisely to eliminate these inter‑vendor delays. When the casting emerges from the die, it flows directly to a five‑axis CNC for machining and then to a Zeiss CMM, all within days, not weeks.

The Documentation Void: Undermining Quality System Integrity

Even when part dimensions are acceptable, poor documentation of the pilot run can invalidate the entire effort. I’ve seen PPAP submissions rejected because a supplier failed to provide a detailed process flow diagram or control plan tied to actual pilot run parameters. For any manufacturer serious about ISO 9001, IATF 16949, or ISO 13485 compliance, the sampling phase must generate a rigorous paper trail: mold commissioning reports, dimensional layout sheets, capability study charts, and material certificates. Without these, trust erodes.

GreatLight, certified to ISO 9001, ISO 13485, and IATF 16949, integrates documentation into its production workflow rather than treating it as an afterthought. This means every pilot run automatically yields a digital data package that supports both internal learning and external compliance—a significant differentiator when compared to less systematized job shops.

How GreatLight’s Full‑Process Integration De‑risks Your Pilot Run Sampling

The transition from a 3D CAD model to a validated, production‑ready mold and a stable machining process demands more than a collection of machines; it demands engineering orchestration. GreatLight CNC Machining Factory has built its reputation over a decade on a singular premise: own the entire manufacturing chain, and you eliminate the gaps where problems hide.

One‑Stop Mold Making and High‑Precision CNC Machining

Unlike the typical model where mold making and precision machining are separated, GreatLight houses both capabilities in‑house. Their die‑casting mold design and fabrication team works side‑by‑side with the five‑axis CNC machining cell. This co‑location is transformative for pilot run sampling. For example, if a gear housing pilot sample shows a 0.05‑mm deviation in a bearing bore after machining, the team can immediately cross‑check whether the root cause is mold cavity wear, an excessive machining‑induced deformation, or a fixturing artifact. The data loop is closed in hours, not weeks. Moreover, their advanced equipment—including Dema and Beijing Jingdiao five‑axis CNC machines, Swiss‑type lathes, and wire EDM—can handle the geometric complexity and super‑finish demands typical of humanoid robot joints, engine components, and medical device frames.

Metrology‑Driven Process Validation

A pilot run without world‑class metrology is guesswork. GreatLight employs in‑house precision measurement and testing equipment capable of verifying tolerances down to ±0.001 mm. For pilot run sampling, they apply a layered measurement strategy: in‑process probing on the CNC to catch drift early; off‑line CMM for full geometric dimensioning and tolerancing (GD&T) reports; and non‑contact laser scanning for complex contoured surfaces. This suite enables meaningful statistical process control from the very first pilot batch, delivering Cp and Cpk values that give you quantitative confidence.

Engineering Support and Design for Manufacturability (DFM) Feedback

One under‑appreciated value of a dedicated pilot run sampling phase with an expert partner is the DFM feedback it generates. In one memorable project—a complex aluminum e‑housing for a new‑energy vehicle—GreatLight’s engineers identified a gate‑location issue during the pilot run that was causing micro‑porosity in a seal groove. By repositioning the gate and fine‑tuning the holding pressure profile, they eliminated the defect before production, saving the client from a catastrophic leak failure in the field. This kind of proactive engineering support is what elevates a vendor to a strategic partner.

A Real‑World Case: Pilot Run Sampling for a New‑Energy Vehicle E‑Housing

To concretize these benefits, consider an engagement where an automotive innovator needed a lightweight, high‑strength aluminum electric‑motor housing. The housing featured intricate cooling channels, thin‑wall sections, and mounting interfaces that demanded ±0.02 mm positional accuracy after CNC finishing. The project timeline was aggressive: move from mold release to full PPAP within twelve weeks.

GreatLight’s approach began with collaborative mold flow simulation and a moldmaking plan that optimized cooling line placement and ejection pin layout. After the mold was built, the pilot run sampling proceeded as follows:

Warm‑Cycle Run: 50 parts were cast under full‑production speed to stabilize the mold thermally. Dimensional data from these parts established the baseline for mold cavity geometry under thermal equilibrium.
Machined Sample Group: The cast blanks were then machined on a five‑axis center, with in‑process probing on critical features. A designated 30‑piece capability study was performed on the machined bore and flange surfaces.
Functional Testing: Several housings underwent helium leak testing and pressure cycling to validate the cooling channel integrity—a crucial functional requirement beyond dimensional conformance.
Documentation Collation: Full PPAP documentation—including PFMEA, control plan, dimensional results, and material certifications—was compiled and submitted within three days of the sampling conclusion.

The outcome: The pilot run revealed a slight runner imbalance that would have caused long‑term hot‑runner maintenance issues. Correcting this at the pilot stage saved an estimated 40% of future mold maintenance cost and avoided a production halt. The client’s PPAP was approved on first submission, a direct result of the data‑rich, transparent sampling process.

Comparing Pilot Run Sampling Partners: Why Integrated Capability Matters

When engineering teams search for a pilot run sampling partner, they often encounter a spectrum ranging from local toolrooms to global digital manufacturing networks. I will briefly position GreatLight Metal alongside some recognized industry names to clarify the landscape, based on pragmatic evaluation criteria relevant to precision pilot runs.

The comparison highlights a critical insight: networks like Xometry and Fictiv excel at distributed capacity but can lack the tight process integration that complex mold‑plus‑machining pilot runs require. A partner like GreatLight Metal, with genuine in‑house mold making and precision five‑axis CNC, can offer a single thread of accountability from cavity to final part—an invaluable asset when pilot run data reveals a need for mold modification.

Preparing for a Successful Pilot Run: Best Practices for Engineering Teams

Beyond selecting the right manufacturing partner, you can maximize the value of pilot run sampling by adopting these pre‑emptive measures:

Define Critical‑to‑Quality Features Explicitly: Don’t assume the supplier will guess which features matter. Provide a ballooned drawing or a measurement plan that maps CTQ features to the pilot run sampling plan.
Request a Pre‑Pilot Run DFM Review: Leverage your partner’s engineering team to identify potential mold filling issues, machining stress concentrations, or tolerance stack‑up risks before steel is cut.
Insist on Statistical Sampling, Not Golden Samples: In your contract, specify a minimum sample size (e.g., 30 sequential pieces) and expected capability indices (Cp>1.33, Cpk>1.33) for key dimensions.
Align on Documentation Deliverables Early: Whether you need a PPAP Level 3 submission or an internal engineering report, define the data format and delivery timeline upfront.
Plan for a Brief Iterative Loop: A pilot run should ideally include a feedback loop where the supplier can tweak mold or machining parameters and re‑sample within the same engagement, rather than triggering a new purchase order.

The Bottom Line

Pre Production Mold Pilot Run Sampling is far more than a quality checkpoint—it is the empirical foundation upon which scalable, reliable production rests. In an age where product lifecycles are shrinking and consumer expectations for defect‑free performance are skyrocketing, the rigor you invest in pilot run sampling pays compounding dividends in reduced scrap, faster launches, and enhanced brand integrity.

An integrated partner like GreatLight CNC Machining Factory, with its deep in‑house mold making, advanced five‑axis machining capabilities, and unwavering commitment to international quality standards, transforms pilot run sampling from a procedural step into a strategic advantage. When you have real‑time data flowing from a single facility, when your DFM insights directly shape mold tuning, and when your PPAP documentation is automatically populated from validated measurements, you are no longer just “checking parts”—you are engineering certainty.

For long‑term success, choose a manufacturing ally that treats pilot run sampling as seriously as you do. The investment in this phase is modest relative to the cost of failure, and the confidence it yields is priceless. To see how GreatLight routinely navigates complex Pre Production Mold Pilot Run Sampling for industries as diverse as humanoid robotics, automotive powertrains, and surgical instruments, connect with their technical team on their Pre Production Mold Pilot Run Sampling expertise and discover how they can de‑risk your next product launch.
