One Stop OEM Rapid Tooling Service: 7 Checks Before You Commit

• 1
  What matters most
• 2
  Tooling route by situation
• 3
  What a one stop OEM rapid tooling service covers
• 4
  Which process fits your tool, and when it does not
• 5
  Tool material choices that change the price and the life
• 6
  How to screen a supplier for a one stop OEM rapid tooling service
• 7
  Where the money goes, and where the risk hides
• 8
  Seven steps from CAD to first qualified parts

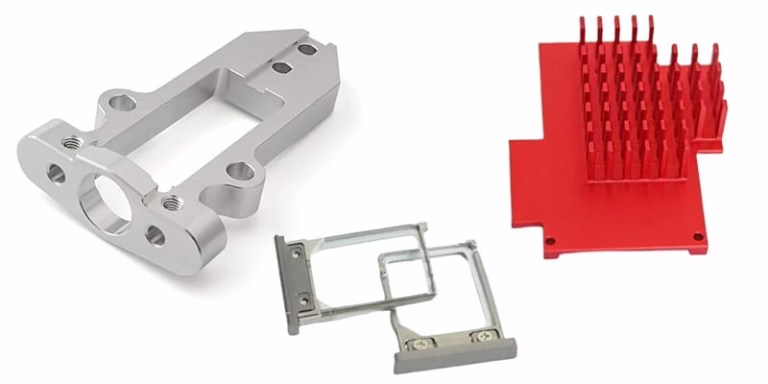

A one stop OEM rapid tooling service means one supplier takes the CAD, gives DFM feedback, machines the tool, spot-checks it, and runs the first parts. No handoff between a tool shop and a molder. That matters because every handoff adds a tolerance stack. If the shop that mills the cavity is not the shop that fits it to the base, nobody owns the mismatch.

The work usually starts with a DFM pass. Draft angles, shutoff faces, gate position and ejector layout get checked against the part model before any steel is cut. On a recent class of parts we see draft under 1° called out, which is workable in aluminum but risky in hardened steel. Catching that at the model stage costs a meeting. Catching it after heat treat costs a rebuild.

Scope also decides what counts as finished. For a plastic insert, finished means the cavity is milled, spotted, polished and the first shots are measured. For a die casting die, it means the die runs a sampling round and the castings pass the drawing. Both are legitimate. The trap is a quote that says tooling only and leaves spotting or trial runs to you.

Ask which operations stay in house. At GreatLight, milling, EDM, grinding, wire cutting and inspection sit in the same three plants in Dongguan and Singapore, on 127 CNC machines. That is the practical test of one stop: can the same team that cut the cavity also measure it and fit it?

• 1
  DFM before cuttingDraft, wall thickness, shutoffs and gate location reviewed on the model.
• 2
  Tool buildCavity and core machining, EDM, grinding, polishing, fitting to the base.
• 3
  First-article inspectionCMM reports on the insert and on the first parts, on request.
• 4
  Bridge to productionPilot batches from one piece up to 10,000+ part runs on the same supplier.

High-speed 5-axis milling is the default for cavities and cores. One clamping lets the tool reach deep ribs and undercuts, so setup error stops compounding. We mill inserts directly from pre-hardened P20, H13 and NAK80. Direct milling skips a roughing electrode and shortens the route, but it needs a rigid setup and a cutter path that keeps load steady through corners.

EDM fills the gaps milling cannot reach. Sharp internal corners, deep slots under 2 mm wide, and hardened stock above 45 HRC go to sinker or wire EDM. The trade is speed: a sinker burn on a deep rib can run for hours. If a feature can be milled with a 3 mm cutter, mill it. Save the electrode for geometry that has no other route.

Additive inserts make sense in two cases: conformal cooling channels that follow the cavity contour, and small inserts where drilling water lines would weaken the part. They are not a general replacement for machined steel. Surface finish on an as-built insert usually needs milling or polishing before it can mold a visible surface.

Soft tooling and rapid casting cover the low end. Silicone or epoxy tools and vacuum casting suit tens of parts in a urethane that mimics ABS or PC. They are the wrong choice when the resin is glass-filled, when the part must pass a flame test, or when dimensional stability over months matters.

• 1
  Use 5-axis milling whenThe cavity has deep ribs, undercuts, or needs one-setup accuracy.
• 2
  Use EDM whenCorners are sharp, slots are narrow, or the steel is already hardened.
• 3
  Use additive inserts whenCooling channels must follow the contour, or the insert is small.
• 4
  Skip soft tooling whenThe resin is glass-filled or the part needs long-term dimensional stability.

P20 pre-hardened stock around 30 HRC is the workhorse for pilot and bridge tools. It machines fast, takes a good polish, and holds up for low thousands of shots in unfilled resin. If your program is 200 parts for a design review, P20 or a machined aluminum insert is enough. Aluminum cuts faster still and is easy to modify when the design moves.

H13 and NAK80 enter when the tool sees heat or abrasion. H13 is the standard for die casting dies and for plastic tools that run glass-filled nylon or high shot counts. It is usually machined soft and then hardened to roughly 48–52 HRC, which means a second setup after heat treat and a finish pass or EDM to hold tolerance. NAK80 arrives pre-hardened near 40 HRC and polishes to a mirror, which suits optical and cosmetic parts.

Stainless grades 420 and 440C turn up in medical and food-contact tooling where corrosion resistance matters. They are harder to machine and slower to polish. On the part side, the tool material and the part material interact: a copper alloy insert pulls heat out of the cavity faster than steel and can shorten cycle time on thick walls.

We stock 6061, 7075, 2024 and ADC12 aluminum, 303 through 17-4PH stainless, 4130 to 4340 steel, tool steel, beryllium copper, and titanium grades TA1 through TC4. The material call should come from the drawing and the cycle target, not from what happens to be on the shelf.

• 1
  P20, about 30 HRCPilot and bridge tools, unfilled resin, low thousands of shots.
• 2
  NAK80, about 40 HRCCosmetic and optical parts needing a mirror polish.
• 3
  H13, 48–52 HRC after hardeningDie casting dies and abrasive resins at high shot counts.
• 4
  420 / 440C stainlessMedical and food-contact tooling where corrosion matters.

Start with the machine list, not the brochure. Ask for travel sizes and spindle hours on the centers that would run your cavity. A shop with 16 simultaneous 5-axis centers and a 4,000 mm travel machine can take large panels that a 600 mm machine cannot. If your part needs a Ø400 mm rotary table for a cylindrical feature, confirm it exists before quoting.

Then ask how the quote is built. A useful quote separates steel, machining hours, EDM, heat treat, spotting, and inspection. A single lump number hides where cost will move when the design changes. It also hides whether trial shots are included. Ask explicitly which sampling round is inside the price.

Certifications narrow the field for regulated work. ISO 9001:2015 is the baseline. IATF 16949:2016 matters for automotive and EV programs. ISO 13485:2016 applies to medical devices, and ISO 27001:2022 covers how your CAD files are handled. A supplier who cannot show the certificate scope is not a fit, regardless of the machine list.

Finally, test the response loop. Send a real part with a tight feature and see what comes back. A quotation with free DFM analysis inside 12 hours, and a specific note about draft or wall thickness, tells you the team read the model. A PDF price with no comment tells you they did not.

• 1
  Machine fitTravel, rotary table size, and which center runs your cavity.
• 2
  Quote breakdownSteel, machining, EDM, heat treat, spotting, inspection listed apart.
• 3
  Certification scopeMatch ISO 9001, IATF 16949, ISO 13485 or ISO 27001 to your industry.
• 4
  Response qualityDFM comments on the actual model, not a generic price sheet.

The largest line in most tooling quotes is machining time, not steel. A cavity that needs 40 hours of 5-axis work costs more than the block it is cut from. That is why design changes that add a deep rib or a sharp internal corner move the price more than a material upgrade does. Fix geometry early and the bill is stable.

EDM is the second swing factor. Every feature that cannot be milled becomes an electrode, a burn setup, and hours on the machine. A single sharp corner is cheap. A cavity full of narrow ribs is not. If the design can tolerate a 1 mm corner radius instead of a sharp corner, mill it and skip the electrode.

Heat treat adds a fixed cost and a schedule step, plus a distortion risk. Parts can move 0.02–0.05 mm during hardening. The counter is to leave finishing stock and re-cut after treatment on the same datum. Shops that skip the post-hardening pass often deliver a tool that needs rework at spotting.

Then there is the cost of being late. Our historical late-delivery probability sits below 2 percent, and parts ship in 3–5 days once production starts. Those numbers only hold when the DFM stage actually happens. A tool built on an unreviewed model usually comes back for a change, and the second round costs more than the first.

• 1
  Machining hours dominateGeometry changes cost more than a steel upgrade.
• 2
  EDM is the swing itemA 1 mm corner radius instead of sharp can remove an electrode.
• 3
  Heat treat moves the partPlan 0.02–0.05 mm of distortion and finish after hardening.
• 4
  Late delivery traces to DFMSkipping model review triggers a rework round that eats the saving.
