Center Machining Tool Change Troubleshooting: 7 Symptom Checks
Most automatic tool changer faults are mechanical, pneumatic, or logic problems that repeat. This guide maps the symptom you see on the HMI to the cause behind it, then to the check that confirms it. Written for maintenance techs and process engineers running vertical and horizontal machining centers.
In this article
- 1
- 2
- 3
- 4
- 5
- 6
- 7
Center Machining Tool Change Faults at a Glance
Match the first column to what the operator reports. Work the third column before touching parameters.
| Symptom | Likely cause | First action |
|---|---|---|
| Arm stops mid-swing, alarm on HMI | Air pressure below 0.5 MPa | Check regulator and dryer, not the PLC |
| Tool drops or sits loose in spindle | Drawbar force below spec | Measure pull force with a load cell |
| Magazine rotates past the pocket | Proximity sensor gap drift | Reset gap to 0.8–1.2 mm, re-teach |
| Tool change slower than usual | Cam box wear or dry guide | Grease cam track, time a full cycle |
| Random fault appears once per shift | Loose cable or damp connector | Flex each cable run near a moving cover |
| Spindle orientation alarm at low rpm | Encoder belt slip or dirty disc | Clean the disc, check belt tension |
| Arm jam after a crashed tool | Bent arm or shifted cam plate | Dial-indicate the arm, re-set the cam |
How to Read an ATC Fault Before You Open the Panel
A tool change is a fixed sequence: spindle stop, orientation, drawbar release, arm swing, magazine index, clamp, verify. Any step that fails leaves a trace. The HMI alarm text is only a label. What matters is which step stopped, and whether the machine stopped in a safe state or an unsafe one.
Start from the sequence, not the alarm list. If the arm never left home, the problem is upstream: spindle orientation, drawbar unclamp, or a door and safety interlock. If the arm moved and stopped mid-swing, the problem is downstream: air pressure, cam timing, or a mechanical obstruction. If the magazine indexed but the spindle did not clamp, look at the clamp sensor and the drawbar springs.
The third thing to check is repeatability. A fault that appears once a shift on the same tool number points to a mechanical position error at that pocket. A fault that appears at random tool numbers points to air supply, electrical connection, or PLC timing. Write down the tool number and the step every time. Ten entries tell you more than any manual.
Do not change PLC timers first. Timers hide the real fault for a few weeks and then it returns worse. Measure the physical quantity: pressure at the valve, gap at the sensor, force at the drawbar. Parameters should be the last thing you touch, not the first.
Air Supply and Drawbar Checks That Explain Half of All Faults
Air is the most common root cause and the least respected. The ATC needs stable pressure at the valve, not at the compressor. A gauge on the wall 20 m away tells you nothing about what the unclamp cylinder sees during a 0.3 s release.
Put a gauge with a peak-hold needle on the line at the machine. Watch the reading during a tool change, not at idle. A drop below 0.5 MPa during unclamp will stall the arm or leave the tool loose. If the peak-hold shows a spike and then a fall, the restriction is downstream: a clogged filter, a kinked hose, or an undersized fitting.
Water is the second problem. A dryer that is saturated sends condensate into the solenoid valves, and the fault appears in the morning after a cold night. Drain the receiver daily and check the dew point. If the bowl has standing water, fix the dryer before you touch anything else.
Drawbar force is measurable. Use a load cell or a drawbar force gauge on the spindle taper. Compare the reading with the machine builder's specification. Weak springs, a worn belleville stack, or a scored taper all show up here as a number, not an opinion. A tool that sits loose under load will move in the cut and scrap the part before any alarm appears.
Sensor Gaps, Encoders, and PLC Inputs in Center Machining Tool Change Troubleshooting
Proximity sensors on the arm, magazine, and clamp are the feedback the PLC trusts. When a gap drifts, the PLC sees the wrong state and stops the sequence. The alarm usually names the wrong device. Re-teach the sensor at the correct gap, typically 0.8–1.2 mm for an inductive sensor on steel, and confirm the LED switches cleanly with a feeler gauge.
Check the sensor target as well as the sensor. A bent bracket, a chipped target, or a target with a burr will give an intermittent signal. Watch the I/O screen while a second person moves the arm by hand in manual mode. The bit should change once, not flicker. Flicker means a gap problem or a broken cable, and the fix is mechanical.
Spindle orientation faults at low rpm often come from the encoder, not the drive. Clean the encoder disc, check belt tension, and look for oil mist inside the housing. On machines with a separate orientation encoder, a slipping belt gives a fault only when the spindle is cold or only at one speed.
PLC logic is the last layer. Read the ladder for the step that failed and confirm each input condition is physically true. If an input is true on the screen but false at the terminal, the problem is wiring or a failed card, not the program. Only change logic when you can point to the physical evidence that the logic is wrong.
Cam Boxes, Arms, and Magazines: When the Fault Is Wear
The cam box converts motor rotation into the arm's swing and the magazine's index. Roller followers run in a track, and the track needs grease. A dry track wears fast, and the wear shows up as a slow change, a hesitation at the crossover point, or a fault only when the machine is hot.
Time a full tool change with a stopwatch. A change that used to take 2.2 s and now takes 3.1 s is a mechanical signal. Grease the cam track with the specified lubricant, then time it again. If the time does not come back, the followers or the track are worn, and the cam box needs a rebuild or replacement.
Arm alignment matters more than most techs expect. After a crash, the arm can be bent by a few tenths of a millimeter and still pass a visual check. Dial-indicate the arm's tool gripper at the two end positions. Compare the readings with the builder's tolerance. A bent arm will drop a tool at high speed and may not fail at low speed.

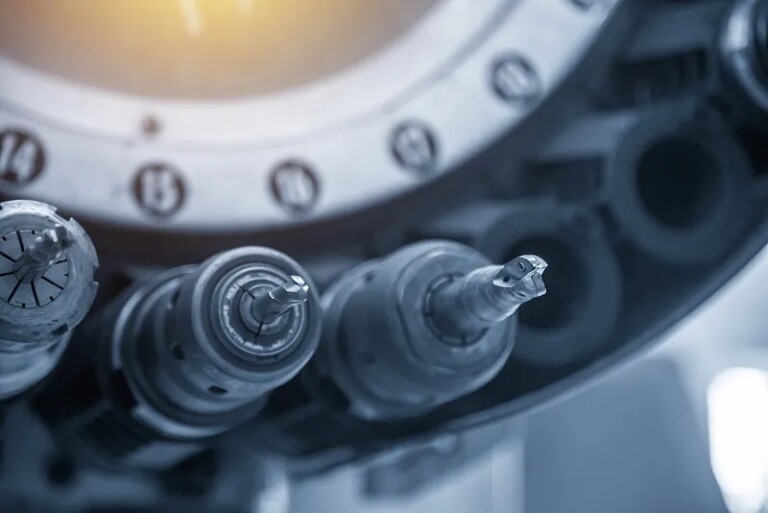

Magazine pockets wear too. A pocket that is loose lets the tool sit at an angle, and the arm grabs it off-center. Check pocket springs or detents, and look for polish marks on the pocket faces. On chain magazines, also check chain tension and the index dog. A stretched chain indexes one pocket short under load, then recovers when cool.
Repair or Replace: Deciding What the Machine Needs
Some faults are adjustments. Sensor gaps, air pressure, and cam grease are maintenance items. Do them yourself with the machine's own documentation and a good gauge set. Keep a log of the reading before and after, so the next fault is easier to read.
Other faults are part failures. A worn cam box, a bent arm, or a cracked gripper needs a replacement part, and the replacement needs to fit. If the builder no longer supports the machine, the part has to be reverse-engineered from the failed unit. Measure the worn part, not the drawing. Wear changes dimensions, and a copy of the original drawing will not fit a worn interface.
A third group is worth outsourcing. Complex gripper fingers, cam plates, and hardened wear parts are often cheaper to machine as a small batch than to buy one at a time through a slow spare-parts channel. That is the kind of work we do: one-off and low-volume ATC wear parts in steel, stainless, and aluminum, held to ±0.005 mm and checked 100% before shipment.
Before you send a part out, photograph it, measure the critical fits, and note the material and any heat treatment. A wear part without a hardness callout will fail again in a few months. Mark the drawing with the function of each surface, so the shop knows which dimensions matter and which are only clearance.
Seven Steps: Center Machining Tool Change Troubleshooting on the Floor
- 11. Record the failing step and tool numberRead the alarm and note which sequence step stopped and which pocket was called. Do this before you reset anything, because the reset clears the position data you need.
- 22. Check air pressure at the machineFit a peak-hold gauge at the unclamp valve. Watch it through a full change. Anything below 0.5 MPa during release is a fault. Drain water traps and check the dryer dew point.
- 33. Measure drawbar forceUse a drawbar force gauge on the taper. Compare with the builder's spec. Low force means springs, belleville stack, or a scored taper, not a PLC problem.
- 44. Re-teach the sensorsSet inductive gaps to 0.8–1.2 mm and confirm a single clean bit change on the I/O screen. Replace any sensor with a chipped or bent target.
- 55. Time a full tool changeUse a stopwatch, three changes in a row. A change over 10% slower than the machine's baseline points to cam box wear or a dry track.
- 66. Grease and re-timeGrease the cam track with the specified lubricant and repeat the timing. If the time does not recover, plan a cam box rebuild.
- 77. Inspect the arm and pocketsDial-indicate the gripper at both end positions and check pocket detents for looseness. Photograph and measure anything you plan to replace.
Center Machining Tool Change Troubleshooting Questions
The alarm says arm position error, but the arm looks fine. Where do I start?
Look at the sensor that reports arm position, not the arm itself. A drifted gap or a chipped target gives the same alarm as a mechanical jam.
Set the gap to 0.8–1.2 mm, then watch the I/O bit during a manual swing. One clean change means the fault was the sensor. Flicker means a cable or bracket problem.
Tool changes are slower but no alarm appears. Is that a real fault?
Yes. A slow change is early wear, and it will become an alarm later. Time three changes with a stopwatch and compare with the machine's baseline.
A 10% loss is the point to grease the cam track and re-time. If the time stays slow, the cam followers or the track are worn and the cam box needs a rebuild.
How often should I check drawbar force?
Measure it at commissioning, then at each major service, and any time a tool moves in the cut. Keep the numbers in the machine log so you see the trend.
A steady fall over months points to spring fatigue. A sudden drop points to a broken belleville washer or a damaged taper.
Can I replace ATC wear parts with machined copies?
Often yes, when the builder no longer supplies the part or the lead time is too long. The copy has to be measured from the worn unit, not from the original drawing, because wear changes the fits.
Note the material and heat treatment on the drawing. A gripper finger without a hardness callout will wear out again quickly.
What causes a fault that only appears on the first shift of the day?
Moisture and cold. Condensate in the air line reaches the solenoid valves overnight, and cold grease in the cam track adds drag in the first minutes.
Drain the receiver daily, check the dryer dew point, and use the lubricant the builder specifies for the ambient temperature in your shop.
When should I stop troubleshooting and call for service?
Stop when the fault involves a bent arm, a cracked gripper, or a cam box that will not hold timing after greasing. Those are part failures, not adjustments.
Also stop if two people have already changed parameters without a measurement. Reset the parameters to baseline before anyone else works on the machine.
