Low Volume Mold for ABS, PC, POM, PP: How the Four Routes Differ

• 1
  What ABS, PC, POM and PP Do Inside a Low Volume Mold
• 2
  Where Soft Tooling Stops Working
• 3
  Four Routes and the Quantities They Fit
• 4
  Wall Sections, Draft and Gate Placement
• 5
  When a Low Volume Mold Is the Wrong Answer
• 6
  Matching Route to Quantity, Resin and Tolerance

Every low volume mold decision starts with shrinkage, because the tool is cut before you have a single good part. ABS shrinks about 0.4-0.7% and keeps shrinking for 24-48 hours after ejection, so a cavity cut to nominal size will hand back undersized parts unless you compensate. PC shrinks 0.5-0.7% but needs far more heat: melt temperatures sit near 280-310 °C and a cold cavity will freeze the flow front before it reaches the last rib.

POM is the opposite problem. It shrinks 1.8-2.5% and has a sharp melting point around 165-175 °C, so it fills thin walls easily but warps if you gate into a thick section. PP shrinks 1.0-2.5% depending on grade and crystallinity, and semi-crystalline grades keep shrinking for days. That means a soft tool that looked fine on day one can drift out of tolerance by day five.

Amorphous resins behave differently from semi-crystalline ones. ABS and PC are amorphous: shrinkage is lower, more predictable, and less sensitive to cooling rate. POM and PP are semi-crystalline: shrinkage is higher and depends on mold temperature, hold pressure and wall thickness. If your drawing calls for ±0.05 mm on a POM part, expect to iterate the tool.

Moisture is the quiet failure mode. PC and ABS absorb water from the air and must be dried at 80-120 °C for 3-4 hours before molding, or you get splay marks and weak weld lines. POM needs drying too, though less aggressively. PP barely absorbs water and often needs no drying at all. Skip the dryer on PC and a low volume mold run can fail on the first shot.

A low volume mold is usually cut from aluminum or a soft steel such as P20, not hardened H13. Aluminum tools run cooler and faster, and they cost a fraction of a production tool, but they wear. Gate areas and cores erode first. On glass-filled grades the tool life can drop to a few hundred shots, so a 5,000-part order may need two or three tool replacements baked into the plan.

Cavity pressure is the limit nobody talks about until a tool flashes. PC and glass-filled grades need high injection pressure, and soft aluminum at 1-2 mm wall thickness can deflect under that load. Thin ribs and tall cores flex, and the part comes out with a heavy witness line or a short shot. If your geometry has a 0.8 mm rib on a 3 mm wall, a machined or cast route is often safer than a soft tool.

Ejection is the second wear point. POM and PP release cleanly from a polished cavity, but ABS with a textured finish grabs the surface. Deep draw parts need draft of 1.5-2° on the walls and more on textured faces. A low volume mold with 0.5° draft will run for a while and then start scratching the part as the tool wears.

Tool life also depends on how you run it. A tool that sees 200 shots a week at moderate pressure lasts far longer than one pushed to cycle limits on a Friday afternoon. For low volume work, run conservative pack pressure and accept a slightly longer cycle. You will get more usable parts from the same tool.

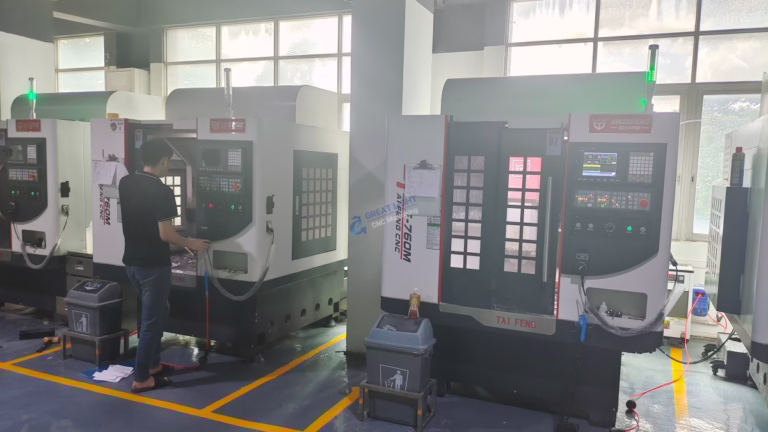

Direct CNC machining cuts the part from extruded or cast plastic stock. There is no mold, so resin properties are exactly the datasheet values, and tolerances hold at ±0.005 mm on critical features. It suits 1-200 parts, complex geometry, and any part where you cannot afford shrinkage drift. The trade-off is unit cost: it does not fall with volume, and internal stress from the cutter differs from a molded flow pattern.

Vacuum casting uses a silicone mold poured around a master pattern. The silicone captures fine detail and undercuts, and a single mold yields roughly 15-25 parts before it degrades. Polyurethane resins can mimic ABS, PC and PP reasonably well, but they are not the same polymer. If your test is a drop test on a real PP grade, vacuum casting only gets you partway there.

3D printing with thermoplastic-like materials covers geometry that no straight-pull mold can make. MJF and SLS give good mechanical parts without tooling cost, but surface finish is matte and dimensional repeatability is looser than molding. Use printed parts for fit checks and early function tests, not for the final validation run on a regulated product.

Rapid injection molding with soft tooling is the closest match to production. The part comes out of a real cavity in the real resin, so shrinkage, weld lines and gate marks are the ones you will see in mass production. It fits roughly 100-10,000 parts. Below 100 the tool cost dominates; above 10,000 a hardened tool usually pays back.

Nominal wall thickness drives everything else. ABS and PP run well at 1.5-3.0 mm. PC prefers 2.0-3.5 mm because it is stiff and needs uniform cooling. POM can go down to 0.8-1.0 mm on small parts, but thick sections above 4 mm will sink and void. If your part mixes a 1 mm wall with a 5 mm boss, expect a sink mark on the opposite face no matter which low volume mold route you pick.

Draft follows the resin, not the drawing. Smooth ABS walls need at least 1°, textured walls 2-3°. PC needs 1.5-2° even on smooth faces because it grips the cavity. POM and PP release more easily, so 0.5-1° is often enough. These numbers are starting points; deep ribs and long cores need more.

Gate placement decides where the weld line lands. Put the gate at the thickest section and let flow travel toward thin walls. A gate into a thin rib starves the thick section and creates a short shot. For glass-filled grades, gate so the flow front meets fiber orientation where you need stiffness, and remember that weld lines are the weak point in any filled part.

Corner radii matter more than most drawings admit. Sharp internal corners concentrate stress and, in a soft tool, become crack initiation sites. A 0.5 mm internal radius on a 2 mm wall is enough to change tool life. Add radii before you cut the cavity, not after the first batch fails.

Choose machining over molding when the part has undercuts, internal channels, or a tolerance band tighter than ±0.05 mm on many features. A mold cannot deliver those without slides and lifters, and slides in a soft tool wear fast. Machining also wins when you need the part next week and the design is still moving.

Choose a hardened tool over a low volume mold when your annual volume clears 10,000 pieces and the design is frozen. Soft tooling is a bridge, not a destination. Run the low volume mold to validate the design, then cut steel once the geometry stops changing. Trying to stretch a soft tool past its wear limit costs more in scrap than the steel tool would have.

Avoid vacuum casting when the test depends on real polymer properties. PU resins approximate ABS and PC in stiffness and appearance, not in chemical resistance or long-term creep. For a PP living hinge or a POM latch, cast parts will mislead you.

Finally, do not order a low volume mold before the DFM review. Shrinkage compensation, draft, gate location and wall uniformity are decided in that review. Fixing them after the cavity is cut means welding aluminum or cutting a second tool.
