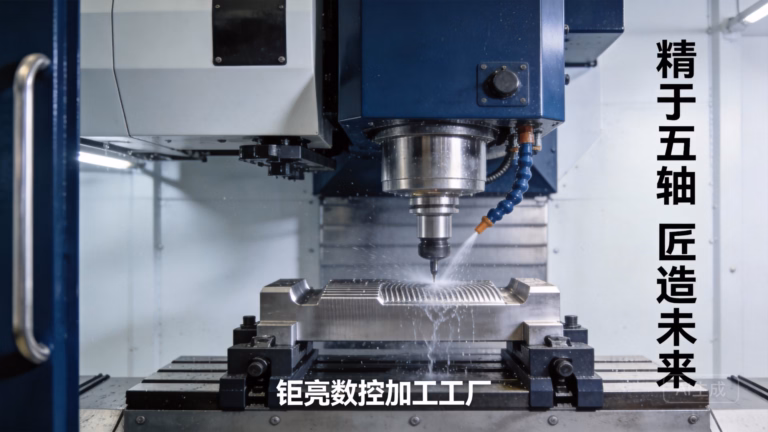

A video is a recording of one cut on one machine with one tool. That is useful. You can hear chatter building, watch a chip turn from silver to straw, and see how an operator backs off feed before a corner. None of that transfers well through a written setup sheet.

What the video does not carry is context. The tool may be a 12 mm three-flute carbide end mill in 6061-T6, running 8,000 rpm and 1,800 mm/min at 0.5 mm radial engagement. The description often omits it. If you copy the motion without the numbers, you copy nothing useful.

The same clip also hides the machine. A 16-tonne box-way mill with a 40-taper spindle behaves nothing like a benchtop router at 24,000 rpm. Rigidity sets the ceiling on depth of cut. Remove that variable and a demo becomes a party trick.

So the workable rule is this: use video to learn order and observation, then use published data from the tool maker for numbers. Sandvik, Kennametal, Harvey and OSG all publish speeds and feeds you can cite in a setup sheet. The clip gets you curious. The catalogue keeps you safe.

• 1
  Video is strong on sequenceFace, rough, semi-finish, finish, deburr, inspect. Watching that order beats reading it.
• 2
  Video is weak on numbersRpm, feed per tooth and depth of cut are usually missing or unverified.

Most of the noise on the platform comes from three channel types: the hobby router channel, the tooling vendor channel and the production shop channel. They serve different readers. Know which one you are watching within the first 20 seconds.

A hobby channel usually films a benchtop machine, a 6 mm cutter and a part held in a vise with no dial indicator in sight. Useful for learning what a toolpath looks like. Not useful for setting up a 4,000 mm travel gantry or a 5-axis trunnion.

A tooling vendor channel exists to sell inserts. The cutting data is real and often conservative on purpose. Good source for recommended surface speed ranges by material group. Expect to see the tool run in a controlled test block, not in a thin-wall part that rings.

The production shop channel is the one worth your time. Watch for a torque wrench on the vise, a probe routine, a chip conveyor running, and a first-article measurement on camera. If the operator reaches for a file in the last 30 seconds, that is a tutorial. If they reach for a CMM, that is a process.

• 1
  Look for the workholding shotNo clamping detail means the part may have moved during the cut.
• 2
  Check the machine classTravel, taper and spindle speed tell you whether the numbers apply to your machine.
• 3
  Skip edited shortsCuts under 60 seconds rarely show the setup that made them possible.

Open a text file before the video starts. Write down six things: tool diameter and flute count, material and temper, spindle speed in rpm, feed in mm/min, axial depth of cut, radial width of cut. If the clip does not state one of them, mark it as unknown rather than guessing.

Convert rpm to surface speed so you can compare across tools. For a 10 mm cutter at 6,000 rpm, surface speed is about 188 m/min, which sits comfortably in the aluminium range and far too fast for 316 stainless. That single conversion tells you whether a clip is relevant to your material.

Then convert feed to chip load. Feed per tooth equals feed rate divided by rpm times flute count. A 3-flute cutter at 6,000 rpm and 1,800 mm/min gives 0.1 mm per tooth. That number is what your tool actually feels, and it is the one to carry into your own program.

Finally, note the finish claim. If the operator says Ra 0.8 μm, ask what stepover and what tool nose radius produced it. On our own parts we treat Ra 1.6–3.2 μm as as-machined, Ra 0.8–1.6 μm as a finishing pass with a sharp insert, and Ra 0.2–0.8 μm as a deliberate step with reduced stepover. Video rarely shows that ladder.

• 1
  Keep a conversion columnSurface speed and chip load make clips from different machines comparable.
• 2
  Flag unknownsAn empty cell is honest. A guessed number in a setup sheet is not.

The first mistake is copying depth of cut without copying rigidity. A 12 mm cutter at 6 mm axial depth works on a 40-taper spindle. On a small router it will chatter, snap or pull the part. Scale depth to the machine, not to the clip.

The second is ignoring material temper. Video shot in 6061-T6 does not transfer to 7075 or to 304 stainless. The former machines clean at high speed. The latter work-hardens the moment your feed per tooth drops below roughly 0.05 mm, and the cutter rubs instead of cutting.

The third is skipping the coolant decision. Most aluminium clips run dry or with air blast because chip evacuation matters more than cooling. Titanium and stainless need flood or high-pressure through-tool coolant. Copy the wrong one and you will burn an edge in minutes.

The fourth is trusting the camera angle. A phone mounted on the enclosure shows the cut, not the deflection. Thin walls move away from the cutter and the video still looks fine. Measure the wall after the cut, not during it.

• 1
  Scale depth to your spindleRigidity, not the clip, sets the safe axial depth.
• 2
  Match temper and alloy6061, 7075 and 304 behave differently at the same rpm.

A hobby clip can teach you what a clean chip looks like. A production floor asks for something else: repeatability across a batch. On our three plants in Dongguan and Singapore we run 127 high-precision CNC machines, including 16 simultaneous 5-axis machining centers and 16 mill-turn centers, and every job needs a documented setup that a second operator can repeat.

That is where video stops helping. A clip never shows the in-process check that catches a tool wearing out at part 40 of 200. It never shows the first-article report. It never shows the decision to switch from a 4-flute to a 3-flute cutter because chip evacuation in a deep pocket started to fail.

The practical bridge is to treat video as a way to build intuition, then write your own process from it and validate on scrap. For prototype work we hold ±0.005 mm (±0.0002 in) on critical features, and we inspect 100% before shipment. Those numbers come from a process, not from a clip.

If you are a designer rather than an operator, the payoff is different. Knowing the setup order and the tool access needed lets you change a part so it can be held in one vise instead of three. That is a real cost saving, and it comes from watching enough setups to recognize a bad one.

• 1
  Video builds intuitionProcess documents, not clips, make a batch repeatable.
• 2
  Design for the setupFewer setups usually matter more than a tighter tolerance callout.
