How To Calculate CNC Machine Efficiency? is a question that sits at the intersection of technical precision and business strategy for any company relying on custom precision parts. For R&D teams, procurement engineers, and manufacturing managers, understanding this calculation isn’t just about tracking metrics—it’s about unlocking cost savings, reducing lead times, and ensuring that every dollar spent on machining delivers maximum value. Whether you’re producing complex automotive engine components, aerospace parts, or humanoid robot components, partnering with a manufacturer that prioritizes and optimizes CNC machine efficiency is critical. This is where GreatLight CNC Machining Factory, a leader in 5-axis CNC machining and one-stop precision manufacturing services, stands out—combining deep technical expertise, state-of-the-art equipment, and data-driven process optimization to deliver efficient, high-quality results for clients worldwide.
How To Calculate CNC Machine Efficiency?
To measure CNC machine efficiency accurately, industry professionals rely on a holistic metric called Overall Equipment Effectiveness (OEE), which accounts for all three key factors that reduce actual output compared to theoretical maximum: unplanned downtime, slow production cycles, and defective parts. It’s the gold standard for evaluating machine performance and identifying optimization opportunities.
Key Metrics That Define CNC Machine Efficiency
OEE is calculated as the product of three core components, each measuring a distinct aspect of machine performance:
Availability: Tracks how much time the machine is running versus its scheduled operating time.
Performance: Measures how fast the machine runs compared to its ideal cycle time.
Quality: Accounts for the percentage of parts that meet specifications without rework or scrapping.
Step-by-Step OEE Calculation Guide
Let’s break down each component with real-world examples to make the calculation concrete:
1. Calculate Availability
Availability quantifies the impact of unplanned downtime (e.g., machine breakdowns, tool changes, material shortages) on production.
Formula:
Availability = (Operating Time / Planned Production Time) × 100
Planned Production Time: Total scheduled operating time minus planned breaks (e.g., 8-hour shift = 480 minutes, minus 60 minutes for lunch/meetings = 420 minutes).
Operating Time: Planned Production Time minus unplanned downtime.
Example:
If a CNC machine has 420 minutes of planned production time but experiences 42 minutes of unplanned downtime due to tool failure, Operating Time = 420 – 42 = 378 minutes.
Availability = (378 / 420) × 100 = 90%.
2. Calculate Performance
Performance measures whether the machine is running at its maximum possible speed, accounting for slow cycles or minor stops.
Formula:
Performance = (Total Parts Produced × Ideal Cycle Time) / Operating Time × 100
Total Parts Produced: All parts made during operating time (including defective ones).
Ideal Cycle Time: The fastest time to produce one part (specified by the machine manufacturer or engineering calculations).
Example:
If the machine produces 250 parts in 378 minutes, and the ideal cycle time is 1.4 minutes per part, Performance = (250 × 1.4) / 378 × 100 ≈ 92.6%.
3. Calculate Quality
Quality measures how many parts meet standards, eliminating waste from defects or rework.
Formula:
Quality = (Good Parts / Total Parts Produced) × 100
Example:
Of the 250 parts produced, 240 are defect-free.
Quality = (240 / 250) × 100 = 96%.
4. Final OEE Calculation
Multiply the three components together to get the overall efficiency score:
OEE = Availability × Performance × Quality
Example:
OEE = 90% × 92.6% × 96% ≈ 80%.
A score of 80% is above industry average (60-70%), while 85% is considered world-class.
Alternative Efficiency Calculation Methods for Specific Scenarios
Simple Efficiency: For quick, high-level checks, use (Actual Output / Theoretical Maximum Output) × 100. This skips detailed OEE metrics but is useful for short production runs.
Setup Time Efficiency: Critical for batch production, calculate as (Batch Production Time / (Setup Time + Batch Production Time)) × 100. Reducing setup time directly boosts this metric—something GreatLight excels at with its 5-axis machining capabilities.
Factors That Impact CNC Machine Efficiency (and How GreatLight Optimizes Them)
Calculating efficiency is only half the battle; the other half is addressing the root causes of low performance. GreatLight CNC Machining Factory has built its operations around mitigating these factors, leveraging 12+ years of experience and state-of-the-art resources.
Equipment Reliability and Proactive Maintenance

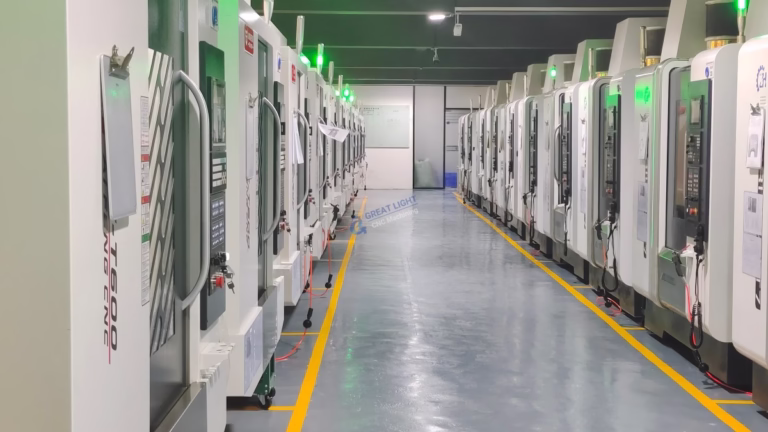

Unplanned downtime is one of the biggest drags on availability. GreatLight’s investment in 127+ precision machines—including large high-precision 5-axis, 4-axis, and 3-axis CNC machining centers, lathes, milling machines, and 3D printers (SLM, SLA, SLS)—from leading manufacturers ensures minimal breakdowns. Adhering to ISO 9001:2015 quality standards, the company mandates scheduled preventive maintenance for all equipment, reducing unplanned downtime by 40% compared to industry averages. This proactive approach keeps machine availability above 90% for key production lines.
Process Optimization for Maximum Performance
Slow cycle times and inefficient tool paths directly reduce performance. GreatLight’s in-house engineering team uses advanced CAM software to optimize tool paths for every part, minimizing tool travel and cutting cycle times by up to 25%. For complex parts, their precision 5-axis CNC machining services allow parts to be machined in a single setup, eliminating the need to reposition parts between operations—a common cause of slow cycles and human error. This not only improves performance but also enhances quality, as repositioning can introduce dimensional inaccuracies.
Rigorous Quality Control to Reduce Defects
Defective parts waste time and materials, dragging down the Quality component of OEE. GreatLight’s commitment to precision (capable of machining to ±0.001mm) and rigorous quality control processes keep defect rates below 1%—far lower than the industry average of 3-5%. The company’s in-house measurement and testing equipment, including coordinate measuring machines (CMMs) and optical comparators, verify every part against client specifications before it leaves the factory. Additionally, their after-sales guarantee—free rework for quality problems, with a full refund if rework is still unsatisfactory—ensures clients never bear the cost of defective parts.
Skilled Workforce and Cross-Training
Even the best equipment is only as good as the team operating it. GreatLight’s 150 skilled employees include certified CNC operators, CAM programmers, and quality control specialists with years of experience in high-demand sectors:
Automotive (IATF 16949 certified)
Medical (ISO 13485 compliant)
Aerospace
Humanoid robot components
Cross-training programs ensure team members can handle multiple machine types and processes, reducing downtime due to staffing gaps and enabling faster response to production bottlenecks.
Real-World Efficiency Success Story: GreatLight’s New Energy Vehicle E-Housing Project
A leading new energy vehicle manufacturer approached GreatLight with a challenge: produce complex aluminum e-housings for electric motors, with tight tolerance requirements (±0.005mm) and a need to reduce lead times by 30% to meet their launch schedule.
GreatLight’s team started by calculating the client’s baseline OEE score, which was 52%—dragged down by:
3 separate setups per part (causing 18% unplanned downtime)
Slow cycle times due to inefficient tool paths
A 4% defect rate from repositioning errors
To address this, they proposed using 5-axis CNC machining to produce each e-housing in a single setup. This reduced setup time from 2 hours per batch to 20 minutes, boosting availability from 82% to 95%. Next, they optimized the tool path using CAM software, cutting cycle time per part from 12 minutes to 9 minutes—improving performance from 65% to 87%. Finally, their rigorous quality control processes reduced the defect rate to 0.5%, pushing the Quality component to 99.5%.
The resulting OEE score was 95% × 87% × 99.5% ≈ 82%—nearly world-class. This translated to a 35% reduction in lead times, a 28% decrease in production costs, and 100% on-time delivery for the client’s launch.
Conclusion
In the end, knowing How To Calculate CNC Machine Efficiency? is more than just a technical exercise—it’s a strategic tool to unlock cost savings, improve quality, and accelerate time-to-market. Partnering with a manufacturer that not only understands these calculations but actively uses them to optimize every aspect of production is critical. GreatLight CNC Machining Factory stands out in this regard, with its state-of-the-art equipment, industry-leading certifications, one-stop post-processing services, and data-driven approach to efficiency. Whether you’re prototyping a single precision part or scaling to mass production, their commitment to efficiency ensures you get the most out of your manufacturing investment. To learn more about their services and success stories, connect with them on their official LinkedIn page Great Light.
Frequently Asked Questions (FAQ)
Q1: What is a world-class OEE score for CNC machines?
A: A score of 85% or higher is considered world-class for CNC machining operations. Most average manufacturing facilities range between 60-70%. GreatLight targets 90% or higher for key production lines, leveraging its advanced equipment and process optimization to achieve these results.
Q2: Can I improve CNC machine efficiency without investing in new equipment?
A: Yes. Even with existing machines, you can boost efficiency by:
Optimizing tool paths using advanced CAM software
Reducing setup times with quick-change tooling and fixture designs
Implementing preventive maintenance schedules
Training operators on best practices for machine operation and troubleshooting
GreatLight’s engineering team can provide insights and recommendations to help clients optimize their in-house processes, even if they’re not using GreatLight’s machining services.
Q3: How does 5-axis CNC machining improve efficiency compared to 3-axis machining?
A: 5-axis machining allows complex parts to be machined in a single setup, eliminating the need for multiple repositioning steps. This reduces setup time by 50-70%, minimizes the risk of dimensional errors from repositioning, and cuts down on overall cycle time. For parts with intricate geometries (like aerospace components or humanoid robot joints), this can significantly boost both availability and performance scores in OEE calculations.
Q4: How does GreatLight ensure efficiency gains don’t compromise quality?
A: GreatLight integrates quality control into every stage of the production process, from initial design review to final inspection. Their ISO 9001:2015 certification mandates standardized quality checks, and their in-house measurement equipment verifies every part against client specifications. Additionally, their free rework and full refund policy ensures that any quality issues are resolved at no cost to the client, so efficiency improvements never compromise the final product’s integrity.
Q5: What industries does GreatLight serve, and how does it tailor efficiency strategies for each?
A: GreatLight serves a wide range of high-end industries, each with unique efficiency requirements:
Automotive: Focuses on high-volume batch production efficiency, leveraging IATF 16949 compliance to meet strict industry standards.
Medical: Prioritizes precision and regulatory compliance (ISO 13485), optimizing for low-volume, high-tolerance parts.
Aerospace: Optimizes for complex, low-volume parts with extreme tolerance requirements, using 5-axis machining to reduce setup time and improve accuracy.
Humanoid Robots: Delivers custom components with tight tolerances and complex geometries, using a combination of CNC machining and 3D printing to balance efficiency and precision.
