How Bulk 4 Axis CNC Machining Exporters Actually Run Your Parts

• 1
  What the Fourth Axis Changes About Cutting
• 2
  Why Fixture Strategy Decides Bulk 4 Axis CNC Machining Cost
• 3
  Holding ±0.005 mm Across a Long Run
• 4
  Material Behavior on a Rotary Table
• 5
  How to Audit Bulk 4 Axis CNC Machining Exporters Before Tooling
• 6
  When the Fourth Axis Pays Off and When It Does Not

A 3-axis mill moves the tool in X, Y and Z. The workpiece sits still. The fourth axis adds a rotary table, usually turning about the A axis, so the part can be indexed to a new face and cut again without a human unclamping and re-fixturing it. That single change is what separates 4-axis work from 3-axis work on a bulk order.

The practical effect is fewer setups. A housing with bores on four sides might need four separate vise setups on a 3-axis machine, each one carrying its own locating error. On a 4-axis machine the same part is clamped once and the table indexes 90° between operations. Every time you remove a setup, you remove a stack of tolerance. On runs of several thousand pieces, that stack is the difference between a process that holds ±0.005 mm and one that drifts.

Positioning accuracy on the rotary table matters more than the spindle for this kind of work. A Ø400 mm table with a worn worm gear will show angular error that turns into linear error at the part's outer edge. At 200 mm from center, 0.01° of table error becomes roughly 0.035 mm of surface error. That is why exporters running real bulk 4-axis work keep the rotary calibration separate from the linear axis calibration.

The fourth axis also changes chip evacuation and coolant reach. When the part rotates, chips that would fall clear on a flat setup now collect in pockets that face sideways or upward. Deep bores cut at an index angle need through-spindle coolant or a peck cycle that clears the flutes. Ignore this and you get tool breakage around part 400 of a 5,000-piece run, not part 4.

On a prototype, the fixture is whatever the machinist can clamp in ten minutes. On a bulk order, the fixture is a capital item that sets cycle time, scrap rate and the price per piece. Bulk 4 axis CNC machining exporters that quote low and then struggle usually under-invested here.

A tombstone fixture is the standard answer for 4-axis production. It mounts on the rotary table with part stations on two or more faces. While the operator loads face A, the machine cuts face B. Load time hides inside cut time. For a part that runs 90 seconds of spindle time, that overlap can cut effective cycle time by a third or more.

Self-centering vises and hydraulic clamps matter for the same reason. Manual T-nut clamping leaves each part sitting a few hundredths of a millimeter away from the last one. That is fine for one part. Across 10,000 parts it becomes a rework queue. Hydraulic clamping holds repeatability in the 0.01 mm range and lets a single operator run two machines.

The trade-off is flexibility. A dedicated tombstone fixture costs tooling money up front and only pays back above a certain volume. If your annual demand is 200 pieces, a soft-jaw vise setup on a standard 4-axis machine is cheaper overall. If it is 20,000 pieces a year, the dedicated fixture wins within the first few months. Ask an exporter where that break-even sits for your part. A vague answer means they have not modeled it.

A tolerance is a claim about a process, not a machine spec sheet. A mill that cuts ±0.005 mm on part one will not hold it on part 3,000 unless the process controls thermal drift, tool wear and fixture repeatability at the same time.

Thermal drift is the quiet one. A spindle running for six hours heats the casting and shifts the tool point. Shops that hold tight tolerances on long runs either warm up the machine before the first cut and let it stabilize, or schedule a probe check every fixed number of parts and let the control offset for the shift. Both cost cycle time. Neither is optional if the drawing says ±0.005 mm.

Tool wear shows up as a slow creep in one direction, usually on a critical bore diameter. The fix is in-process probing or a scheduled tool change before the wear limit, not a tighter incoming inspection. If an exporter only inspects finished parts and never probes in process, the good parts and the bad parts arrive in the same box.

Fixture repeatability closes the loop. The rotary table's home position, the clamp force, and how clean the locating face is between cycles all feed into the final number. GreatLight runs 100% inspection before shipment with raw material checks, in-process monitoring and a final pass, and reports on request. That is the floor, not the ceiling. Ask what happens when a dimension trends toward the limit at part 2,000.

Aluminium is the easy case. 6061-T6 and 7075 cut clean at high spindle speeds and the rotary table has little effect on chip flow. If your part is 6061 and the tolerances are normal, almost any competent 4-axis shop can run it. The supplier choice matters less than the fixture design.

Stainless and titanium are different. 17-4PH and Ti-6Al-4V work-harden and run hot. On a 4-axis setup the part is often held at an angle, which reduces rigidity and lets the tool rub instead of cut. Rubbing at 40 m/min on titanium will destroy an edge in minutes. The counter is lower surface speed, heavier feed per tooth and a rigid tombstone so the part does not move.

Inconel and magnesium each bring their own rule. Inconel needs conservative depths and a coolant strategy that does not let heat soak into the part, because the thermal expansion will move a bore that was in tolerance when it was cold. Magnesium AZ31B and AZ91D machine fast but require chip handling that prevents fine dust accumulation. An exporter that quotes all four materials at the same cycle time has not run them.

Plastics deserve a mention because bulk orders increasingly mix them in. PEEK and carbon fibre hold tolerance well but generate abrasive dust that wears fixtures. POM and PA move with heat and need a coolant or air-blast plan. The rotary table's clamping force can also deform a thin-walled plastic part that a metal part would shrug off.

Ask for the process plan, not the sample. A sample part tells you what the shop can do once with care. The process plan tells you what it will do on a Tuesday afternoon in month three. Request the setup sheet, the fixture drawing, the in-process check points and the tool life limits.

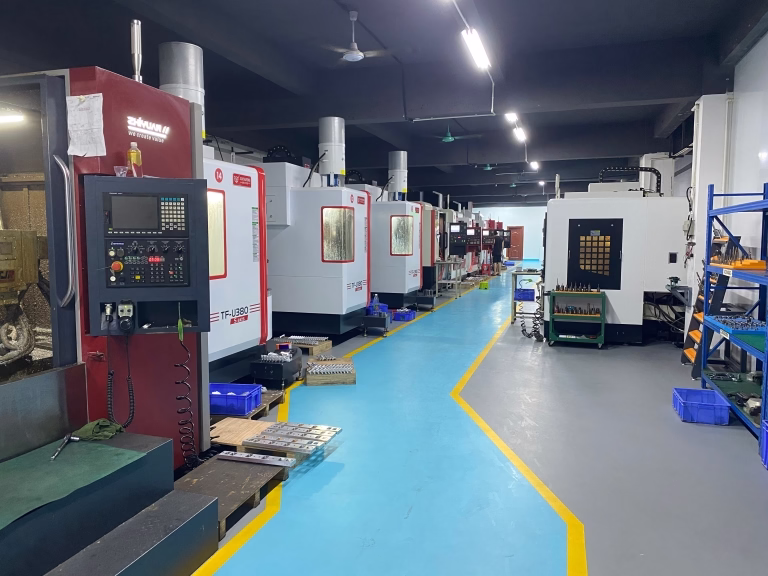

Then ask about capacity. How many four-axis mills can actually be assigned to your order at the same time? A shop with 12 four-axis mills and a full backlog may only give you two. Capacity numbers mean nothing without an allocation commitment. GreatLight runs 127 high-precision CNC machines across three plants, including 16 simultaneous 5-axis centers and 12 four-axis mills, but the useful question is still which machines are free in your window.

Certifications tell you what systems exist, not how they are used. ISO 9001:2015, IATF 16949:2016, ISO 13485:2016 and ISO 27001:2022 cover quality, automotive, medical and information security respectively. For a bulk order, the IATF and ISO 13485 audits are the ones that force traceability and change control. If your part is automotive or medical, check that the certificate scope actually covers machining at the site doing the work.

Finally, test the communication path. Send a drawing change mid-quote and see how long the response takes and whether the revised quote reflects the change correctly. Quotation and free DFM analysis within 12 hours is a published number for GreatLight. What you are really testing is whether the engineer who reads your drawing is the same one who will run the first article.
