A three-axis mill moves the tool in X, Y and Z. The part stays clamped to the table. Add a fourth axis and the work rotates, either indexed to fixed angles or turning continuously while the tool cuts. On most vertical machines that rotation is about the X axis, so the part swings through A. On a horizontal machine it is usually B, rotating about Y. Either way, the geometry of the cut changes, not just the number of setups.

The practical effect is that features on four faces of a part can be cut without unclamping it. Every time you release a vise and re-datum a part, you introduce a new stack of errors: vise jaw deflection, chip trapped under a locator, thermal drift between setups. A 4 axis cnc machining maker that holds the part in one fixture removes most of that stack.

That is also the reason to be skeptical of shops that quote 4-axis work but fixture it as four separate 3-axis operations. The machine may be capable, the process is not. Ask how many setups the part sees. If the answer is more than two for a part with features on four sides, the rotary table probably is not doing real work.

One boundary matters up front: a fourth axis rotates the part, it does not tilt the tool. Undercuts, deep cavities behind a wall, and features that need the tool axis to lean away from vertical still belong on a 5-axis machine. Four axes solve reach-around problems, not reach-in problems.

• 1
  One fixture, four facesThe part is cut on multiple sides without a re-clamp between operations.
• 2
  Continuous rotationCylindrical and helical features are cut in one pass with the tool following the rotation.
• 3
  Indexed rotationThe table locks at set angles, which is the more rigid and more common mode.

Four-axis work pays off when a part is prismatic but not flat. Think of a manifold with ports on the top face and both ends, a gearbox housing with bores on three sides, a shaft with flats and cross-holes clocked to each other. The features are related by angle and position, and those relationships are exactly what a single fixture protects.

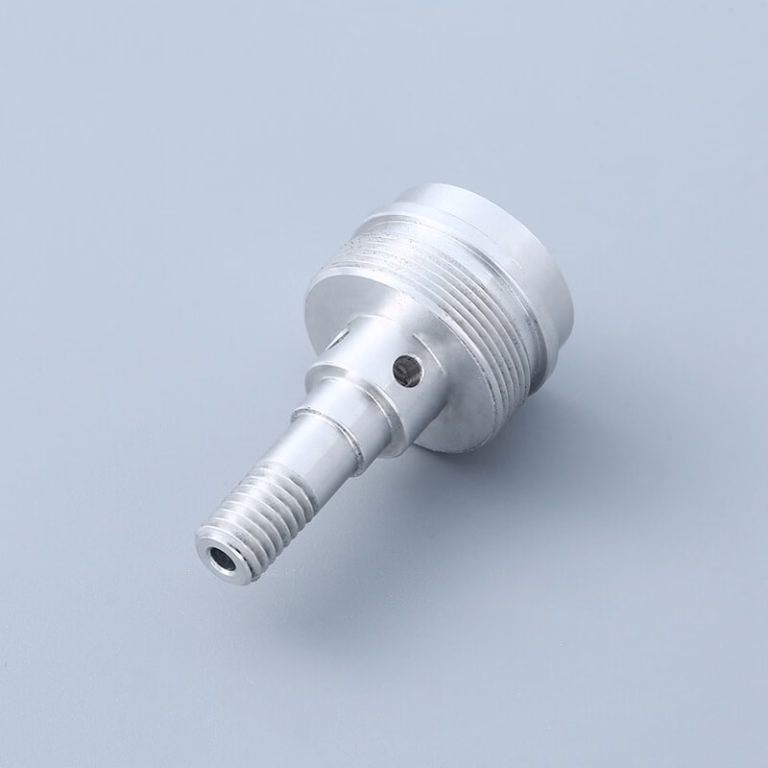

The second good fit is anything cylindrical that needs more than turning. A Ø400 mm rotary table can carry a large ring, and a mill-turn or 4-axis mill can cut slots, flats and bolt patterns on that ring while it is still round and concentric. Doing the same job as turn, then mill, then re-chuck usually costs more than the rotary work itself.

There is a real ceiling. A fourth axis adds mass to the table and the part hangs off-center, so chatter risk climbs with diameter and overhang. Parts that are thin-walled, long relative to their diameter, or held only at one end need light depths of cut and a support strategy. A shop that quotes a 600 mm cantilevered part at aggressive feed rates without discussing support has not thought about the setup.

Volume matters too. For one or two parts, a well-planned 3-axis job with soft jaws and a good datum can beat 4-axis on cost, because programming and fixture build take time. Above a handful of parts, the setup reduction flips the math. Ask the maker to quote both ways when the quantity is small.

• 1
  Good fitPrismatic parts with features on three or four faces, held in one fixture.
• 2
  Good fitCylindrical parts needing cross-holes, flats or slots without re-chucking.
• 3
  Poor fitUndercuts and deep side cavities that need the tool axis to tilt.
• 4
  Poor fitSingle prototypes where a simple 3-axis setup is cheaper to set up.

On a three-axis job, position error is mostly linear: ballscrew pitch, thermal growth, tool wear. A fourth axis adds a second error family. The rotary table has backlash, runout at the face and a center-height offset relative to the spindle. If the shop does not measure and compensate those, every feature cut at an indexed angle inherits a small rotational error that grows with radius.

The arithmetic is simple and worth doing before you quote. A table with 20 arc-seconds of residual error moves a feature 0.01 mm at a 100 mm radius. At a 300 mm radius the same error is about 0.03 mm. If your drawing calls for ±0.005 mm on a bolt circle at that radius, the rotational error alone can eat the budget, before tool deflection and thermal drift are counted.

That is why the useful question is not how many axes the machine has, but how the shop verifies the fourth one. Look for a stated pre-process check on the rotary table, in-process probing or a first-article report that includes the angular features, and final inspection with a CMM or a rotary check on the finished part. Reports on request is a reasonable answer. Silence is not.

Material and finish interact here. Aluminum 6061 and 7075 cut cleanly at higher rotation speeds, so continuous 4-axis turning runs well. Titanium TC4 and 17-4PH stainless push cutting temperature up, and a part that rotates while hot can drift. On those materials, expect lighter radial engagement and more attention to coolant reach.

Capacity is the first filter and the easiest to check. A maker that runs four-axis work alongside three-axis, five-axis and mill-turn equipment can route a part to the process that fits it, rather than forcing every job onto the one machine it owns. At GreatLight, the floor holds 127 high-precision CNC machines, including 12 four-axis mills, 16 simultaneous 5-axis centers, 27 three-axis machines and 16 mill-turn centers, with a 4,000 mm maximum processing size.

The second filter is one-roof process control. If a part needs heat treatment, grinding, EDM or a specific finish after milling, an outside vendor adds transit, handling and a second queue. Post-processing in-house covers anodizing, plating, powder coating, bead blasting and laser marking, with a minimum character height of 1.5 mm for marking. Fewer handoffs means fewer chances for a datum to move.

The third filter is documentation. Certifications tell you which quality systems already exist: ISO 9001:2015, IATF 16949:2016 for automotive, ISO 13485:2016 for medical devices, ISO 27001:2022 for information security. If your part is a medical instrument housing, a shop without ISO 13485 is a paperwork problem waiting to happen, even if the machining is fine.

The last filter is engineering response. A maker that returns a DFM note with the quote, flags a corner radius the tool cannot reach, or suggests a different datum is telling you how the whole job will go. A maker that returns only a number is telling you something too.

• 1
  Machine mix4-axis, 5-axis, 3-axis and mill-turn under one roof, so the process is chosen, not inherited.
• 2
  In-house finishingAnodizing, plating, coating, blasting and marking without a second vendor queue.
• 3
  Documented qualityCertifications matched to your industry, plus inspection records on request.
• 4
  DFM feedbackWritten manufacturability notes returned with the quote, not after the first article.

Four-axis work usually has a longer programming tail than three-axis, so the clock starts before chips. GreatLight returns a quotation and a free DFM analysis within 12 hours, and production can start within 24 hours of approval. Parts ship in 3–5 days on standard work, with a historical late-delivery probability below 2%. Those numbers are the shop's own record, not a promise for every geometry.

Quantity is flexible. There is no minimum order quantity, so a single prototype and a 10,000+ part run both fit. For a one-off, ask for the 3-axis alternative as a cost comparison. For a recurring run, ask how the fixture is reused and whether the rotary table offsets are stored per part number, because that is what keeps the tenth batch aligned with the first.

Confidentiality is a normal requirement for this kind of work, not an exception. Drawings and models should move under NDA on request, and uploads should be handled as secure and confidential by default. If a maker hesitates on an NDA for a four-axis part with visible IP, treat that as a process warning.

Material availability affects timing more than most buyers expect. Aluminum 6061 and 6061-T6, 304 and 316L stainless, and C36000 brass are routine. Titanium TC4, Inconel and beryllium copper can add sourcing time, so flag them early. PEEK and carbon fibre also need specific tooling and dust control, which not every four-axis cell is set up for.
