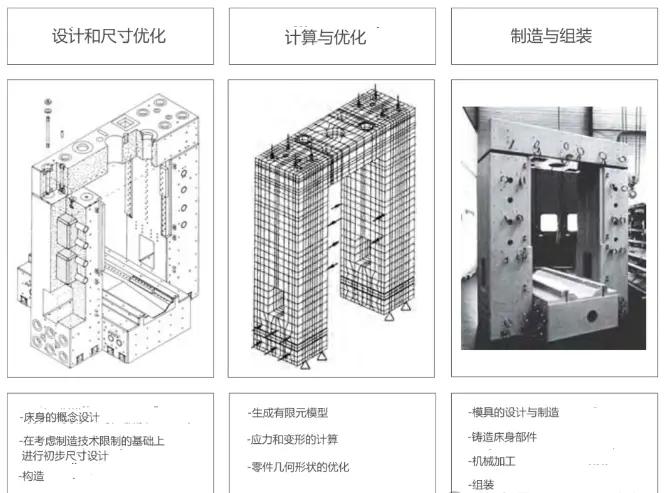

Design and Calculation of a Mineral Molded Machine Tools Bedroom

• 1
  Why a mineral molded machine tools bedroom damps better than cast iron
• 2
  How to calculate the section and the mold for a mineral molded machine tools bedroom
• 3
  Thermal control inside a mineral molded machine tools bedroom
• 4
  Mineral cast versus cast iron versus welded steel beds

The name comes from European machine-building practice, where the bed structure is often called the bedroom of the machine. A mineral molded machine tools bedroom is cast from a epoxy-bonded aggregate rather than melted iron. Quartz, granite or basalt grains are graded and bound with a low-viscosity resin, then cured at room temperature inside a mold.

The damping advantage is mechanical, not magical. Cast iron rings at its natural frequency and keeps ringing. A polymer-bonded aggregate has grain boundaries and a soft binder phase, so vibration energy turns into heat at every interface. Measured logarithmic decrement on mineral cast beds typically sits several times above grey iron, which is why surface finish improves on hard-to-cut materials.

Thermal behavior matters just as much. Mineral cast has low thermal conductivity and a thermal expansion coefficient close to steel, roughly 10–12 × 10⁻⁶ /K. A slow thermal response means the bed does not chase the ambient temperature of the shop. The trade-off is that heat generated at the guideways has nowhere to go, so the design has to route it away on purpose.

Stiffness is where mineral cast loses ground. Its elastic modulus is around 35–45 GPa, far below the 170 GPa of grey iron. The bed has to be thicker in section to reach the same static stiffness. Ribs, inserts and steel reinforcement are designed in from the first sketch, not added later.

• 1
  DampingGrain boundaries and binder absorb vibration, so chatter starts later.
• 2
  Thermal inertiaSlow response to shop temperature swings, but poor local heat removal.
• 3
  Modulus35–45 GPa means thicker walls and planned steel reinforcement.
• 4
  MassDensity near 2.2–2.4 g/cm³, so a large bed stays movable.

Start with the static loop, not the material. Define the cutting force at the tool tip, the overhang from the spindle nose to the bed, and the allowed deflection at the tool. For a precision milling bed, 10–20 μm total deflection under full load is a common target. From that number you solve for the required second moment of area.

Because the modulus is low, the section grows fast. Doubling wall thickness raises stiffness eight times in bending, but it also adds mass and curing volume. The usual answer is a box section with internal ribs spaced at 150–250 mm, and steel plates bonded into the tension zone. Those inserts carry the rail mounting surfaces and the leveling pads.

Mold design follows the section. The mold is usually welded steel or a machined pattern with a release taper of 1–3°. Wall thickness below 40 mm is hard to fill without voids, so thin features become steel inserts instead. Metal inserts for rails, motors and lifting eyes are located in the mold to ±0.2 mm, then finish machined after curing.

Curing is a calculation too. Large sections generate exotherm as the resin crosslinks, and the peak temperature depends on pour volume and grain grading. A coarse filler with a wide particle size distribution packs denser, needs less resin and runs cooler. High filler content also lowers shrinkage, which is what keeps the rail seats flat.

• 1
  Deflection budgetSet allowed tool-tip deflection first, then solve for section.
• 2
  Rib spacing150–250 mm between ribs keeps the box section stiff and fillable.
• 3
  InsertsLocate in the mold to ±0.2 mm, finish machine after cure.
• 4
  GradingWide particle size distribution cuts resin demand and shrinkage.

Heat enters the bed in three places: the guideways, the spindle housing interface and the drive mounts. Mineral cast moves heat slowly, so a local hot spot stays local and turns into a local bump. The fix is a coolant circuit cast into the mold, not a fan blowing on the outside.

A practical route is double-layer copper tubing poured into the areas that see the most heat. On a grinding or high-speed milling bed, those areas are the upper surface of the bed, the inner face of the columns and the lower face of the crossbeam. Coolant at a controlled temperature then holds those zones within a few tenths of a degree.

For a large bed, this is where the cost sits. Tubing has to be bent, fixed and pressure tested before the pour. A leak found after curing means scrapping the casting. Pressure test at 1.5 times working pressure and hold it through the whole cure cycle.

The reward is predictable geometry. A bed that holds its shape within a few microns over an eight-hour shift lets you keep tolerance without constant compensation. That is the real reason mineral casting shows up on precision grinding and measuring machines.
