Most buyers start with the piece price and negotiate down from there. In 5-axis work that number is a summary of four separate costs: programming and fixturing, non-cutting time, cutting time, and inspection. Only the third one shrinks meaningfully with volume. Programming is a one-time cost that gets divided across the batch, and fixturing is a real cost that either amortizes over your order or gets charged back to you.

Non-cutting time is the quiet one. Tool changes, table indexing, chip clearing and probe cycles all happen while the spindle is not cutting. On a part with a 40-minute cycle, 10 minutes of that can easily be non-cutting. Across 5,000 pieces that is 833 hours of machine time you paid for and did not get. Ask a supplier how they plan to reduce it, and listen for answers about tool grouping and probe routines rather than vague claims about speed.

Cutting time is governed by material and geometry. Aluminium 6061 and 7075 cut fast and clean. Stainless 316L, 17-4PH and titanium Ti-6Al-4V cut slowly, wear tools faster, and often need lower feed rates to hold a finish. If your part is titanium and your target price was built on an aluminium quote, the gap is not the supplier's margin. It is the material.

• 1
  Programming and fixturesOne-time, amortized across the batch. Larger batches hurt less.
• 2
  Non-cutting timeTool changes, indexing, probing. Reducible by process design.
• 3
  Cutting timeSet by material and geometry. Hard to negotiate away.
• 4
  InspectionFull inspection costs more per hour but prevents a bad shipment.

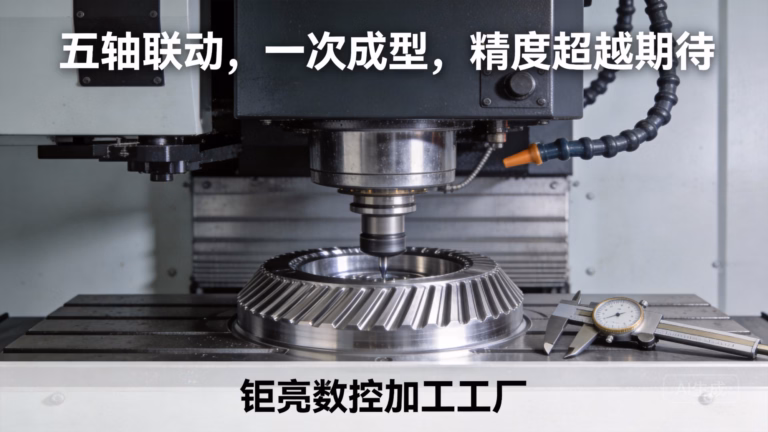

Five-axis work earns its cost when a part has features on multiple faces, angled holes, contoured surfaces, or tight true position between features machined from different directions. If a part needs three setups on a 3-axis machine and those setups stack tolerance, one 5-axis clamping removes the stack entirely. That is a quality gain, not just a cost gain.

It also wins on parts with deep pockets and thin walls where the tool needs to approach at an angle. A tilted tool holder reaches areas a vertical tool cannot, which often removes the need for EDM or a second operation. For housings, manifolds, impellers, brackets and structural nodes, this is usually the deciding factor.

It is the wrong choice for simple prismatic parts. A flat plate with a few holes and a pocket should run on a 3-axis machine. Putting it on a 5-axis center ties up expensive capacity and raises the hourly rate for no benefit. If a supplier proposes 5-axis for a part that fits a 3-axis envelope, ask why. Sometimes there is a good answer, and sometimes they are selling capacity rather than solving your problem.

Very large parts are a separate case. Our largest travel reaches 4,000 × 400 × 150 mm and a Ø400 mm rotary table handles round work. Beyond that envelope, the part becomes a different project, not a different quote.

• 1
  Good fitMulti-face features, angled holes, contoured surfaces, thin walls.
• 2
  Poor fitFlat plates and simple prismatic parts that fit a 3-axis envelope.
• 3
  Size limit4,000 × 400 × 150 mm travel, Ø400 mm rotary table.

At one or two pieces, a fillet radius or a chamfer is a detail. At 10,000 pieces it is a line item. A DFM review before the batch starts is the cheapest engineering hour you will buy, because every change made in CAD costs nothing and every change made after the first fixture is cut costs real money.

Start with corner radii. A pocket corner that matches the cutter diameter lets the tool roll through the corner instead of stopping and reversing. That single change can take seconds off a cycle and add tool life. Deep pockets with sharp internal corners force small tools, and small tools mean slow feeds and frequent replacement.

Next, look at tolerances that were copied from an old drawing. If a bore is called out at ±0.005 mm but only locates a loose pin, relaxing it to ±0.05 mm removes a finishing pass. Do the same audit on surface finish. Ra 0.8–1.6 μm is a normal machined finish. Ra 0.2–0.8 μm is a fine finish that costs extra time. If the drawing demands the fine finish everywhere but the part only seals on one face, you are paying for cosmetics.

Material substitution is the last lever and often the largest. Switching from 316L to 304 for a non-corrosive application, or from 7075 to 6061 where strength allows, changes tool wear and cycle time immediately. Any substitution needs engineering sign-off, but the review itself is free.

A prototype shop and a production shop look similar on a website. They behave differently under load. The first question is capacity. Ask how many simultaneous 5-axis centers the shop runs and how many are dedicated to production work. A shop with one or two machines cannot absorb your ramp without pushing other customers, and your lead time becomes the variable that absorbs the shock.

The second question is the inspection plan. Sampling inspection is normal for high-volume simple parts. For 5-axis parts with stacked tolerances, 100% inspection before shipment is the safer default. Ask for the report format and whether raw material certificates come with the shipment. If the answer is that reports are available on request, that is fine. If the answer is that reports cost extra on every order, factor that into the comparison.

The third question is confidentiality. If your drawings carry IP, ask about an NDA before you upload anything, not after. A supplier who treats that as an unusual request is telling you something about how they handle files.

Finally, ask who owns the fixture after the run. If the fixture is charged to you, it should be yours, and it should be stored or shipped with the last delivery. Fixtures that disappear between orders mean you pay for them twice.

• 1
  Capacity under loadAsk how many 5-axis centers serve production, not prototypes.
• 2
  Inspection plan100% inspection before shipment for tight-tolerance parts.
• 3
  NDA before uploadSettle confidentiality before drawings leave your building.
• 4
  Fixture ownershipIf you pay for it, it should be stored or shipped to you.

A quotation that lists one number per part is not enough to compare suppliers. Ask for the breakdown: material, machining, finishing, inspection and packaging. When two quotes differ by 30 percent, the breakdown usually shows that one supplier included anodizing and the other did not, or that one priced 100% inspection and the other priced sampling.

Watch for the setup charge line. If it is zero, it is buried in the piece price, which is fine for large batches and bad for small ones. If it is large and fixed, you want to know how many setups it covers and whether a design change resets it.

Finishing is the most common source of surprise. Anodizing, electroless nickel, powder coating and laser marking are separate processes with separate lead times. Laser marking has a practical minimum character height of 1.5 mm, so a fine logo may need a different method. Confirm the finish callout on the drawing matches the finish line on the quote.

Finally, ask how the supplier handles a partial shipment. Bulk orders rarely ship as one block. If parts ship in 3 to 5 days after production starts, the batch may move in waves. Agree on whether partial shipments are allowed and who pays the freight on each wave.
