In the world of modern manufacturing, where precision, efficiency, and repeatability are paramount, the CNC machine stands as the undisputed backbone. For clients and engineers seeking precision parts machining and customization, understanding how this remarkable technology functions is key to appreciating its capabilities and making informed decisions for your projects. At its core, a CNC (Computer Numerical Control) machine is a sophisticated tool that transforms digital blueprints into physical realities with astonishing accuracy. Let’s demystify the inner workings of this engineering marvel.
The Central Nervous System: The CNC Controller
Imagine a master craftsman with a perfect memory, unwavering focus, and the ability to move tools with superhuman precision along perfectly calculated paths. This is essentially the role of the CNC controller, the computer at the heart of the system. It is the digital brain that interprets a part’s design, written in a language called G-code, and converts it into precise electrical signals. These signals dictate every single movement—the speed of the spindle, the direction and distance of the cutting tool, the flow of coolant, and the rotation of the workpiece.
Key Mechanical Components in Concert
A CNC machine, whether a mill, lathe, or router, integrates several critical mechanical subsystems that work in harmony under the controller’s command.
The Machine Frame and Bed: This is the foundation. Typically made from heavily ribbed cast iron or polymer composites, it provides the rigid, vibration-damping structure necessary to maintain precision under cutting forces. Any flex or resonance here would directly translate into inaccuracies on the finished part.
Drive System and Motion Control: This is the “muscle.” It consists of:
Servo Motors or Stepper Motors: These are high-precision electric motors that provide rotational force.
Ball Screws and Linear Guides: The rotational motion from the motors is converted into precise linear movement along the X, Y, and Z axes via ball screws. These components ride on linear guides, ensuring smooth, friction-minimized, and backlash-free motion. This system is what allows a tool to be positioned within microns of its intended location.
The Spindle: Often called the “heart” of a machining center, the spindle is a high-speed, high-precision motor that rotates the cutting tool. Its power (measured in kW or HP), maximum speed (RPM), and rotational accuracy are critical for determining the types of materials that can be cut and the surface finish achievable.
Tool Changer: For complex parts requiring multiple operations (drilling, tapping, milling different contours), an automatic tool changer (ATC) is indispensable. It holds a magazine of pre-set tools and, under program control, swaps them in and out of the spindle in seconds, enabling uninterrupted, high-efficiency production.
Workholding and Table: This system secures the raw material (stock) firmly in place. It can be a simple vise, a mechanical fixture, or a sophisticated vacuum chuck or tombstone. On advanced machines like 5-axis CNC systems, the table itself can rotate and tilt (A, B, or C axes), presenting the workpiece to the tool from virtually any angle without requiring manual repositioning.
The Digital-to-Physical Workflow: From CAD to Finished Part
The operation of a CNC machine is a seamless flow of digital information into physical action. Here’s the step-by-step journey:
Design (CAD): The process begins with a 3D Computer-Aided Design (CAD) model of the part. This digital model defines every dimension, curve, and hole with exacting detail.
Programming (CAM): The CAD file is imported into Computer-Aided Manufacturing (CAM) software. Here, a manufacturing engineer defines the machining strategy: selecting tools, setting cutting speeds and feeds (SFM & FPT), defining toolpaths, and establishing sequences of operations. The CAM software then translates this strategy into the G-code program—a series of alphanumeric commands the CNC controller understands.
Setup: The machinist secures the raw material (aluminum billet, steel block, titanium alloy, etc.) onto the machine table using the appropriate workholding. The correct cutting tools are loaded into the spindle or tool magazine. Critical reference points on the workpiece and tools are “taught” to the machine controller in a process called “setting work and tool offsets.”
Execution: The operator initiates the program. The CNC controller reads the G-code line by line, sending signals to the drive motors to move the tool and/or workpiece along the programmed paths. The spindle spins at the commanded speed, and the cutting tool engages with the material, removing it layer by layer (in a subtractive process).
In-Process Assurance: Modern machines often feature probe systems that can automatically measure tool wear or check part features mid-program, making adjustments to ensure the final part stays within tolerance.

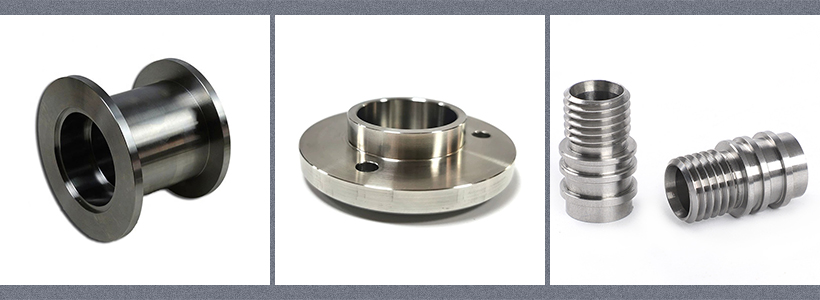

Completion: Once the cycle is complete, the machine stops. The finished part is unloaded, often ready for secondary operations or a one-stop post-processing and finishing service like anodizing, plating, or painting.
The Evolution: Multi-Axis Machining and Beyond
While a basic 3-axis CNC machine moves a tool in three linear directions (X, Y, Z), the true power for complex, precision parts machining is unlocked with multi-axis capabilities.
4-axis CNC: Adds a rotational axis (usually A-axis), allowing machining around the sides of a part in a single setup.
5-axis CNC machining: Simultaneously moves the tool or part along five different axes. This allows for accessing undercuts, creating complex organic geometries, and machining angled features with superior surface finish and accuracy in a single setup, dramatically reducing lead time and potential errors from multiple fixturing.
This is where partnering with an expert like GreatLight CNC Machining Factory becomes a strategic advantage. With our extensive arsenal of advanced five-axis CNC machining equipment, we specialize in solving the most challenging metal parts manufacturing problems. Our ability to handle complex geometries in a single setup minimizes cumulative tolerance errors and accelerates your time-to-market.
Conclusion: Precision Engineered Through Synergy
So, how does a CNC machine work? It is the perfect synergy of robust mechanical engineering, precise motion control, and intelligent digital command. It takes the creativity embedded in a CAD model and faithfully replicates it in metal, plastic, or composite materials with a level of consistency and precision unattainable by manual methods. For industries ranging from aerospace and medical devices to automotive and robotics, this technology is indispensable.
For your next project requiring precision parts machining and customization, choosing a partner with deep technical mastery of this technology is crucial. GreatLight CNC Machining Factory leverages this mastery—combined with stringent ISO 9001:2015 certified quality processes and a comprehensive one-stop post-processing capability—to deliver not just parts, but reliable, high-performance solutions. We transform your complex designs into reality, ensuring every piece meets the highest standards of accuracy and quality.
Frequently Asked Questions (FAQ)
Q1: What’s the main difference between CNC and conventional machining?
A: The core difference is automation and control. Conventional machining relies on a skilled machinist manually operating levers and wheels to guide the tool. CNC machining is fully automated by a computer program (G-code), ensuring unmatched repeatability, complexity, speed, and precision across every single part in a production run.
Q2: What materials can a CNC machine work with?
A: CNC machines are incredibly versatile. They can process a vast range of materials, including:
Metals: Aluminum, Stainless Steel, Titanium, Brass, Copper, Inconel, Tool Steels.
Plastics: ABS, Nylon (PA), Polycarbonate (PC), PEEK, Delrin (POM).
Composites: CFRP (Carbon Fiber Reinforced Polymer), G10.
Wood and Foam (for prototyping and molds).
Q3: How precise can CNC machining really be?
A: While tolerances depend on the machine, tooling, material, and part size, standard precision machining typically holds tolerances of ±0.025 mm (±0.001 inches). High-precision machining, as offered by specialists like GreatLight CNC Machining Factory, can achieve tolerances as tight as ±0.001mm for critical features, which is essential for aerospace, medical, and optical components.
Q4: Is CNC machining only for high-volume production?
A: Absolutely not. While excellent for mass production, CNC is equally valuable for low-volume and customized precision machining. Its digital nature makes it cost-effective for prototypes, bridge tooling, and custom one-off parts because there is no need for expensive hard tooling like injection molds. You only pay for the programming and machine time.
Q5: Why should I consider a 5-axis CNC over a 3-axis for my part?
A: Consider 5-axis CNC machining if your part has complex contours, undercuts, deep cavities, or features on multiple angled faces. The primary benefits are:
Single Setup: Complete the part in one clamping, saving time and eliminating alignment errors.
Complex Geometry: Machine shapes impossible with 3-axis.
Improved Surface Finish: Allows optimal tool orientation for better cutting conditions.
Shorter Tools: Can use shorter, more rigid tools, reducing vibration and improving accuracy.
