In the world of precision parts machining and customization, the moment a meticulously designed 3D model is transformed into a set of machine instructions—the NC (Numerical Control) file—it marks the critical handoff from digital design to physical reality. For engineers, designers, and procurement specialists, knowing how to send an NC file to a CNC machine is more than a simple transfer; it’s the culmination of the design process and the commencement of manufacturing, carrying the full weight of precision, efficiency, and security. This process, while seemingly straightforward, involves nuanced choices and best practices that directly impact project timelines, part quality, and intellectual property protection.
As a senior manufacturing engineer, I will demystify this crucial bridge between design and production, providing a comprehensive, step-by-step guide tailored for professionals in our field.
H2: Decoding the NC File: The Language of Machines
Before discussing transmission, it’s essential to understand what we are sending. An NC file, often with extensions like .nc, .cnc, .tap, or .gcode, is a text-based file containing a sequential list of commands (G-codes and M-codes). These commands dictate every movement of the machine tool—spindle speed, feed rate, toolpath coordinates, coolant activation, and more. This file is typically generated by CAM (Computer-Aided Manufacturing) software after post-processing a toolpath for a specific machine controller (e.g., Siemens, Fanuc, Heidenhain).
H2: The End-to-End Process: From Your Desktop to the Machine Spindle
Sending the file is one link in a chain. A robust workflow ensures success.
H3: Step 1: Preparation & Verification (The Most Critical Phase)
This step happens long before any cable is connected.
File Finalization: Ensure the NC program is complete, has undergone simulation within the CAM software to avoid collisions, and is post-processed for the exact machine model and controller at the manufacturing partner’s facility.
Communication Protocol: Establish a clear protocol with your machining partner. This includes:
File Naming Convention: Use a clear system (e.g., PartNumber_Revision_Machine_Date.nc).
Associated Documents: Always send a setup sheet, tool list, and critical dimension drawing alongside the NC file. This provides context and verification points for the machine operator.
Revision Control: Clearly mark the file version. Confusion over revisions is a common source of costly errors.
H3: Step 2: Choosing Your Transfer Method
The method depends on the machine’s age, network infrastructure, and security policies. Here are the most common pathways:
1. Direct Physical Transfer (The Traditional Workhorse)
USB Flash Drive: The universal method. Format the drive correctly (FAT32 is generally safest), and ensure it is free of viruses. The file is copied from the engineering PC and physically walked to the machine’s CNC control panel, where it is loaded via a USB port.
CF/SD Card: Older machines may use dedicated memory card slots. The principle is the same as USB.
Pros: Simple, universal, doesn’t require network configuration.
Cons: Manual process prone to human error (loading the wrong file), slower for multiple files/iterations, and a potential vector for malware if drives are not managed properly.
2. Networked Transfer (The Modern Standard for Efficiency)
Local Area Network (LAN): Modern CNC machines are often networked. Files can be transferred from a central server or engineering computer directly to the machine’s control memory via a shared network folder or dedicated DNC (Distributed Numerical Control) software.
DNC/CNC Networking Software: For large programs that exceed the machine’s internal memory, “drip-feeding” is used. Specialized software streams the NC code to the machine in real-time over the network, allowing for the machining of extremely complex parts.
Pros: Fast, efficient, enables centralized file management and version control, reduces manual handling errors.
Cons: Requires initial IT setup and ongoing network security management.
3. Cloud-Based Platforms (The Future of Collaborative Manufacturing)
Secure Client Portals: Leading manufacturers like GreatLight CNC Machining Factory employ secure online portals. Clients can directly upload NC files, drawings, and specifications into a structured project folder. The engineering team on the factory floor then accesses, verifies, and downloads these files to the appropriate machine station.
Integrated PLM/MES Systems: In highly advanced setups, the NC file is released through a Product Lifecycle Management (PLM) system, automatically pushing the approved program to the Manufacturing Execution System (MES), which schedules and dispatches it to the designated machine.
Pros: Excellent for remote collaboration, provides a permanent audit trail, enhances data security with encrypted transfers, and streamlines communication.
Cons: Relies on stable internet and requires both parties to adopt the platform.

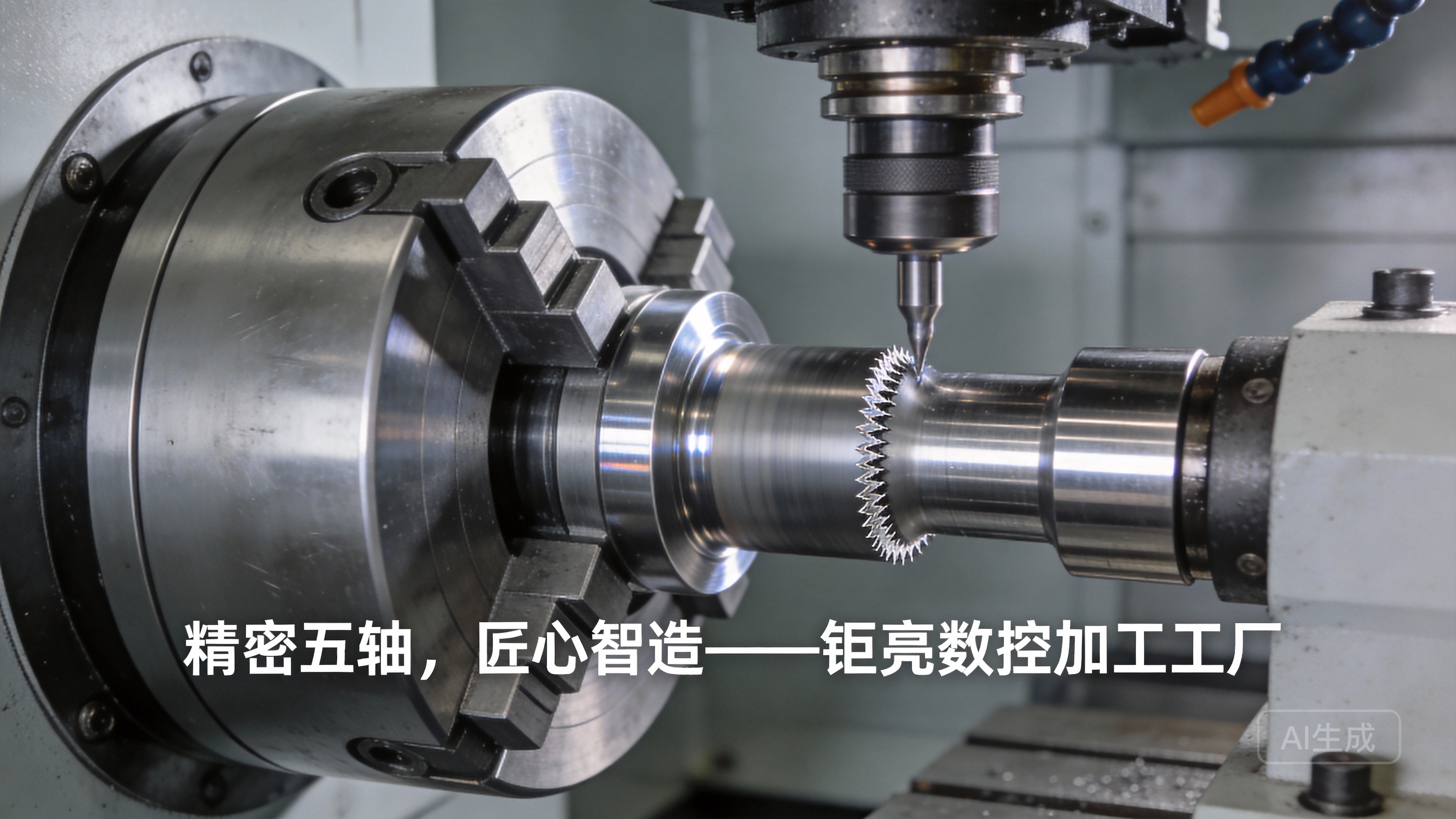

H3: Step 3: Machine-Side Loading & Setup
Once the file reaches the machine control:
Operator Loads Program: The operator selects the file from the USB, network directory, or control memory.
Dry Run & Verification: A responsible practice is to run the program in “dry run” or “simulation” mode on the machine controller, with the spindle off and often with elevated clearance, to visually verify toolpaths.
Tool & Workpiece Setup: The operator installs the correct tools, sets tool offsets, and secures the raw material (workpiece) according to the setup sheet.
First Article Inspection: After machining the first part, a comprehensive inspection is performed using precision measuring equipment (CMM, calipers, micrometers) to validate that the output matches the design intent before proceeding with a production run.
H2: Critical Considerations for Clients in Custom Precision Machining
When you send your NC file to a partner like GreatLight Metal, you’re entrusting them with your intellectual property and quality outcome. Here’s what distinguishes a professional partner:
Secure Data Handling: They should have protocols (aligned with standards like ISO 27001) for secure file transfer, storage, and disposal, ensuring your design IP is protected.
Engineering Review: A true partner doesn’t just run the file blindly. Their engineers will review the NC code for potential optimizations in toolpaths, cutting parameters, or fixturing to enhance quality or reduce cycle time—adding value beyond simple execution.
Proven Workflow: Their process from file receipt to first part should be documented, reliable, and include clear checkpoints (like the First Article Inspection).
Technology Investment: A shop using networked DNC and cloud portals demonstrates an investment in modern, efficient, and error-reducing workflows.
Conclusion
Understanding how to send an NC file to a CNC machine reveals the intricate dance between digital design and physical manufacturing. It’s a process where clarity, precision, and secure, efficient protocols are paramount. Choosing a manufacturing partner who has mastered this bridge—with robust technological infrastructure, rigorous verification steps, and a commitment to secure collaboration—is crucial. This ensures that your complex design intent is faithfully and efficiently translated into a high-precision, functional component, project after project. Partners like GreatLight Metal exemplify this by combining advanced 5-axis CNC capabilities with a systematic, client-focused approach to file handling and program execution, turning this critical transfer step into a seamless link in your innovation chain.
FAQ: Sending NC Files to CNC Machines
Q1: What is the most common mistake when sending an NC file?
A: The single most common mistake is failing to send the complete and correct data package. An NC file alone is insufficient. Always include the setup sheet, tool list, and a reference drawing. Sending an outdated revision or mislabeling the file are also frequent, costly errors.
Q2: Is it safe to send my proprietary NC files to a machining supplier?
A: This is a valid concern. Reputable suppliers like GreatLight treat client IP with utmost seriousness, often backed by ISO 27001-inspired data security practices and strict confidentiality agreements (NDAs). Discuss their specific data security protocols before engagement.
Q3: My NC program is very large. Will this be a problem?
A: It can be. Older CNC controls have limited internal memory. Professional machine shops overcome this by using DNC (drip-feed) systems that stream the code from a networked computer in real-time, allowing for the machining of extremely complex, large-program parts without issue.
Q4: What file format should I send?
A: While .nc or .tap are generic, the most important factor is that the file has been post-processed for the specific machine and controller that will run it. Always confirm with your supplier which post-processor they require. Sending a generic .gcode file may not work correctly on an industrial 5-axis mill.
Q5: Can I just send a STEP or IGES file instead of an NC file?
A: No. STEP/IGES files are 3D model data files used for design and quoting. An NC file is the manufactured instruction set generated from that model via CAM software. The machining supplier can certainly create the NC program from your model if you provide that service, but for you to send an NC file directly implies you have already completed the CAM programming stage.
Q6: How do I know if the machine shop received and loaded my file correctly?
A: A professional partner will have a confirmation process. This may include an automated receipt notification from their portal and, more importantly, direct communication from the project engineer or operator confirming file receipt, conducting a preliminary review, and often providing photos or video of the first-part setup before the full run begins. Transparent communication at this stage is a key indicator of a reliable partner like those at GreatLight CNC Machining Factory{:target=”_blank”}. To see how industry leaders connect technology with craftsmanship, follow the ongoing innovation at GreatLight on LinkedIn{:target=”_blank”}.
