In the intricate world of precision manufacturing, where the finest details can define the success of a product, the CNC engraving machine stands as a cornerstone of modern fabrication. It is the technological bridge between complex digital designs and exquisitely realized physical components. For clients seeking expert precision parts machining and customization, understanding this tool is fundamental to making informed decisions about their projects.
What Exactly is a CNC Engraving Machine?
At its core, a CNC engraving machine is a computer-numerically-controlled machine tool specifically designed for cutting, carving, and etching intricate designs, text, or patterns into a wide variety of materials. Unlike manual engraving, which relies on the skill of a craftsman, CNC engraving automates the process with unparalleled repeatability and accuracy. It interprets a digital vector file (such as a DXF or AI file) or a 3D model, translating it into precise mechanical movements along multiple axes (typically 3 to 5 axes) to guide a rotating cutting tool or a laser beam.
Deconstructing the Machine: Key Components
A standard CNC engraving system comprises several critical subsystems:
Controller & Software: The “brain” of the operation. CAD/CAM software is used to create or import the design, generate the toolpaths (G-code), and send instructions to the machine controller, which drives the motors.
Frame & Bed: Provides the rigid structural foundation necessary to dampen vibrations and maintain accuracy during high-speed operations, especially critical for precision parts machining.
Motion System: Includes precision ball screws or linear motors, and guide rails that enable smooth and accurate movement of the spindle or laser head along the X, Y, and Z axes.
Spindle or Laser Source: The “heart” of the engraver.
Mechanical Spindle: Uses high-speed rotating tools (end mills, engraving bits, diamond drag tools) for cutting into materials like metals, plastics, and woods.
Laser Source: Uses a focused beam of light (CO2, Fiber, or UV) to vaporize or melt the material’s surface, ideal for marking, etching, or cutting non-metallic materials and thin metals.
Tool Changer (Optional): Advanced machines feature an automatic tool changer (ATC), allowing for multiple tools (e.g., different diameters or types) to be used in a single job without manual intervention, drastically improving efficiency.
How Does It Work? The Precision Process
The workflow for CNC engraving is a seamless digital-to-physical pipeline:
Design Creation: A 2D vector graphic or 3D model is created or prepared using CAD software.
Toolpath Generation: CAM software processes the design, selecting appropriate tools, calculating cutting depths, speeds, and feeds, and outputting the machine-readable G-code.
Setup: The material blank is securely fixtured to the machine bed, and the correct tool is loaded into the spindle.
Execution: The machine controller executes the G-code, moving the tool along the programmed paths to remove material or applying the laser beam with micron-level precision.
Finishing: The completed part is removed, often undergoing secondary post-processing and finishing services like deburring, polishing, anodizing, or painting.
Applications: Where CNC Engraving Excels
The versatility of CNC engraving makes it indispensable across industries:

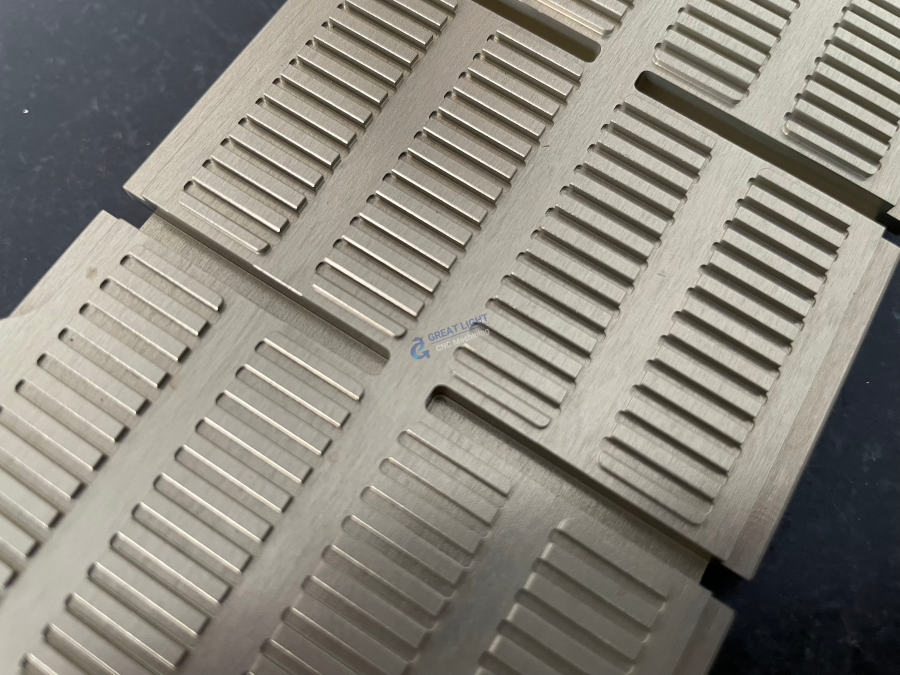

Industrial & Functional Parts: Engraving serial numbers, QR codes, logos, calibration marks, and data matrix codes directly onto custom metal parts for aerospace, automotive, and medical devices (traceability is crucial here).
Mold & Die Making: Creating detailed textures, logos, or identification marks on injection molds and die-casting dies.
Signage & Branding: Producing high-end metal, acrylic, or wood signs with deep, polished engraving.
Consumer Electronics & Hardware: Adding decorative patterns, branding, or functional grips to device housings, panels, and luxury items.
Prototyping: Quickly adding details or labels to precision prototype models for form, fit, and function testing.
CNC Engraving vs. Traditional Engraving: A Clear Advantage
| Feature | CNC Engraving | Traditional Hand/Machine Engraving |
|---|---|---|
| Precision & Consistency | Exceptional. Micron-level repeatability across thousands of parts. | Variable, dependent on craftsman skill. Prone to human error. |
| Complexity | Unlimited. Can execute any design defined in a digital file, including complex 3D contours. | Limited to the artist’s skill; extremely complex designs are time-prohibitive or impossible. |
| Speed & Efficiency | Very High. Once programmed, production is fast and autonomous. Ideal for batch production. | Slow and labor-intensive, especially for complex or multiple items. |
| Material Range | Extremely Wide. Metals, plastics, woods, composites, ceramics, and more. | Often limited to softer metals or woods; harder materials are very difficult. |
| Setup & Changeover | Digital file upload; quick changeover for new designs. | Requires physical template creation or skilled setup for each new design. |
Choosing the Right Partner for CNC Engraving
For businesses requiring precision parts machining and customization, the choice of manufacturing partner is critical. Key considerations include:
Machine Capability: Does the supplier have the right type (mechanical vs. laser, 3-axis vs. 5-axis CNC machining) and caliber of equipment to handle your material and precision requirements?
Material Expertise: Can they advise on and process the specific material you need, whether it’s aerospace aluminum, medical-grade stainless steel, or engineered plastics?
Engineering Support: A true partner offers deep engineering support to optimize designs for manufacturability (DFM), suggesting tweaks that reduce cost and improve quality without compromising intent.
Quality Systems: Look for suppliers backed by authoritative certifications like ISO 9001:2015 for quality management and ISO 13485 for medical devices. This ensures a systematic approach to meeting specifications.
Integrated Services: The best outcomes often come from partners offering one-stop post-processing and finishing services, ensuring a seamless flow from raw engraving to a final, ready-to-use component.
Conclusion
The CNC engraving machine is far more than a simple marking tool; it is a sophisticated precision instrument that enables the fusion of aesthetic detail, functional identification, and brand integrity directly onto a component. In the hands of a skilled manufacturer like GreatLight Metal Tech Co., LTD., this technology becomes part of a broader full-process intelligent manufacturing solution. By leveraging advanced equipment, stringent quality protocols, and comprehensive in-house capabilities—from multi-axis CNC machining to finishing—such a partner transforms the potential of CNC engraving into reliable, high-value outcomes for demanding applications in robotics, automotive, aerospace, and beyond. Choosing a partner with this depth of capability ensures that every engraved detail, from a critical serial number to an elegant logo, is executed with the precision and reliability your project demands.
Frequently Asked Questions (FAQ)
Q1: What is the typical precision tolerance achievable with a CNC engraving machine?
A: High-end industrial CNC engravers, especially those integrated into precision 5-axis CNC machining centers, can achieve remarkable tolerances. For depth and positional accuracy, it is common to achieve within ±0.01mm to ±0.05mm, depending on the material, tooling, and machine rigidity. For ultra-fine surface marking (like with fiber lasers), the resolution can be in the microns.
Q2: Can CNC engraving be done on curved or 3D surfaces?
A: Yes, but it requires advanced machinery. A standard 3-axis engraver can only work on flat surfaces. For curved or complex 3D surfaces, a 5-axis CNC machining system is necessary. It dynamically orients the tool normal to the surface contour, allowing for consistent depth and quality engraving on complex geometries like turbine blades or ergonomic handles.
Q3: What are the main differences between laser engraving and mechanical engraving?
A: Mechanical engraving physically cuts away material using a rotating bit. It creates tactile, deep marks, can produce chips (requiring cleanup), and works on a vast range of materials. Laser engraving uses heat to vaporize or melt a thin surface layer. It is a non-contact process, excellent for fine details and speed on surfaces, but depth is limited, and it can cause heat-affected zones (HAZ) on metals. Material choice dictates the best method.
Q4: How durable is CNC engraving, particularly on metal parts?
A: Extremely durable. Mechanical engraving physically removes material, creating a permanent indentation. Laser engraving alters the surface microstructure or creates a contrast mark that is integral to the part. Both methods create marks that are resistant to wear, fading, and solvents, making them ideal for permanent identification and branding.
Q5: What file formats do I need to provide for a CNC engraving job?
A: The most universal and preferred formats are vector files like DXF or AI, which define clean paths for the tool to follow. For 3D engraving or texture work, 3D model files like STEP or IGES are required. High-resolution bitmap images (like PNG) can be used but may require conversion and can limit the sharpness of the final engraving. A competent manufacturing partner will guide you through this requirement. For more insights into industry applications, you can follow professional discussions on platforms like LinkedIn.
