In the world of precision manufacturing, where tolerances are measured in microns and complex geometries are the norm, understanding the fundamental language of your equipment is paramount. For anyone involved in specifying, designing, or procuring custom machined parts, a clear grasp of CNC machine axes is essential. Today, we delve into one of the most critical components of motion control: the Z axis on a CNC machine. This isn’t just theoretical knowledge; it’s the key to unlocking design possibilities, foreseeing manufacturing challenges, and ensuring the parts you receive meet your exact specifications.
At its most fundamental, the Z axis on a CNC machine represents the vertical axis of movement. In the standard Cartesian coordinate system (X, Y, Z) adopted by CNC programming, the Z-axis is typically perpendicular to the workpiece’s mounting surface or the machine table. While the X and Y axes control movement left-right and forward-backward to define a part’s footprint, the Z axis governs depth. It is the axis responsible for plunging the cutting tool into the material, controlling the depth of a hole, the height of a feature, or the contour of a complex 3D surface.
The Functional Role of the Z Axis: More Than Just Up and Down
Understanding the Z-axis as merely “vertical” is a good start, but its true role in precision machining is multifaceted:
Depth of Cut Control: This is its primary function. The precise incremental movement of the Z-axis determines how deeply the end mill, drill, or other tool engages with the workpiece. This directly controls feature dimensions like pocket depths, step heights, and blind hole depths.
Tool Approach and Retraction: Every machining operation requires a safe path for the tool to move to the start point and retract after cutting. The Z-axis coordinates are programmed for rapid positioning above the workpiece, controlled feed into the material, and safe retraction to avoid collisions.
3D Contouring and Complex Surface Generation: For advanced parts, the Z-axis does not operate in isolation. In 3-axis and, more powerfully, in 5-axis CNC machining, the Z-axis moves simultaneously and synchronously with the X and Y axes. This simultaneous interpolation is what allows for the milling of organic curves, inclined planes, and complex aerodynamic surfaces—common requirements in aerospace, automotive, and medical implants.
Tool Length Compensation: In practical machining, tools have different lengths. The machine control uses a Z-axis reference point (often set by touching off a tool probe) to automatically compensate for these variations, ensuring that a program written for one tool will run correctly with another of a different length.
Z-Axis Configuration: Mills vs. Lathes
It’s crucial to note that the interpretation of the Z-axis can differ between machine types:
On a CNC Milling Machine: The convention is that the Z-axis is the spindle axis. When standing in front of a typical vertical machining center (VMC), the spindle that holds the cutting tool moves up and down (Z), the table moves left-right (X), and in-out (Y). The positive Z-direction is usually away from the workpiece (tool retracting).
On a CNC Lathe: The coordinate system is different. On a lathe, the workpiece spins, and the tool moves. Here, the Z-axis is parallel to the spindle axis (the axis of rotation of the part). Movement along Z+ moves the tool away from the headstock (towards the right), controlling the length of the turned part. The X-axis controls the radial dimension (diameter).
Why Z-Axis Performance is a Critical Differentiator in Precision Machining
As a senior manufacturing engineer, I assess a machine shop’s capability not just by the number of axes but by the performance and integrity of each axis. The Z-axis, in particular, is a bellwether for overall machine health and precision. Here’s what separates a competent supplier from an exceptional partner like GreatLight Metal:
Rigidity and Thermal Stability: Any deflection or thermal expansion in the Z-axis column or ball screw under load will directly translate into depth errors. High-end machines, such as those in our stable, use thermally symmetric designs, core-cooled ball screws, and massively rigid column construction to minimize this effect, ensuring consistent precision even during long production runs.
Backlash Control: Backlash is the minute “play” or lost motion when an axis reverses direction. In the Z-axis, backlash can cause unacceptable errors in surface finish on contours and inaccurate depth dimensions. Premium machine tools employ pre-tensioned, double-nut ball screws and direct-drive technology to eliminate backlash.
Feedback Resolution: The precision of axis movement is governed by the feedback system (encoders). A high-resolution encoder on the Z-axis allows for incredibly fine step increments, which is essential for achieving mirror finishes and holding tight tolerances like the ±0.001mm we regularly commit to.

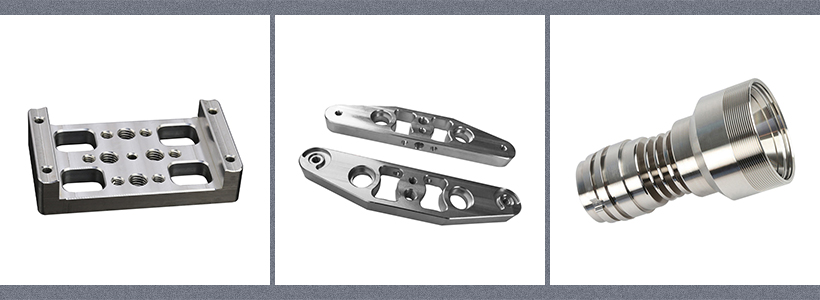

Practical Implications for Your Parts: The Z-Axis in Your Projects
When you submit a design for a quote, our engineers immediately analyze how the Z-axis will be utilized. Consider these common scenarios:
Deep Cavity Milling: Machining a deep, narrow pocket requires a long tool, which is prone to deflection. A robust Z-axis drive and advanced toolpath strategies (like trochoidal milling) are needed to maintain accuracy and prevent tool breakage.
Thin-Wall Machining: Creating tall, thin features requires exceptional Z-axis stability to avoid chatter and vibration that can ruin the part or its surface finish.
High-Aspect-Ratio Drilling: Drilling a deep, small-diameter hole is a severe test of Z-axis alignment and feed control. Any runout or inconsistency can lead to broken drills or out-of-spec holes.
At GreatLight Metal Tech Co., LTD., our investment in advanced 5-axis CNC machining centers is, in part, an investment in superior Z-axis capability—integrated within a system of simultaneous multi-axis control. This allows us to tackle challenges that stymie shops with less capable equipment.
Conclusion
So, what is the Z axis on a CNC machine? It is far more than a simple directional guide. It is the axis of depth, the arbiter of third-dimensional precision, and a critical indicator of a machine tool’s quality and a manufacturer’s capability. Understanding its function empowers you to design more manufacturable parts and to select a machining partner based on demonstrated technical competence rather than just quoted price. In precision parts machining and customization, control over the Z-axis is synonymous with control over the final quality of your component. For projects where vertical precision is non-negotiable, partnering with a manufacturer that masters this fundamental axis is the first step toward success.
Frequently Asked Questions (FAQ)
Q1: On a 5-axis CNC machine, is the Z-axis still just vertical?
A: In the machine’s base coordinate system, yes, the Z-axis is defined as perpendicular to the table. However, the power of 5-axis machining lies in the machine’s ability to tilt the tool or the workpiece. This means the cutting tool’s approach vector relative to the part can be angled, using the rotational axes (A, B, or C) in conjunction with linear X, Y, and Z movements. This allows the tool to maintain an optimal cutting posture, which is crucial for complex surfaces and deep undercuts.
Q2: How does tool wear affect Z-axis accuracy?
A: Tool wear, particularly at the end of an end mill, directly impacts the effective Z-position of the cutting edge. As the tool wears, a programmed depth cut will become shallower. Modern CNC shops use in-process tool monitoring and compensation systems to automatically adjust the Z-axis offset to account for wear, ensuring dimensional consistency throughout a production batch.
Q3: What is “Z-axis backlash” and how can I see its effect on a part?
A: Backlash in the Z-axis causes a slight delay or “dip” when the axis reverses direction from retracting to plunging (or vice versa). On a part, this might manifest as a visible line, ripple, or dimensional inaccuracy at the bottom of a pocket or on a contoured surface where the tool path changes direction along the Z-axis. High-precision shops meticulously eliminate this through machine maintenance and advanced control parameters.
Q4: My design has a critical blind hole depth. What should I specify to ensure accuracy?
A: Beyond calling out the nominal depth and tolerance (e.g., 10.00mm ±0.025mm), communicate the criticality of this dimension to your manufacturing partner. A reputable manufacturer like GreatLight will then plan the process accordingly, likely using a dedicated tool, specific feed/speed parameters, and post-process inspection with a height gauge or CMM to verify conformance.
Q5: For ultra-high-precision machining, what Z-axis specifications should I ask a potential supplier about?
A: Key questions include:
What is the machine’s positional accuracy and repeatability specifically for the Z-axis (often listed in microns)?
What type of feedback system is used (linear scales offer higher accuracy than rotary encoders)?
What is the machine’s thermal compensation strategy for the spindle and axes?
Can they provide evidence of capability via a Process Capability Index (Cpk) study for depth features?
Choosing a partner that can answer these questions authoritatively is choosing a partner committed to precision at the most fundamental level. For a deeper look at our technical capabilities and industry-focused solutions, connect with us on LinkedIn.
